Alctron MP73A 500 Series Microphone Preamplifier

MP73A 500 Series Microphone Preamplifier

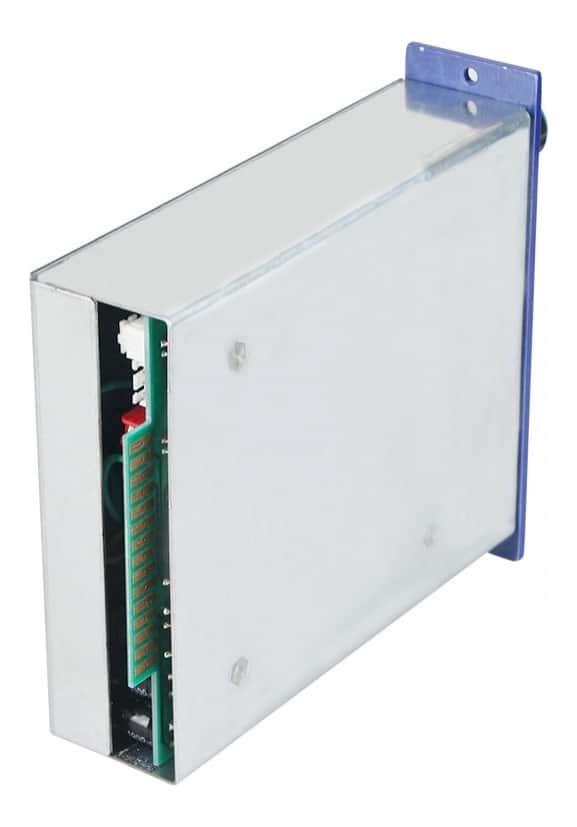

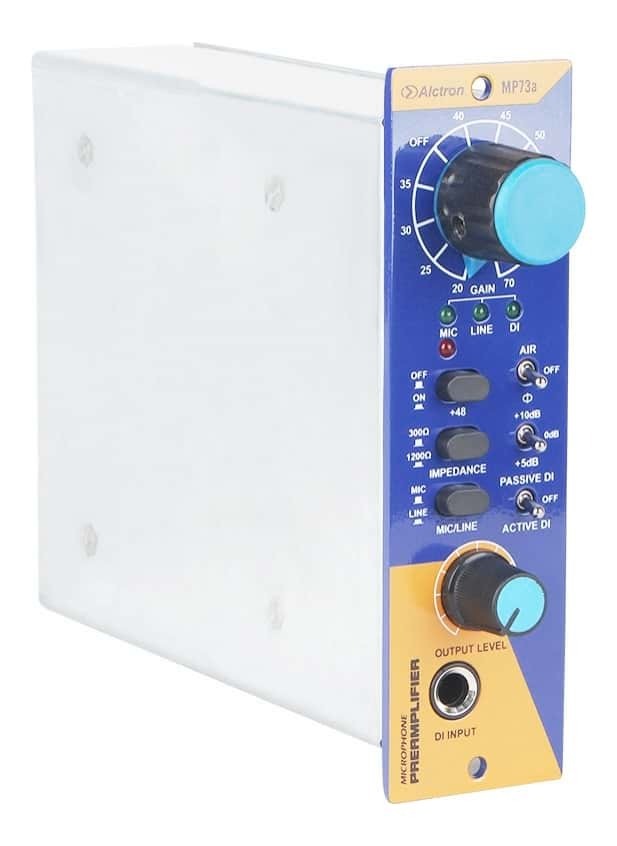

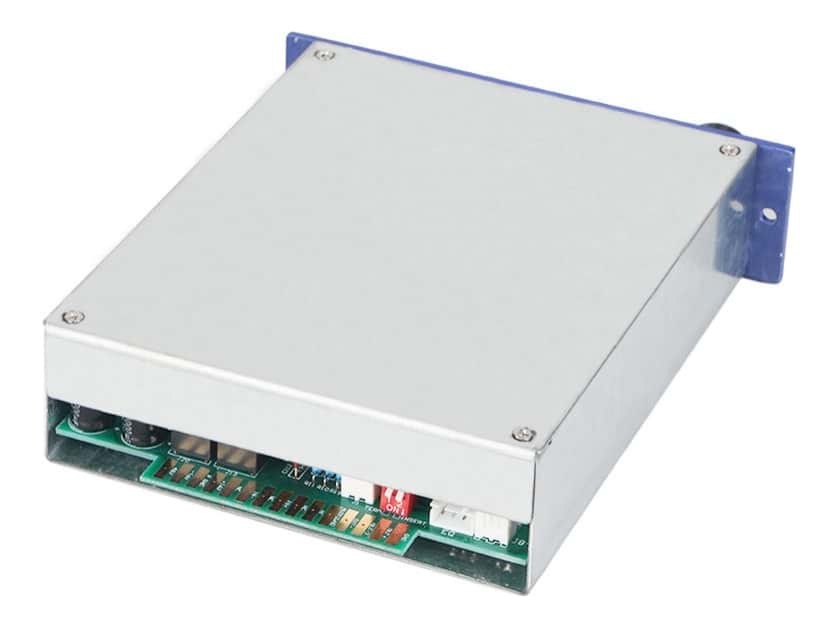

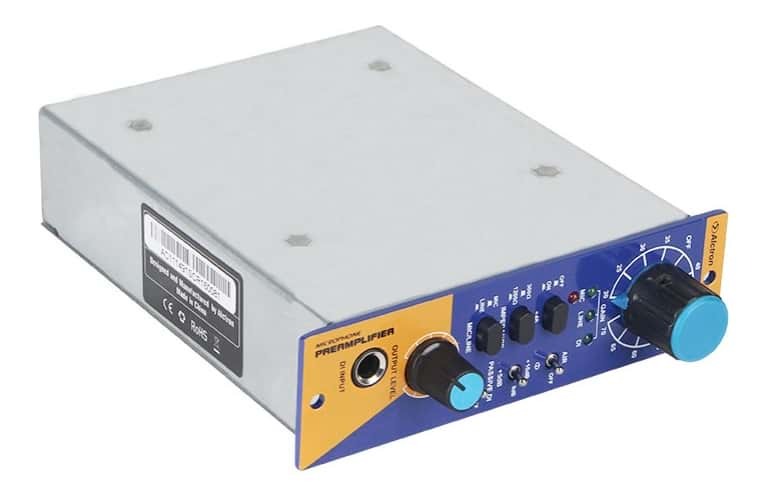

The MP73a is a 500 Series microphone preamp. It is a one-channel vintage style microphone, line and instrument preamplifier. Highly inspired by a certain 1073 preamp.

Warm Musical Character
The circuit used in the MP73a is similar to the preamp section in the classical 1073 module with a corresponding sound character described as warm and punchy, with a very musical character giving a lovely top. These classic characteristics have been heard on countless recordings through the years and it is a versatile sound that works very well on most sound sources and in most genres. This is a preamp suitable for most types of audio sources and is also excellent as DI.

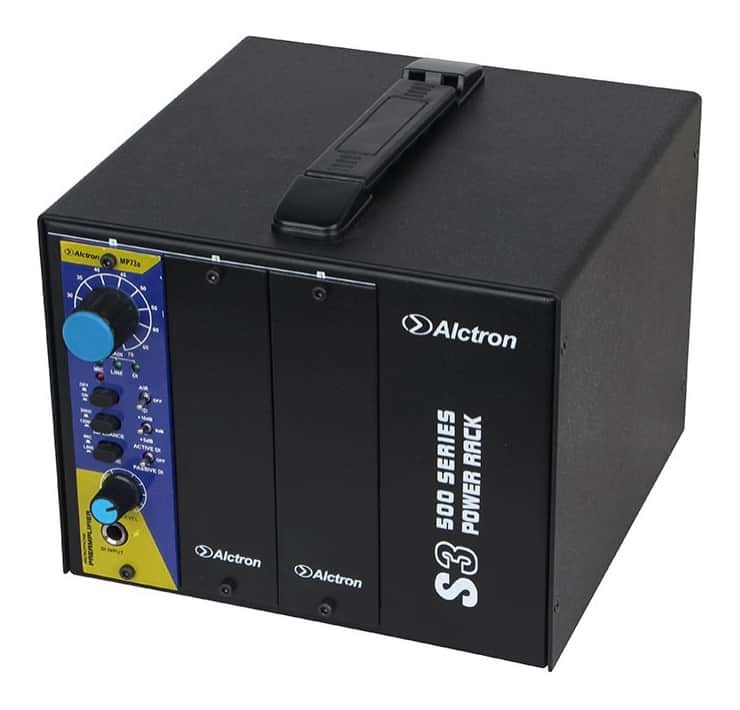

500 Series Modules
The popularity of 500 Series modules has increased greatly over the past 10 years. How wonderful to have various classic gear and put them in one portable rack. With the MP73a, this compact all-in-one module is particularly beneficial for high-density setups such as live recording where you want to capture the natural sound of the instrument while ensuring it does not go into the red.

Features:

• Vintage style electronic, no integrated circuits in the signal path
• Enough mic gain to handle passive ribbon mic with quiet sound sources
• Switchable impedance on the mic input, 1200ohm or 300ohm and phantom power with LED indicator
• A flexible front panel instrument input for additional sound sources
• Make fine gain adjustments and overload the main gain stage for more character
• The chassis is made from high-quality steel to provide extra shielding against stray magnetic and RF
• The circuit adopts high-quality component ensures low distortion and pure sound quality

Specifications:

• Vintage Style electronics, no integrated circuits in the signal path
• Transformer balanced, fully floating output
• Enough microphone gain to handle passive ribbon microphones with quiet sound sources
• Total gain range from -15 to +80 dB
• Switchable impedance on the microphone input, 1200 or 300 ohms
• Switchable phantom power with a LED indicator
• A flexible front panel instrument input for additional sound sources
• Make fine gain adjustments and overload the main gain stage(s) for more character
• Phase switch
• Selectable AIR equalizer adds a small boost above 10 kHz
• Selectable 600-ohm Output Termination at the back of the module
• Compatible with 500 series rack formats
• 48 volt Phantom Power
