• Audiocenter K-LA28-DSP Active 1600W RMS Dual 8" Line Array Speaker

    $1,529.99
    $1,699.99
    In Stock
    SAVE 10%
    Sale Ends:

    Audiocenter K-LA28-DSP Active DSP Controlled Dual 8" Line Array Speaker - 1600W RMS - 128dB Max SPL. Active DSP-controlled line array speaker, designed for high requirements of touring performance, rental and fixed installation. Beyma driver. The HF

    Audiocenter K-LA28-DSP Active DSP Controlled Dual 8" Line Array Speaker - 1600W RMS - 128dB Max SPL - Beyma Driver
    K-LA28-DSP, is an active DSP-controlled line array speaker, designed for high requirements of touring performance, rental and fixed installation.

    Custom Drivers from BEYMA
    The high frequency driver of K-LA28-DSP is a customized BEYMA driver with composite membrane (1.75” voice coil), and the low frecquency/mid frequency component is handled by customized dual 8" drivers (2” voice coil), also from BEYMA.

    DSP Controlled Crossover
    User selectable 3 presets (Linear,HFX,W/SUB) in K-LA28-DSP are available for the users to choose according to different environments and music styles.

    Flown or Stacked Compact Line Array

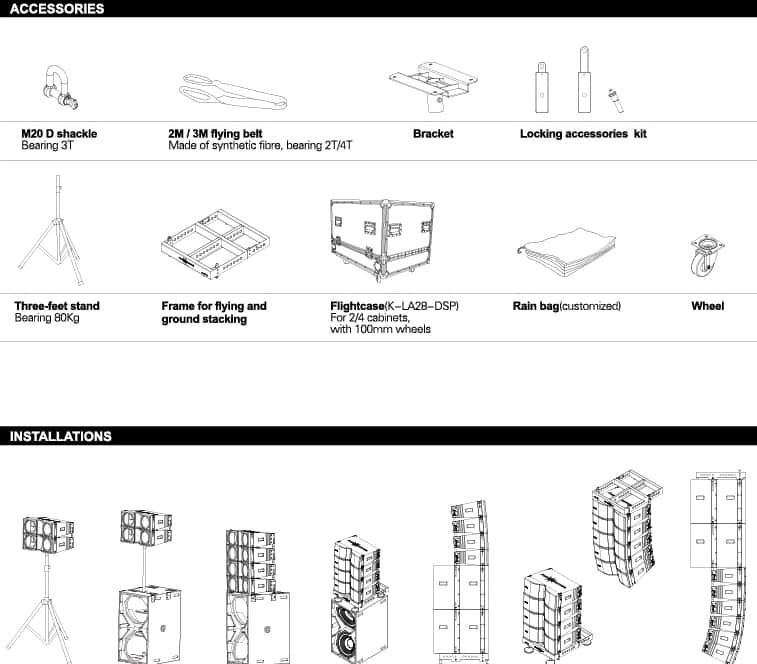

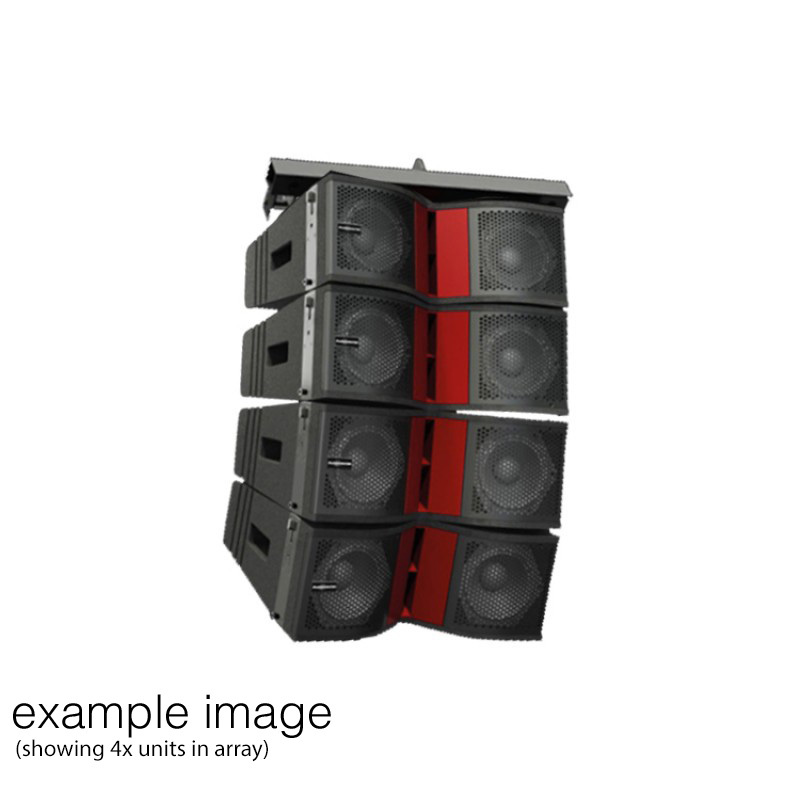

    K-LA28-DSP system can be used as main PA sound reinforcement with 2 cabinets at least and 16 cabinets maximum per array. Ground stack using 1x K-LA218-DSP and up to 2x K-LA28-DSP using a speaker pole, or up to 4x K-LA28-DSP using the 08-004-000071 flying/stacking frame. K-LA28-DSP can of course also be suspended vertically. The integrated hardware with innovative fast lock mechanics built-in to the cabinet with 9.5mm high intensity pins make installation easy and convenient. The system can be combined in modularization according to the coverage angle of place, which can meet the requirements of different applications. For those places where the system can not be flied, there are customised frames suitable for both ground stacking (maximum 4 cabinets) or stacking on the stand (maximum 2 cabinets) to meet different requirements of installation and reinforcement environment.  An extremely compact and versatile line array system designed for touring.

    Features:

    • Customized driver from Beyma
    • PTV phase plug design for an extremely precise dispersion, HF horn design ensures even coverage and optimized for smooth frequency response
    • Hi end digital controller on board (DSP) with 96KHz signal sampling frequency, 56bit precision
    • Standby mode automatically if without signal input for 15mins
    • Class D amplifier from PASCAL
    • Advanced cooling system in the driver
    • Optimized and compact elegant premium design cabinet
    • Rock solid humidity free birch plywood CNC made cabinet
    • Comprehensive accessories suitable for different applications

    Type

    Active DSP-controlled full range loudspeaker

    Application

    2 cabinets minimum, 16 cabinets maximum per array

    Frequency Response(-6dB anechoic chamber)

    60Hz-20KHz

    Maximum Calculated SPL/1M

    128dB

    LF/MF Driver

    Customized Beyma ferrite driver, 2” voice coil

    HF Driver

    Customized Beyma ferrite driver, 1” exit, 1.75” voice coil

    Horizontal Coverage Angle(Symmetrical)

    100°

    Vertical Coverage Angle(Symmetrical)

    Depend on the amount of the speaker and curvature of the line array

    AMPLIFIER



    Amplifier Circuitry

    Class D

    Power(RMS standards)

    1600W

    Frequency Response(1W 8Ω 2ch)

    20Hz-20KHz(±0.5dB)

    Intermodulation Distortion

    <0.05%

    Total Harmonic Distortion

    <0.05%

    Protection

    DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

    Cooling System

    Cooling with fans

    DSP



    Processor

    96KHz signal sampling frequency, 56bit precision

    Presets

    Linear, HFX, W/SUB

    Crossover

    Controlled by DSP

    Output/Input



    Signal Input

    1×NEUTRIK® female XLR

    Signal Output

    1×NEUTRIK® male XLR

    Power Input

    Powercon NAC3MPA

    Power Output

    NAC3MPB

    Working Voltage

    85V-265V  50Hz (60Hz)

    Cabinet



    Angle Adjustment

    0°, 2°, 4°, 6°, 8°, 10°

    Cabinet Material

    Russian birch plywood CNC made

    Cabinet Color

    Black is standard and default color.Consult with sales team for the other customized colors

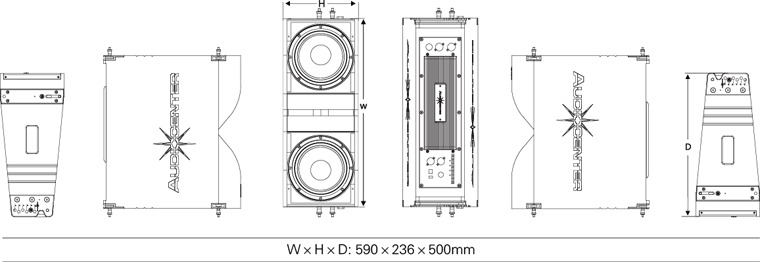

    Dimension(W×H×D)

    590×236×500mm

    Net Weight

    25.0Kg

    View PDF brochure for Audiocenter K-LA28-DSP Active 1600W RMS Dual 8" Line Array Speaker
