Audiocenter K-LA28 Passive Line Array Speaker

$979.99
Sold Out
Contact us for an ETA

K-LA28-DSP, is a passive line array speaker, designed for high requirements of touring performance, rental and fixed installation. 450 Watts power rating per box and an easy rigging fast lock mechanism.

Audiocenter K-LA28 Passive Line Array Speaker
K-LA28-DSP, is a passive line array speaker, designed for high requirements of touring performance, rental and fixed installation. With 450 watts (AES) power handling per box and an easy rigging fast lock mechanism, K-LA28 line array is the best value large scale system available for touring/festival PA or larger venue installations.

Custom Drivers from BEYMA
The high frequency driver of K-LA28 is a customized BEYMA driver with composite membrane (1.75” voice coil), and the low frecquency/mid frequency component is handled by customized dual 8" drivers (2” voice coil), also from BEYMA.

Optpmized Passive Crossover
The K-LA28 features a passive crossover tunes to get the best out of the cabint and provide the most dynamic and accurate response possible. The circuit features American Benelec XPP audio capacitors which ensure stable quality and reliable performance.

Flown or Stacked
K-LA28-DSP can be suspended vertically. The integrated hardware with innovative fast lock mechanics built-in to the cabinet with 9.5mm high intensity pins make installation easy and convenient. The system is modular, in that the boxes can be combined as required according to the coverage angle of the space. For locations where the system can't be flown, there are customized frames available suitable for both ground stacking (maximum 4 cabinets) or stacking on a stand (maximum 2 cabinets).

Features:

  • Customized driver from BEYMA
  • PTV phase plug design for an extremely precise dispersion, HF horn design ensures even coverage optimized for smooth frequency response
  • Advanced cooling system
  • Rock solid humidity free birch plywood CNC made cabinet
  • Touring grade emery coating

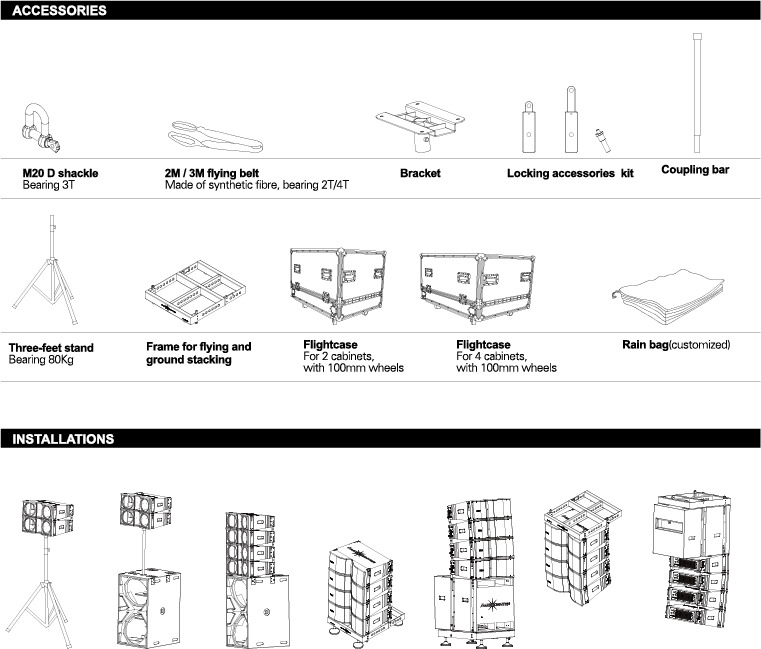

  • Comprehensive complement of accessories available

Specifications:

Type

Passive crossover line array speaker

Application System

3pcs minimum, 16pcs maximum per array

Frequency Response(-6dB anechoic chamber)

60Hz-20KHz

Rated Power (AES standard)

LF: 400W    HF: 50W 450W Total

Maximum SPL

128dB

Horizontal Coverage Angle (Symmetrical)

100°

Vertical Coverage Angle (Symmetrical)

Depend on the amount of the speaker and curvature of the line array

MF/LF Driver

Customized BEYMA ferrite driver, 2” voice coil, 200W (AES)

HF Driver

Customized BEYMA ferrite driver, 1”exit, 1.75” voice coil, 50W (AES)

Crossover Point

450Hz 2.2KHz, passive crossover

Rated Impedance

4Ω(+1, -1)

1 Way Amplifier

2pcs maximum, 2Ω

Adjusted Angles

0°, 2°, 4°, 6°, 8°, 10°, 12°

Input Connectors

2×NEUTRIK® NL4MP

Cabinet Material

Russian birch plywood CNC made

Cabinet Color

Black and white available, can be customized according to the RAL code

Dimension (W×H×D)

590×236×436mm

Net Weight

19.0Kg

View PDF brochure for Audiocenter K-LA28 Passive Line Array Speaker
