Audiocenter Mounting Bracket for T45 Line Array Speaker

Audiocenter 08-004-000237 Pole Mount Angle Bracket for T45-DSP
This bolt-on bracket pole mounts the Audiocenter Artist T45-DSP active line array speaker (and compatible Astra series speakers) with a choice of three downward tilt angles - 2, 6 and 10 degrees. It fixes directly to the underside of the cabinet, so you can run the speaker on a pole above a subwoofer or stand and aim its coverage precisely at the audience.

Aim Your Coverage
Mounted dead flat on a pole, a compact line array can fire over the audience or excite reflections from ceilings and rear walls. The bracket's three preset angles let you tilt the cabinet down to target the listening area: 2 degrees gives a slight tilt for flat rooms and short throw distances, 6 degrees a moderate tilt for typical medium-depth coverage, and 10 degrees a steeper angle for elevated mounting or audiences close to the speaker. More direct sound on the crowd and fewer room reflections means clearer vocals and a tighter mix in churches, auditoriums, halls and live venues.

Simple Bolt-On Installation

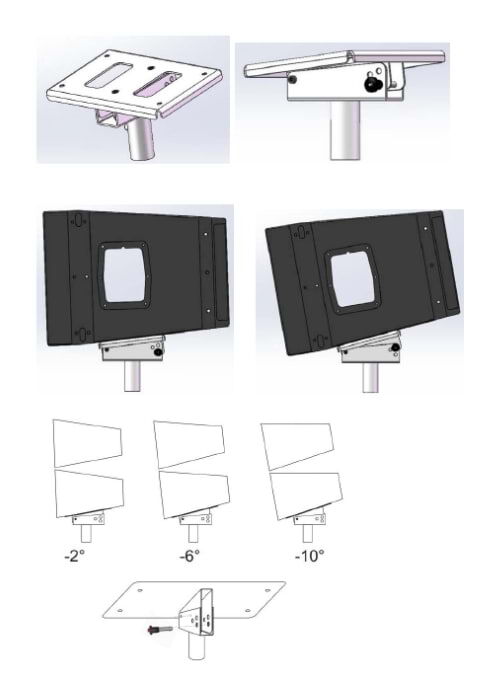

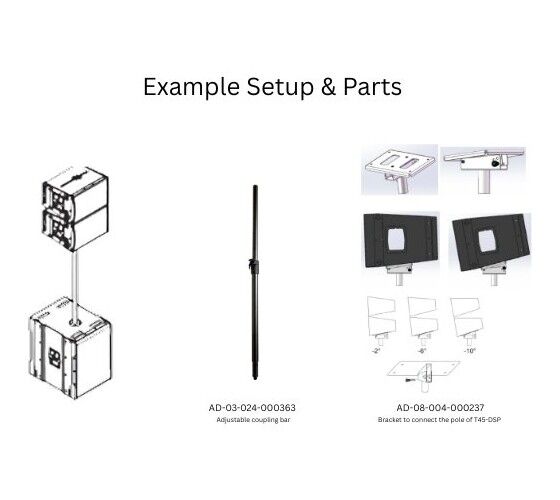

Attach the bracket to the mounting points on the bottom of the speaker, select the angle you need using the pre-drilled holes, insert the locking bolt to secure the tilt, then mount the assembly on your speaker pole - typically above a subwoofer in a compact sub-and-satellite rig. The angle can be re-set between venues whenever the room calls for different coverage.

Features:

• Adjustable-angle pole mount bracket for line array speakers
• Fits the Audiocenter Artist T45-DSP and Astra series speakers
• Attaches directly to the underside of the speaker cabinet
• Angle adjustment: 2°, 6° and 10° downward tilt
• Bolt-on fitting with pre-drilled pivot and angle selection holes
• Locking bolt/pin secures the selected angle
