AudioCenter L65+L65S Active DSP Column System
Filter

Audiocenter

AudioCenter L65+L65S Active DSP Column System

$2,949.99
  In Stock
-
+
Finance Available
PayPal Checkout
Afterpay

Audiocenter's L65 and L65S is a powerful multi purpose active DSP column system comprising of a L65 passive full range column and an active L65+ DSP controlled single 18" subwoofer. L65 has 6x 5" ferrite drivers and 4x 1" Beyma ferrite drivers. SPL 134dB.




Dispatch

AudioCenter L65+L65S Compact Active DSP Column System
Audiocenter's L65 and L65S is a powerful multi purpose active DSP column system comprising of a L65 passive full range column and an active L65+ DSP controlled single 18" subwoofer. L65 has 6x 5" customised ferrite drivers and 4x 1" Beyma ferrite drivers. The subwoofer has a single customised 18" driver. SPL 134dB, 3600W of power.

Powerful Column System

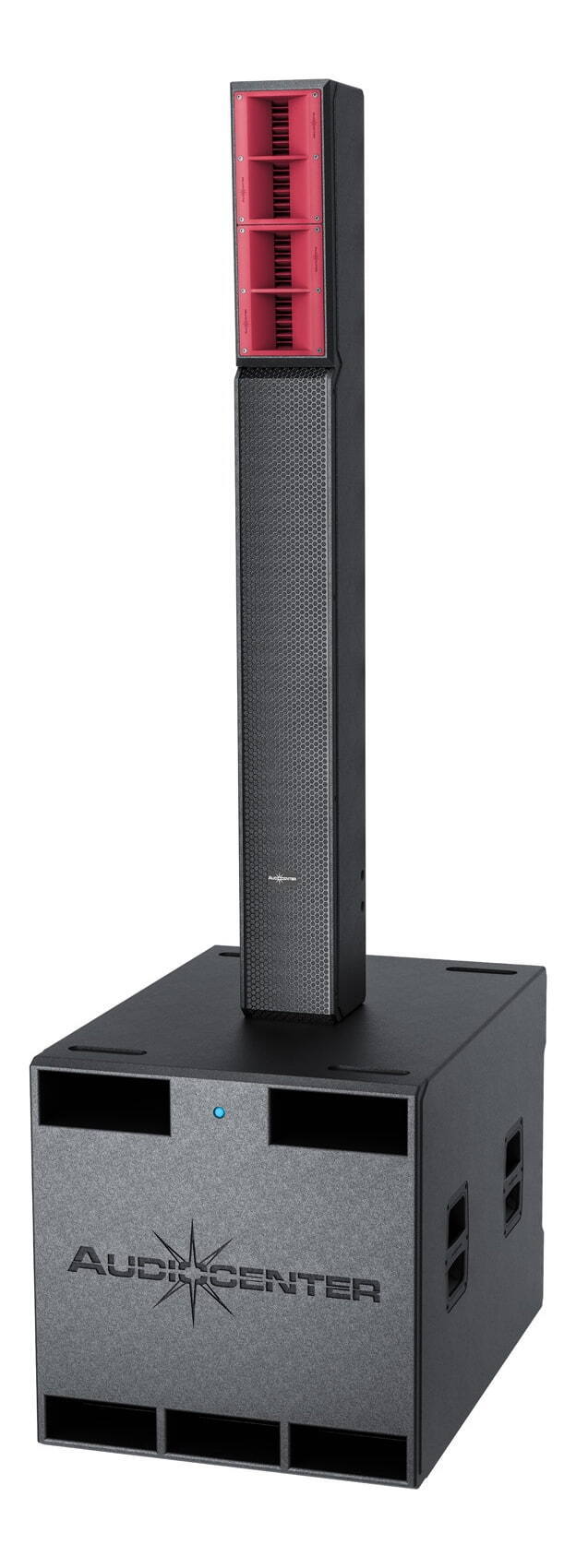

This Audiocenter L-Series PA is a compact multi-purpose active DSP column system consisting of a passive full-range column speaker L65 and an active DSP controlled single 18" subwoofer L65S. The L65 contains 6x 5” customised AudioCenter ferrite LF drivers and 4x 1" customised Beyma ferrite HF drivers.  The drivers in the L65 are arranged using Phycal technology to maximise the coverage of the vertical sonic beam. The drivers in the cabinet work as one integrative full range speaker system, which achieve excellent frequency responses and sound performance. The L65S is an active DSP controlled compact subwoofer with 1x 18" customised Audiocenter ferrite driver and a Class D amplifier module. This efficient system has built-in Bluetooth and multiple signal inputs. The combined speaker set has 3600W of peak power, with a maximum SPL of 134dB. The built-in crossover provides 96kHz signal sampling frequency, and 24bit DSP precision controlled.

Easy Connections

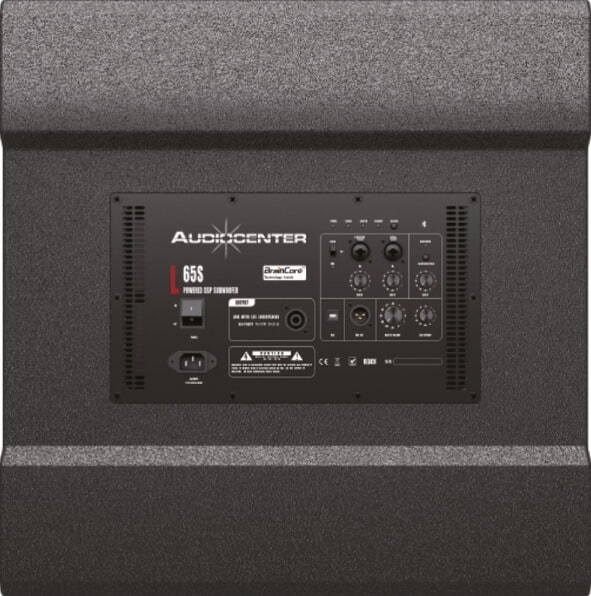

Utilising Neutrik panel mount connectors, there are two combo jack/XLR inputs with separate gain controls and a mic/line switch. An XLR mix out can connect easily to another powered speaker. There are separate master volume and sub volume controls. A USB port is available for utilising DSP software. Finally, bluetooth is available with a pairing button for ease of use.

Patented Technologies
With its advanced technology and scientific methodology, BrainCore analyses and processes the input signal, DSP module, Class D amplifier and loudspeaker optimally, achieving excellent frequency response and audio reproduction even at high levels of SPL. The ETE waveguide system technology calculates the perfect frequency response, providing the most accurate horizontal coverage, ensuring clear sonic signals. The driver design is arranged by sophisticated measurement and physical calibration - Phycal - technology, raising the coverage of the vertical acoustic sonic spectrum. These technologies were researched and developed by Audiocenter. This system uses an advanced cooling system with a moulded large heatsink improving the cooling efficiency, ensuring high reliability.

Class D Amplifier and Bluetooth
The built-in wireless bluetooth is stable and reliable, providing clean true sound reporduction. The Class D amplifier is an adopting DSP switching power supplymulti-channel digital amplifier developed in orientation, is stable and efficient, ensuring high quality sound performance.

Specifications:

Type

Active DSP-controlled Column Speaker System

Frequency Response(-6dB anechoic chamber)

40Hz-20KHz

Maximum Calculated

SPL/1M

134dB

Subwoofer

Customised Audiocenter ferrite driver, 18” driver

Mid-high Driver

Customised Audiocenter ferrite LF driver, 6pcs 5” drivers / HF 4x 1" drivers

Horizontal Coverage Angle(Symmetrical)

110°

Vertical Coverage Angle(Symmetrical)

10°

DSP

Processor

Crossover

96KHz signal sampling frequency, 24bit precision controlled by DSP

Class D amplifier

Power

3600W

Frequency Response

20Hz-20KHz(±0.5dB)

Intermodulation Distortion

<0.05%

Total Harmonic Distortion

<0.05%

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Cooling System

Fans + air convection

Output/Input

Signal Input

2×Combo (NEUTRIK® female XLR & Mono jack 6.35), 1×Bluetooth

Signal Output

1×NEUTRIK® male XLR

Amplifier Output Link L83

1×NEUTRIK® NL4MP

Column input Link L83S

1×NEUTRIK® NL4MP

Power Input

3 pin power socket

Working Voltage

100-130V/60Hz or 220-240V/50Hz

Cabinet

Cabinet Material

CNC made of excellent wood

L83 base bracket hole

Φ35mm (0/10° adjustable)

L83S base bracket hole

M20 base Φ35mm

Cabinet Color

Black is standard and default color.

Dimension(W×H×D)

L65

156mm × 1224mm × 177mm

L65S

590mm x 599mm x 815mm

Height for 1pc L65 + 1pc L65S + Pole

2100mm

Net Weight

L83

18kg

L83S

54kg

View PDF brochure for AudioCenter L65+L65S Active DSP Column System
