MOEN AB Bar True Bypass A/B Effects Loop Switcher
By: Len Lotz on 2 October 2015The Moen AB bar is the answer to my prayers. It allows me to switch between 2 effects loops with a single button press. Wow no more tap dancing on the pedal board. It is built like a battleship and is easily assimilated into any pedal board

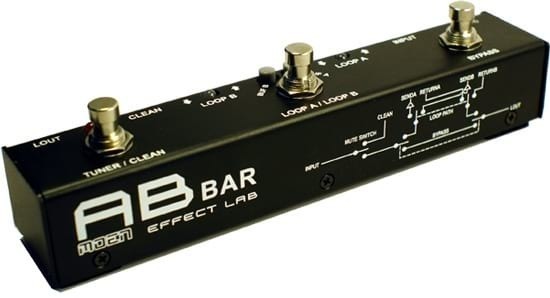

MOEN AB-BAR True Bypass Guitar Signal Switcher
The AB-BAR is MOEN's latest A/B switcher, featuring 3PDT True Bypass switches, and send/loop buffers to ensure you have the cleanest possible signal chain.
Bypass and Tuner Out
A bypass switch allows the user to bypass LOOP A and LOOP B altogether. A Tuner/Clean switch will switch between the LOUT and the CLEAN output. When the CLEAN output is selected no signal will pass through the LOUT output so conencting a tuner up to the clean output allows the user to tune in silence.
The small narrow size makes it possible to fit any type of pedal board. Ideally mount this at the front of your pedal board for easy switching between loops and bypass channels.

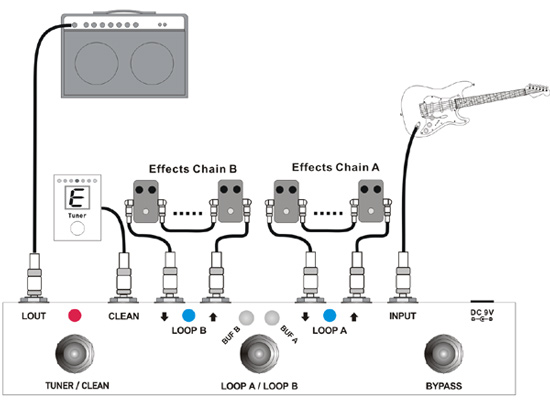

Layout Example 1
In this configuration, engage TUNER/CLEAN switch (led on) will switch the guitar signal to a tuner, at the same time the LOUT is muted. LOOPA/LOOPB switch choose effects chain A or chain B.

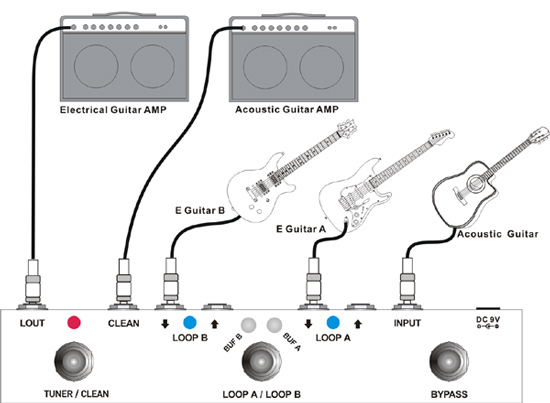

Layout Example 2
In this configuration, use AB BAR to choose 3 different guitars as input,
- Dimensions: 7.88(L) x1.42(W)X1.30(H) inch
- Weight: 200g
- Power Supply: DC9V
- Current Drain: max. 10mA
- Stomp Switches: 3PDT true bypass type
- Switch Distance (Center to Center): 2.8 inch
Custom Label: MO-AB-BAR
Shipping Weight: 0.5500
