Radial Mix-Blender Dual Input Guitar Mixer with Insert Loop

Radial Mix-Blender Dual Input Guitar Mixer with Insert Loop

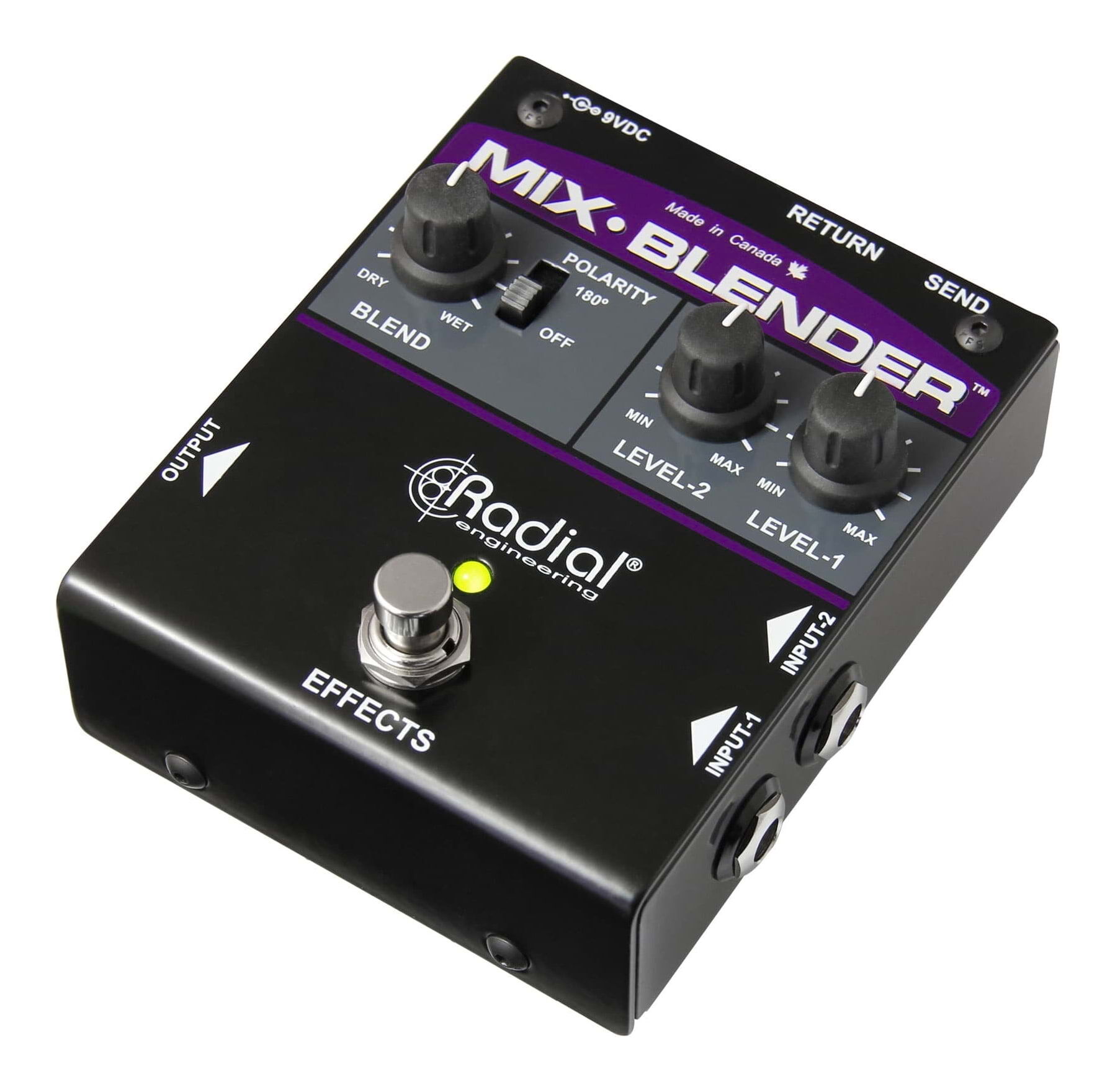

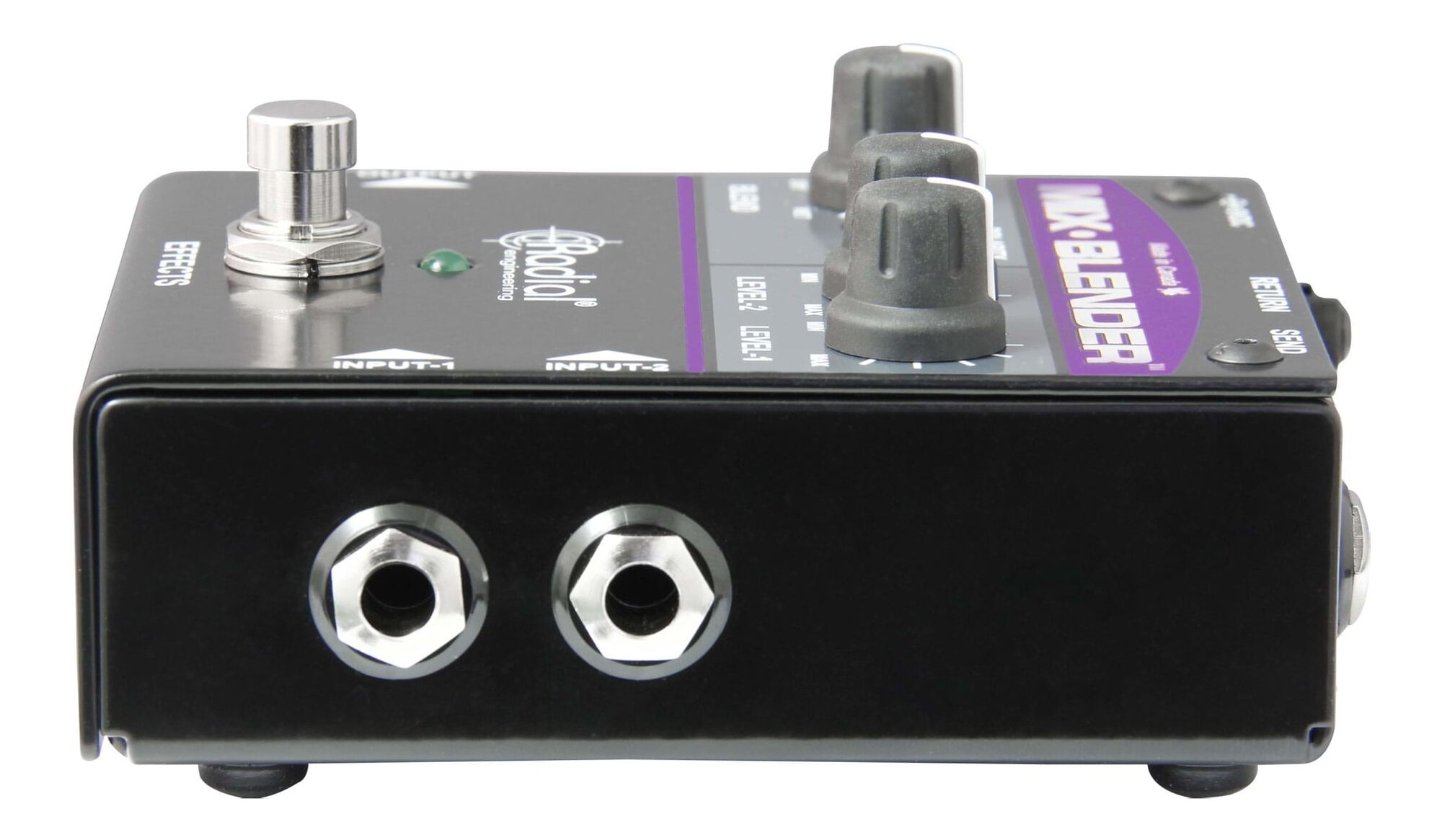

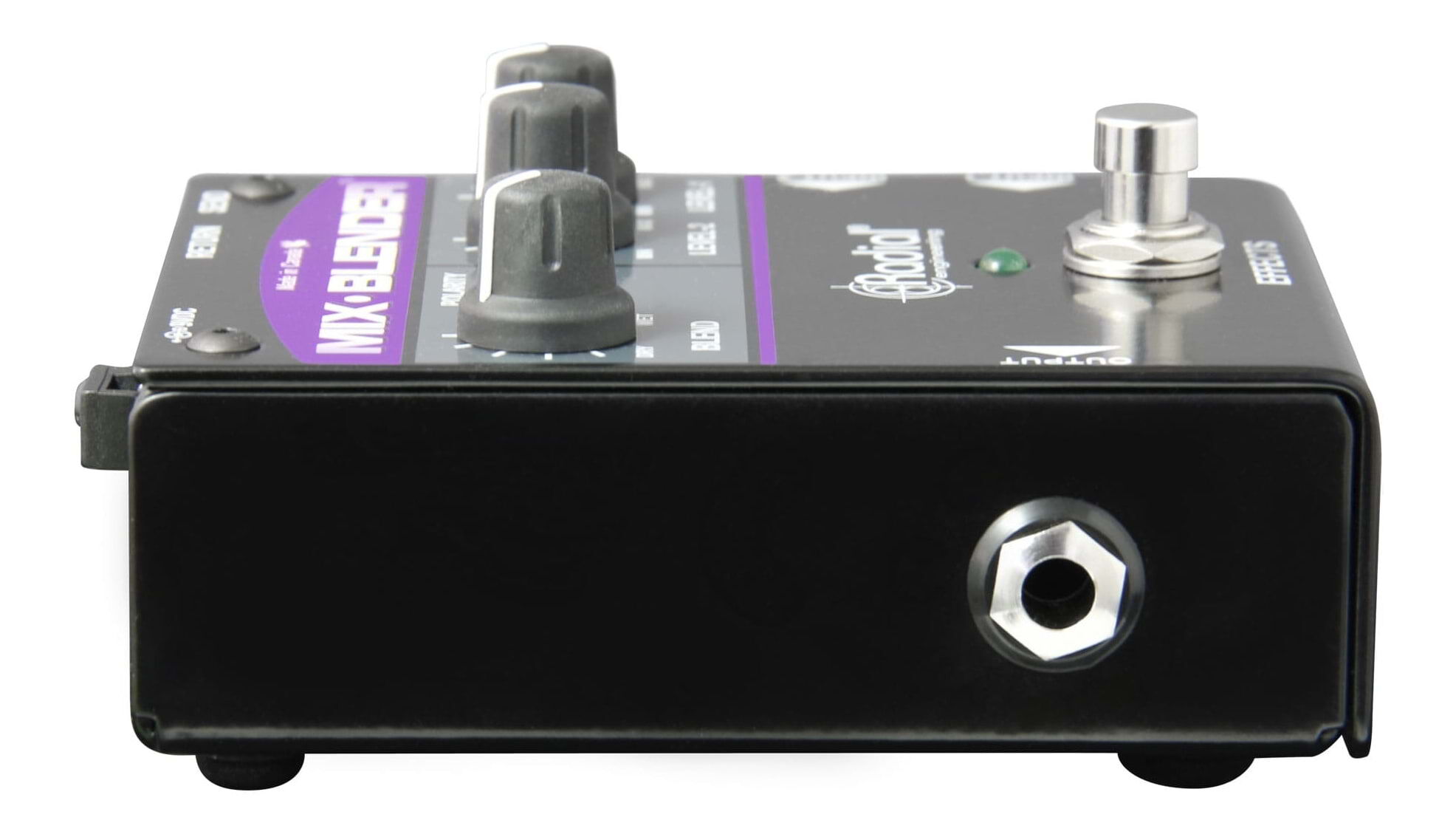

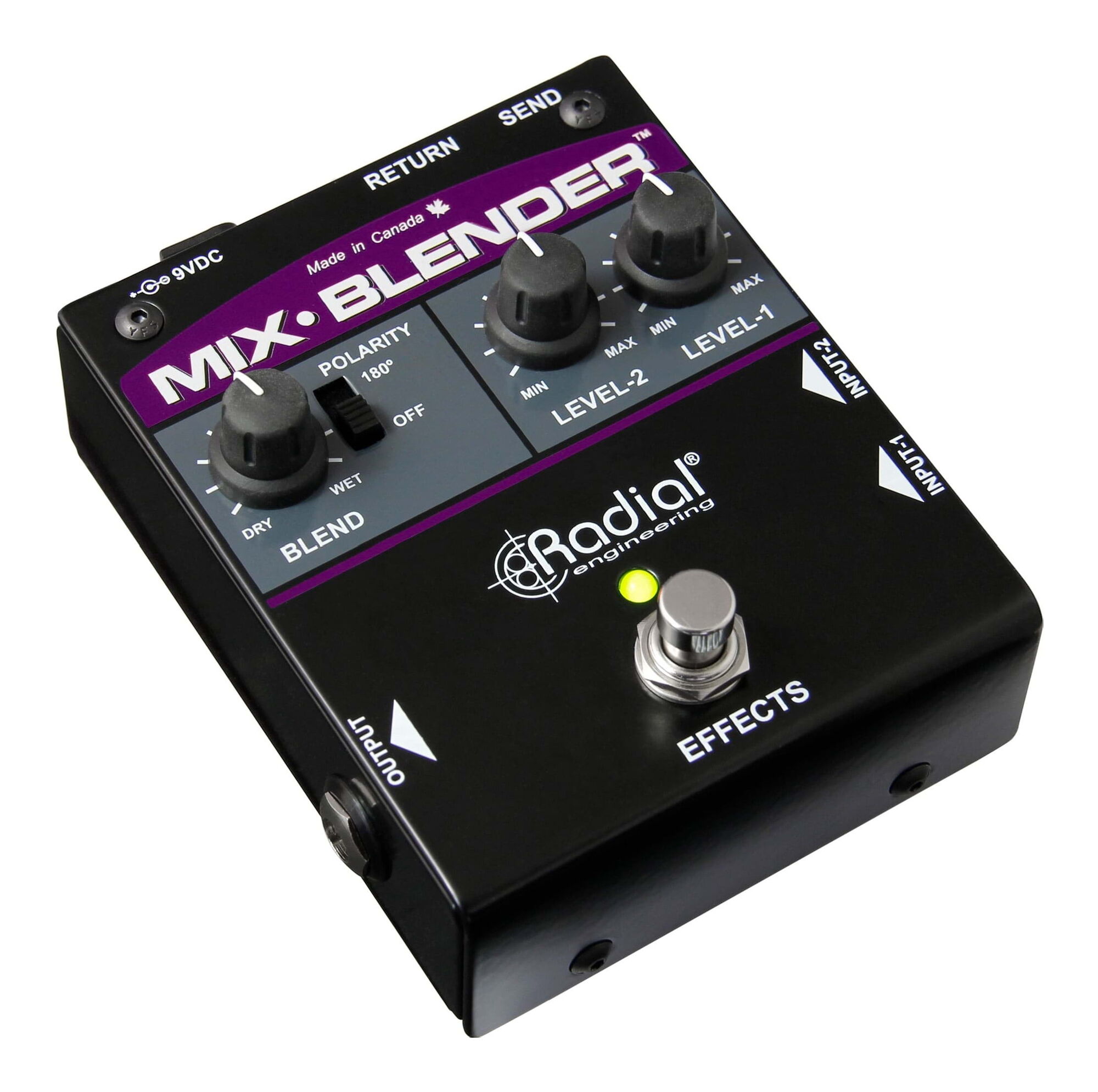

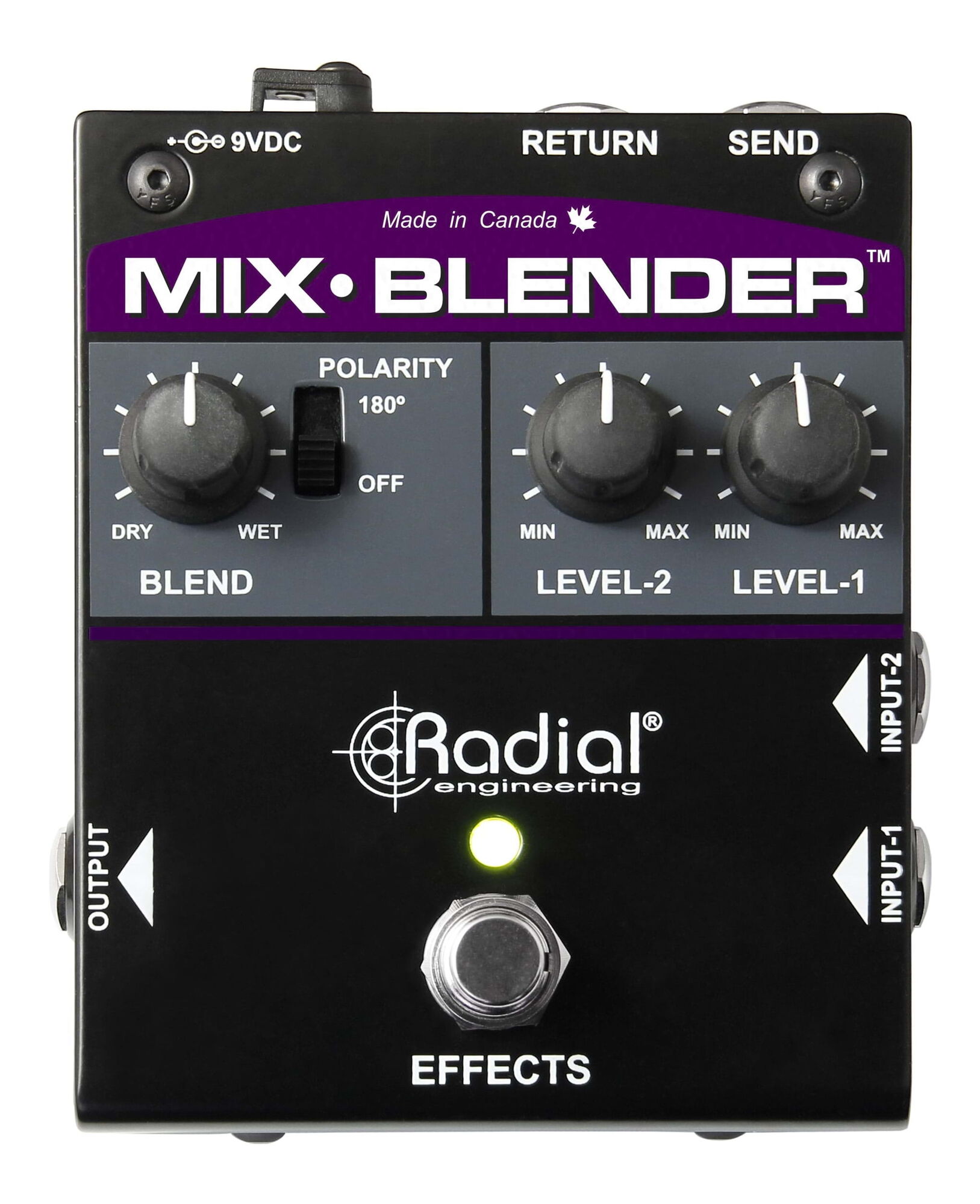

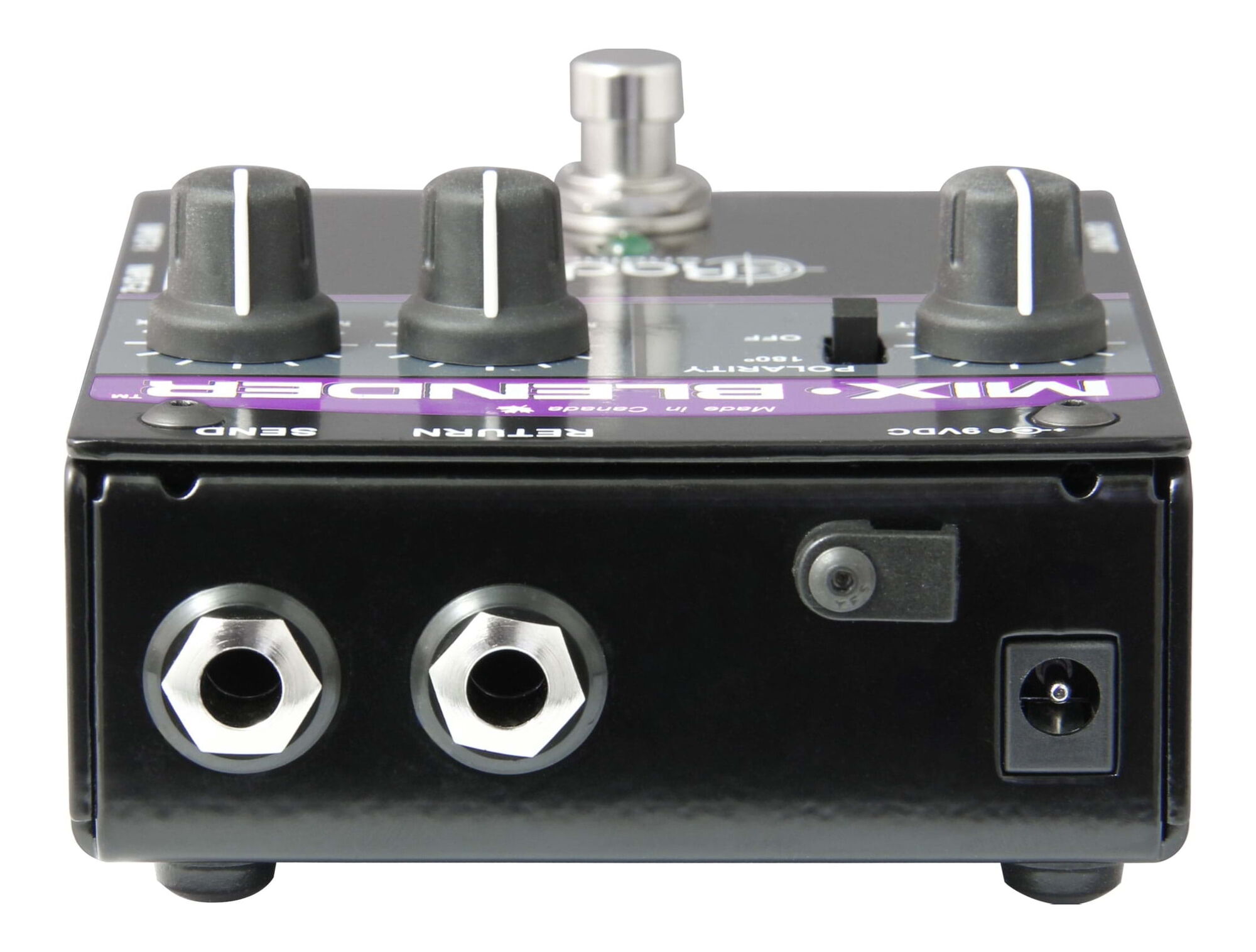

The Radial Mix-Blender is a dual input guitar mixer with insert loop, fantastic to use as a creative tool on stage or in the studio. Blend the sounds of two different instruments or pickups, as well as incorporate effects pedals and mix wet and dry signals.

Creative Tool
Designed to work with guitar, bass and keyboards, the Mix-Blender sums together two instrument inputs, with individual level controls to balance their relative levels. This allows you to combine two pickups on an acoustic guitar, two effects pedals, or two different instruments on stage so each can be played through the same amp. This combined signal can then be routed to your effects pedals, with a footswitch to activate them in an instant. The effects loop of the Mix-Blender features a unique wet/dry Blend control, which lets you retain the original sound of the instrument and add in as much of the pedals as you like, for effects ranging from subtle to extreme.

Mix-Blender Applications

• Two instruments in one amp - With two inputs you can connect two instruments and have them play at the same volume through your amp for quick changes on stage. Connect your tuner from the send jack to monitor your tuning on the fly.
• Blend both pickups together - Combining two pickups can often lead to the most natural sounding acoustic. Use the Mix-Blender to precisely mix the two signals together. Add a chorus pedal to the effects loop and control it with the footswitch.
• Bass guitar with overdrive - Add overdrive or distortion to your bass without losing the powerful bottom end. The Mix-Blender's wet-dry control lets you mix in the perfect amount of distortion to your signal path.

Features:

• Mix two instruments or effects together at the same time
• Blend in effects while retaining the tone of your instrument
• Class-A buffered inputs with individual level controls
• Opens the door to creating subtle or unique effects
• Works great with guitar, keys, and bass
• Mixer-style FX loop activated with onboard footswitch
• Blend control lets you mix in effects with precision

Specifications:

• Audio circuit type: Discrete Class-A main audio path Audio Grade IC send-return loop
• Frequency response: 20Hz - 20KHz +0/-2dB
• Dynamic range: 104dB
• Gain: -30dB maximum gain (FX Off), +2dB maximum gain (FX On)
• Total harmonic distortion: 0.01%
• Intermodulation Distortion: 0.02%
• Phase Deviation: <10º at 100Hz
• Input Impedance: -220k
• Equivalent Input Noise: -97dBu
• Maximum Input: +10dBu
• Construction: 14-gauge steel chassis and outer shell
• Size: 117.3mm (L)  x  88.9mm (W) x 50.8mm (D))
• Weight: 610g
• Power: 9V 100mA (or more) adapter
