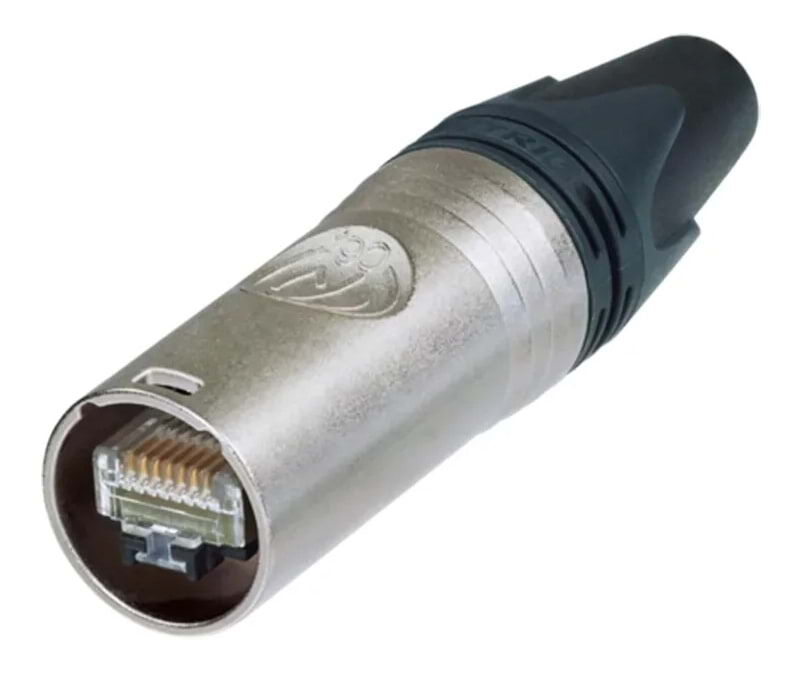

Neutrik NE8MX6 Heavy-duty Nickel-plated CAT6A Cable Connector
Suits 7-9.5mm Cable with 1.1-1.6mm Wire Insulation
In Stock
NU-NE8MX6
| Buy In Bulk & Save! | |
|---|---|
| Buy 2 to 5: | Pay $31.06 |
| Buy 6 to 14: | Pay $30.18 |
| Buy 15 or more: | Pay $29.35 |
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
The Neutrik NE8MX6 is a self-terminating etherCON CAT6A cable connector for heavier cable - 7 to 9.5 mm diameter with 1.1 to 1.6 mm wire insulation. Nickel diecast shell, chuck strain relief and PoE++ support.
Cable Filter: Alternative Options
Neutrik NE8MX6 Self-Termination CAT6A etherCON Plug

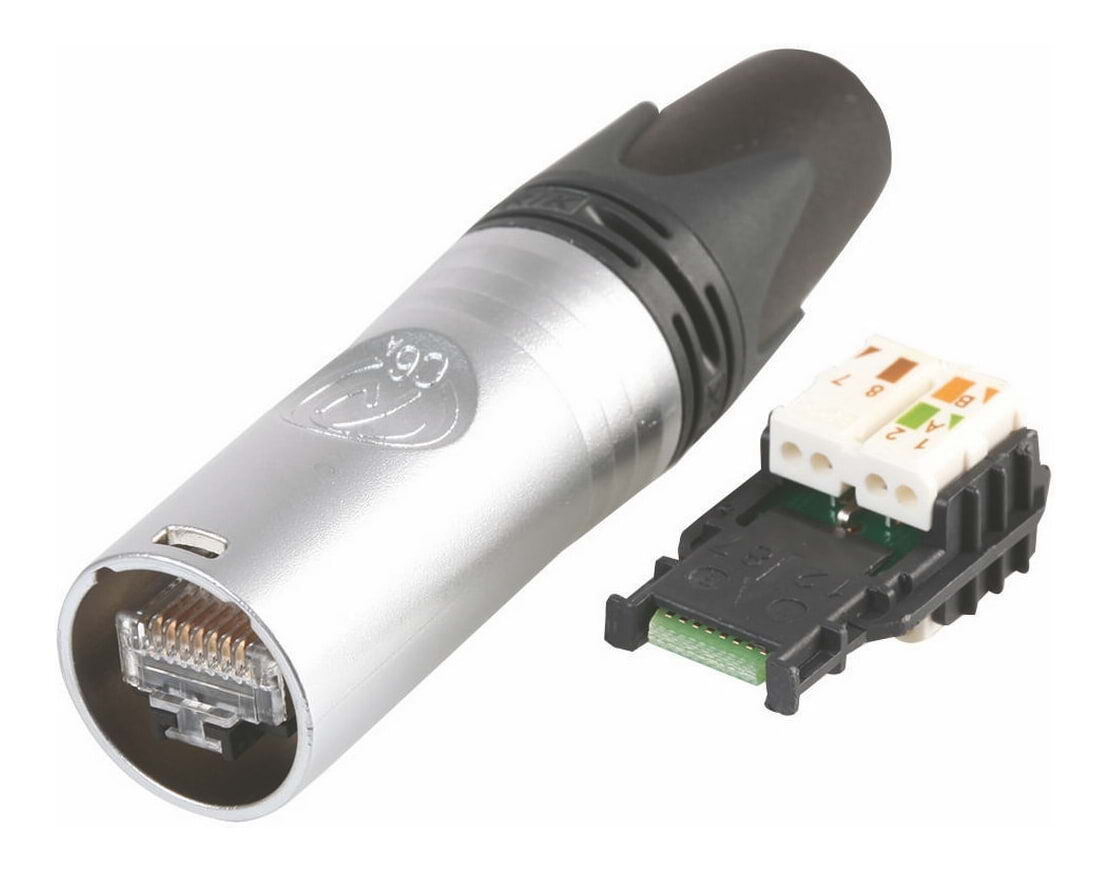

The Neutrik NE8MX6 is a complete etherCON CAT6A cable connector that you terminate onto your own network cable: a robust nickel-plated metal shell, Neutrik's proven chuck-type strain relief and a CAT6A-compliant RJ45 plug in one set. It is the version for heavier cable, suiting overall diameters of 7 to 9.5 mm with wire insulation of 1.1 to 1.6 mm, and it supports PoE++ to IEEE 802.3bt Type 4 for touring, broadcast and installed networks.
Choose the Right Version
Neutrik makes two versions of this connector. The NE8MX6 is for wire insulation over 1.1 mm (1.1 to 1.6 mm), as found on heavier-duty CAT6A and tactical touring cables, and takes solid AWG 24/1 to AWG 22/1 or stranded AWG 24/7 to AWG 22/7 wire. If your cable's insulation is 1.1 mm or less, choose the NE8MX6-T instead.
Rugged and Lockable
The zinc diecast shell and chuck-type strain relief protect the termination from pulls and knocks, and the million-fold proven latch lock keeps the connection secure. The NE8MX6 intermates with the existing etherCON CAT5 range and is IP65 protected when mated with Neutrik's sealed NE8FDX-P6-W or NE8FDX-Y6-W chassis connectors. Neutrik's HX-CAT6A parallel press tool and HTXX-14 bushing tool are available as accessories for assembly, and XXR coloured coding rings fit for quick cable identification.
Please Note
Does not intermate with the Neutrik NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.
Features:
- Ruggedised connector with CAT6A component compliance to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant to IEEE 802.3bt Type 4
- Suits cable diameters of 7 to 9.5 mm
- For wire insulation of 1.1 to 1.6 mm
- Nickel-plated zinc diecast shell with gold-plated contacts
- Unique Neutrik chuck-type strain relief
- Rugged latch lock, intermateable with the existing etherCON CAT5 range
Specifications:
- Model: NE8MX6
- Transmission performance: CAT6A (TIA/EIA and IEC/ISO/EN rating)
- Termination: Self-termination
- Cable O.D.: 7.0 - 9.5 mm
- Wire size: solid AWG 24/1 to AWG 22/1, stranded AWG 24/7 to AWG 22/7
- Insulation diameter: 1.1 - 1.6 mm
- Power over Ethernet: PoE++, IEEE 802.3bt Type 4
- Rated current: 1.5 A per contact
- Shell: Zinc diecast, nickel plating
- Protection class: IP65 in combination with NE8FDX-*6-W
- Temperature range: -40 to +70°C
