PowerWorks ARTEMIS 12PD 12" Bi-Amped Active PA Speaker 600W
Plywood Enclosure - 600W RMS / 1200W MAX

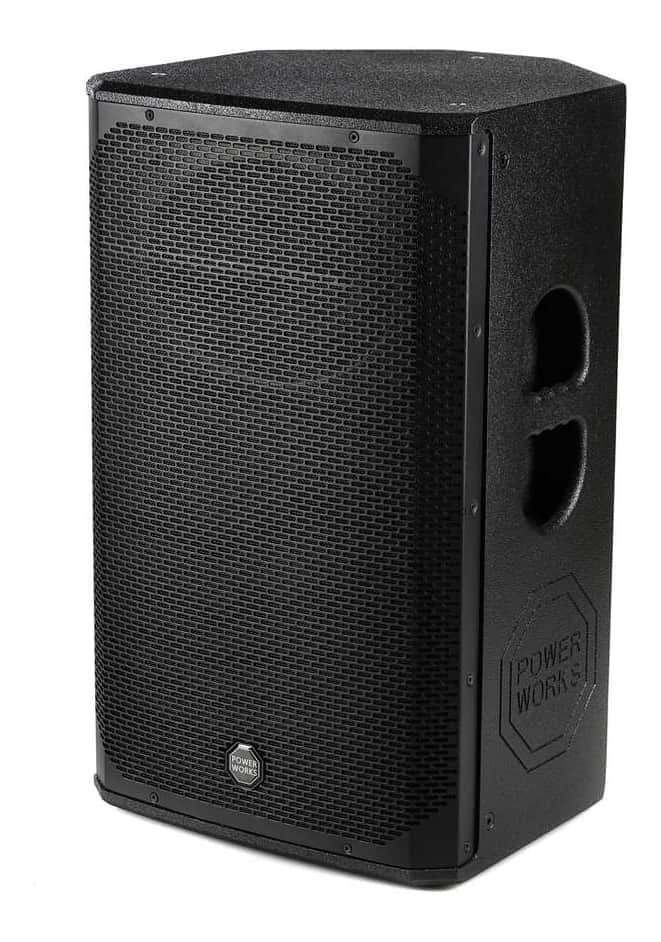

PowerWorks ARTEMIS 12PD 12" Bi-Amped Active PA Speaker
The ARTEMIS 12PD is designed as a high performance, light weight powered speaker. also can be used as a stage monitor. Featuring custom Class A/B and D amps, high powered 12" woofer and compression driver, back-lit DSP display, 600W RMS.

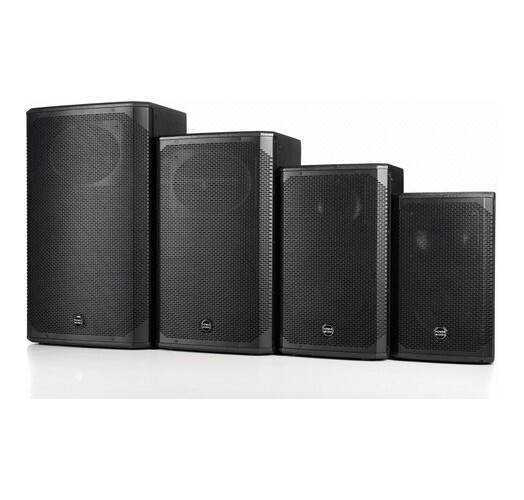

The ARTEMIS Series of active plywood enclosure speakers by PowerWorks have been designed as a high performance, light weight audio solution. The specially designed speaker box can also be used as a stage monitor, and can be flown or on speaker poles, or installed. These speakers deliver high definition audio with a wide frequency response. Compact and lightweight, these active loudspeakers provide a rich, extended low-end and natural high-frequency in a plywood enclosure that is easily transportable.
Two Integrated Amplifiers
Backed by 600W (dynamic) of Class D/Class AB power and enhanced with easy-of-use DSP tuning functions, the ARTEMIS Series gives you all the power and DSP you need for both mobile and installed sound applications. Class D and Class A/B amplifiers are utilised to provide optimal response throughout the speaker's frequency range. A 500W (continuous), Class D amplifier powers the 12-inch low-frequency driver, providing efficient, clean power for low end when you need it. A 50W (continuous), Class A/B amplifier powers the 1.35-inch high-frequency driver, delivering a natural sounding high end. The combination can deliver up to 136dB SPL (max) of clear sound between 50Hz and 19kHz. Specially selected transducers and compression drivers with a powerful DSP, advanced housing material and anti-scratch black paint: all components combined to offer the best quality and value for the most demanding audio professionals.
Fast and Easy Customisation
The ARTEMIS Series loudspeakers are equipped with an easy-to-use DSP that makes it simple to customise your loudspeakers with the push of a button. Whilst also offering carefully programmed DSP presets, adjusting EQ, delay modes, limiter features and dynamics is easy to save and recall.

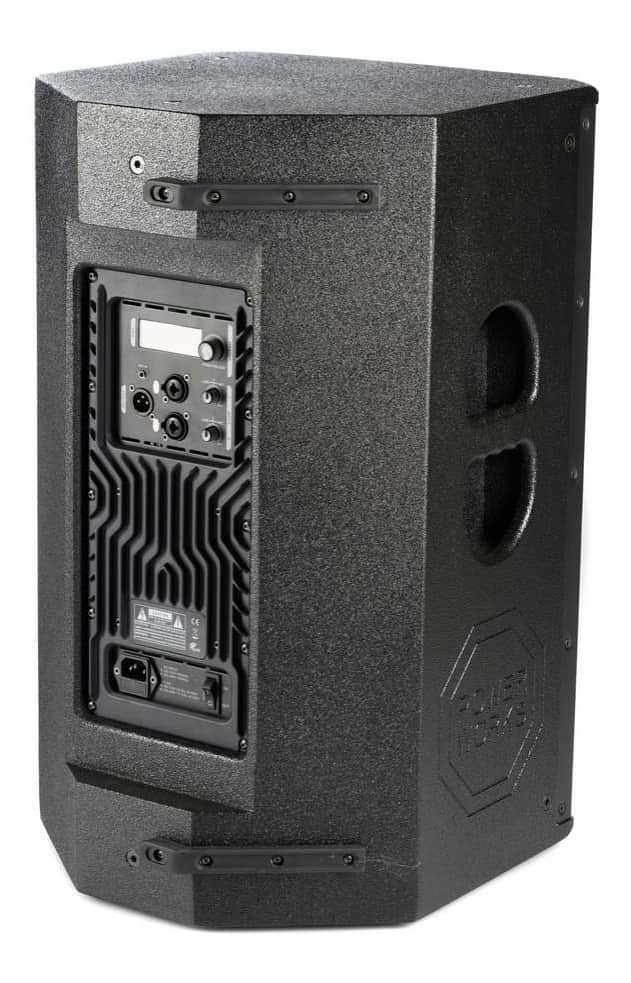

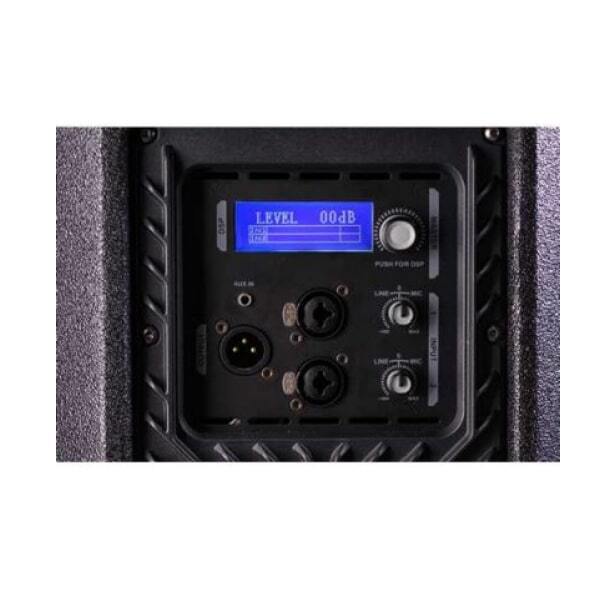

You get two combo XLR mic/Jack line inputs, each with a microphone/line level preamplifier and independent gain control. A stereo 3,5mm Jack connection signal input for use with smartphones, tablets, and other consumer audio devices. These signals can be combined with the internal mixer, and a balanced XLR Mix output lets you send the signals to other ARTEMIS-series loudspeakers.
The ARTEMIS Series of cabinets can be mounted in several ways, providing amazing versatility. The multi-angle enclosure for upright FOH (front-of-house) use and rubber feet on one side for on stage monitoring applications. Flying the speaker using M8 flying points or ground-stack it for portable applications. Mounting on a tripod with straight 0 or 7degree angles, or atop a ARTEMIS-series subwoofer using an optional sub pole (not included). The integrated DUO TILT pole mount lets you aim the speaker level 0° or at a 7° downward tilt. The speaker is easily transportable, thanks to its 2 side-mounted handles. Flying cabinets vertically or horizontally PowerWorks ARTEMIS full range cabinets can be mounted vertically or horizontally as above using the integrated flying M8 hardware points.
- Bi-Amped Active Speaker
- 600W RMS – 1200W Peak Power
- Amplifier Class-D (low-frequencies); Class-AB (high-frequencies)
- Graphic back-lit DSP display
- Plywood enclosure with black anti-scratch paint
- Standard D35mm tripod / pole hole

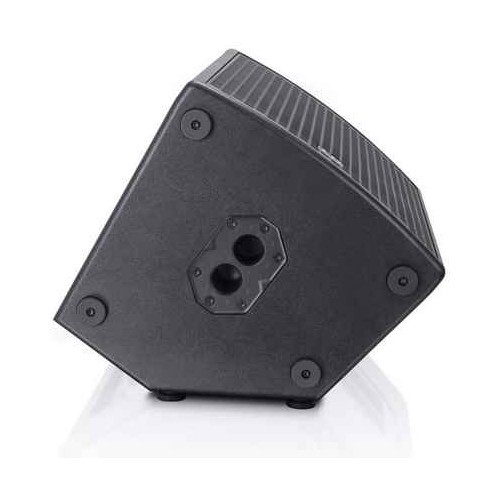

- 30° and 45° Stage Monitor Usable Angles
- Frequency Response: 50Hz – 19kHz / -10dB
- Max SPL: 128 dB

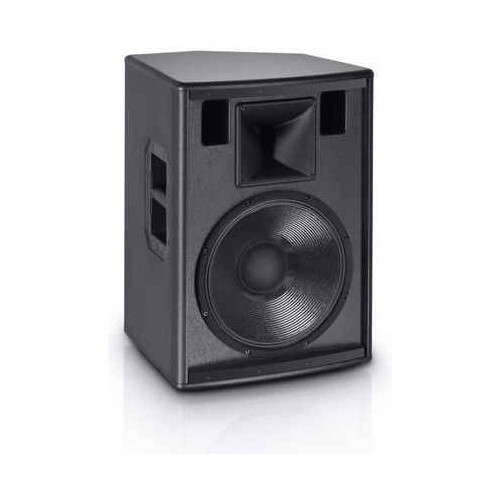

- Low-freq. Transducer: 12″ Woofer 2.36″ Voice Coil
- High-freq. Transducer: 1.35″ Compression Driver
- Coverage: H90° x V60°
- Crossover Frequency: 2.8kHz
- Low-Frequency Amplifier: Class-D 550W RMS – 1100W Peak
- High-Frequency Amplifier: Class-AB 50W RMS – 100W Peak
- Power Consumption: 450W
- Fuse: T3.15A-250V
- AC Mains: 220/240V / 50/60Hz
- Input Connections: 2 x COMBO (XLR + 1/4″ Jack, balanced) + 3.5mm Jack
- Output Connections: 1 x XLR (Mix output, balanced)
- Housing material: Plywood Cabinet
- 1.2mm Steel Grille
- Handles: 2 on sides
- Tripod/Pole Hole: Duo-tilt 0° and 7°
- Speaker Size (W x H x D): 450 x 687 x 465 mm
- Speaker Weight: 22.4 kg
