Radial Catapult TX4M 4-Channel Cat5 Audio Snake - Isolated Mic Outs

$559.99
In Stock
RRP $669.00

The TX4M is a 4-channel audio snake that lets you send analog or AES digital audio signals over standard Cat5 or Cat6 shielded twisted pair cable. The catapult lets you take advantage of pre-wired networks to connect audio from one room to another.

Radial Catapult TX4M 4-Channel Cat 5 Audio Snake - Isolated Mic Outs
The Radial Catapult is a 4-channel audio snake that lets you send analog or AES digital audio signals over standard Cat5 or Cat6 shielded twisted pair cable. This allows stage techs to take advantage of the relatively low cost of this abundantly available cable for return snakes or for transporting balanced audio across a large stage. For the system contractor, the Catapult lets you take advantage of pre-wired networks to connect audio from one room to another.

As with all Radial products, the Catapult is constructed with solid 14-gauge steel to handle the rigors of live touring and is finished in a powder-coat finish to keep your Catapult looking good for years! Inside, a two-sided PCB is used to mount the connectors and transformers doubling up the solder joints for maximum durability.

Analog Audio Over CAT5 Wiring
The Catapult TX4 and RX4 act like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Straight-Wire Passive Operation
Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat5 cable ensures that your audio passes through without coloration or distortion.

Utilize Pre-Exixting Cable Installations
As many buildings are already pre-wired for Cat5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.

Mix and Match to Add Transformer Isolation
All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult RX4 and TX4 can be used together as a pair, creating a 4-channel audio snake. However, if you need transformer isolation to prevent hum and buzz when splitting audio signals, two additional models of Catapults are available. The TX4L and RX4L have line level isolation transformers for splitting playback tracks or outputs to amp racks, while the TX4M and RX4M can be employed when splitting mic signals on stage. Use any combination of these six models, along with the compact Catapult Mini RX and TX to create a custom snake designed for your unique application.

Features:

  • For Routing Mic-Level Audio via Ethernet
  • For Use with Catapult RX4M
  • 4 x XLR Inputs
  • 4 x Mic-Level Isolated Outputs
  • 1 x RJ45 Output, 1 x RJ45 Through-Output
  • For Live-Sound Applications
  • For Networking Audio Throughout Rooms
  • Ground-Lift Switch on Cat5 Connection
  • Steel Handle & Rubber Bumpers
  • Military-Spec Grade Circuit Board

Specifications:
Audio Circuit Type: Passive mic splitter, transformer based
I/O: 4 x XLR inputs
4 x XLR through-outputs
1 x RJ45-type etherCON output
1 x RJ45-type etherCON through-output
Frequency Response: 7Hz to approximately 20kHz
Total Harmonic Distortion: 0.001% at 1kHz
Dynamic Range: 140dB
Maximum Input: +35dBu
Minimum Load Impedance: 100Ohms
Intermodulation Distortion: 0.003%
Common Mode Rejection: >113dB
Ground Lift: Disconnects ground on RJ45 connector
Construction: 14-gauge steel chassis and outer shell
Finish: Durable powder coat
Dimensions: 20.6cm x 10.5cm x 5.1cm
Weight: 1.2kg

View PDF brochure for Radial Catapult TX4M 4-Channel Cat5 Audio Snake - Isolated Mic Outs

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review

Product Enquiry Form Complete this form to email us your enquiry.



CATAPULT APPLICATIONS

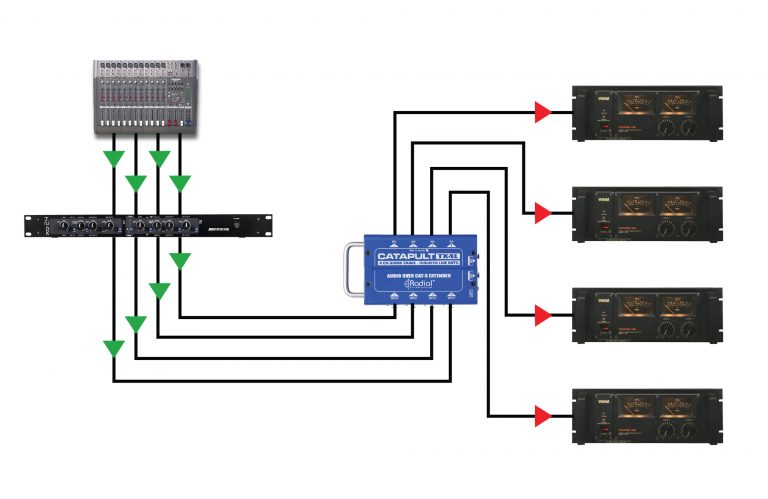

USING THE CATAPULT AS A LINE ISOLATOR

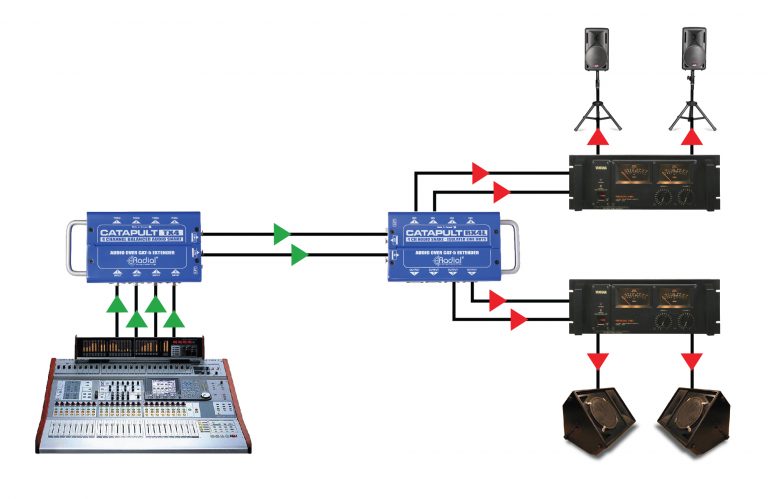

USING THE CATAPULT AS A RETURN SNAKE

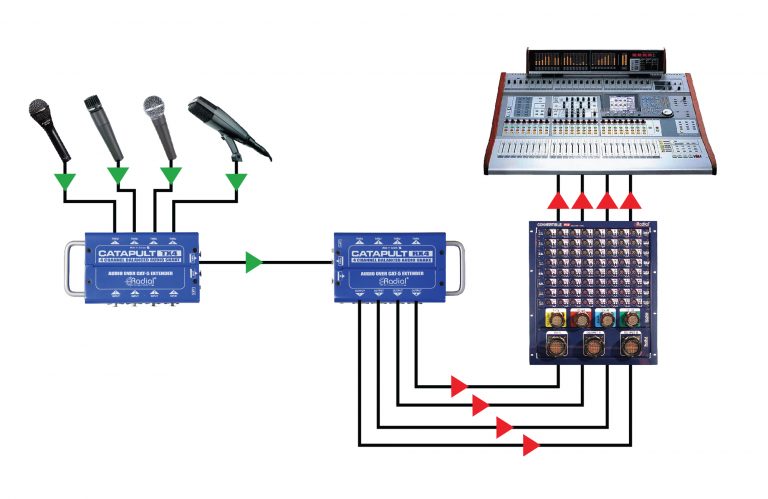

USING THE CATAPULT AS A SUB SNAKE ON STAGE

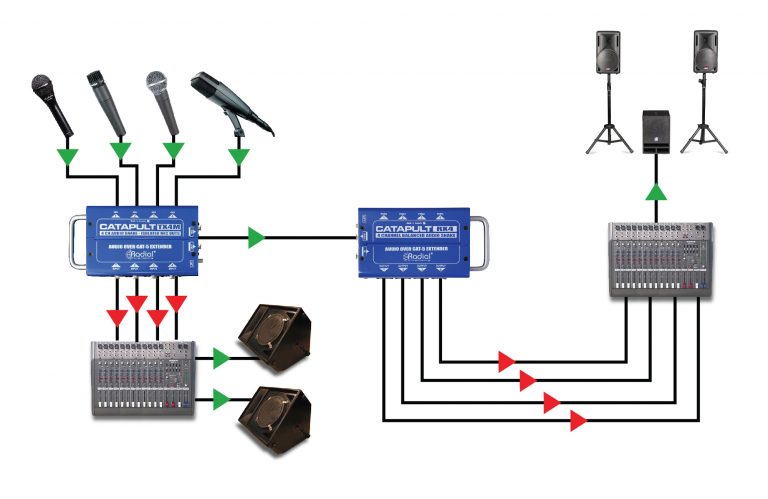

USING THE CATAPULT AS A 4-CHANNEL MIC SPLITTER


USING THE CATAPULT TO NETWORK AUDIO

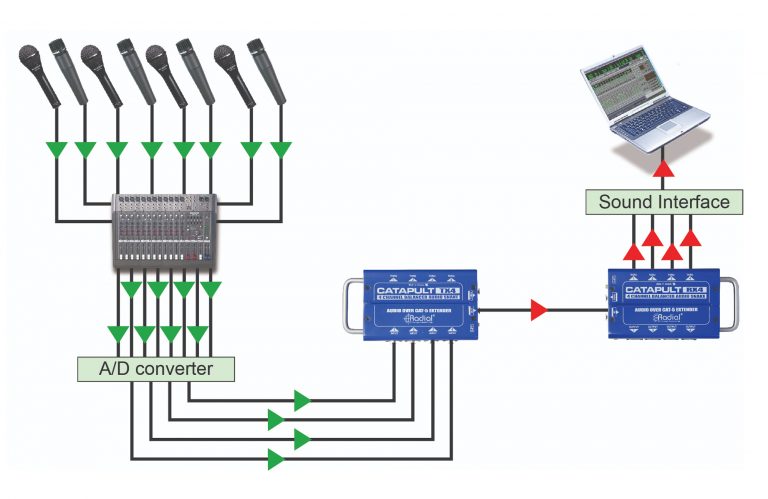

RUN FOUR AES SIGNALS ACROSS CAT 5 CABLE PLATFORM
