Rowin LEF-302B - Mini Guitar Overdrive Pedal


Rowin LEF-302B - Mini Guitar Overdrive Pedal

  In Stock
or interest free for up to 6 months with

Replicating the classic sound of an overdriven tube amplifier, the LEF-302B has an awesome amp-like overdrive. Two selectable modes make this the perfect pedal for warm blues rhythm, high-gain lead guitar, as well as everything in between.

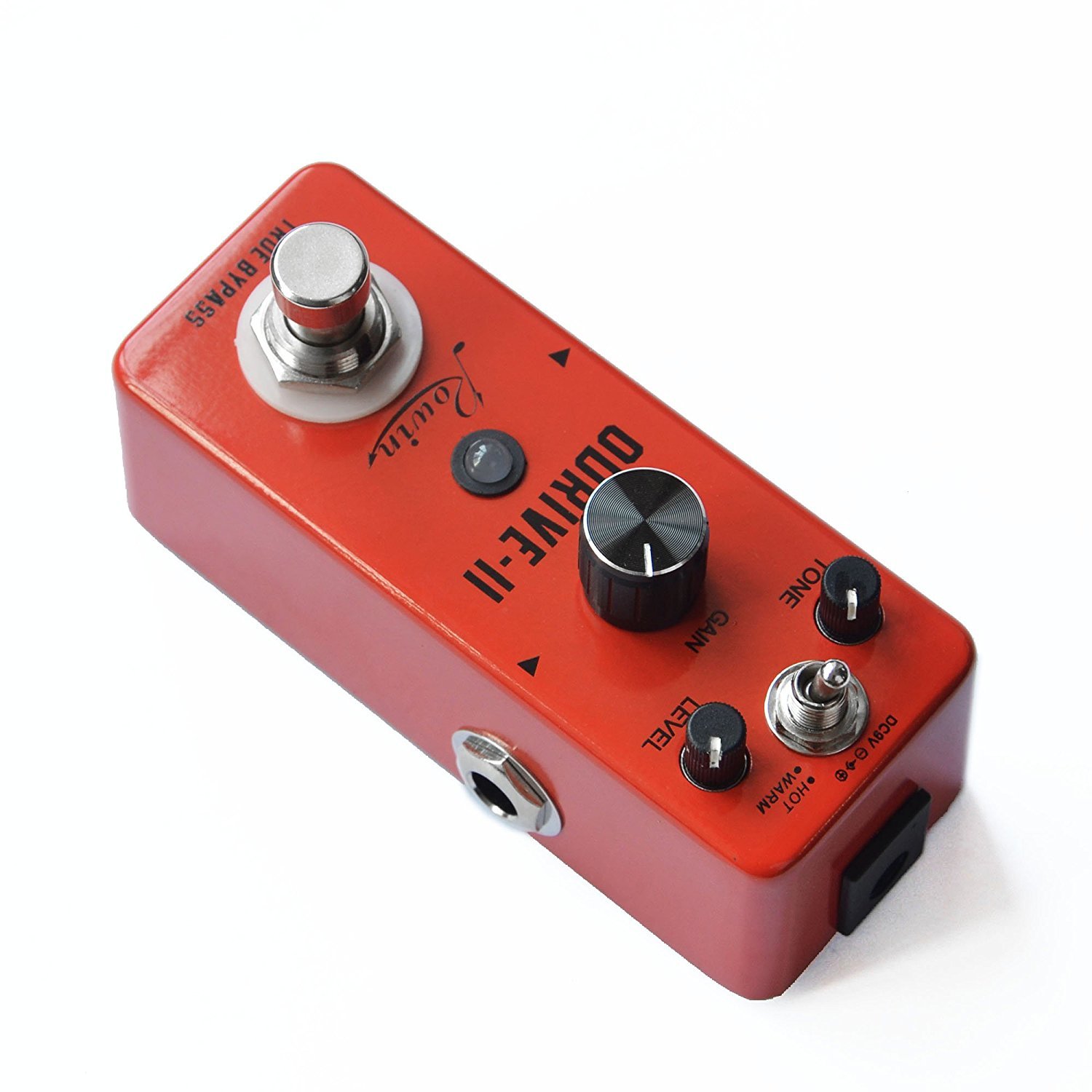

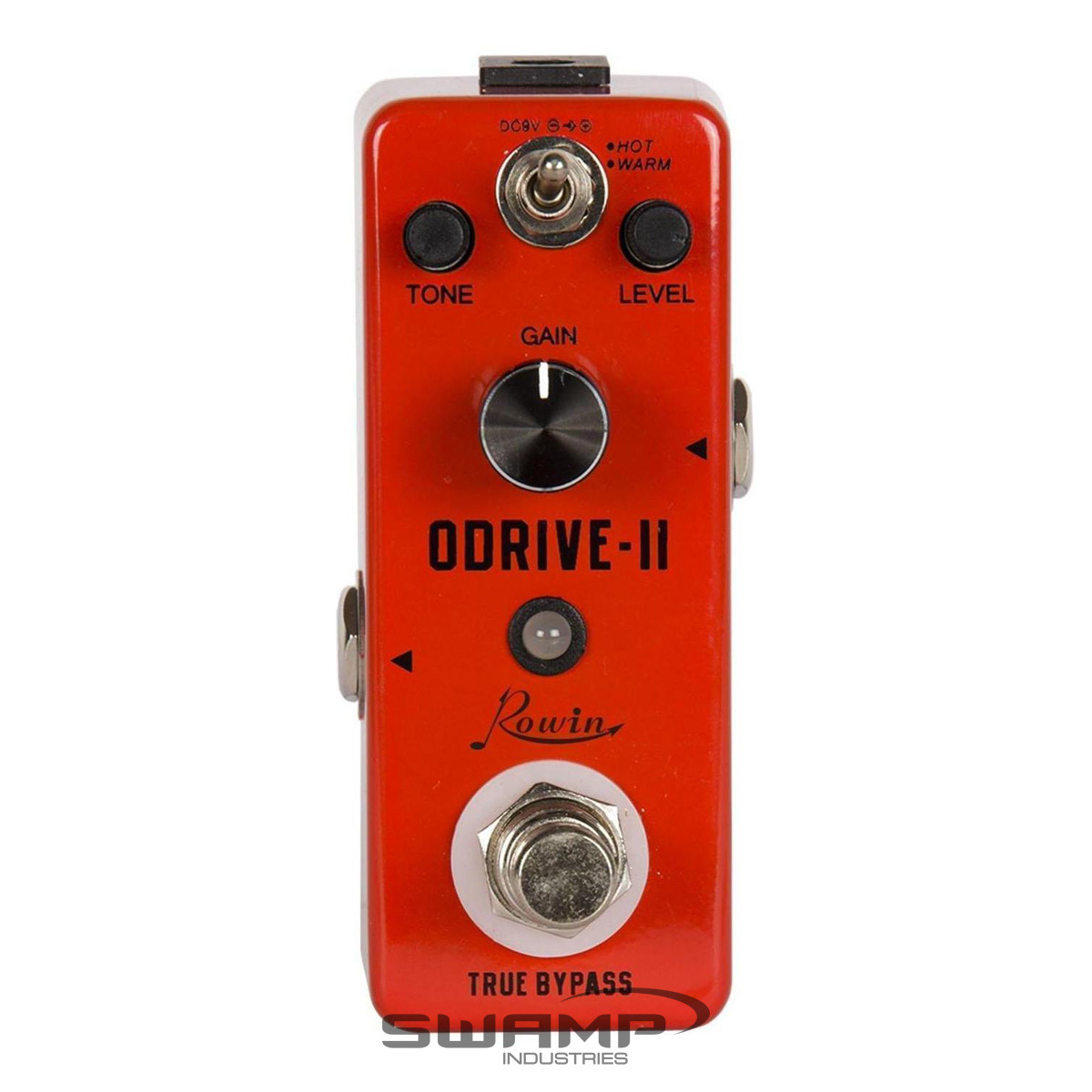

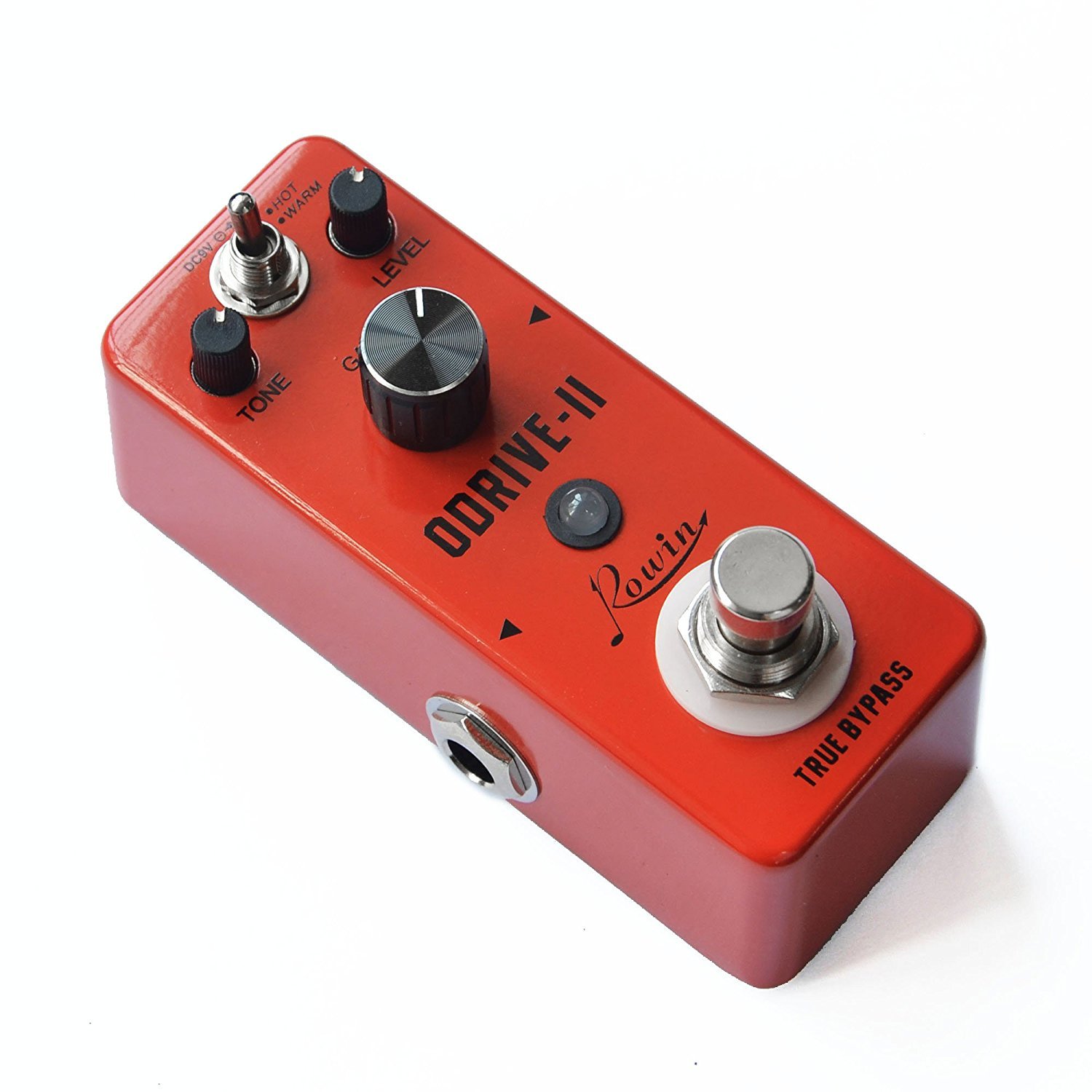

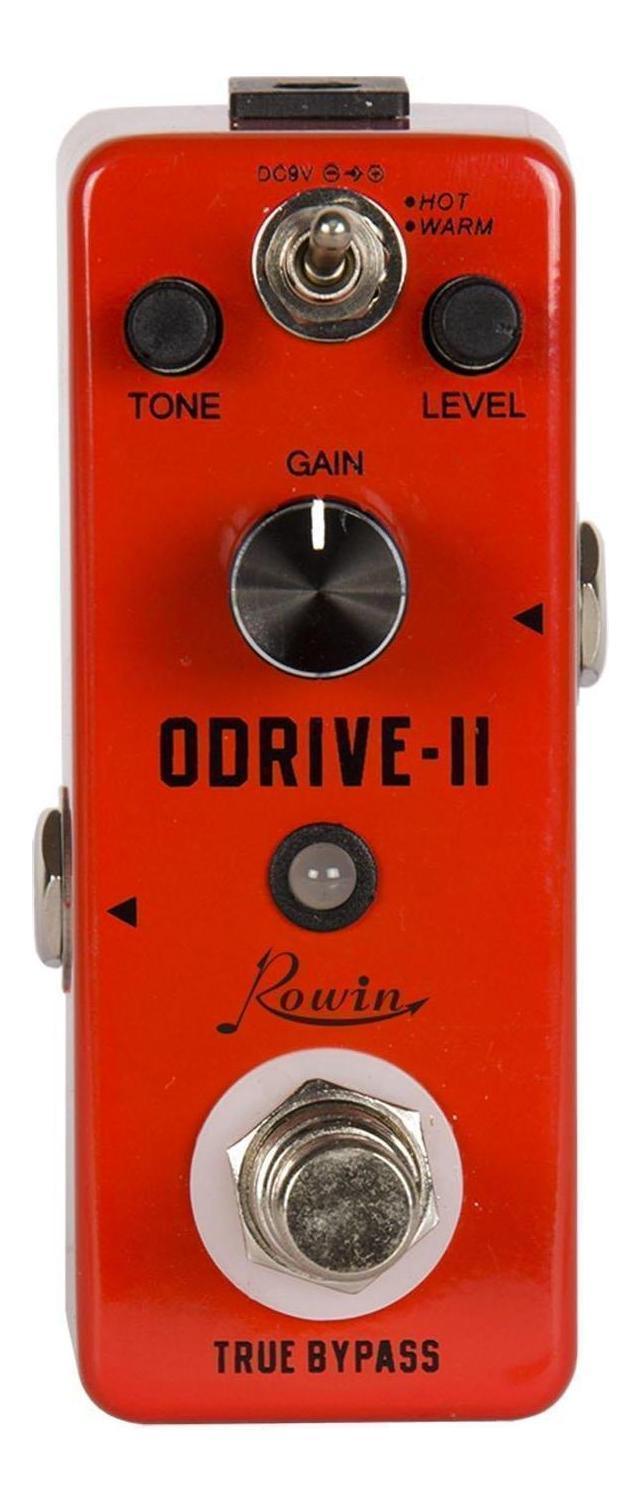

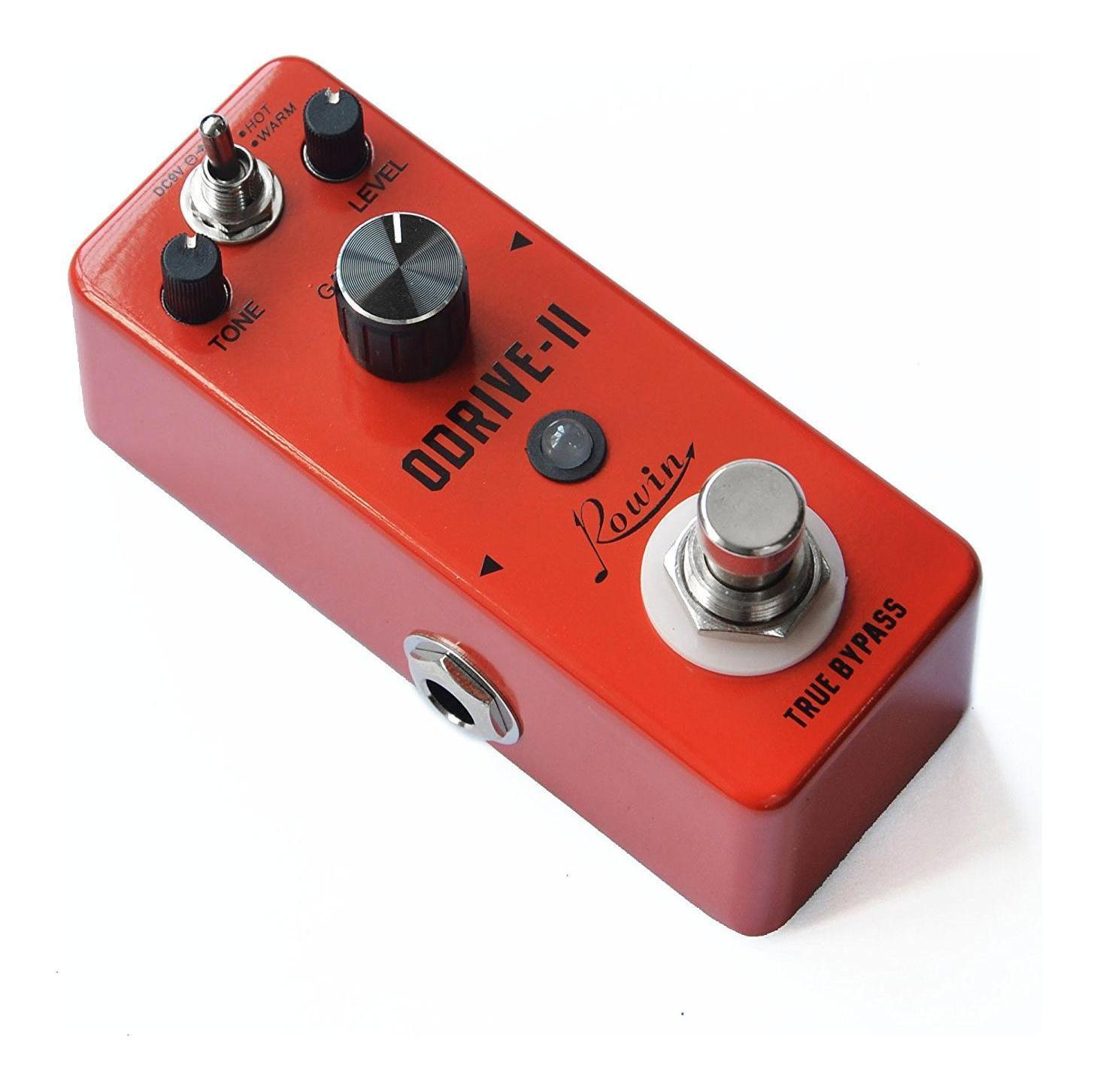

Rowin LEF-302B Overdrive Guitar Effect Pedal
Replicating the classic sound of an overdriven tube amplifier. The LEF-302B features two unique sound options (Hot and Warm) that can be changed using the 2-way toggle switch. With the toggle switch down (warm) the pedal has an awesome amp-like overdrive tone, perfect for rhythm guitar, blues guitar or anything that mild amp-like gain would suit. Turning the toggle switch into "Hot" mode really starts to fire this pedal into lead guitar heaven, especially when used with the bridge pickup setting on an electric guitar.

Compact / Miniature Case Size
Advances in circuitry design have made is possible for guitar effect pedals to be built in compact enclosures that literally fit in the palm of the hand. The mini design allows more pedals to fit on a pedalboard and helps reduce the overall weight, making them an ideal solution for the traveling guitarist.

True Bypass Circuitry
The compact inner circuitry is designed with a 3PDT true bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.


  • Full Metal Shell
  • 2 Mode Drive Toggle Switch Selector
  • Tone, Level, Gain controls
  • True Bypass 3DPT Switch
  • Power Supply: 9V DC (Negative Centre) - (Not Included)
  • Working Current: 8mA
  • Input Impedance: 520KΩ
  • Output Impedance: 12kΩ
  • Dimensions: L95mm x W45mm x H53mm (including switch)
  • Weight: 203g
View PDF brochure for Rowin LEF-302B - Mini Guitar Overdrive Pedal
