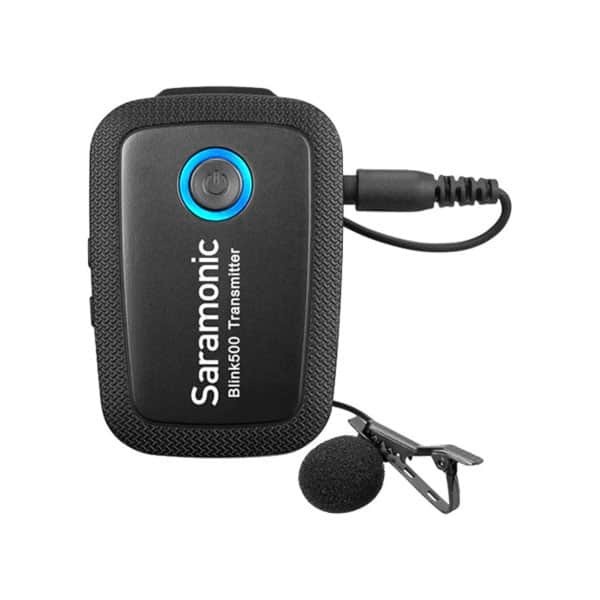

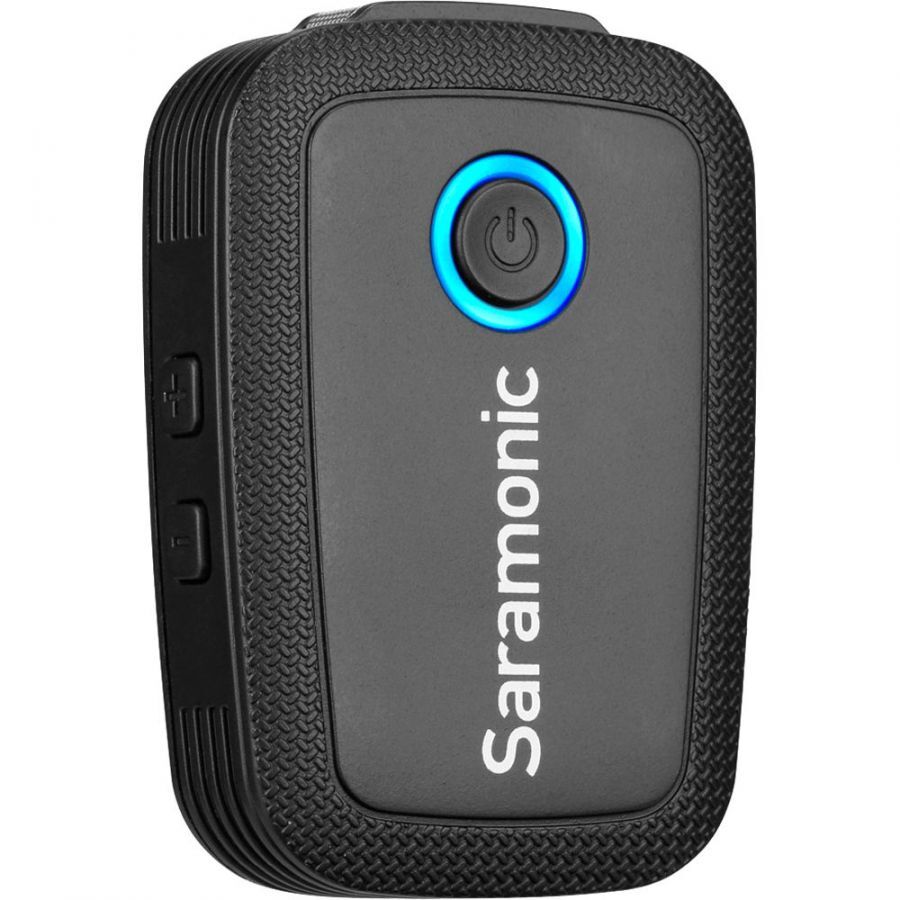

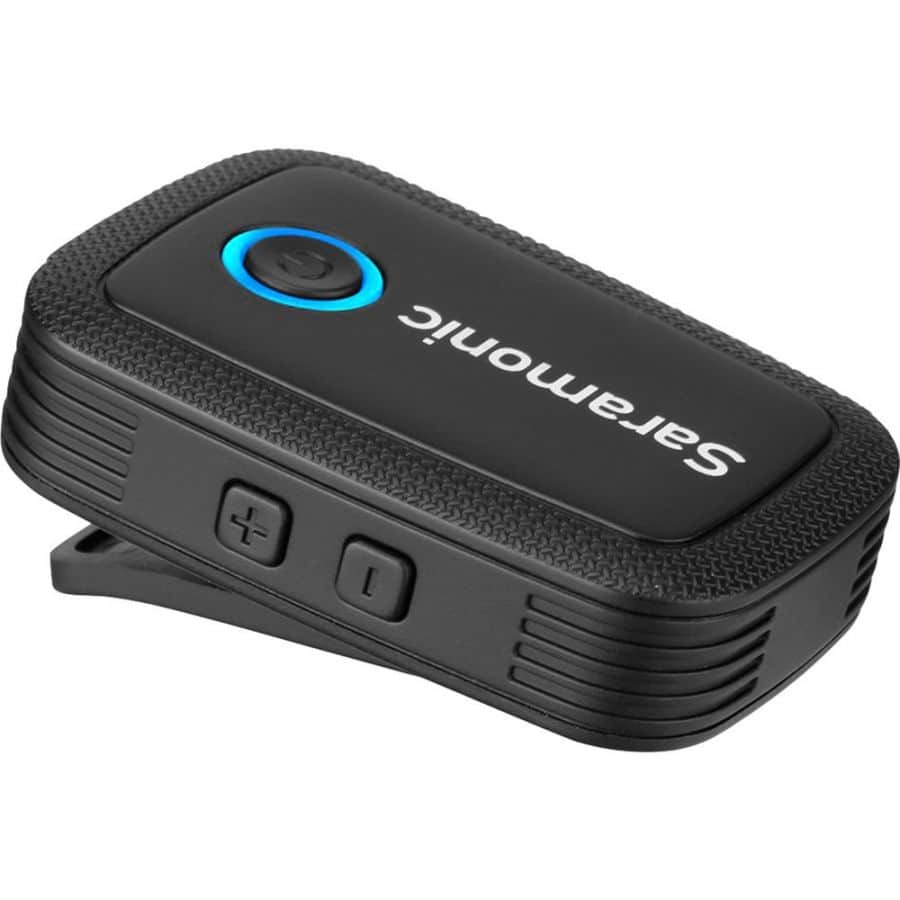

Saramonic Blink500-TX Transmitter with Omni Lavalier Microphone

For Blink 500 Wireless Mic Systems

The Saramonic Blink 500 TX clip-on bodypack transmitter is available as an individual component to expand your existing setup or have a backup transmitter. It is supplied with a clip-on lavalier microphone, or choose its built-in mic element. Easy to use.

Saramonic Blink500-TX Transmitter with Omni Lavalier Microphone
The Saramonic Blink 500 TX clip-on bodypack transmitter is available as an individual component to expand your existing setup or have a backup transmitter. It is supplied with a clip-on lavalier microphone, or choose its built-in mic element. Easy to use.

Pro Level Sound
The Blink 500 delivers considerably improved sound quality compared to the built-in mics on cameras and mobile devices while functioning as an ultracompact digital system that provides immediate out-of-the-box operability for anyone, making it ideal for video, podcast, and mobile journalism applications. Once it's plugged in and powered on, it's set and ready so your focus can stay on your content. The Blink 500 systems utilize 24-bit / 48 kHz resolution—the same audio standard used worldwide by sound engineers in the film industry—to give you quality sound at a budget-friendly price point.  offer considerably improved fidelity and clarity with less noise. Since your subjects may speak at very different volumes, Saramonic outfitted the Blink 500 TX with dedicated gain buttons to allow quick and effortless adjustment of the signal level. You can even turn the volume all the way down to effectively mute the transmitter. By connecting directly to your device's USB Type-C port, the Blink 500 RXUC avoids unnecessary D/A and A/D conversion to maintain the integrity of the digital signal from your transmitter all the way to your recording device.

Built In Microphone and Lavalier Included
Since the Blink 500 RXUC is a dual-channel receiver, it can simultaneously handle both Blink 500 TX wireless transmitters. If you need to expand beyond that, you can use up to 18 Blink 500 systems at once to accommodate up to 36 wireless microphones. Each Blink 500 system can include one dual-channel receiver and up to two transmitters. Choose from camera-mount (Blink 500 RX), Lightning (Blink 500 RXDi), or USB Type-C (Blink 500 RXUC) receivers. The Blink 500 TX features a built-in miniature condenser microphone with an omni pickup pattern that captures clear and natural voice tonality. Thanks to the transmitter's ultracompact housing, you can clip it to clothing, slide it into a shirt pocket, place it on a podium, or hold it in your hand. The lavalier mic includes a foam windscreen that lessens noise caused by light wind, breaths, and air conditioning systems. For enhanced reduction of stronger wind noise, a separately available furry windshield (a.k.a. windjammer) such as the Saramonic LM-WS can be fitted to the microphone.

Features:

  • Ultracompact clip-on body-pack wireless transmitter
  • Works with Blink 500 RX, RXDi, and RXUC portable dual-receivers (Sold separately)
  • Great sounding built-in omnidirectional microphone
  • External mic input
  • ASR-M1 omnidirectional lavalier microphone is included
  • Power indicator
  • Volumecontrol buttons
  • Built-in clip

Specifications:

Frequency

2.4GHz

Oscillator Type

Gaussian Frequency-Shift Keying (GFSK)

RF Frequency Band

2400 to 2483.5 MHz

RF Output Power

10 mW

Signal to Noise Ratio

≥70dB

Voice Delay

≤6ms

Reference Audio Input Level

-30 to -42dBv (Microphone Input, 0 dB Attenuation)

Audio Gain Control

11dB, 18dB, 25dB

Plug-In Power

Yes, 1V

Distortion

≤0.1%

Digital Resolution

24-bit / 48kHz

Frequency Response

20Hz to 16kHz

Max Operating Range

30m with Obstacles, 50m line of sight

Max Number of Simultaneous Systems

18 (up to 36 Microphones)

Antenna

Built-in 1/4λ Wire Antenna

Buttons

On / Off / Pair, Volume Up, Volume Down

Battery

Built-in Li-ion 3.7V / 400mAh

Approx. Battery Life

5 hours

Charging Connector

USB Type-C (1.5 hours to be fully charged)

Input

3.5mm Microphone Input

Indicators

4 x Blue LEDs

Microphone

Built-In Pressure Operated Electret Condenser

Microphone Pickup Pattern

Omnidirectional (Built-In Microphone and External Lavalier)

Microphone Frequency Range

50Hz-18KHz (Built-In Microphone and External Lavalier)

Microphone Equivalent Noise Level

>58dB (Built-In Microphone and External Lavalier)

Maximum SPL

120dB (Built-In Microphone), 110dB (External Lavalier)

Mounting Clip

Built-In

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to +50°C

Dimensions

63 x 43 x 16.5mm

Weight

34g
