The Saramonic SmartRig+ UC offers two channels of microphone or guitar to interface with a smartphone. This can be used to capture high quality recordings of sound or music on smartphones with a USB Type-C port.

Dispatch

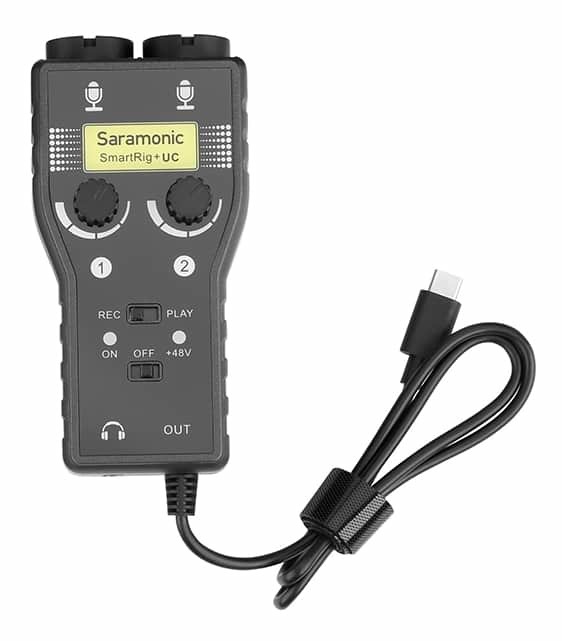

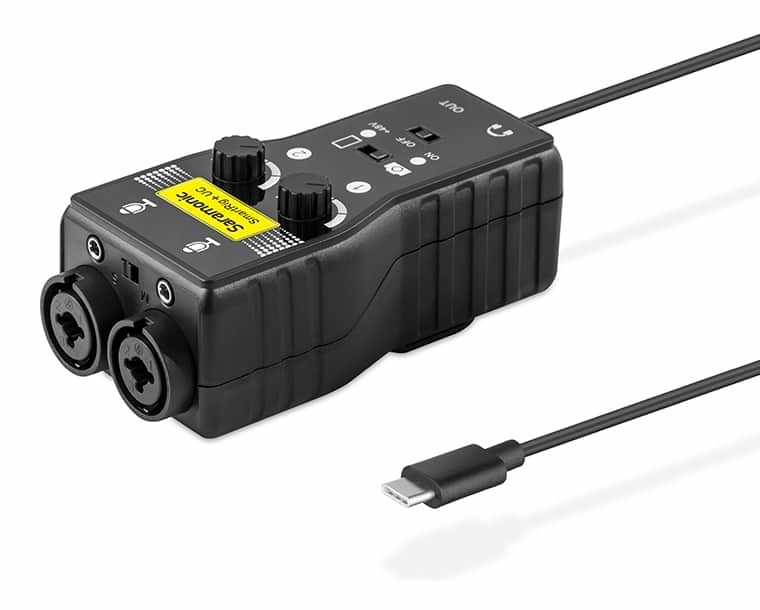

Saramonic SmartRig+ UC Two Channel Audio Interface
The Saramonic SmartRig+ UC offers two channels of microphone or guitar to interface with a smartphone. This can be used to capture high quality recordings of sound or music on smartphones with a USB Type-C port.

The USB Type-C connector allows you to record great stereo sound to your devices. The SmartRig+ UC makes your recording work much easier. It provides 48V phantom power for microphones and 3.5mm headphone output for real-time monitoring. The two gain control thumbwheels make it easy to set levels of each channel separately.

Features:

  • Two XLR mic inputs
  • Two 1/4″ (6.35mm) guitar inputs
  • Two 1/8″ (3.5mm) inputs
  • Mono/Stereo switch (M/S)
  • REC/PLAY switch
  • +48V phantom power
  • 3.5mm headphone output for monitoring
  • Gain control
  • USB Type-C connector for output

Specifications:

  • Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
  • THD: less than 0.01%@1KHZ, -30dBu input
  • SNR: 80 dB @ 1 kHz, -30 dBu input
  • Input1:
    1x XLR mic input
    1 x 1/4″ (6.35mm) guitar input
    1 x 1/8″ (3.5mm) input
  • Input2:
    1 x XLR mic input
    1 x 1/4″ (6.35mm) guitar input
    1 x 1/8″ (3.5mm) input
  • Output: USB Type-C connector output cable
  • Phone Out: 1 x 1/8″ (3.5mm) headphone jack
  • Gain: +20 dB to -∞
  • Phantom Power: 48V power supplies
  • Power Requirements: 9V alkaline or lithium battery
  • Dimensions: L 120 x W 40 x H 40 mm
  • Power Requirements: 9V alkaline or lithium battery
  • Dimensions: L 120 x W 40 x H 40 mm
  • Weight: 130g (excluding battery)
View PDF brochure for Saramonic SmartRig+ UC Dual Smartphone Audio Interface - USB Type C Plug
