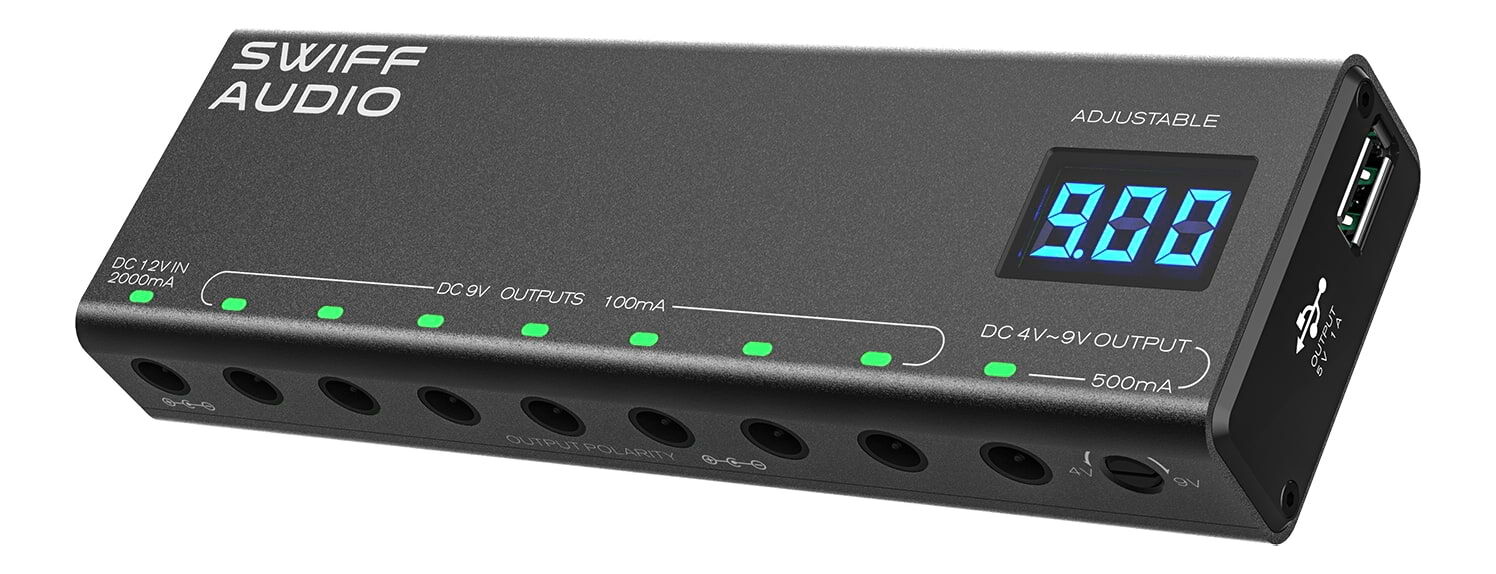

Swiff Audio P200 Pedal Power Supply

Swiff Audio P200 Isolated Pedal Power Supply
The Swiff Audio P200 powers a whole pedalboard from one compact unit, with 8 fully isolated outputs - 7x 9V DC at 100mA plus an adjustable 4-9V DC output at 500mA with a digital voltage display - and a USB 5V 1A port for accessories. Isolation keeps noise and ground loops out of your signal chain, and it arrives ready to use with 8 DC cables, a polarity conversion cable and a 12V power adapter included.

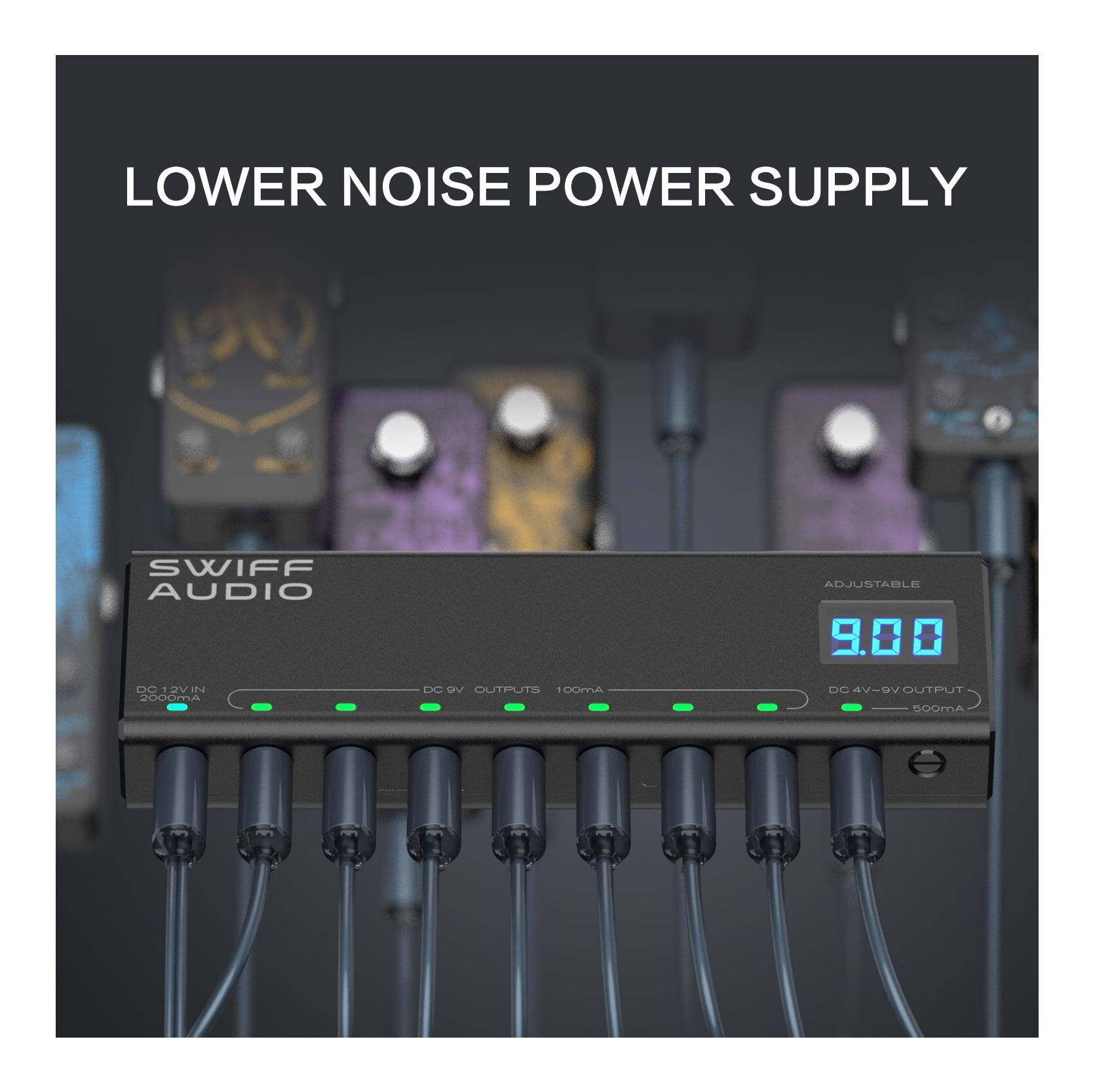

Fully Isolated, Noise-Free Power

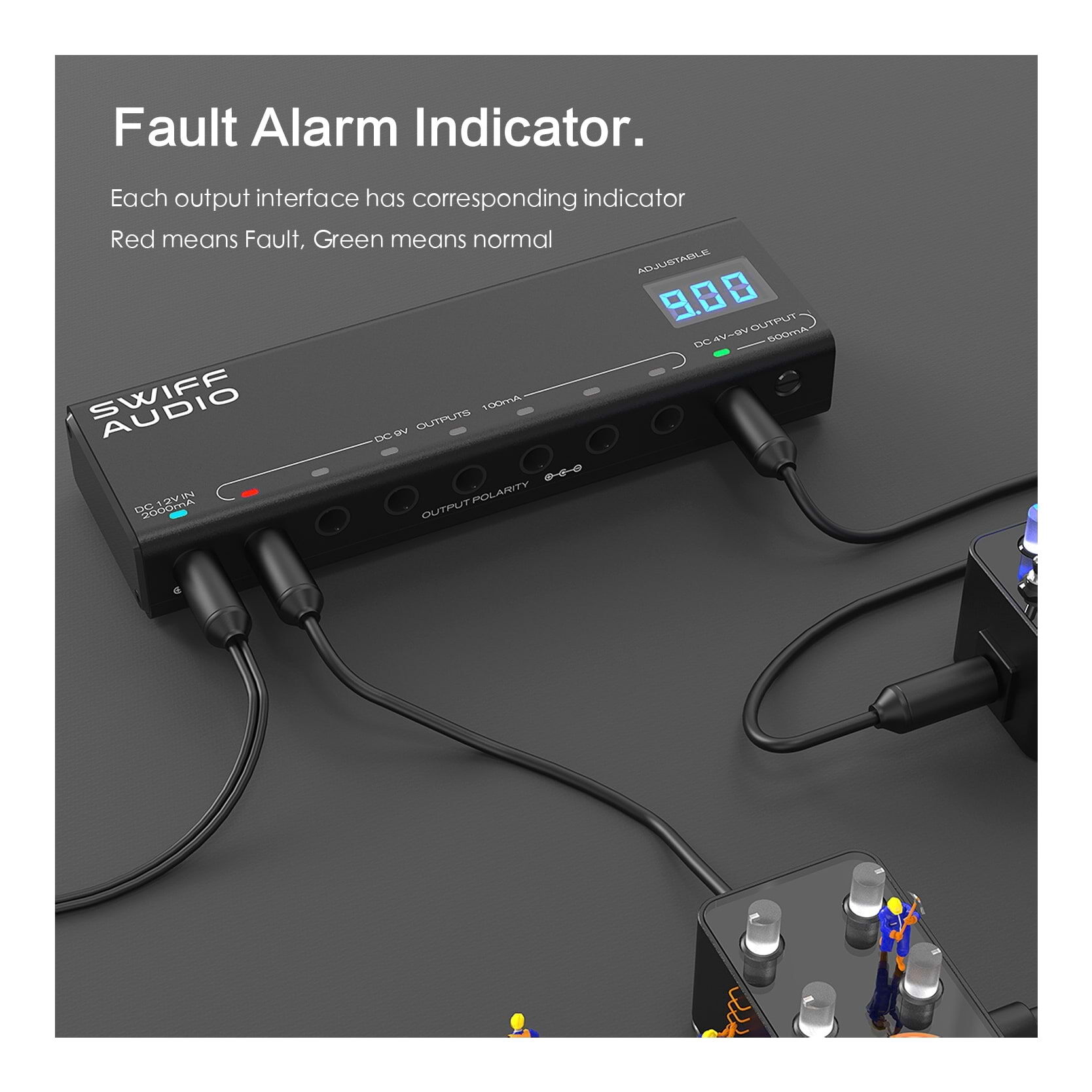

Each of the 8 DC outputs is fully isolated, so a noisy digital pedal cannot bleed hum or ground loops into the rest of your chain, and multiple pedals run simultaneously without interfering with each other. Every output also carries its own short-circuit and over-current protection, with a status LED per output that glows green in normal use and turns red on a fault - so a dead cable or shorted pedal is easy to spot mid-set.

Dial In the Exact Voltage
The eighth output is adjustable from 4V to 9V at up to 500mA, with its live voltage shown on the digital display. Instead of guessing where a knob sits, you can set precisely 9.00V for standard pedals or wind it down for vintage-style voltage sag - fuzz and overdrive players can repeat exact settings like 7.2V or 6.5V every time. The display reads the adjustable output; the seven fixed 9V outputs are monitored by their individual status LEDs.

Compact, Rugged and Ready to Go

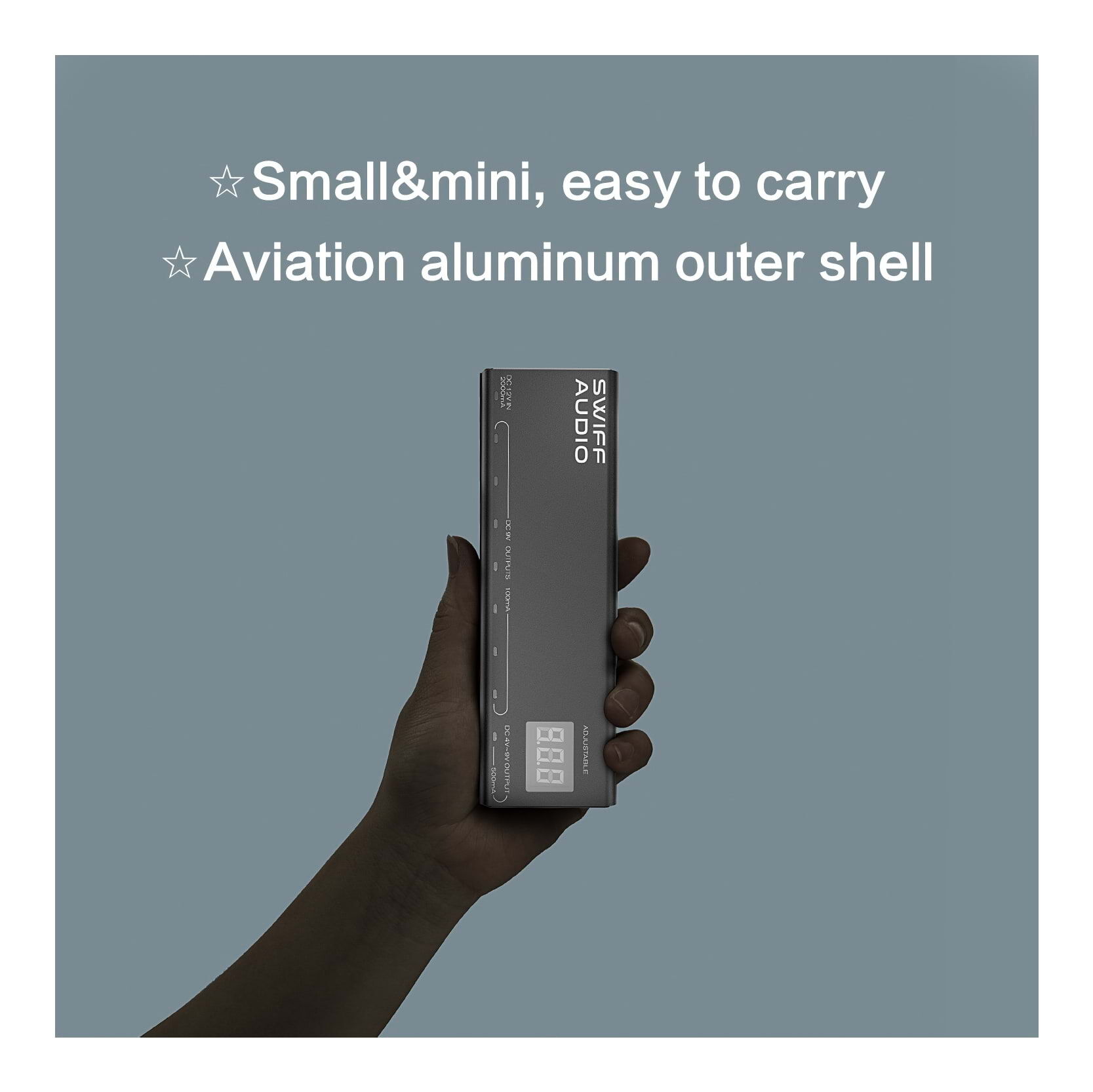

An aircraft-grade aluminium housing keeps the P200 light, tough and quick to shed heat, and at just 172 x 70 x 32mm it tucks under or beside any pedalboard. The USB output can top up a phone, wireless system or LED accessory, and the included 12V 2A adapter, 8 DC power cables and polarity conversion cable mean there is nothing extra to buy.

Swiff Audio
With 15 years of research and development so far, Swiff Audio is a leading brand in the wireless audio device industry, focusing on providing high quality wireless audio products and innovative technology. Their product line offers numerous options for professional musicians, performers, and audio producers, including wireless speakers, transmitters and receivers, wireless microphones, monitoring systems, wireless headphones, pedal tuners and rechargeable tuners. Their products are well received, with sales extending to 26 countries, across Europe, North America, South America, Asia and Oceania.

Features:

• 8 fully isolated outputs eliminate noise and ground loops
• Digital display shows the adjustable output's exact voltage
• Individual short-circuit and over-current protection on every output
• Per-output status LEDs - green for normal, red for fault
• Compact aircraft-grade aluminium body
• Cables included, ready to use

Specifications:

• Outputs: 7x 9V DC @ 100mA each
• 1x adjustable 4-9V DC output @ 500mA with live voltage display
• USB output: 5V 1A for phones, wireless units and LED accessories
• Input: 12V DC 2A (adapter included)
• Construction: aircraft-grade aluminium housing
• Dimensions: 172 x 70 x 32mm
• Included: 8x DC power cables, 1x polarity conversion cable, 12V/2A power adapter, user manual
