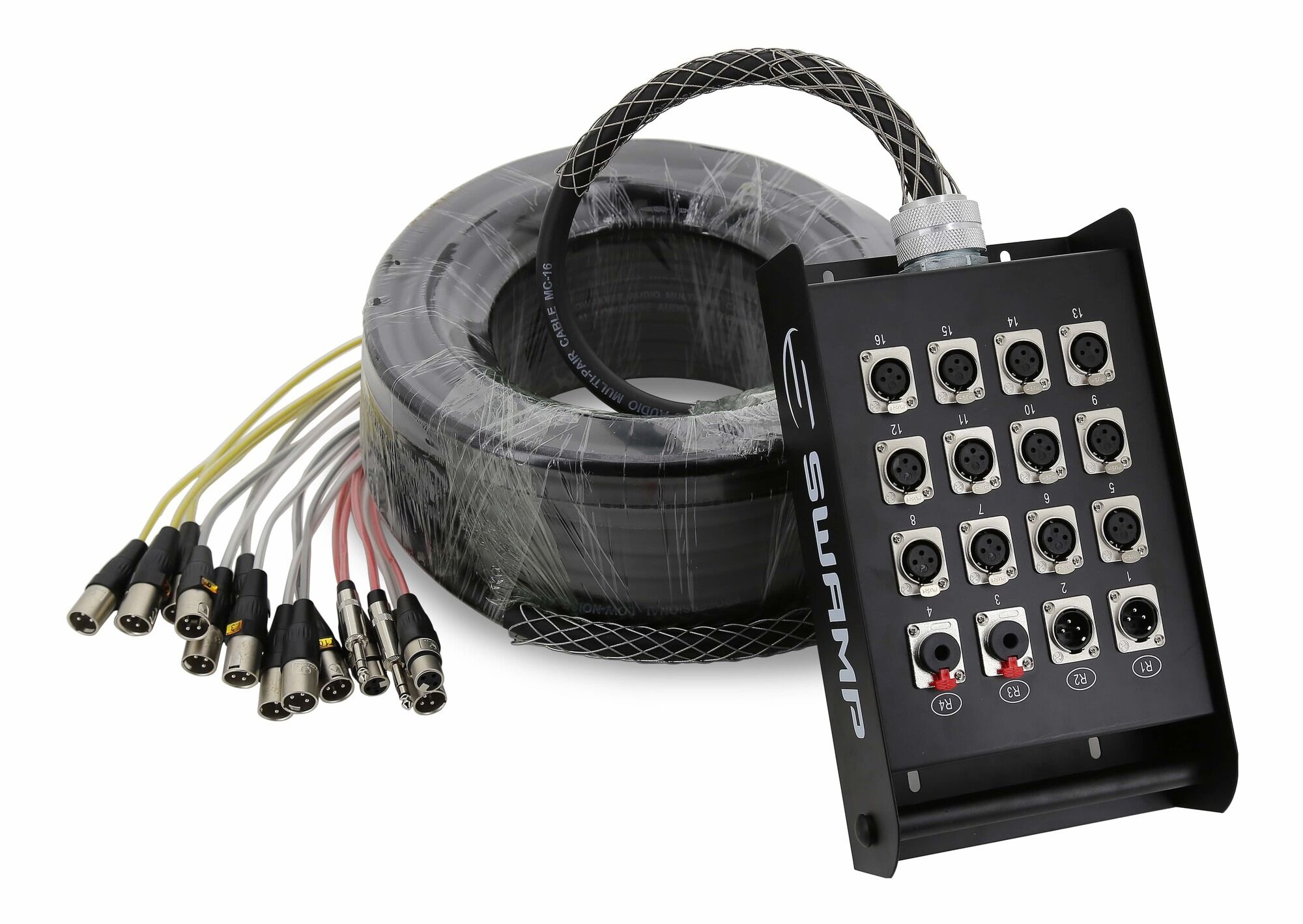

16 Channel Multicore Cable w/ Stage Box
This multicore and stage box is configured with 12 balanced XLR send and 4 balanced XLR or TRS return channels. The system includes a 16-way multicore cable with a rugged metal stage box housing and an inverse-gendered XLR breakout fan for patching to your mixer. All the connectors are quality Ningbo Neutrik connectors to ensure consistent high performance in heavy use environments.
XLR and TRS Return Output Options
There are four return outputs 2x XLR(m) and 2x 1/4" TRS return output connectors on the stage box, these channels are marked R1 to R4. The channels connect to 2x XLR(f) and 2x TRS(m) connectors on the tail end, which are used to rout output signal from the mixer back to the stage box for connections with amplifiers, speakers or other monitoring equipment.
Each core is constructed with a twisted pair of OFC conductors wrapped with a spiral wound copper ground wire and outer aluminum foil shield encased in a PE jacket. All channels are then bound inside a tough black outer PVC jacket.
Ningbo Neutrik Electronics / Yongsheng Connectors
Ningbo Neutrik and its brand "Yongsheng" are part of the world renowned Neutrik AG group of companies. Connectors by Ningbo Neutrik are manufactured in and distributed through China and are branded Yongsheng. Yongsheng connectors deliver the precision and quality you would expect from this reputable manufacturer at an amazingly cost effective price point.
How to Use Your Multicore
Multicores with stage boxes are typically used to connect performers on stage or in a recording studio to a mixing desk. Instruments (DI Box) and microphones are plugged into the send inputs marked 1 to 12 on the stage box. The signals are carried through the multicore to 12 corresponding XLR(m) number coded connectors.
- 12 Balanced Send Channels
- 4 Balanced Return Channels
- Optional XLR(m) and 1/4"(f) TRS Return Channel Jacks
- Ningbo Neutrik Connectors - Stage Box (YS145, YS146) - Tails (YS136N, YS137N, YS228)
