LD Systems ICOA 12A 12" Coaxial Powered Speaker

$489.99
Sold Out
Contact us for an ETA
RRP $529.00

From the new ICOA range of speakers from LD Systems, this 12" powered speaker delivers incredible performance with clarity, flexibility and power. Featuring a coaxial design, rotating optimised horn, 4 DSP presets, 3 band EQ, 2 mic/line inputs at 126 spl.

LD Systems ICOA 12A 12" Coaxial Powered Speaker
From the new ICOA range of speakers from LD Systems, this 12" powered speaker delivers incredible performance with clarity, flexibility and power. Featuring a coaxial design, rotating optimised horn, 4 DSP presets, 3 band EQ, 2 mic/line inputs at 126 spl.

ICOA Series
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12A the ideal choice for musicians, bands, entertainers and dance schools. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient Class-D power amplifier delivers 126dB max. SPL and 1200W peak performance.

Full Featured Design
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect high performance under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Features:

  • A genuine all-rounder for full-range, satellite and monitor applications
  • 126dB max. SPL and 300W RMS performance

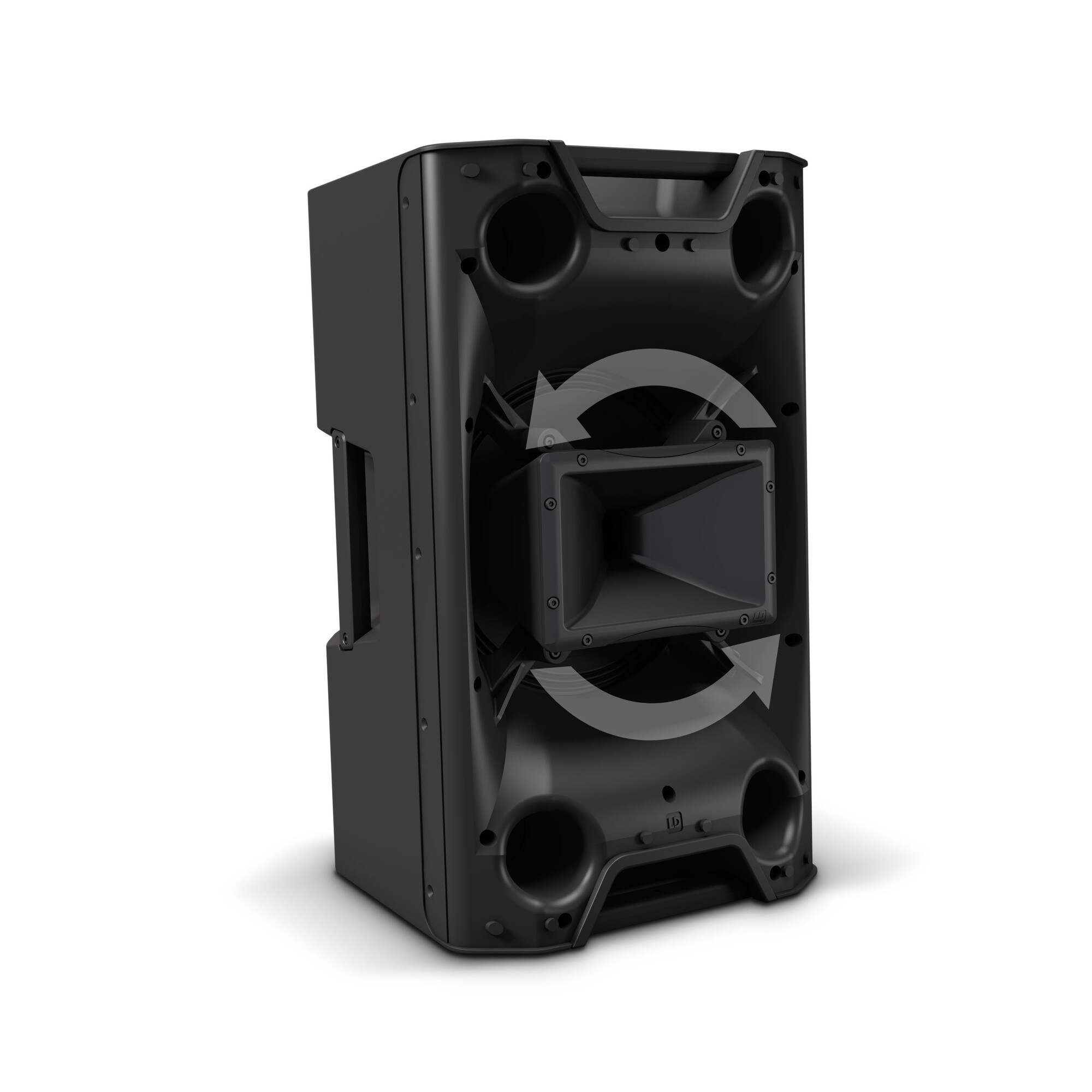

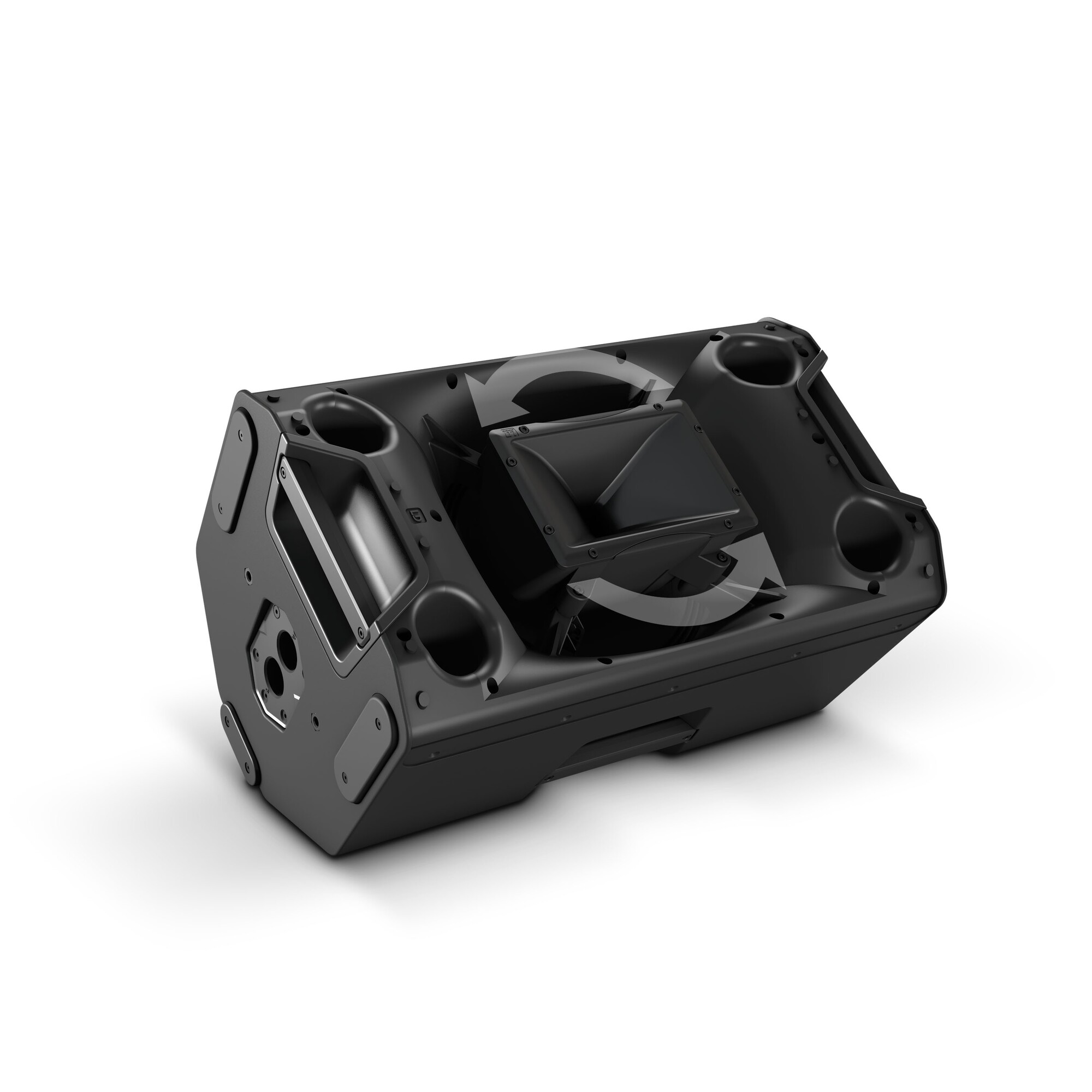

  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn
  • Horn-loaded woofer
  • DynX DSP with 4 presets, 3-band EQ and delay function

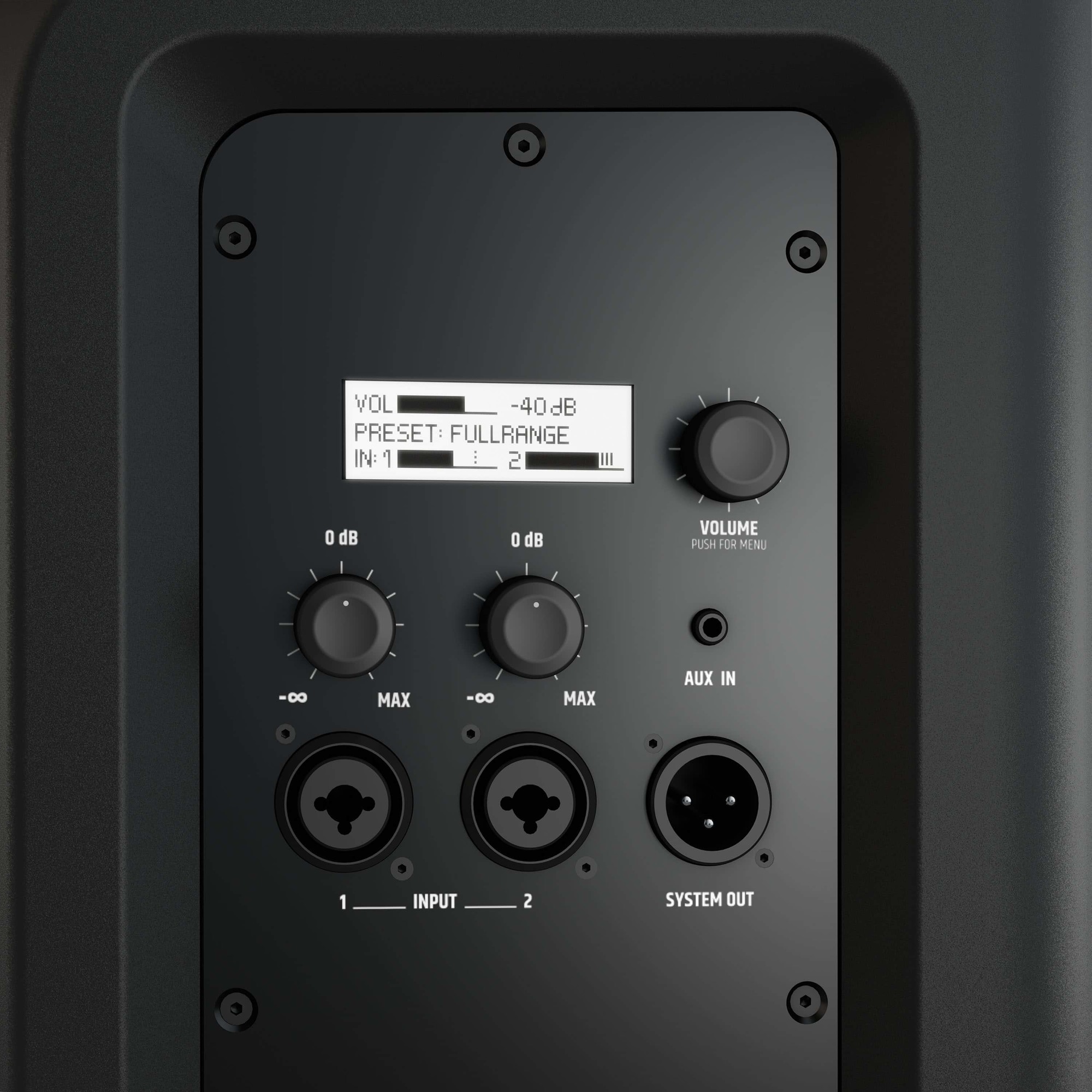

  • 2 line/mic input channels with individual gain controllers plus mono mix output

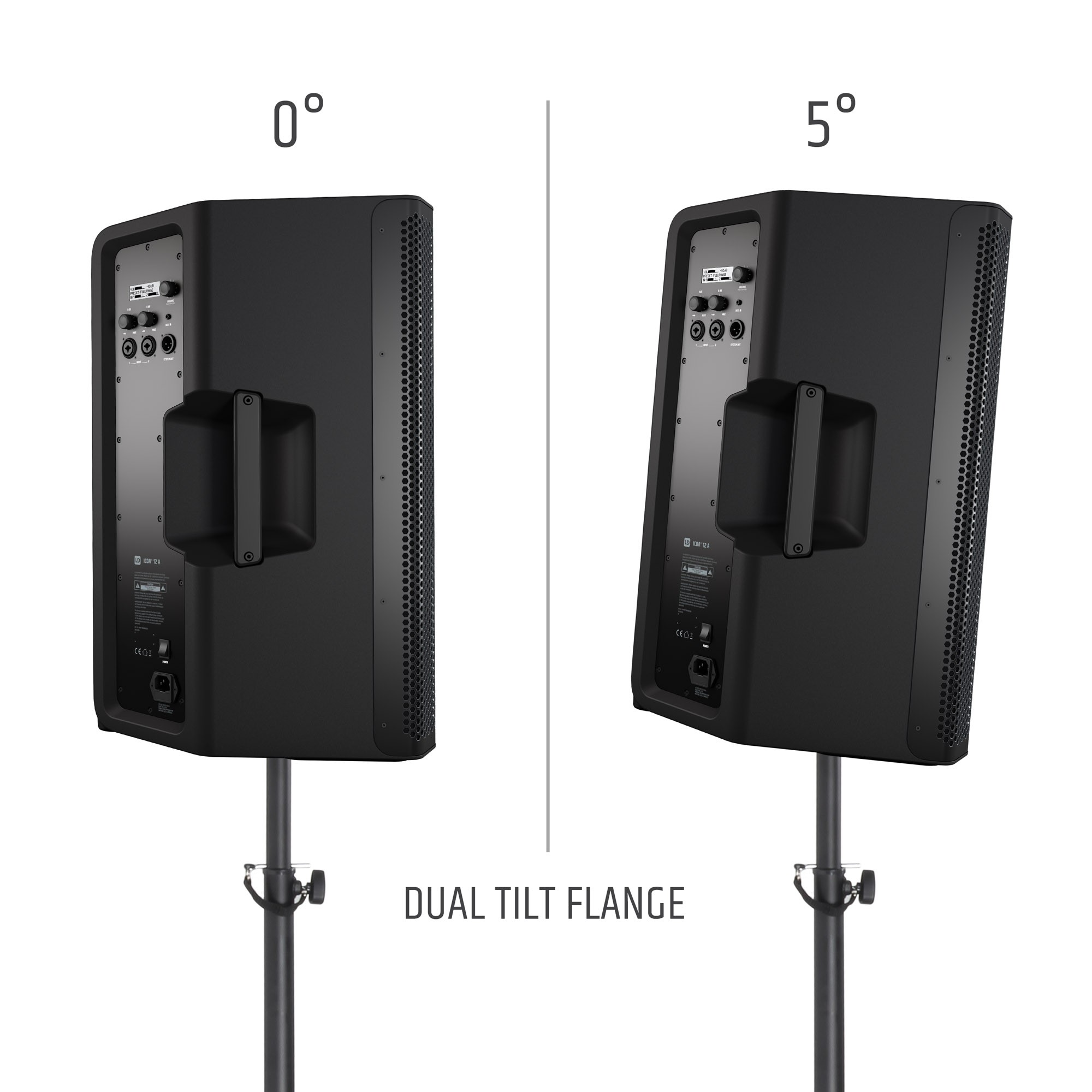

  • 36mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • Shock-resistant front grille for optimal protection of the speaker
  • 4 aluminium grips with ergonomic, rubber surface
  • Extensive, optionally available accessories for installation and transport

Specifications:

Product type PA loudspeaker
Type Powered
Low/mid driver dimensions 12"
Woofer size 304.8mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 1"
HF Driver Size 25.4mm
HF driver magnet Ferrite
HF driver brand Custom-made
HF driver voice coil 1"
HF Driver Voice Coil 25.4mm
Amplifier Class D
Dispersion (H x V) 90° x 50
RMS 300W
Peak power 1200W
Frequency response 50 - 20000Hz
Crossover frequency kHz 2kHz
Max. SPL (peak) 126dB
Protection circuits Multiband limiter , over voltage , over-current , thermal overload
Controls 2 x gain , On / off switch , Rotary/push encoder
Indicators LC display
Mic/ line inputs 2
Mic-/ Line Input Connectors 6.3mm jack Combination sockets (symmetrical) , XLR
Line inputs 1
Line input connectors 3.5mm TRS
Line outputs 1
Line output connectors XLR
Operating voltage SMPS
Power consumption 150W
Ambient temperature ( in operation ) 0 - 40°C
Operating voltage 100V - 240V AC / 50 - 60Hz
Relative Humidity < 80%, not condensing
Fuse T4AL 250V
Cabinet material Polypropylene
Cabinet construction Bass Reflex
Mounting 36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle 55°
Width 375mm
Height 635mm
Depth 396mm
Weight 19.95kg
Accessories (included) Power cord
View PDF brochure for LD Systems ICOA 12A 12" Coaxial Powered Speaker
