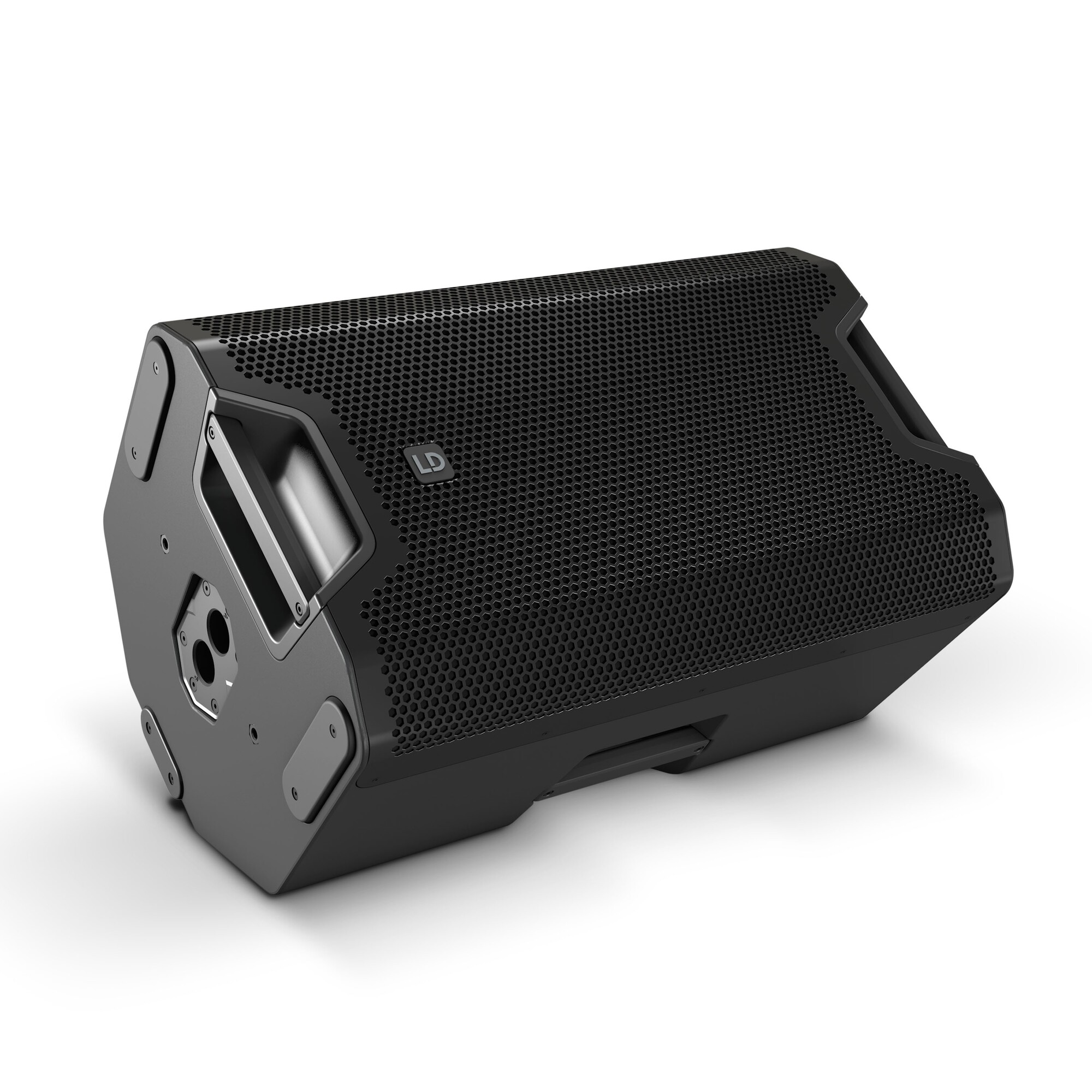

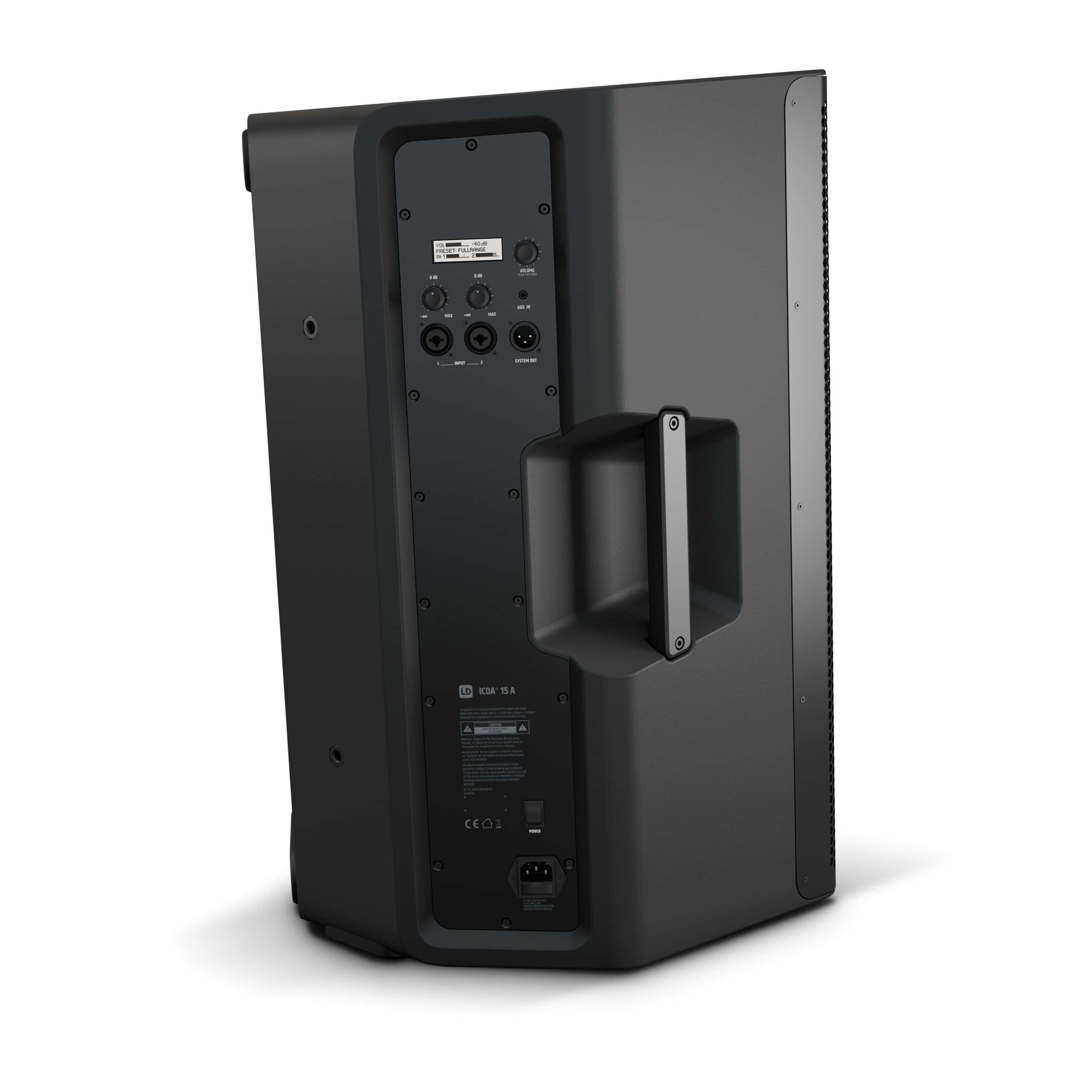

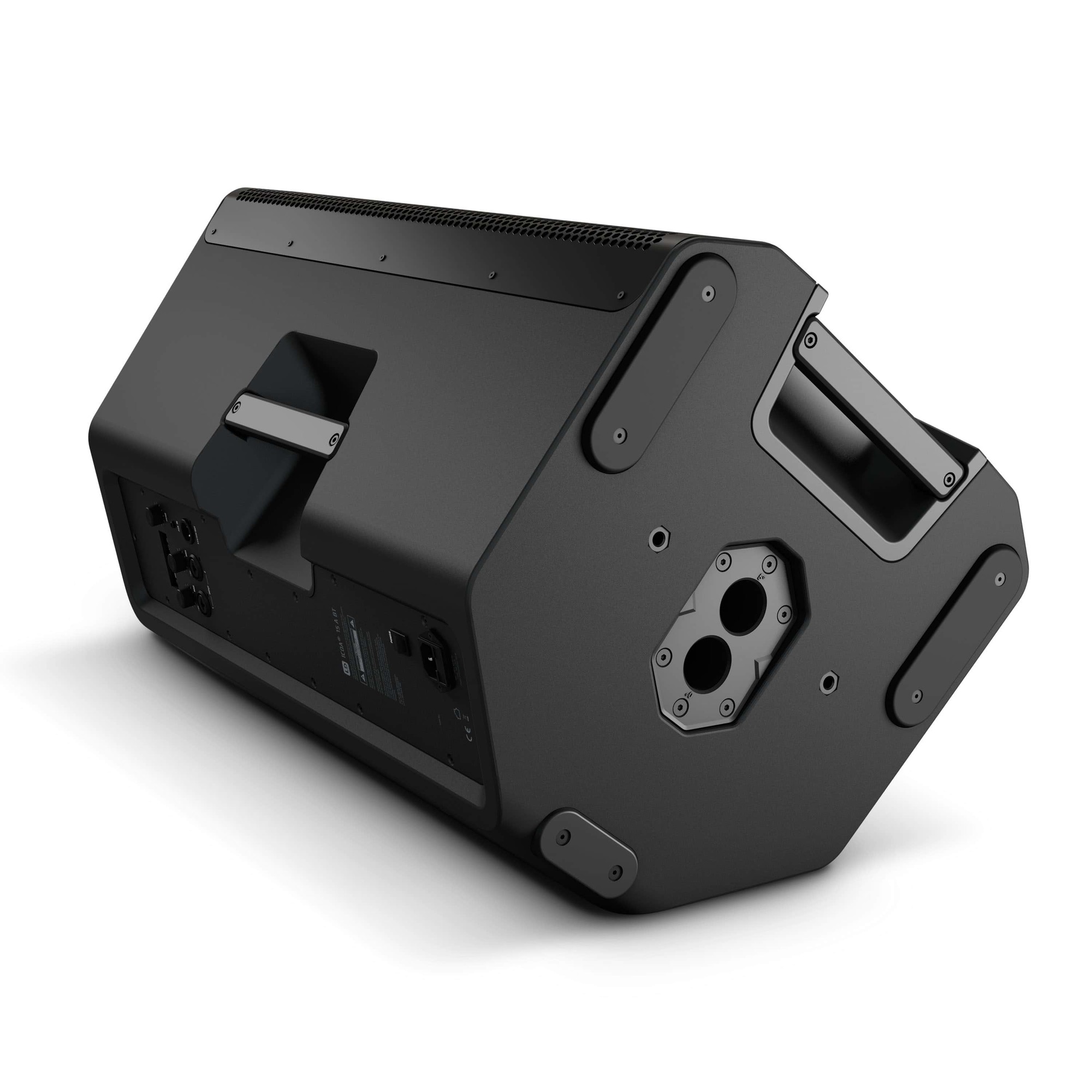

LD Systems ICOA 15A 15" Coaxial Powered Speaker
LD Systems ICOA 15A 15" Coaxial Powered Speaker
From the new ICOA range of speakers from LD Systems, this 15" powered speaker delivers incredible performance with clarity, flexibility and power. Featuring a coaxial design, rotating optimised horn, 4 DSP presets, 3 band EQ, 2 mic/line inputs at 128 spl.
ICOA Series
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15A the ideal choice for musicians, bands, entertainers and dance schools. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient Class-D power amplifier delivers 128dB max. SPL and 1200W peak performance.
Full Featured Design
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect high performance under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Features:
- A genuine all-rounder for full-range, satellite and monitor applications
- 128dB max. SPL and 300W RMS performance

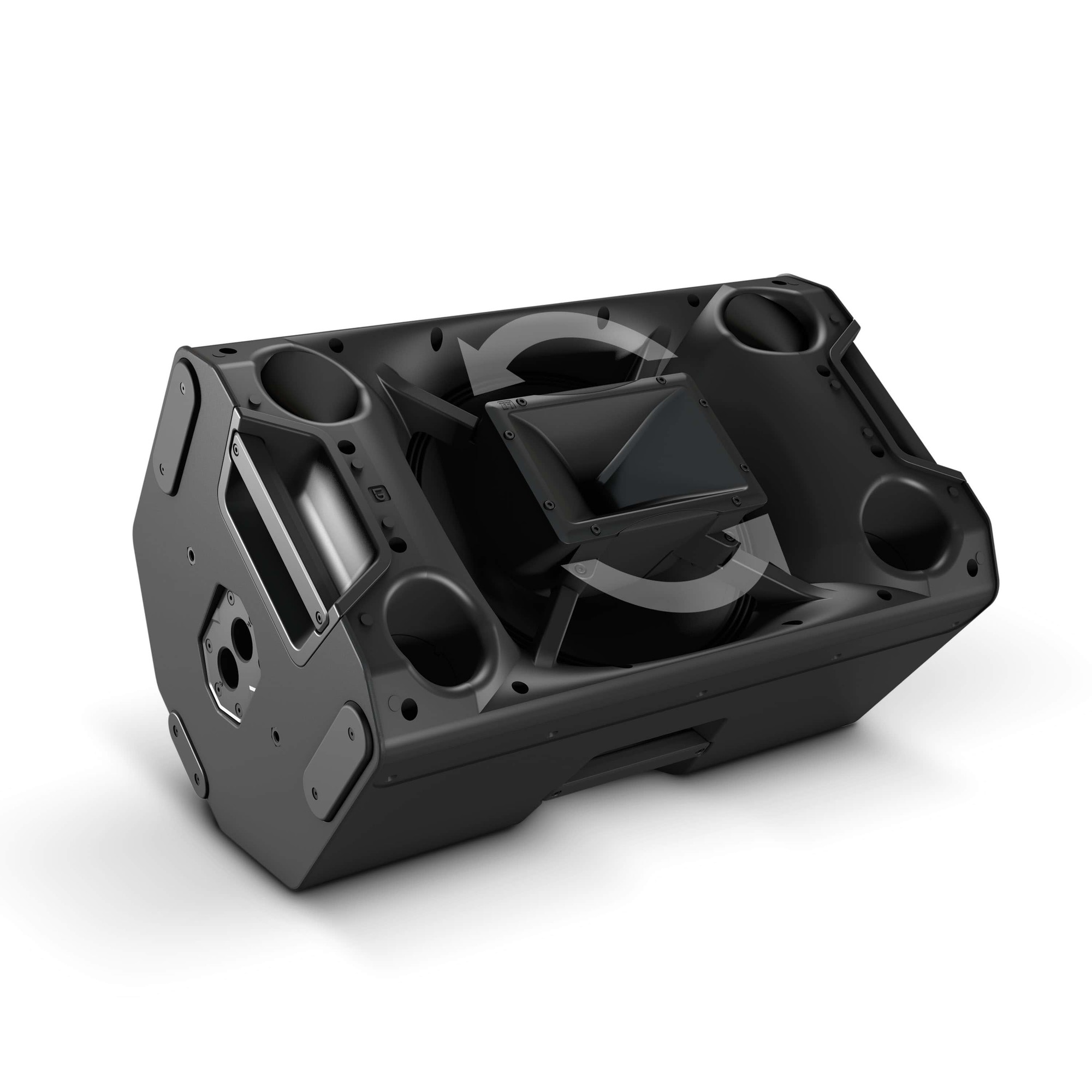

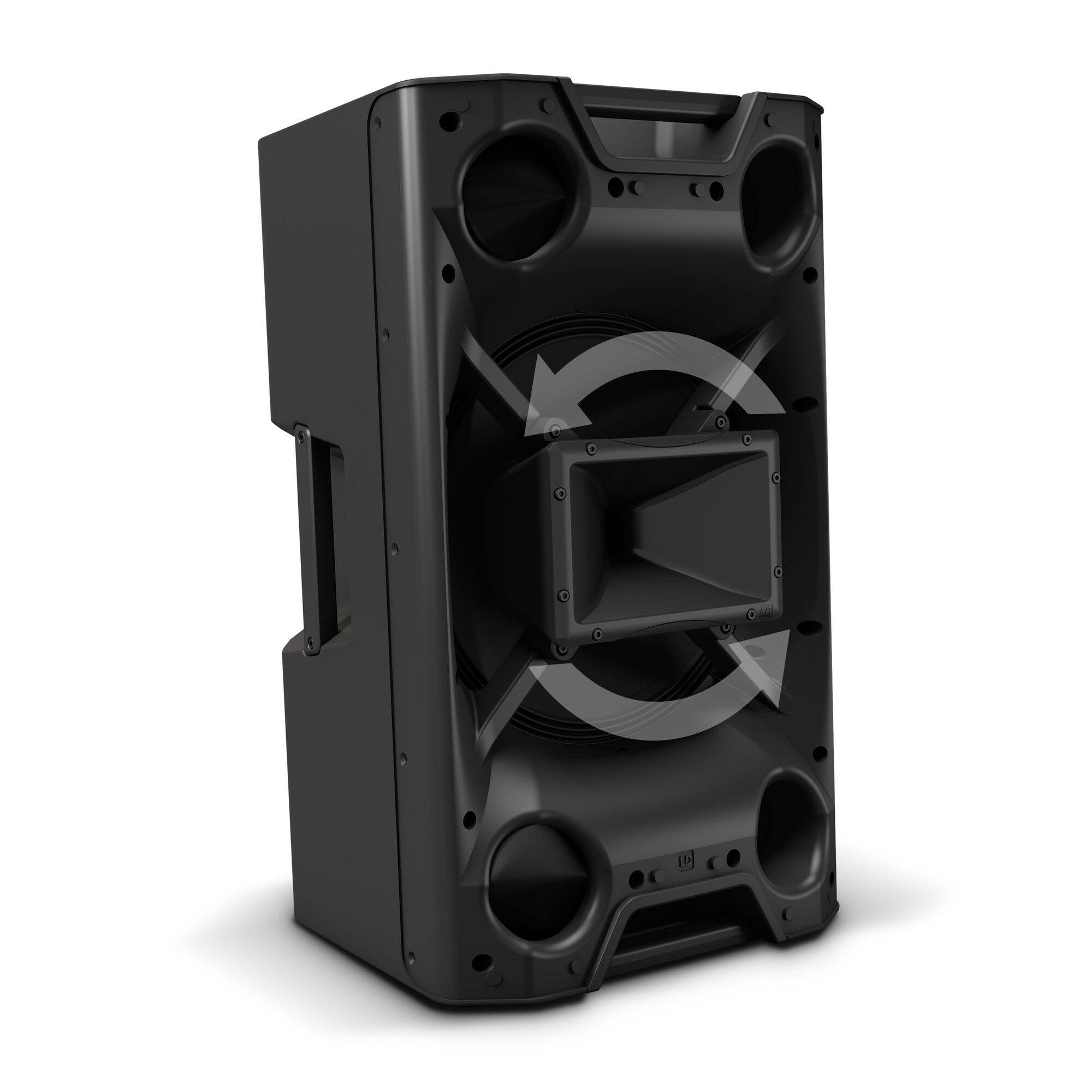

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function

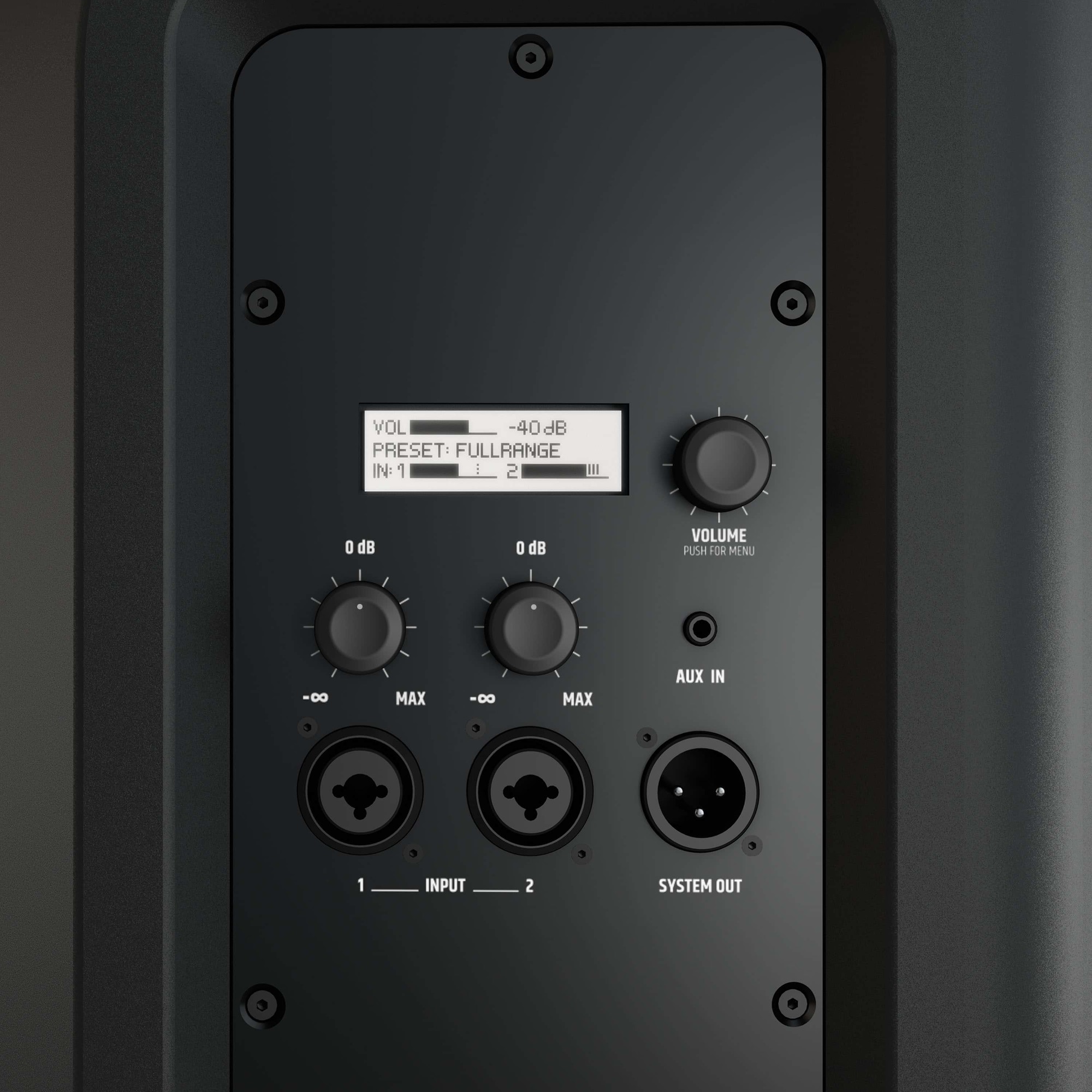

- 2 line/mic input channels with individual gain controllers plus mono mix output

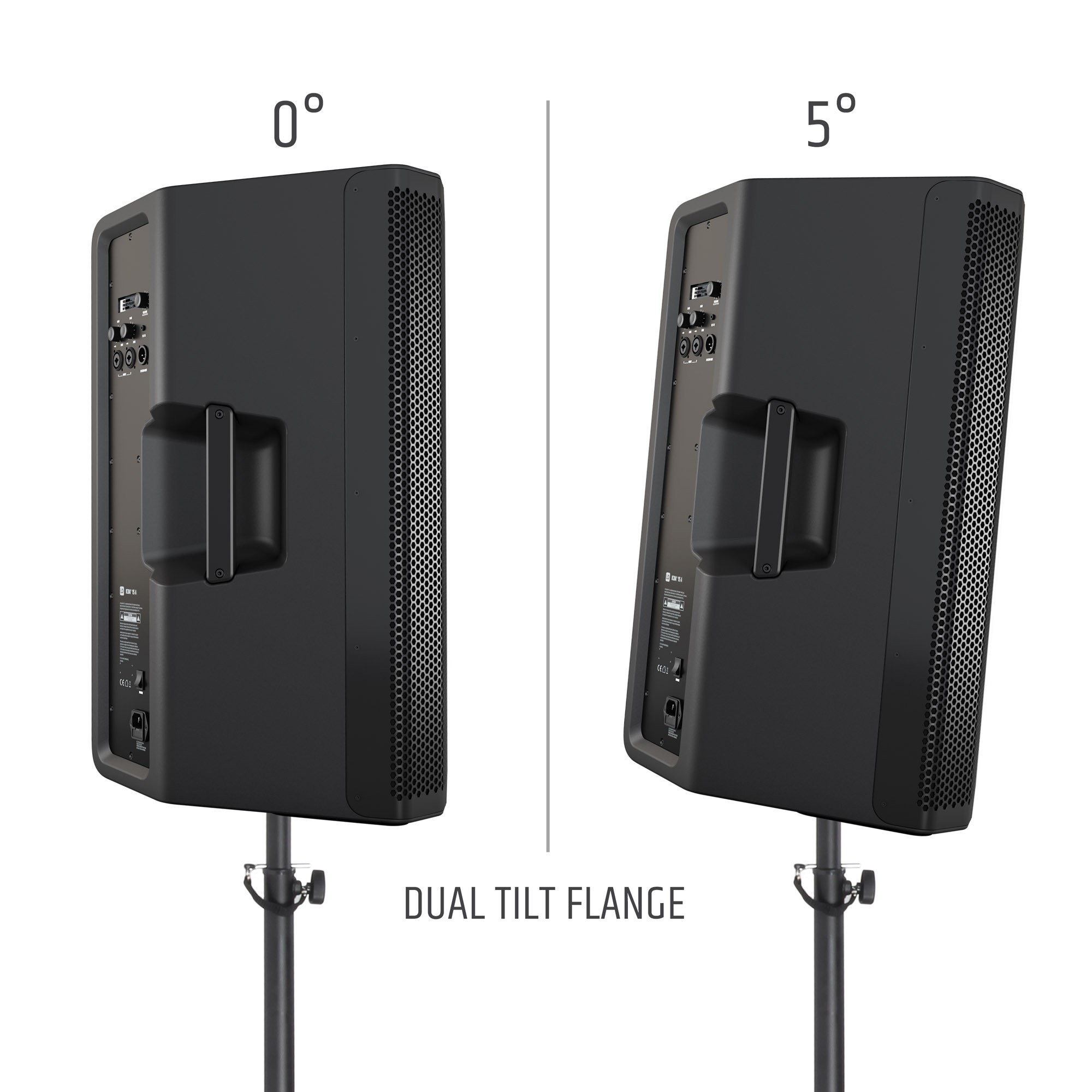

- 36mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

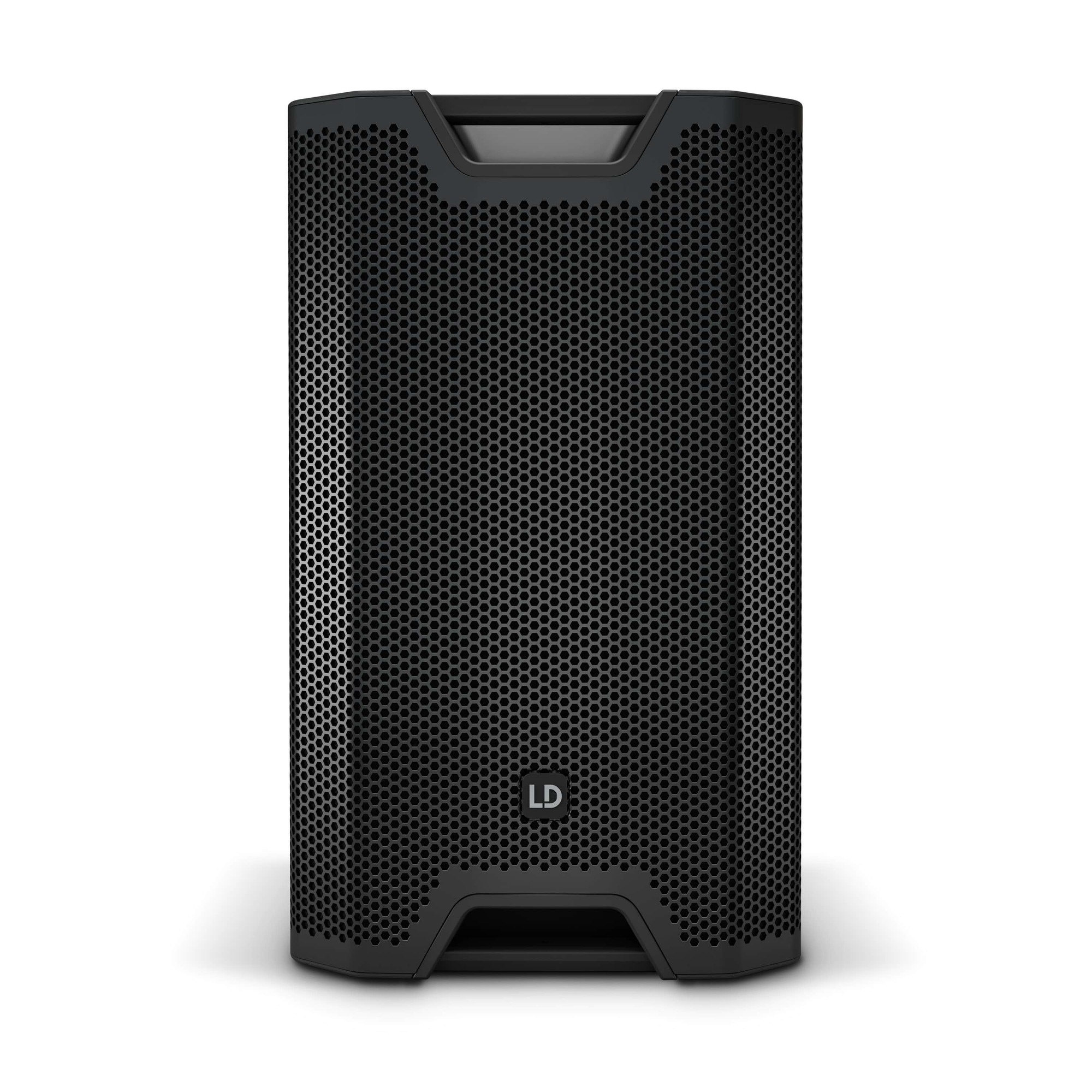

- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
Specifications:
| Product type | PA loudspeaker |
|---|---|
| Low/mid driver dimensions | 15 ” (381 mm) |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Horn | BEM optimized CD Horn |
| HF driver dimensions | 1 ” (25.4 mm) |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| HF driver voice coil | 1 ” (25.4 mm) |
| Amplifier | Class D |
| Dispersion (H x V) | 90 ° x 50 ° |
| RMS | 300W |
| Peak power | 1200W |
| Frequency response | 48Hz – 20kHz |
| Crossover frequency | 2kHz |
| Max. SPL (peak) | 128dB |
| Bluetooth | No bluetooth connectivity on this model |
| Protection circuits | Multiband limiter , over voltage , over-current , thermal overload |
| Controls | 2 x gain , On / off switch , Rotary/push encoder |
| Indicators | LC display |
| Mic/ line inputs | 2 |
| Mic-/ Line Input Connectors | 6.3mm jack Combination sockets (symmetrical) , XLR |
| Line inputs | 1 |
| Line input connectors | 3.5mm TRS |
| Line outputs | 1 |
| Line output connectors | XLR |
| Power consumption | 15 W |
| Ambient temperature ( in operation ) | 0 – 40°C |
| Operating voltage | 100V – 240V AC / 50 – 60Hz |
| Relative Humidity | < 80 %, not condensing |
| Fuse | T4AL 250V |
| Cabinet material | polypropylene |
| Cabinet construction | vented |
| tripod flange | 32°F , 36mm flange , 5° |
| Monitor angle | 55° |
| Dimensions: | 416 x 695 x 415 mm |
| Weight | 24.3 kg |
| Accessories (included) | Power cord |
