LD Systems U505IEMHP In-Ear Monitoring System 584-608 MHz

LD Systems

LD Systems U505IEMHP In-Ear Monitoring System with Earphones -584-608 MHz

$919.07
$998.99
  In Stock
Found a better Price? Price match now
or interest free for up to 6 months with
SAVE 8%
-
+

Designed with the pro user in mind, the LD Systems U505IEMHP In-Ear Monitoring System is a perfect solution so you can freely on stage with your dedicated mix delivered in immense detail. Transmission range >100m, 10 custom presets, OLED, in-ear monitors.

Dispatch

LD Systems U505IEMHP In-Ear Monitoring System with Earphones- 584–608 MHz
Designed with the pro user in mind, the LD Systems U505IEMHP In-Ear Monitoring System is a perfect solution so you can freely on stage with your dedicated mix delivered in immense detail. Transmission range >100m, 10 custom presets, OLED, in-ear monitors.

Professional Systems
The amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for sure, and they feature advanced technology, contemporary looks and straightforward operation. LD Systems' U505 provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.

Many Features
To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear's noise floor is exceptionally low. Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.

Features:

  • Reliable in-ear monitoring with more than 100 m range
  • 96 available channels
  • 2, 10 or 30 mW ERP selectable transmission power
  • Convenient infrared frequency syncing
  • Individual user name assignment and memory for 10 custom presets
  • Extended frequency response
  • 3-band EQ with parametric mids
  • Switchable limiter
  • Stereo, focus and mono modes of operation
  • High-contrast OLED display
  • Transmitter with direct monitoring headphone output
  • Bodypack receiver with three selectable squelch levels
  • 10 h of bodypack receiver operation on two AA batteries
  • Simultaneous operation of up to 12 systems
  • U500® IEM transmitter compatible with U300® IEM bodypacks

Specifications:

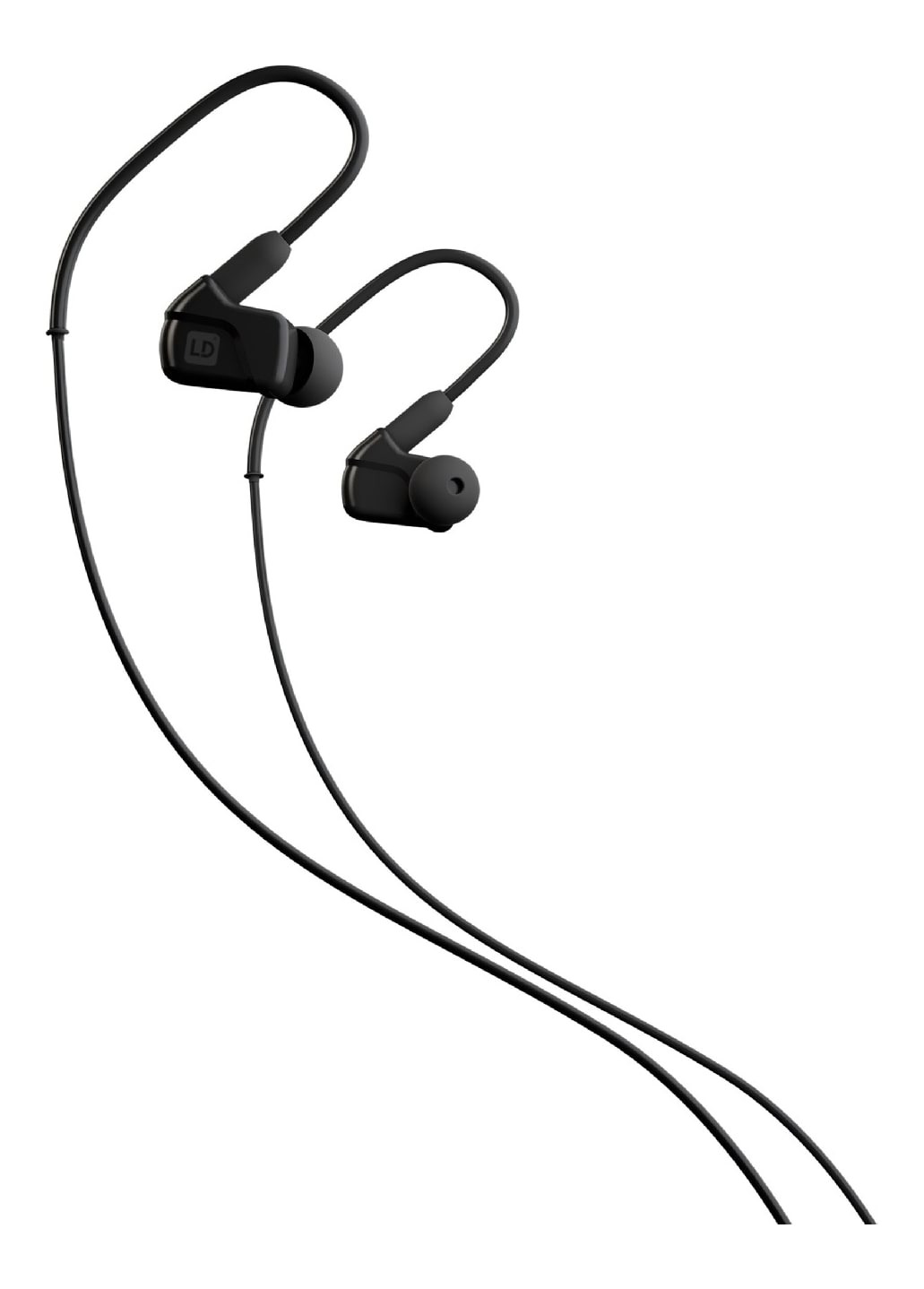

  • Impedance: 32 Ohm(s)
  • Connection type: 3.5 mm TRS
  • Frequency response: 20 - 18000Hz
  • Cable length: 1.55m
  • Accessories (included): Transport case, Antenna

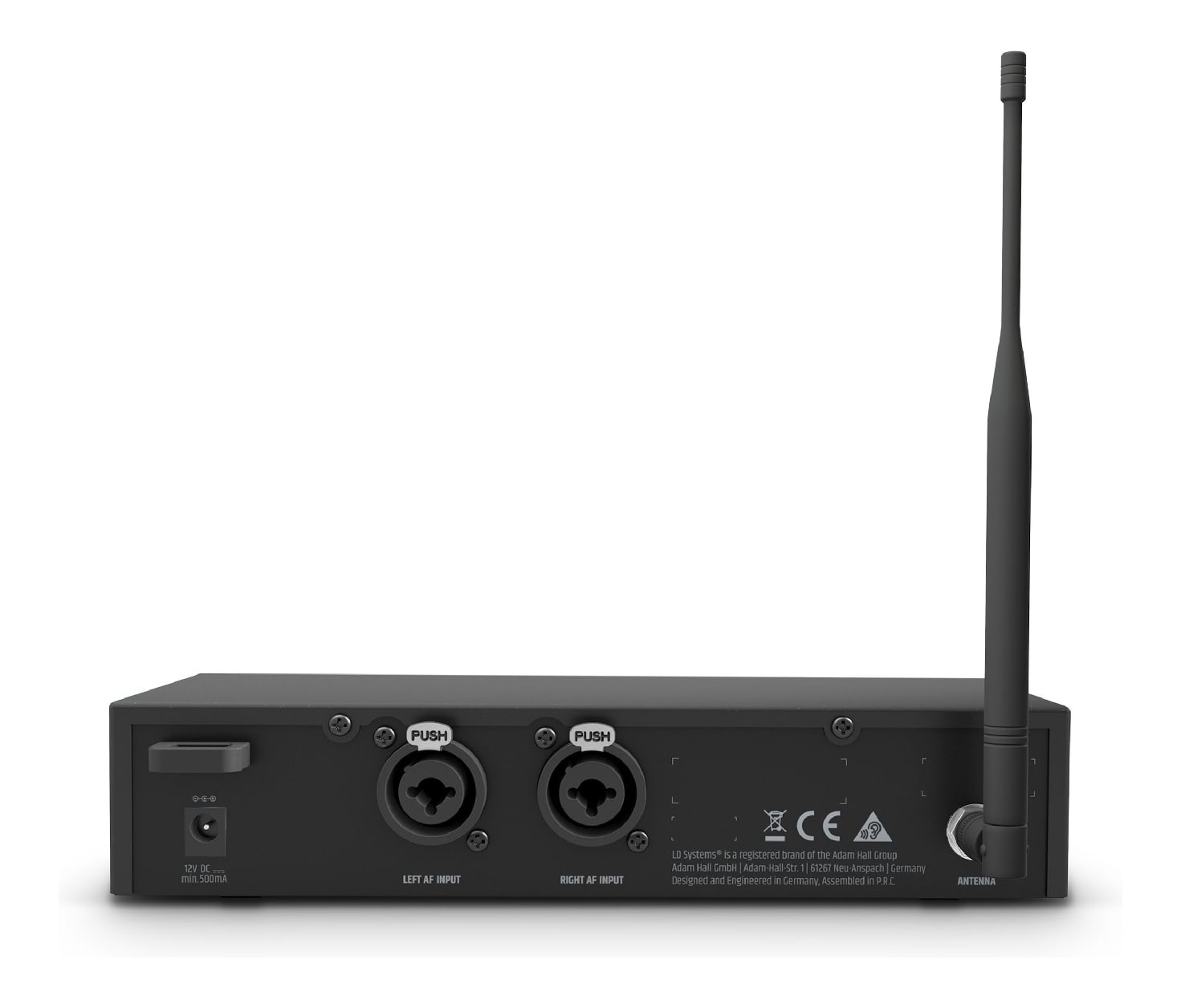

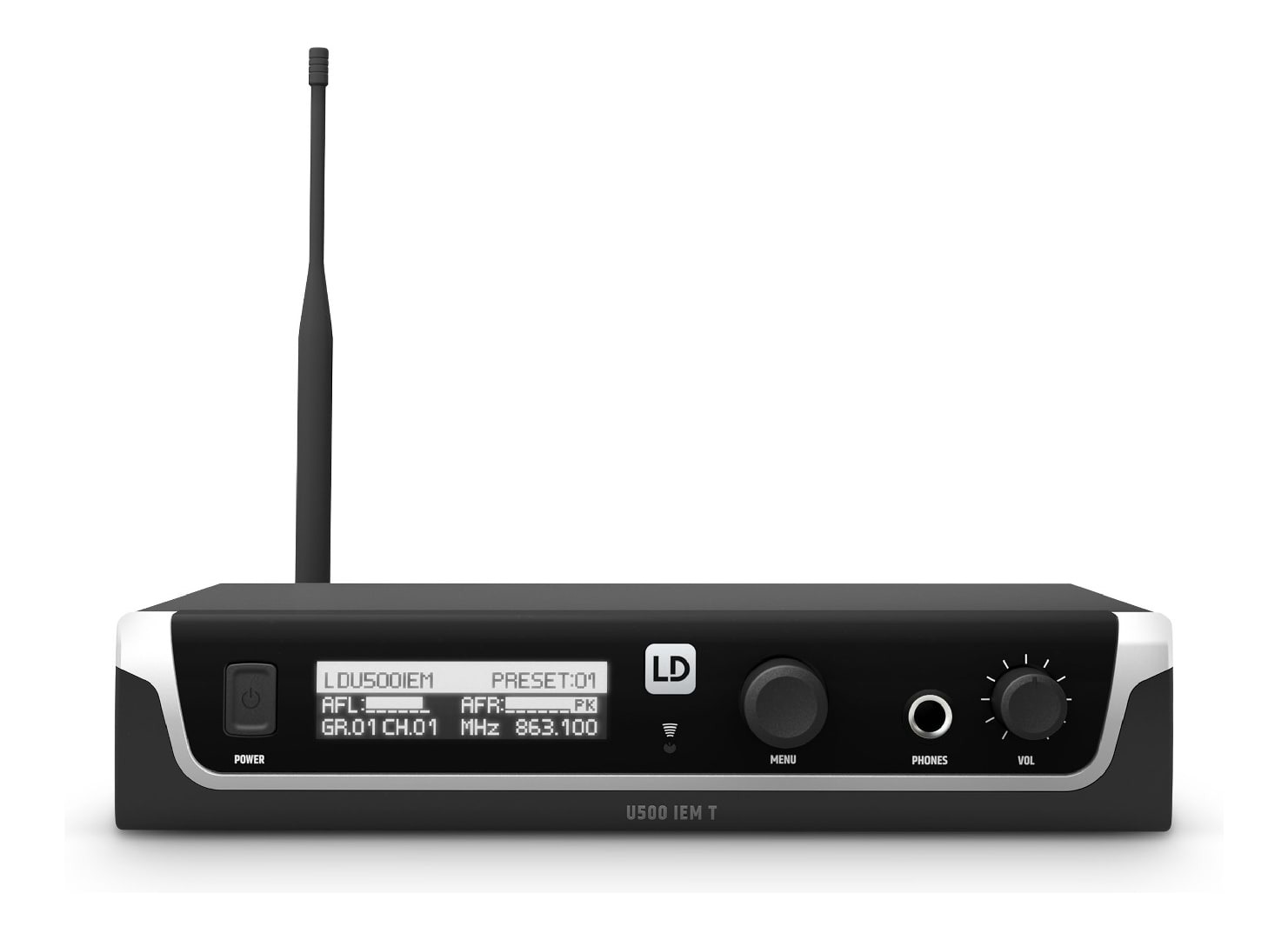

  • Transmitter:
    • Modes of operation: focus/mono/stereo
    • Rated HF output power: 30mW
    • Signal-to-noise ratio: 93dB
    • Total Harmonic Distortion (THD): 0.3%
    • Dynamic range: 88 dB
    • Inputs: 2
    • Input connectors: XLR (balanced)
    • Input impedance (kOhms): 12 kOhm
    • Antenna connector: BNC
    • Controls: volume headphones
    • Operating voltage: 12 - 18 V DC
    • Width: 212mm
    • Height: 43mm
    • Depth: 123mm
    • Weight: 0,641kg
    • Accessories (included): power adapter

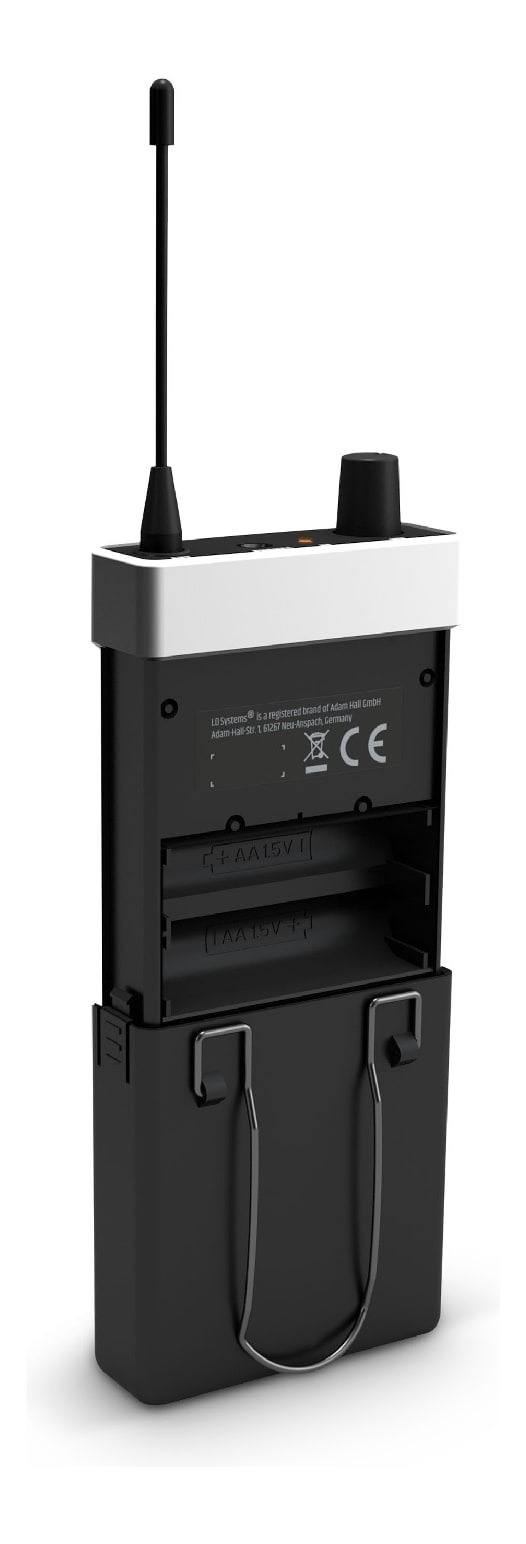

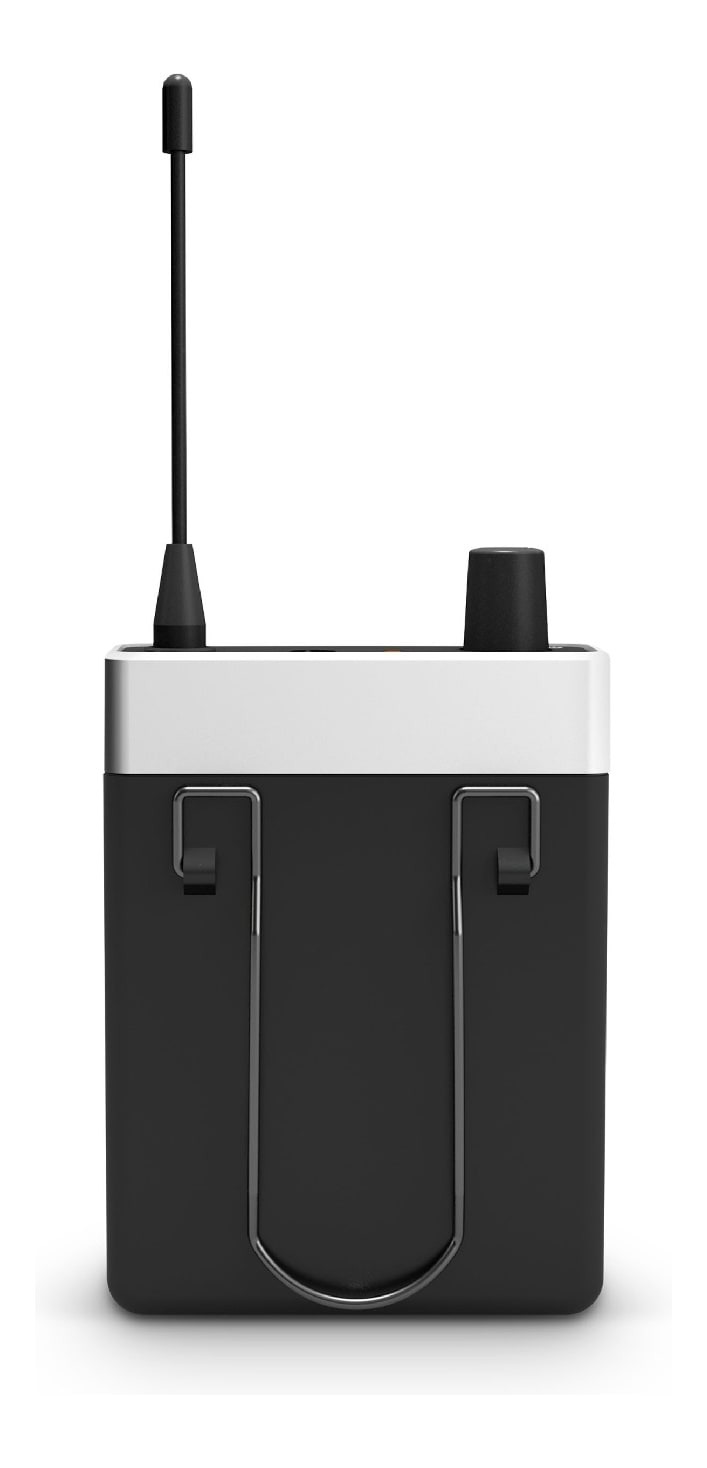

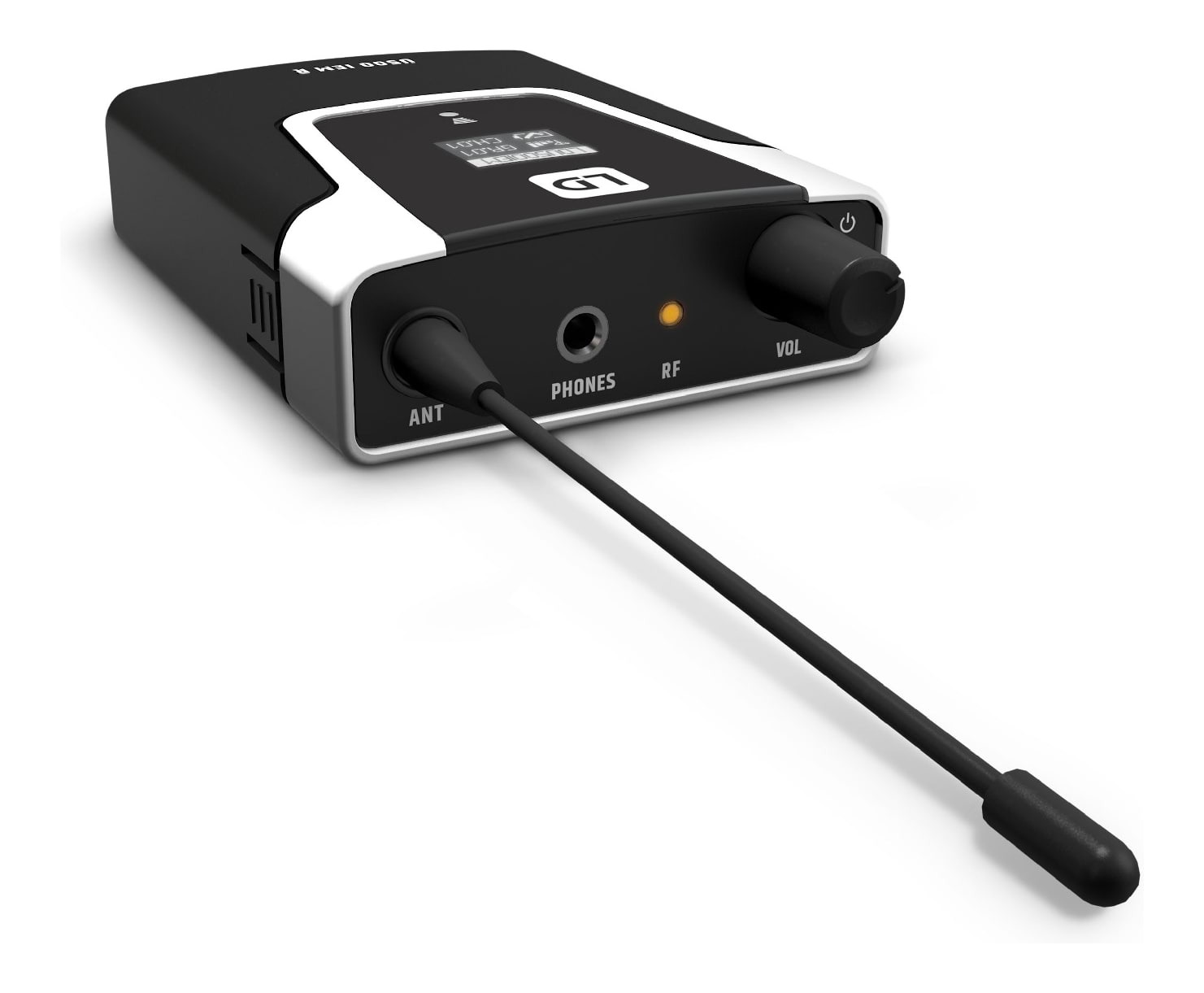

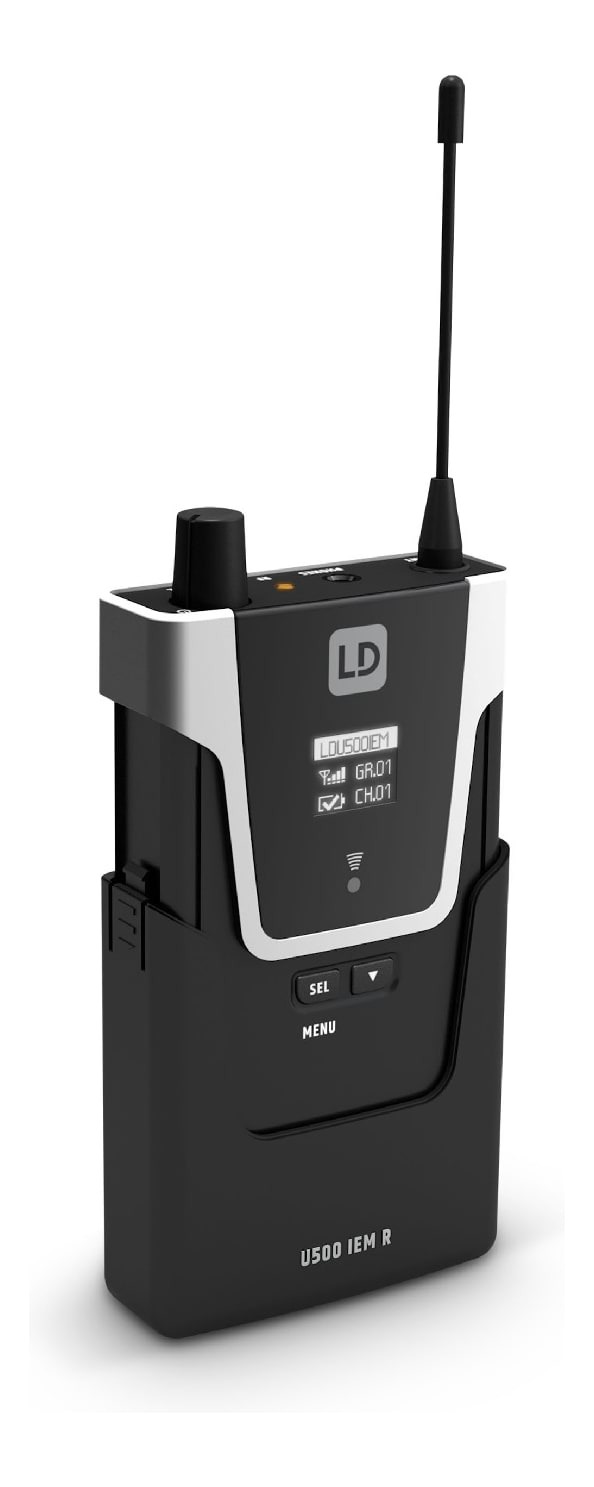

  • Receiver:
    • Transmission frequency range: 584 - 608MHz
    • Channels: 12
    • Headphones ouput: 3.5 mm TRS
    • Transmission method: FM, mono/stereo
    • Frequency response: 40 - 16000Hz
    • Audio output: 3.5mm TRS
    • Minimum connected impedance: 16 Ohm(s)
    • Max. audio output level: 80mW @ 33Ohm mW
    • Indicators: RF (LED)
    • Operating time: <10 hours
    • Antenna connector: Fixed to housing
    • Controls: volume
    • Operating voltage: 2 x 1.5V AA
    • Width: 64mm
    • Features: battery status LED
    • Height: 100mm
    • Depth: 24mm
    • Weight: 0,095kg
View PDF brochure for LD Systems U505IEMHP In-Ear Monitoring System with Earphones -584-608 MHz
