MOEN GEC9 V2 Guitar Pedal FX Switcher - 9 Loop Foot Controller Routing System

$344.99
Pre-order - Released 25 July 2018
Stock Due: late July

The MOEN GEC9 V2 is an updated version of the popular MOEN GEC9 - one of the worlds most versatile effects routing system where multiple combination effect send and return loops can be set-up and engaged by a single switch.

Upgrades GEC9 V2 / 2nd Edition
Program Lock switch that prevents the preset from being changed unexpectedly, a TRS audio jack that allows you to connect the amplifier's footswitch to a stereo cable, and 3 options for double pressing a preset.

Built Like a Tank
GEC9 features an ultra compact enclosure, to endure heavy foot stomping, and is built to last for generations to come.

'Pop-less' Switching
Recall up to 50 presets instantly and silently. Thanks to the intelligent pop-cancellation circuitry, GEC9 eliminates the annoying "pop" sound whenever switching from different presets.

GEC9 offers unprecedented control over your guitar effect system
Seize control of your guitar sound and stage performance by arranging your effect pedal signal loops with room for up to 50 presets. With the MOEN GEC9, you are always in the drivers seat!

Specifications:

  • Recall presets instantly, 50 presets ( 5 presets/bank x 10banks).
  • 6 Series loops and 3 separate loops.
  • The separate loops can be used as latched switches for AMP channel switching, switching AMP channel by one preset!
  • Each separate loop can be used as programmable ABY switcher.
  • There are two output jacks which are able to output to two AMPs at the same time.
  • "POP" cancellation circuit, eliminates "POP" sound when switching effects.
  • Instant MUTE design. The MUTE is also a "Switch to TUNER" switch.
  • Buffered input/ Non-Bufferred input option.
  • Standard negative center DC9V power supply.
  • Wide switch distance avoid mis-stepping, 70mm/2.76inch switch distance.
  • Ultra Compact Enclosure Size: 430(L)x95(W)x30(H)mm / 16.9(L)x3.54(W)x3.74(H)inch.

Configuration Diagrams:

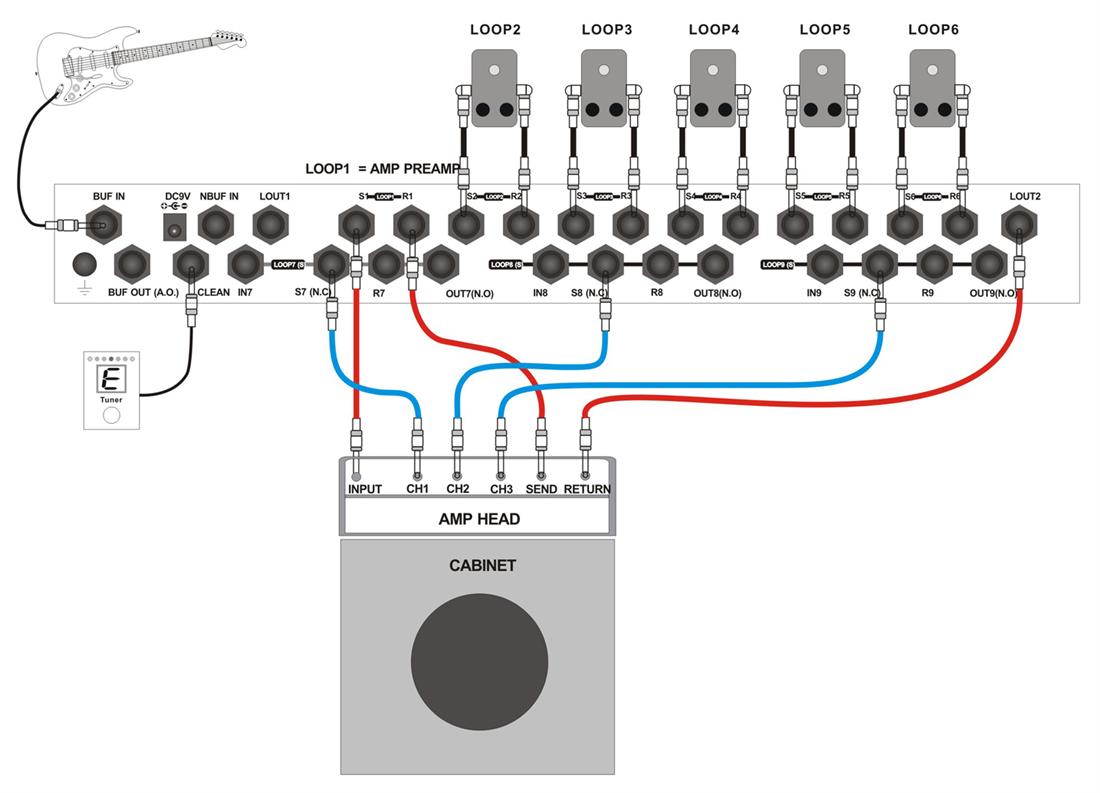

- Configuration Example 1

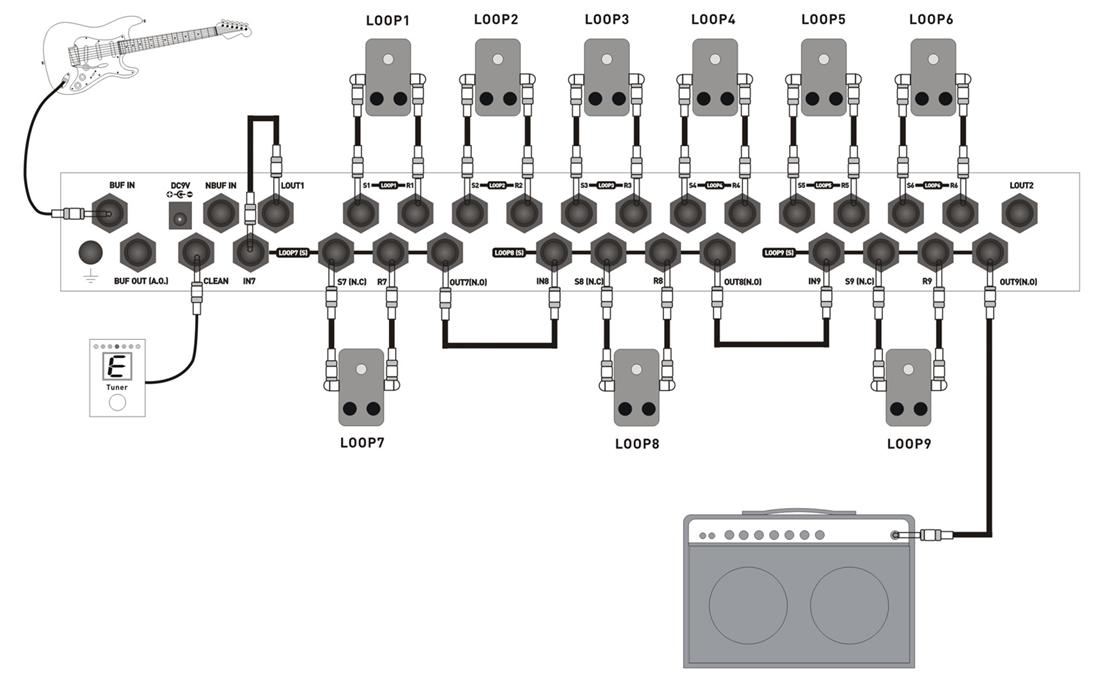

- Configuration Example 2

- Configuration Example 3
- Configuration Example 4

Manual

View PDF brochure for MOEN GEC9 V2 Guitar Pedal FX Switcher - 9 Loop Foot Controller Routing System
