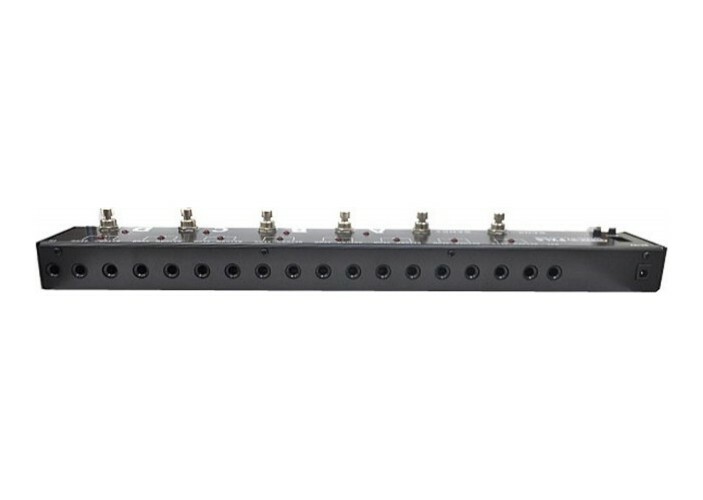

JOYO PXL-8 Guitar Effects Pedal Switcher - 8 Loop
Filter

JOYO

JOYO PXL-8 Guitar Effects Pedal Switcher - 8 Loop

$228.99
  In Stock
Found a better Price? Price match now
-
+
Finance Available
PayPal Checkout
Afterpay

Tired of tap dancing on your guitar or bass pedal collection to get that sound instantaneously? This pedal switcher can control up to 8 individual pedals. It can store and recall up to 32 different combinations of pedals for quick and easy engagement.



Dispatch

JOYO PXL-8 Guitar Effects Pedal Switcher - 8 Loop - Foot Controller
Tired of tap dancing on your guitar or bass pedal collection to get that sound instantaneously? This pedal switcher can control up to 8 individual pedals. It can store and recall up to 32 different combinations of pedals for quick and easy engagement.

Programmable Controller
The JOYO PXL 8 is a guitar effect pedal controller. This is a programmable controller that offers almost unlimited effects sets that can be switched quickly and easily.  There are 8 inputs for effects and these can all be assigned to engage or disengage upto 8 pedals (loops) at any time. When engaging pedals from the JOYO PXL 8, 8 groups of pedals can be saved for instant recall. These tone groups will be stored even after the power is shut down, so no constant re-assigning your favourite groups and settings. With the maximum storage of 32 groups tone, the design of TRUE Bypass of looper guarantees the smooth transfer of signal and it avoids the effect interference caused by other electronic switches. It also has super fast switch speed and excellent low switch noise.

Easy Setup
Very easy set-up with memory functionality, this will remember all set sequences even after the power has been turned off. Very nice for the stage player and travelling musician. The channel FX switching system is a floor based switching system. It is compact, easy to use and has a fully programmable memory. It is very simple to use the PXL series FX Pedal grouping system. Just connect your effect pedals to the Loops 1-8 on the PXL 8. Connect your guitar to the PXL's Input jack. Connect the PXL from the output to your amplifier`s INPUT. Connect the PXL power supply and also power on all your effects pedals,turn on all the FX pedals connected in the PXL's FX LOOP. Power your Guitar amplifier on. You are now ready to program the PXL 8. As an example you could activate your Overdrive and your delay effect pedal on program 1; Your overdrive, tremolo & delay on program 2, your overdrive tremolo flanger & delay on program 3, flanger alone on 4.

NOTE: Power supply not included. It requires a standard negative centre 9V DC power supply. We recommend the MOEN power supply, as we can ensure it will work flawlessly with the PXL-8.

Specifications:

  • Programmable grouping system can save 32 effects combinations
  • True Bypass Design--no coloration
  • TAKAMISAWA miniature signal relay
  • Power input protection
  • Working voltage: 8-15V DC
  • Full-load working current: 200mA
  • Dimensions: 44(L) x 6.7(W) x 5.5(H)cm
  • Weight: 1.34KG
View PDF brochure for JOYO PXL-8 Guitar Effects Pedal Switcher - 8 Loop
