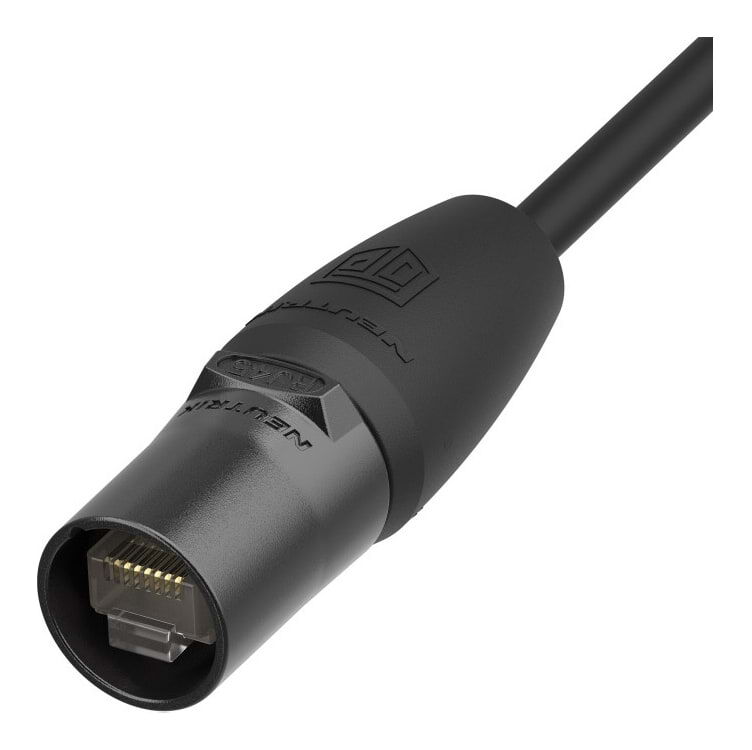

Neutrik NE8MX-B-TOP etherCON Cable Carrier
RJ45 Plug Not Included
Sold Out
NE8MX-B-TOP
| Buy In Bulk & Save! | |
|---|---|
| Buy 2 to 5: | Pay $10.53 |
| Buy 6 to 14: | Pay $10.11 |
| Buy 15 or more: | Pay $9.72 |
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
Neutrik's black TOP-series etherCON carrier turns a standard RJ45 plug you crimp yourself into a rugged, lockable connector - IP65 when mated with etherCON TOP connectors. Suits 5-8mm cable. RJ45 plug not included.
Cable Filter: Alternative Options
Neutrik NE8MX-B-TOP Rugged RJ45 Cable Connector Carrier

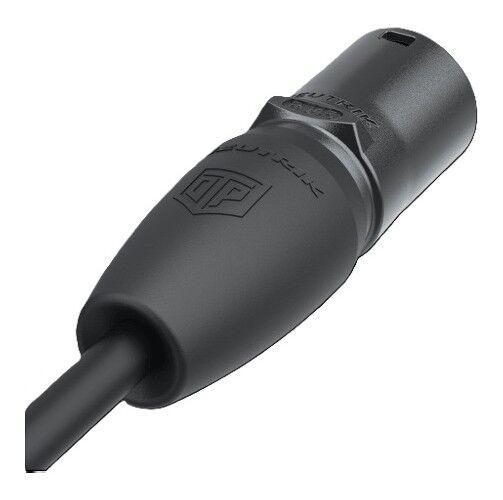

The Neutrik NE8MX-B-TOP is the black TOP-series version of the etherCON cable connector carrier. It turns a standard RJ45 plug that you crimp onto your own cable into a rugged, lockable etherCON connector, and it is IP65 rated when mated with a matching cable or chassis connector from the etherCON TOP range. The diecast shell, chuck-type strain relief and boot suit cable diameters of 5 to 8 mm, so your network connections survive outdoor installs, touring and other harsh environments where a bare RJ45 plug would not. The RJ45 plug itself is not included.
IP65 Protection with the etherCON TOP Range
Neutrik's TOP versions are built for applications exposed to dust and water. Mated with a related etherCON TOP cable or chassis connector, the NE8MX-B-TOP reaches IP65 protection, and it is TOP approved with consideration to UL50E. That makes it a strong choice for outdoor stages, festival and stadium infrastructure, outdoor screens and installed systems where moisture and grime would quickly damage an unprotected Ethernet connection.
Assembled on Your Own Cable

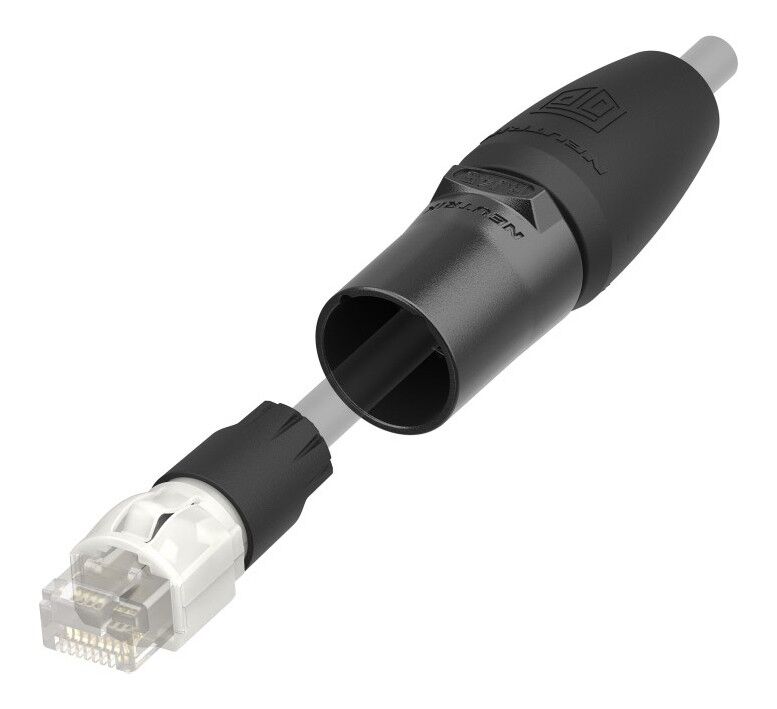

The carrier is for non pre-assembled cables only: the boot, chuck and shell slide onto the bare cable first, then you crimp a standard RJ45 plug and lock everything together. It accepts the most common RJ45 plugs (Neutrik publishes a compatibility list), and once assembled the diecast shell protects the plug's fragile latch and contacts from breakage, while the etherCON latch lock stops the connection being pulled out by accident.
Please Note
Does not intermate with the Neutrik NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.
Features:
- Upgrades a standard RJ45 plug to a rugged, lockable etherCON connector
- IP65 when mated with an etherCON TOP cable or chassis connector
- TOP approved with consideration to UL50E
- Rugged diecast shell with black finish and chuck-type strain relief
- Boot suits cable diameters from 5 to 8 mm
- Accepts the most common RJ45 plugs
- For non pre-assembled cables - RJ45 plug not included
Specifications:
- Model: NE8MX-B-TOP
- Type: etherCON cable connector carrier (male), TOP series
- Included: shell, chuck and boot
- Cable O.D.: 5.0 - 8.0 mm
- Protection class: IP65 (mated)
- Shell: Zinc diecast, black KTL coating
- Boot: TPE; strain relief: POM
- Temperature range: -30 to +80°C
- Lifetime: more than 1000 mating cycles
