Radial BigShot EFX Effects Loop Switcher

$169.99
In Stock

Providing true-bypass switching capability, the Radial Tonebone Bigshot EFX is an effects loop switcher giving you the ability to set up and use two separate effects loops. Run both loops simultaneously. Loop 2 can also be setup as a mute.

Radial BigShot EFX Effects Loop Switcher
Providing true-bypass switching capability, the Radial Tonebone Bigshot EFX is an effects loop switcher giving you the ability to set up and use two separate effects loops. Run both loops simultaneously. Loop 2 can also be setup as a mute.

Pro Pedal Management

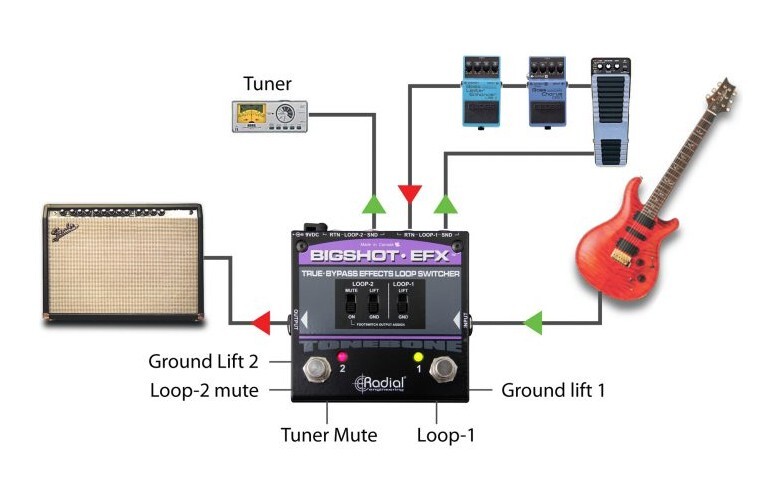

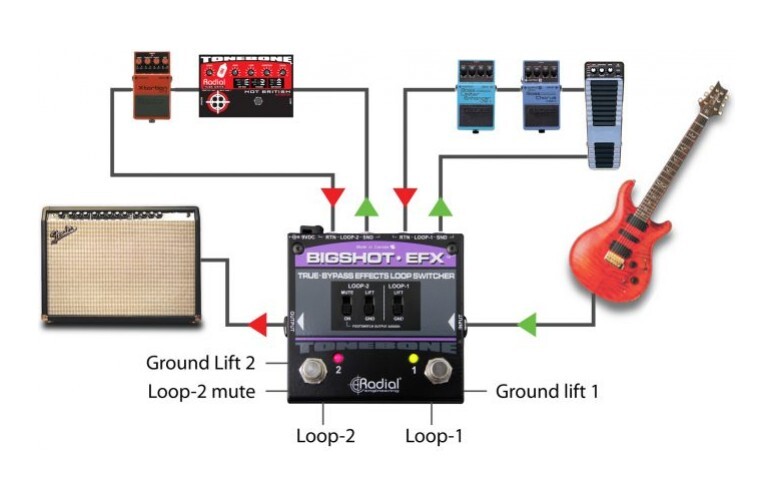

The BigShot EFX gives you the ability to take an entire chain of effects pedals in or out of your signal path with a single footswitch, providing you with a streamlined way to manage multiple pedals on stage. Two effects loops are provided and can be individually activated, or run simultaneously with Loop-1 feeding Loop-2 for even more creative options. You can also set up Loop-2 as a mute for silent tuning or instrument changeovers. Since each loop is true-bypass, it allows you to keep noisy or tone-robbing pedals out of the signal path when they are not needed.

Features:

  • Dual effects loop switching pedal
  • Instant access to 2 effects loops via 2 onboard switches
  • Create true-bypass signal path with all pedals
  • Compact and rugged for pro pedalboards

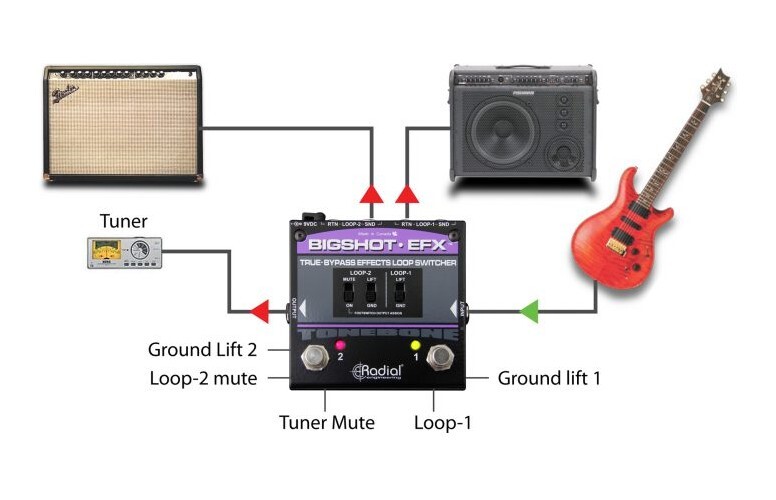

  • Use Loop 2 as a signal mute
  • Eliminate ground loop noise with 2 lift switches
  • Easy to use and set up

Specifications:

Audio circuit type: Passive, true-bypass
Frequency response: 20Hz – 20kHz
Gain: -0.3dB
Features
Ground lift

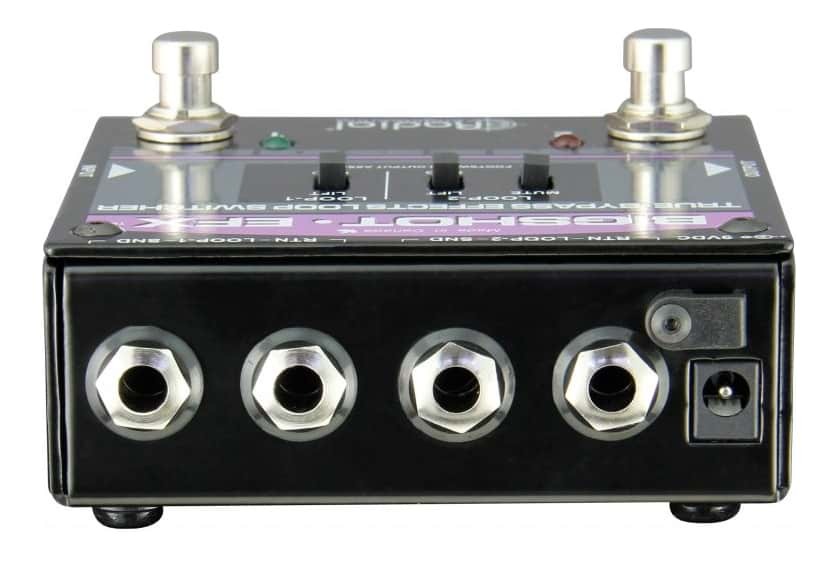

Input Connectors: Two 1/4" inputs
Output Connectors: Two 1/4" outputs
Extras: Mute turns Footswitch 2 to a mute switch for silent tuning through Loop-2
General
Construction: 14-gauge steel
Finish: Durable powder coat
Size (L x W x D): 99 x 91.4 x 50.8mm
Weight: 0.56 kg
Power: 9VDC, center pole negative
Conditions: For use in dry locations only between 5°C and 40°C
View PDF brochure for Radial BigShot EFX Effects Loop Switcher
