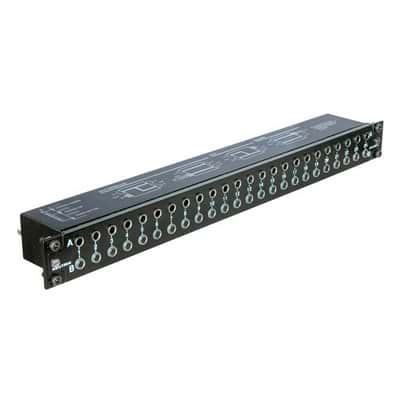

SoundKing CPM102 48 Point TRS Balanced Jack Patch Panel

with 1/4" Connectors

SoundKing CPM102 48 Point TRS Balanced Jack Patch Panel
On Sale
$178.49
$209.99
  In Stock
SAVE 15%
Sale Ends:
-
+
Finance Available
PayPal Checkout
Afterpay

The SoundKing CPM102 is a TRS 6.35mm modular jack panel is suitable for standard 19” (1U) rack mounting. This jack panel provides four functions for selection, namely upper bypass, lower bypass, separate upper and lower bypass, and rear bypass.

Dispatch

SoundKing CPM102 48 Point TRS Balanced Jack Patch Panel
The SoundKing CPM102 is a TRS 6.35mm modular jack panel is suitable for standard 19” (1U) rack mounting. This jack panel provides four functions for selection, namely upper bypass, lower bypass, separate upper and lower bypass, and rear bypass.

Ideal Jack Patchbay Solution

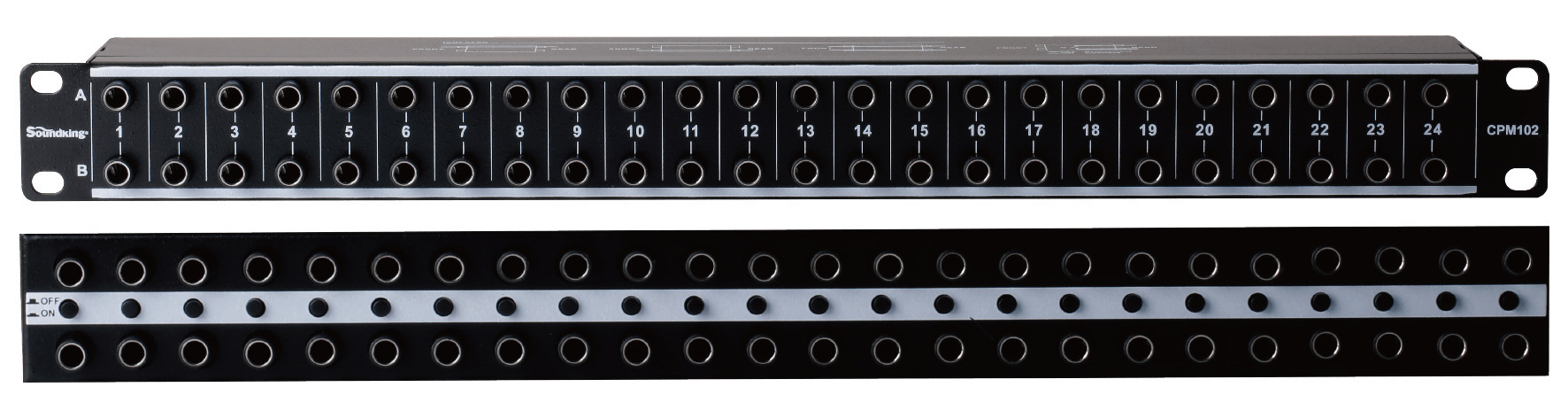

The CPM102 is arranged on 24 PCB modules, with each of the 24 modular balance channels usable alone. This jack panel provides four functions for selection, namely upper bypass, lower bypass, separate upper and lower bypass, and rear bypass. Rear bypass switch is designed to switch on/off signal according to routing condition. This jack panel is widely used for stage, installation and studios.

Features:

  • Durable solid metal enclosure
  • Economic multifunction design
  • 48 channels balanced signal is arranged on PCB
  • Push switch turns on/off rack back-end signal

Specifications:

  • Contact resistance: <0.03ohms
  • Insulating strength: 500Vdc
  • Insulation resistance: <100M
  • Insert/Draw Force: 5N-40N
  • Lifetime: >5,000 cycles
  • Working Temp: -20C - 70C
  • Dimensions: 482mm x 44mm (19" x 1U)
  • Depth: 81mm
View PDF brochure for SoundKing CPM102 48 Point TRS Balanced Jack Patch Panel
