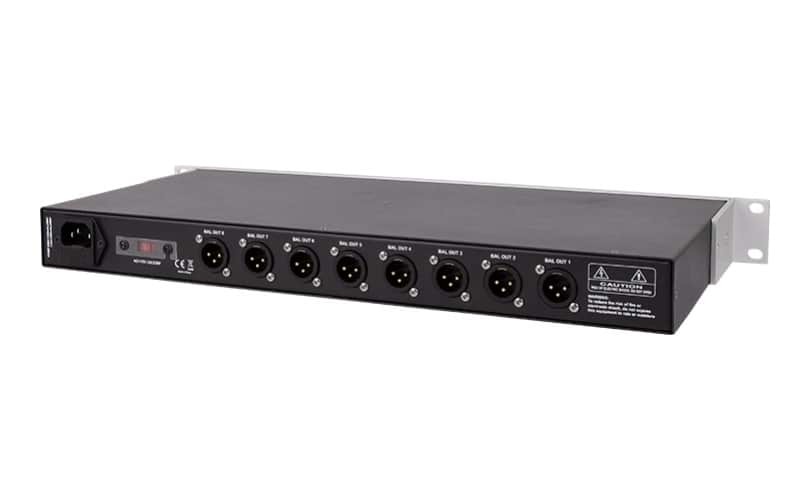

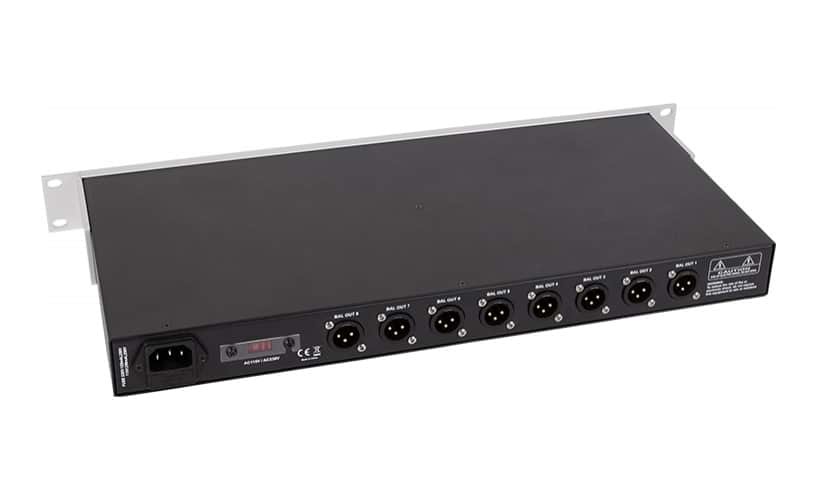

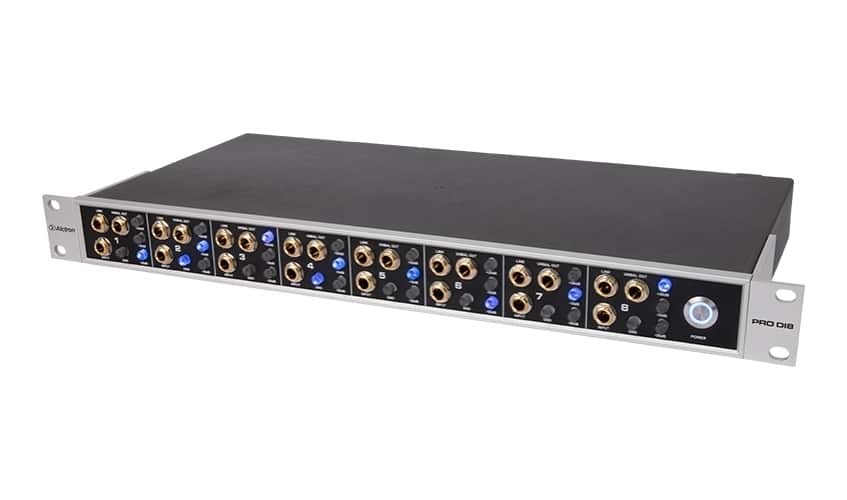

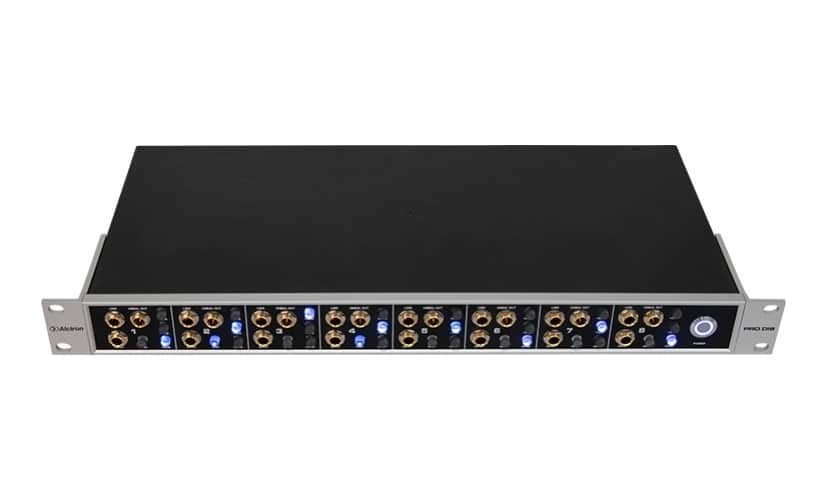

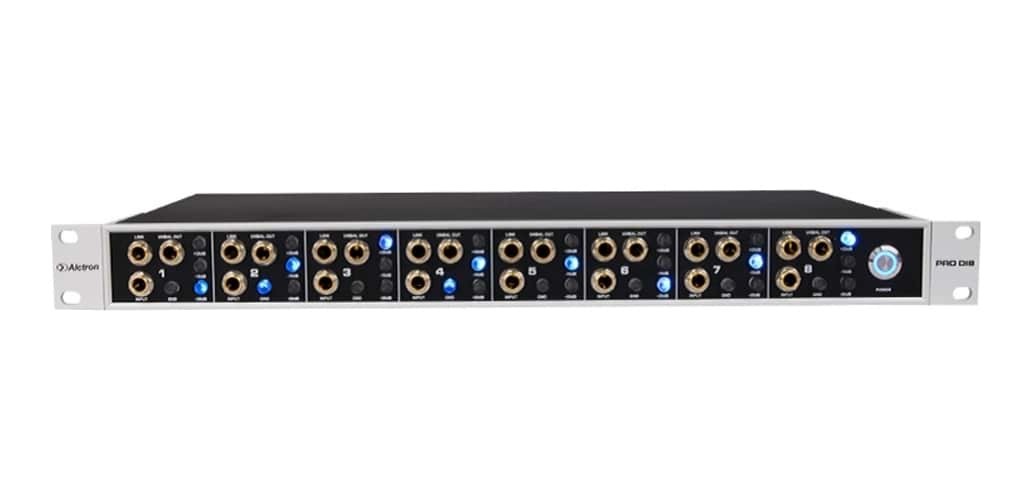

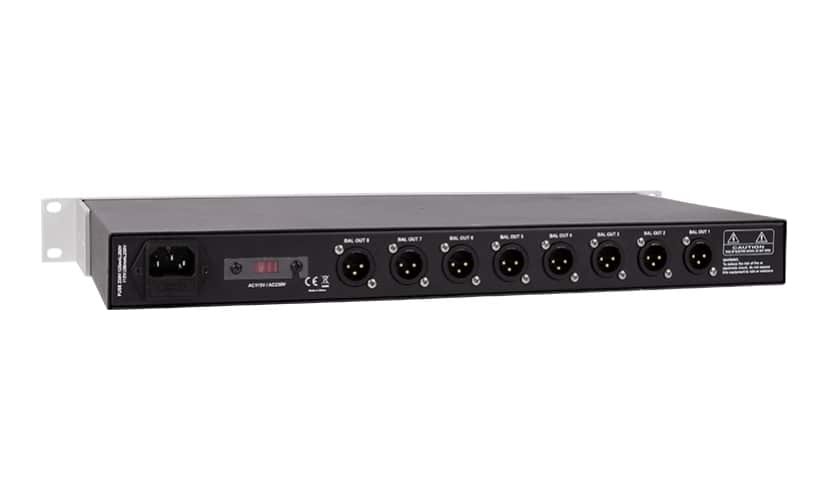

Alctron PRO-DI8 Multi-purpose 8-channel Direct Injection Box

$209.99
In Stock

Alctron PRO DI8 is a professional and multi-purpose 8-channel direct injection box for stage and studio application. Direct injection boxes make it possible to connect guitars, basses and keyboards to audio mixers and recorders.

Alctron PRO-DI8 Multi-purpose 8-channel Direct Injection Box
Alctron PRO DI8 is a professional and multi-purpose 8-channel direct injection box for stage and studio application. Direct injection boxes make it possible to connect guitars, basses and keyboards (as well as other line-level devices) to audio mixers and recorders. They are absolutely essential for proper impedance-matching and to maintain signal integrity. According to the various buttons and knobs, you can always get a superior sound quality.

Features:

  • Multi-purpose 8-channel direct injection box
  • Used in stage and studio application
  • Connects guitars, basses and keyboards to audio mixers and recorders
  • For proper impedance-matching and to maintain signal integrity
  • Gets a superior sound quality

Specifications:

Audio input
Connector 1/4’’ TS connector, unbalanced
Type DC-decoupled
Impedance 1MΩ
Max input level +18/48dbu
Audio output
Type Electrically balanced output stage
Impedance 680ohm balanced
Max output level +23dbu, balanced, +16dbu, unbalanced
System specifications
Frequency response 23hz-120khz(±3db)
Noise -104dbu
Power supply
USA/Canada 120V, 60Hz
U.K/Australia 240V, 50Hz
Europe 230V, 50Hz
Fuse 100-120V T200mA H/200-240V T100mA H
Mains connection Standard IEC receptacle
Physical Dimension 482mm*207mm*44mm
View PDF brochure for Alctron PRO-DI8 Multi-purpose 8-channel Direct Injection Box
