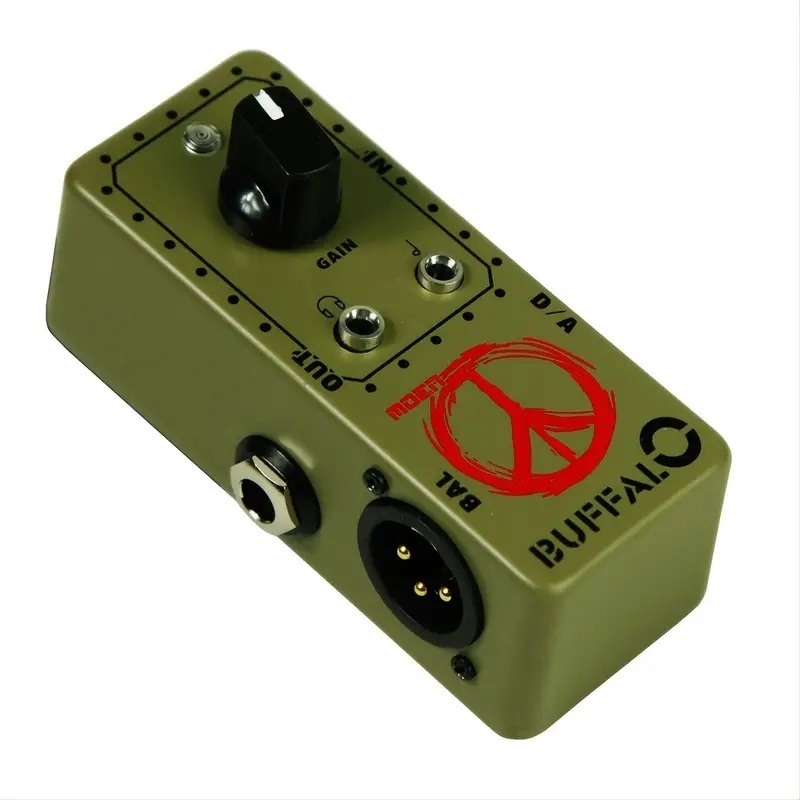

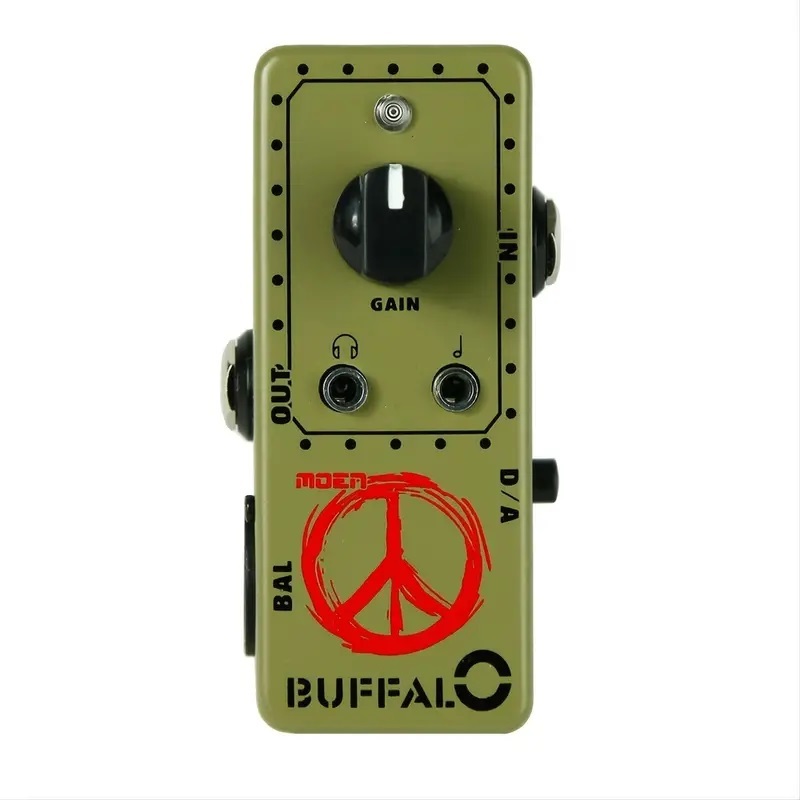

MOEN NDI-E4 Buffalo - Speaker Simulator DI for Electric Guitar
MOEN NDI-E4 - Buffalo Speaker Simulation DI
The MOEN NDI-E4 is the compact version of the acclaimed MOEN Buffalo MO-BA, ideal for those players that have a great sounding guitar but don't have the dollars or the space for a top notch amp to go with it. Simple to connect, and can be used with or without a guitar amp.The new and improved E4 model features a post-processed headphone output, as well as an auxilliary audio input, adding to the already feature-packed small footprint of this pedal.
Guitar Amp Simulation

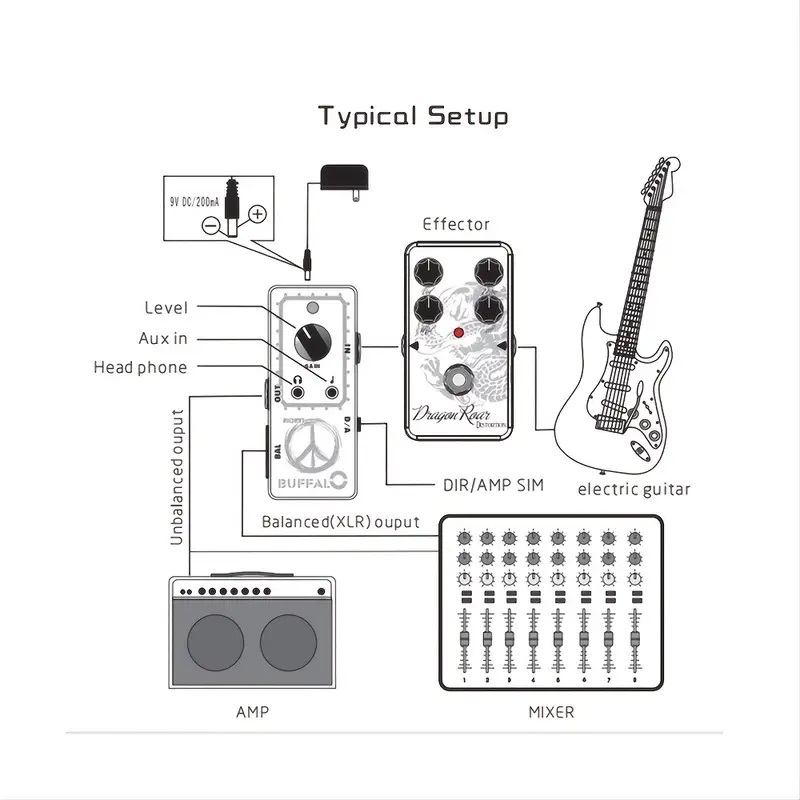

The MOEN NDI-E4 has a balanced output to send the simulated signal direct to the mixing desk, while still allowing the true guitar signal to proceed unprocessed to the jack output stage of the pedal to your guitar amp. The processed signal simulates an authentic sound of an amplified guitar through a speaker cabinet, using specific quasi load bearing circuitry, powered with a 9V DC Adapter (not supplied). The D/A switch selects between 'direct' and 'amp sim', allowing the pedal to be used with or without the simulated cabinet.
Great for Recording and Live
This pedal is great for live and recording purposes. By going direct in to the mixing desk, the need for a microphone and amplifier is eliminated, and time spend positioning mics can be spent focusing on performance. Without a microphone, the constant threat of "spill" into the microphone is non existent, ensuring that a totally clean, pure and noiseless sound is delivered to the mixing desk.
Suitable for Other Instruments too
Because of the simple analogue design, The MOEN NDI-E4 can be used for other instruments such as acoustic guitar, and vocal effect units.
- Unprocessed thru output
- Ultra small footprint
- Connectors: 1/4" jack input and output, Balanced XLR
- Input Impedance: 500k Ohms
- Output Impedance: 10k Ohms
- Power Supply: 9V DC(not included)
- Current Draw: <10mA
- Weight: 115g
- Dimensions: 9 x 4.3 x 3.3 cm
