Alctron Rack3 500 Series Rack with MP73A, CP52A and EQ75A - 500 Series

3-Slot Rack with Mic Preamp, Compressor and Para EQ

$894.99
In Stock

The perfect solution for the studio producer, musician or recording engineer. The Alctron 500 series mic preamplifier, compressor and parametric EQ together with the 3-slot rack power supply provides everything you need for your quality signal workflow.

Alctron Rack3 500 Series Rack with MP73A, CP52A and EQ75A - 500 Series
The perfect solution for the studio producer, musician or recording engineer. The Alctron 500 series mic preamplifier, compressor and parametric EQ together with the 3-slot rack power supply provides everything you need for your quality signal workflow.

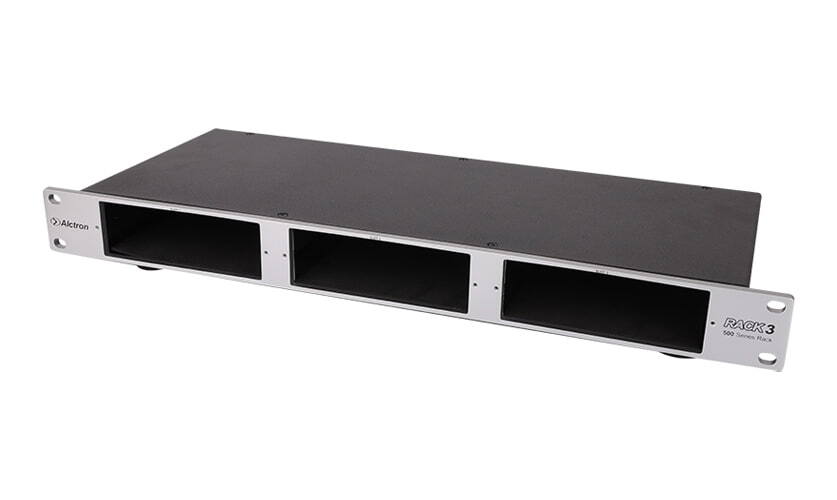

Alctron Rack3 500 Series Rack w/ MPS-1 Power Supply

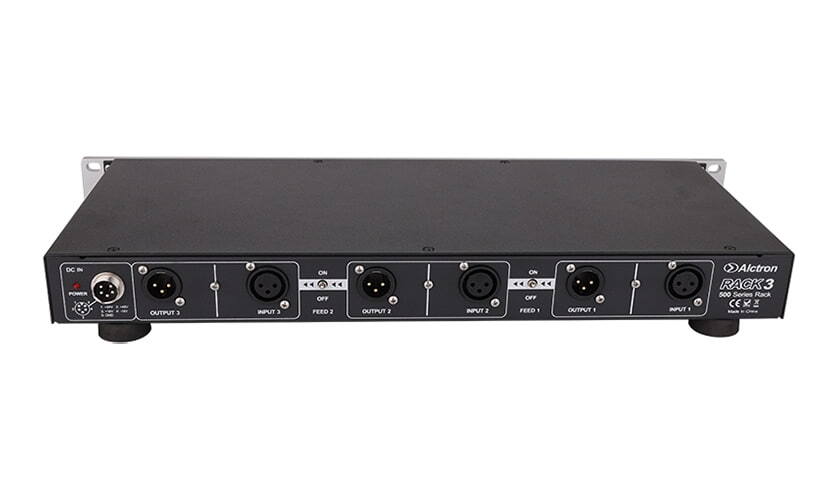

The Rack3 is a three module rackmount power supply, in a single RU 19" rack, designed to combine signal processor modules. The feed switch on the rear panel allows you connecting one module into the nest to set up elaborate channel strips without having to hard patch modules using cables. The aluminium heavy-duty metal shell make the product stable and durable. And what’s more, the whole construction design is on the base of a standard rack. The Alctron MPS-1 is a linear power supply. Ideal to power the Rack3, the Alctron 3-slot 500 Series rack. It provides four times the current necessary to power a preamp, and can power up to 3x Rack3 units.

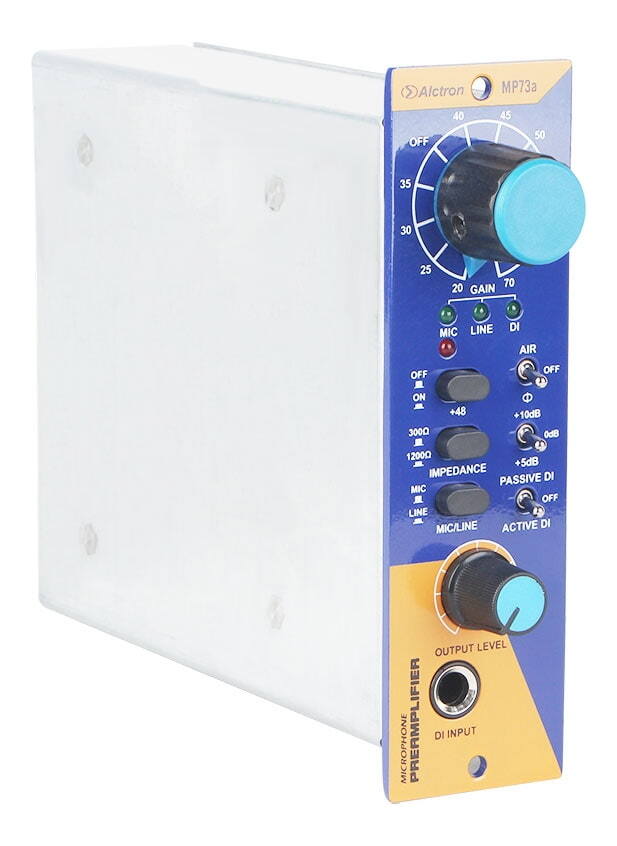

MP73A 500 Series Microphone Preamplifier
The MP73a is a 500 Series microphone preamp. It is a one-channel vintage style microphone, line and instrument preamplifier. Highly inspired by a certain 1073 preamp. Its sound character described as warm and punchy, with a very musical character giving a lovely top. These classic characteristics have been heard on countless recordings through the years and it is a versatile sound that works very well on most sound sources and in most genres. This is a preamp suitable for most types of audio sources and is also excellent as DI.

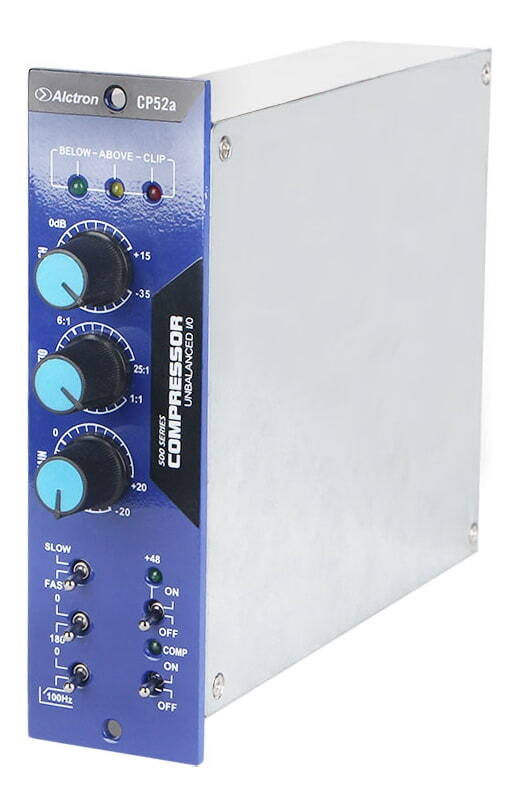

CP52A 500 Series Mono Compressor
The CP52a is a 500 series module with a fully variable, full function compressor. There is a "clip" LED to tell you when your signal is getting too hot. The "fast/slow" switch allows for a quick and easy choice of attack and release settings. The threshold, ratio, and output gain are fully variable. There is also a HPF at 100Hz, a polarity switch, bypass, and 48v on board.

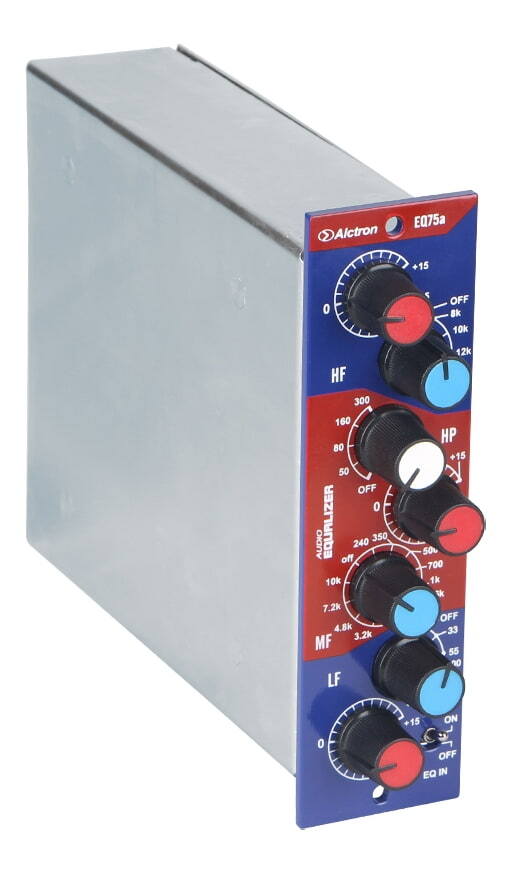

EQ75A 500 Series Parametric EQ
The EQ75a adopts class-A circuitry, whilst additional frequencies have been added to the mid and high-frequency sections. With only discrete components included in the signal’s path, the EQ75a has a warm, punchy, sweet and musical characteristic. Modeled after the legendary NEVE 1073 EQ module, the EQ75a is very versatile and will work on most sound sources in almost any genre. The output line adopts A type transformer push-pull circuit. It eliminates crossover distortion to keep the original sound quality and its wide output load applying to various devices. EQ75a features with independent input and output connectors.

NOTE: Each item of this package will arrive in individual boxes - you will be required to easily assemble the 500 series racks into the Rack3 unt.

Features:

  • All modules and power supply are made from 14-gauge steel to provide extra shielding against stray magnetic and RF
  • Each module adopts class-a and high-quality component ensures low distortion and pure sound quality
  • Vintage style electronic, no integrated circuits in the signal path
  • Alctron Rack3 500 Series Rack w/ MPS-1 Power Supply
    • Three module rackmount power supply
    • Designed to combine compatible audio modules
    • The innovative triple-module design allows you to put mic preamp, equalizer and compress together in one rack
    • The feed allows you connecting one module into the next
    • Aluminium and heavy-duty metal shell makes the product stable and durable
  • MP73A 500 Series Microphone Preamplifier
    • Enough mic gain to handle passive ribbon mic with quiet sound sources
    • Switchable impedance on the mic input, 1200ohm or 300ohm and phantom power with LED indicator
    • A flexible front panel instrument input for additional sound sources
  • CP52A 500 Series Mono Compressor
    • Exceptionally wide frequency response from 20hz to 20khz
    • Full-function compressor for dynamic control
    • Level stage meter lets you know when a signal is active, near threshold and compression is being applied
    • Features ratio and gain 3 knobs to deal with input signal ensures high-quality output
  • EQ75A 500 Series Parametric EQ
    • 3-band with a dual inductor based mid frequency band
    • Inductor based high pass filter
    • Stepped frequency selection
    • Control range up to +/- 18 dB
    • A wide selection of frequencies from 33Hz to 20kHz
    • Each section can be bypassed individually
    • Master Bypass switch
    • Tantalum capacitors in the signal path
    • Circuit board star grounding scheme
    • Gain control for low noise operation
    • High pass filter eliminates excessive resonance

Specifications:

  • Alctron Rack3 500 Series Rack w/ MPS-1 Power Supply
    • Signal input: 3-pin balanced XLR
    • Signal output: 3-pin balanced XLR
    • Power output: 5-pin aviation plug
    • Input voltage: 16V,48V
    • Working amp: 1.6A
    • Output power: 64W
  • MP73A 500 Series Microphone Preamplifier
    • Transformer balanced, fully floating output
    • Enough microphone gain to handle passive ribbon microphones with quiet sound sources
    • Total gain range from -15 to +80 dB
    • Switchable impedance on the microphone input, 1200 or 300 ohms
    • Switchable phantom power with a LED indicator
    • A flexible front panel instrument input for additional sound sources
    • Make fine gain adjustments and overload the main gain stage(s) for more character
    • Phase switch
    • Selectable AIR equalizer adds a small boost above 10 kHz
    • Selectable 600-ohm Output Termination at the back of the module
    • 48 volt Phantom Power
  • CP52A 500 Series Mono Compressor
    • Four selectable inputs with trim adjustment
    • Straight wire distortion-free signal path.
    • Accustate gain control for low noise
    • Each processor may be accessed separately
  • EQ75A 500 Series Parametric EQ
    • Inductor based high pass filter
    • Control range up to ±15dB
    • A wide selection of frequencies from 33hz to 20khz
    • Each section can be switched off individually
    • ON/OFF engages and disengages EQ
View PDF brochure for Alctron Rack3 500 Series Rack with MP73A, CP52A and EQ75A - 500 Series
