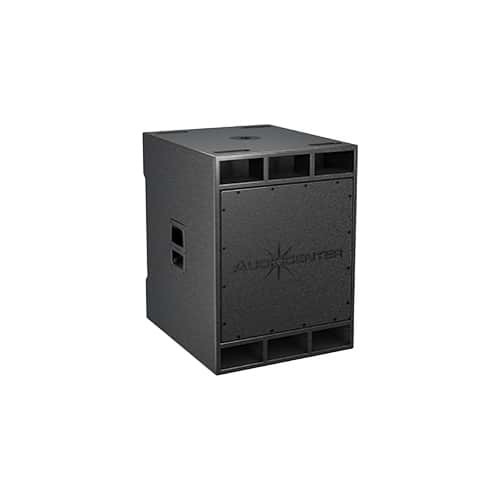

Audiocenter SA3118 Active DSP 2000W 18" Subwoofer
Audiocenter SA3118 Active DSP Controlled 18" Subwoofer - 2000W Peak - 134dB SPL
In-built DSP featuring 3 low-pass filters (80Hz, 100Hz, 120Hz), select to match different venues, music styles or speaker systems. Audiocenter SA3118 is perfectly matched for the SA312 12" 2-way powered speaker.
SA3118 subwoofer is with 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution. There is also phase switch. All connectors and function buttons are on the back panel.
Specifications:
|
Type |
Active DSP-controlled Compact subwoofer |
|
Frequency Response(-6dB anechoic chamber) |
35Hz-150Hz |
|
Maximum Calculated SPL/1M |
134dB |
|
LF Driver |
Customized Audicocenter ferrite driver, 4” voice coil |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power |
1000W (RMS) // 2000W (PEAK) |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-6KHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Cooling with fans, air convection |
|
DSP |
|
|
Processor |
96KHz signal sampling frequency,24bit precision |
|
Presets |
80Hz,100Hz,120Hz |
|
Crossover |
Controlled by DSP |
|
Output/Input |
|
|
Signal Input |
1×NEUTRIK® female XLR |
|
Signal Output |
1×NEUTRIK® male XLR |
|
Power Input |
3 pin plug |
|
Working Voltage |
100V-130V/60Hz or 220V-240V/50Hz |
|
Cabinet |
|
|
Cabinet Material |
CNC made of excellent wood |
|
Cabinet Color |
Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
|
Pole Mount |
M20 base Φ35mm |
|

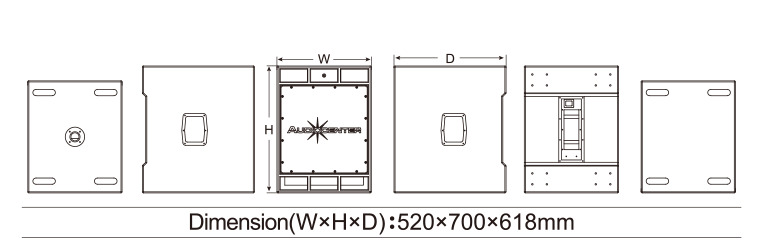

Dimension(W×H×D) |
520x700x618mm |
|
Net Weight |
43.0Kg |
