JOYO JP-02 Guitar Effect Pedal Power Station - Multi-Output | SWAMP

JOYO

JOYO JP-02 Guitar Effect Pedal Power Station - Multi-Output

$108.99
  In Stock
Found a better Price? Price match now
or interest free for up to 6 months with
-
+

The quietest and most reliable way to power all your guitar effects pedals from one power point. The JP-02 from JOYO can supply up to eight 9 volt DC electrical currents, as well as 1x 12V and 1x 18V currents, to power multiple pedals on an effects board.

Dispatch

JOYO Pedal Board Power Supply
The quietest and most reliable way to power all your guitar effects pedals from one power point. The JP-02 from JOYO can supply up to eight 9 volt DC electrical currents, as well as 1x 12V and 1x 18V currents, to power multiple pedals on a guitar effects pedal board.

Why Power Stations are Important
Powering 4 or 5 pedals with a daisy chain is fine, if they are relatively low 'current' consumption pedals. But if you're powering more than this off a single 9V AC/DC adapter you can overdraw the power supply and create electrical issues within the pedals. This can often result in unwanted buzz or noise in your audio signal.

Features:

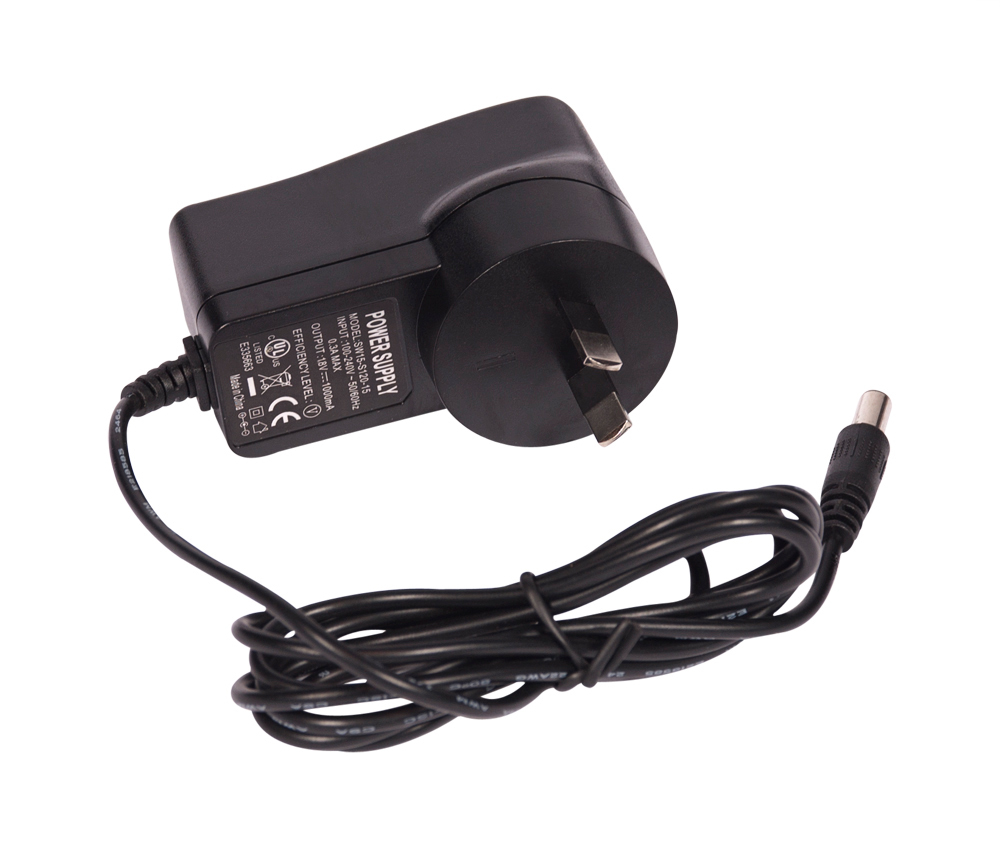

  • 18V AC/DC Power Adapter for Wall Socket

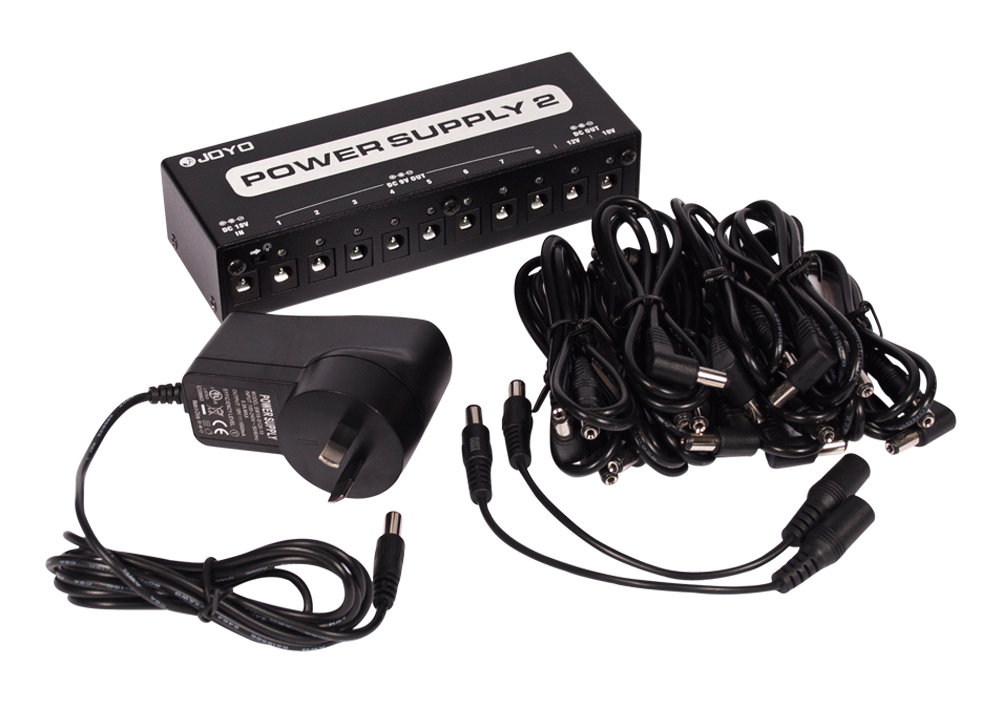

  • JP-02 10-Output Power Brick

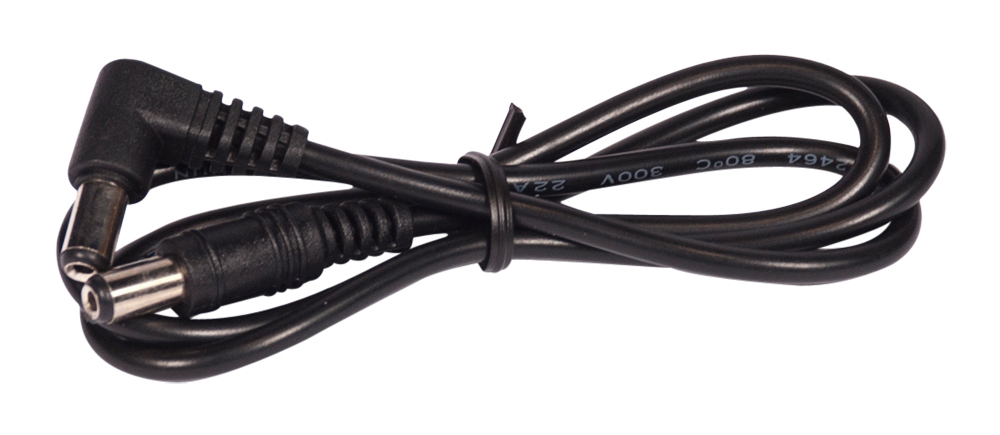

  • 10x DC Power Cords

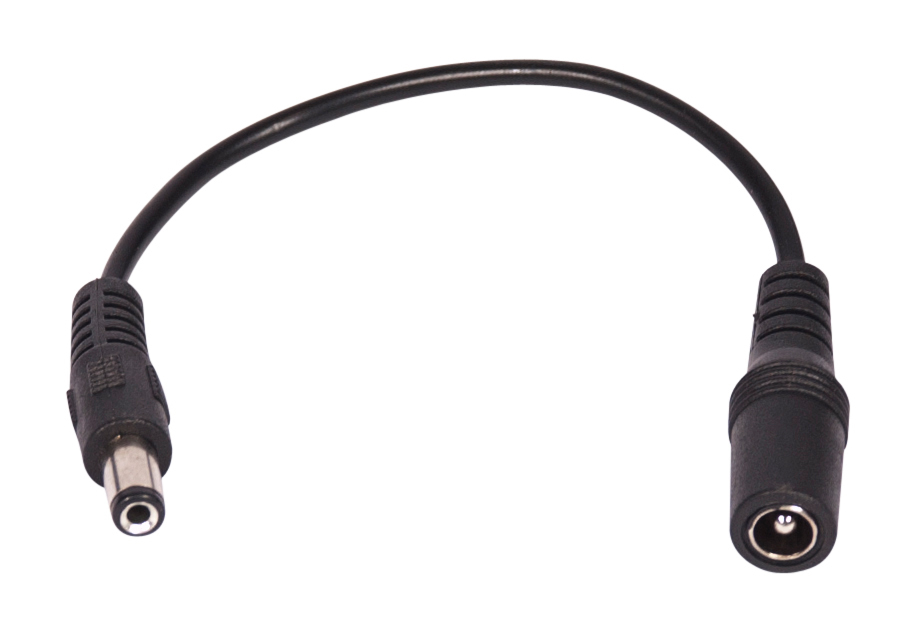

  • 2x Polarity Converter Cables

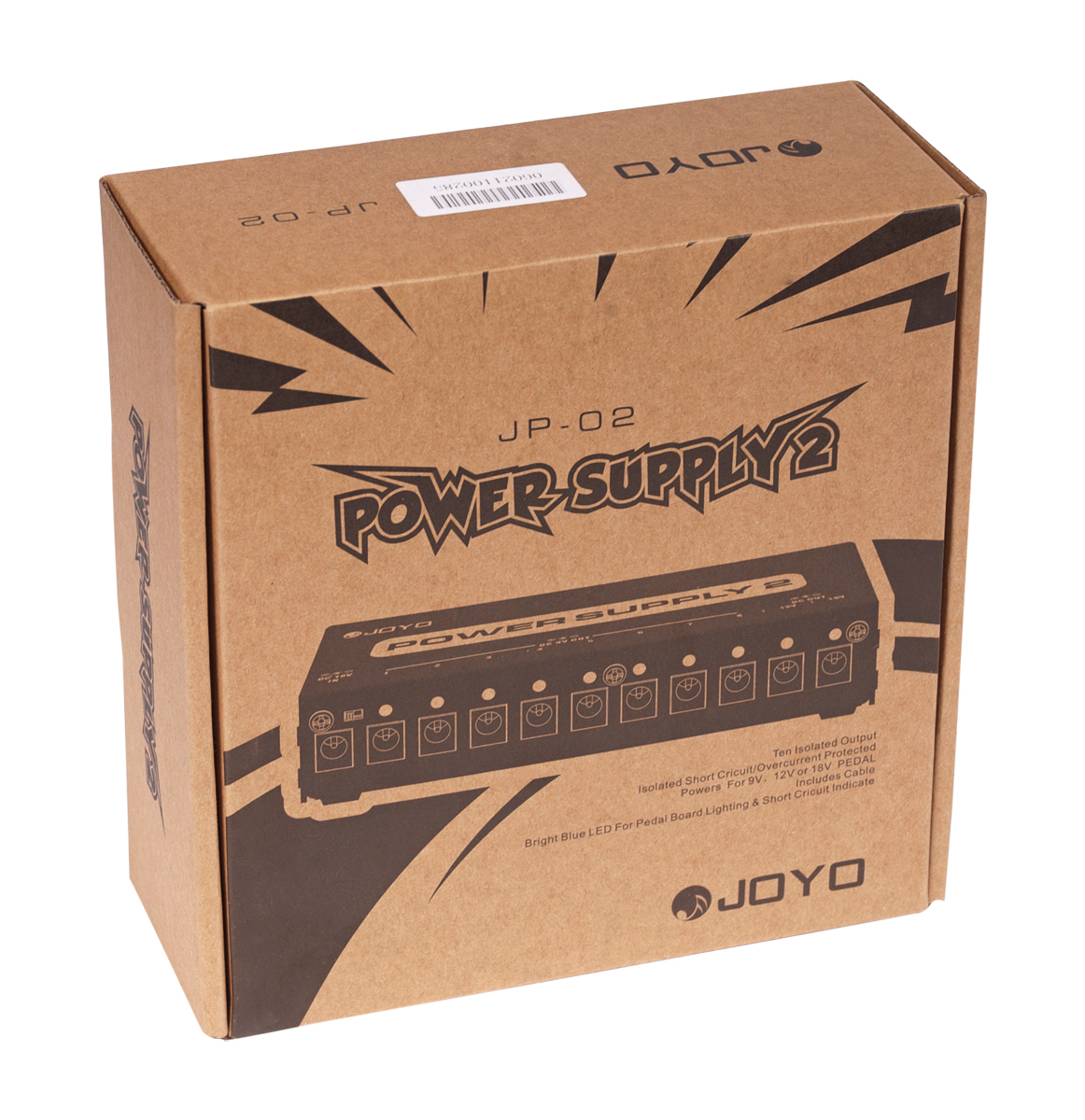

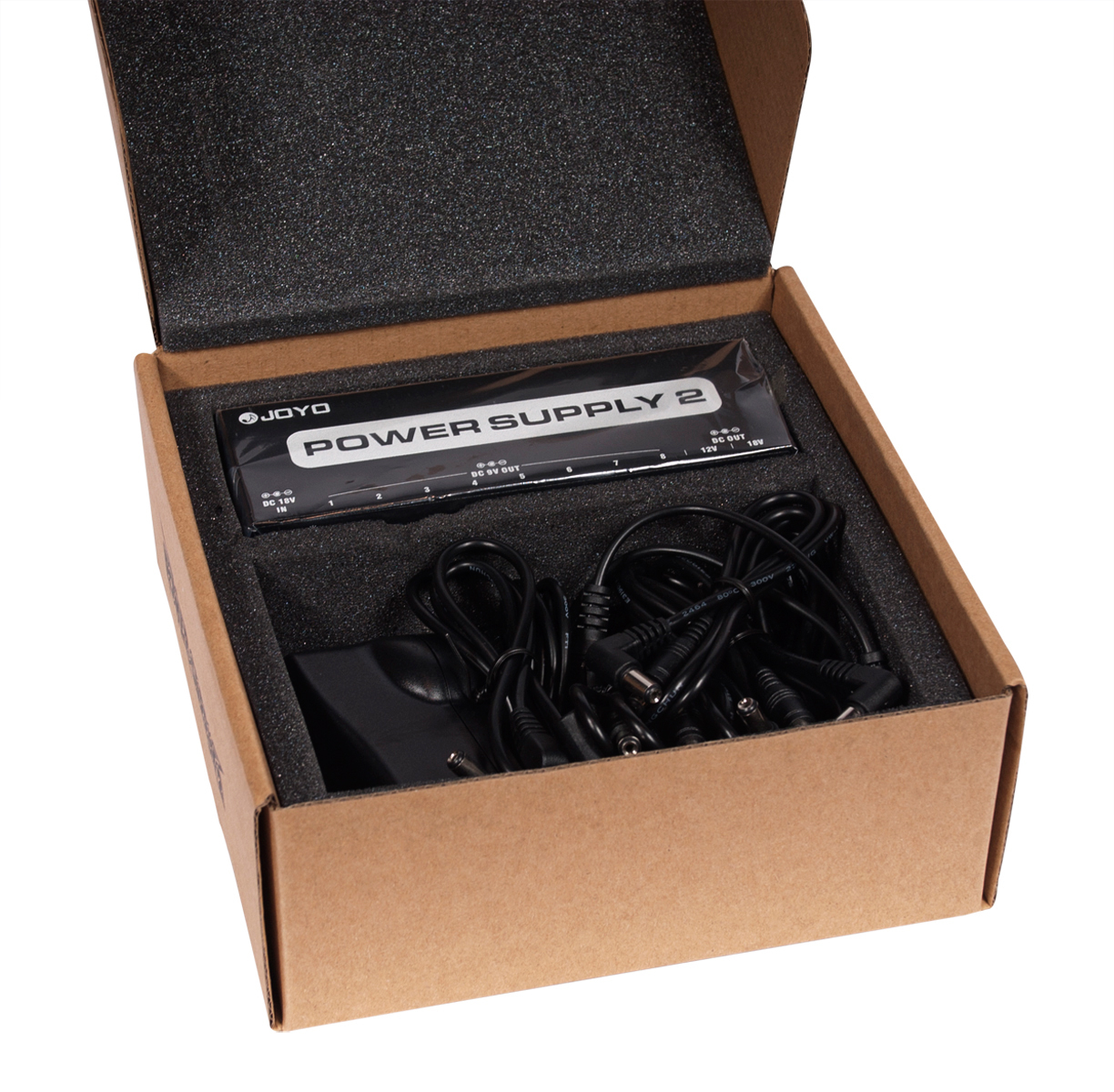

  • 1x Cardboard Storage Case with Foam Inlay
  • Flashing LEDs Indicate Current Overdraw
  • On/Off Switch for LEDs
  • Individual Short Circuit Protection on each Channel
  •

Specifications:

  • Input: 18V DC 1000mA
  • DC outputs: Negative Centre Polarity (8x 9V, 1x 12V, 1x 18V)
  • Plug Size: 2.1mm ID x 5.1mm OD
  • Dimensions: Length - 150mm; Width - 54mm; Height - 35mm
  • Maximum Current Output per Channel:
    • 1-7: 9V 100mA
    • 8: 9V 500mA
    • 9-10: 12V / 18V 100mA
    •
  •
View PDF brochure for JOYO JP-02 Guitar Effect Pedal Power Station - Multi-Output

JOYO JP-02

By: Julian on 27 April 2020
well made power supply. works very well and I haven't had any troubles even when keeping it on for extended periods of time. great item, good store, well packaged postage when receiving. I use this in conjunction with the small moen 9 volt battery clip converters to power pedals that use to be 9 volt batteries only. thanks again for supplying a great product that works great!
(5)

Excellent product, does the job, and way cheaper t

By: Anonymous on 29 November 2017
Don't pay for overpriced 'name brand' (insert T-Rex, Voodoo Labs, etc.) pedal board power supplies. This unit does exactly the same job as it comes from the same OEM factories that make power supplies for the 'name' brands. Just be aware of each of your pedal's supply current(mA) needs, and don't expect a 100mA outlet to power something that requires more than the maximum available from each outlet and you'll be fine. I found this supply to be completely noiseless with all the pedals I've tried (25+), and I've had all outlets running 10 pedals in a series signal path into various amps with no problems. If you have pedals that require isolated outputs (i.e. not a common rail -ve) check out Joyo's JP-04 model power supply. Do yourself a favour, and don't get gouged by 'name' brand pricing which is nothing more than an exercise in slapping on a popular brand logo then shafting you on the price.
(5)
By: Iain Peterken on 30 January 2015
Fantastic product! Why pay hundreds of dollars to power your pedal board? Works a treat powers all my pedals and sits neatly out of the way. Love it! Get one!
(5)
By: Mr. Michael Young on 26 January 2015
Good product, great price. Very quick delivery. Easy to complete transaction, good communication. I recommend this store and the product.
(5)
By: Brett Matthews on 15 November 2014
An all round easy to use supply. Why pay the stupid price for supplies like Fuel Tank, and Voodoo Labs etc. The components on the inside are pretty well the same.
(5)
By: Mr. Dennis Walters on 16 May 2014
The Joyo power station is a small power supply that will fit any pedal board. I tested it on several different pedals and it delivers good clean quiet power to all of my pedals. What more can I ask for?
(5)

Write a product review


MPN: JP-02

Label: JY-JP-02

ID: 79818
