Pasgao PAW-1000 Wireless Microphone with Headset

Pasgao

PASGAO PAW-1000 Wireless Microphone System - 1 Bodypack and Headset Mic

$499.99
  Sold Out
or interest free for up to 6 months with
Contact us for an ETA

The PAW-1000 system allows for 10 frequency groups, each with up to 20 channels, adding up to a total of 200 usable channels that won't interfere with each other. The onboard Digital Volume Control system removes the need for a volume control knob.




Dispatch

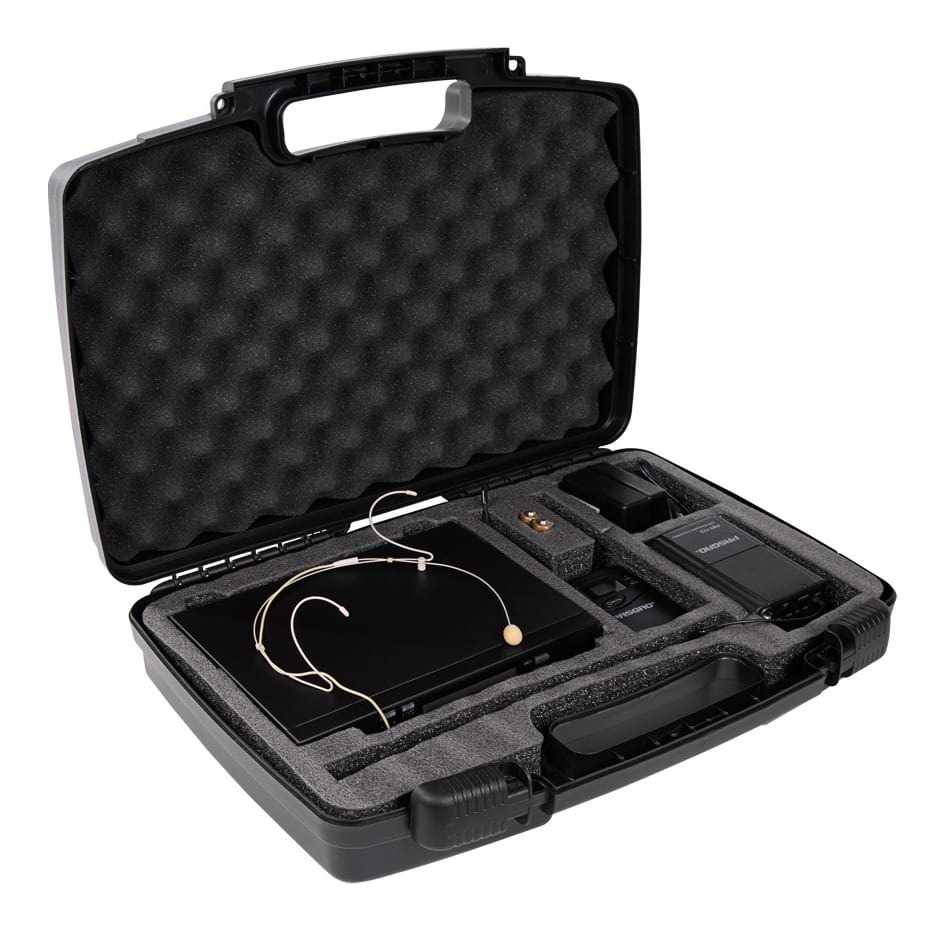

PASGAO Wireless Microphone System with True Diversity Receiver - Headset Microphone and Body Pack
The PAW-1000 system allows for 10 frequency groups, each with up to 20 channels, adding up to a total of 200 usable channels that won't interfere with each other. The onboard Digital Volume Control system removes the need for a volume control knob and allows for seamless use between different speakers / users.

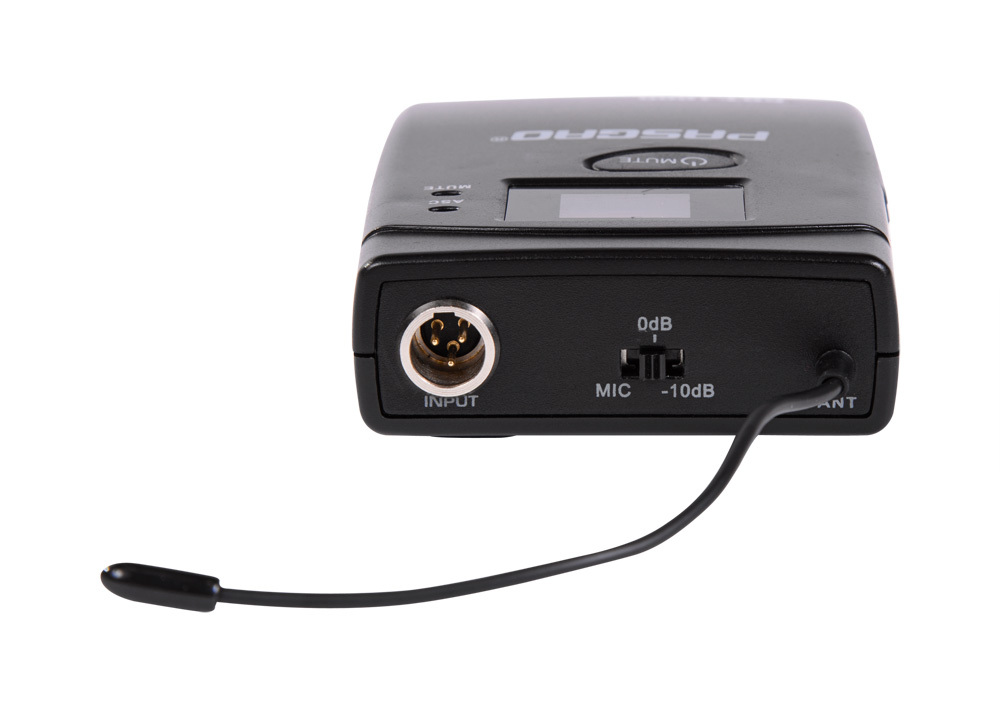

PBT-1000 Body Pack and Headset
The PBT-1000 is a compact, lightweight, and inconspicuous transmitter that can be used with headsets and lapel microphones. A backlit LCD display shows the operational status of the microphone, including current group, channel, battery charge, and lock status. It features a -10dB pad, useful for adjusting between singers and speakers. This body pack and headset microphone are ideal for stage productions, sports commentary, and interview situations. The broadcasting range of this device is 655-679MHz, making it both legally and functionally suitable for most areas of Australia.

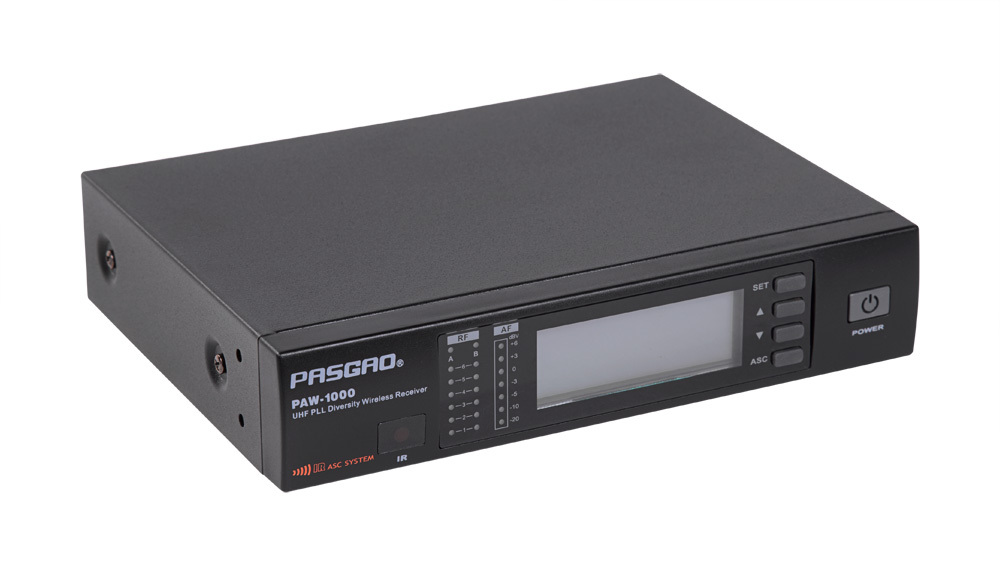

PAW-1000 Wireless Receiver - Automatic IR Connection - Vacant Frequency Detection
The PAW-1000 is a compact, easy to use high quality receiver with an impressive pick up range. The receiver uses automatic frequency testing to detect vacant frequencies in the area. Combine this with infrared synchronization that automaticall pairs the transmitter and receiver to the same frequency, and this system is as simple to set up as 1-2-3! To make life even easier, an onboard digital volume control system automates the volume level outputted ensuring maximum signal strength without distortion / clipping. This results in clear, even sound between different speakers singers.

True Diversity Receiver
The unit incorporates two receiving antennas and monitors the signal strength on each antenna, switching automatically to the strongest receiving antenna. This prevents dropouts that can occur due to self-destructive interference patterns of the radio waves, or when a performer moves around stage with the transmitter. This is known as True Diversity reception technology, as opposed to quasi-diversity reception that uses two antennas but only monitors one at a time, switching when that antenna drops below a certain signal strength, regardless of the strength on the other antenna.

Other Useful Features
The mute level control on the rear of the unit acts like a noise gate and is useful if there are interference noises when the mic is not being used. The backlit LCD shows the status of each receiving channel, including the current group and frequency, and active antenna. The 6 segment LED meter indicates RF signal strength and audio input levels.

About PASGAO
PASGAO is an experienced Chinese manufacturer of many types of wireless microphones and audio devices. As an OEM manufacturer, PASGAO has partnered with many famous global microphone brands to produce their wireless microphone product lines. Buying a PASGAO product gives you the quality and reliability you would expect from a well known brand, but at a price that delivers unbeatable value.

Features:

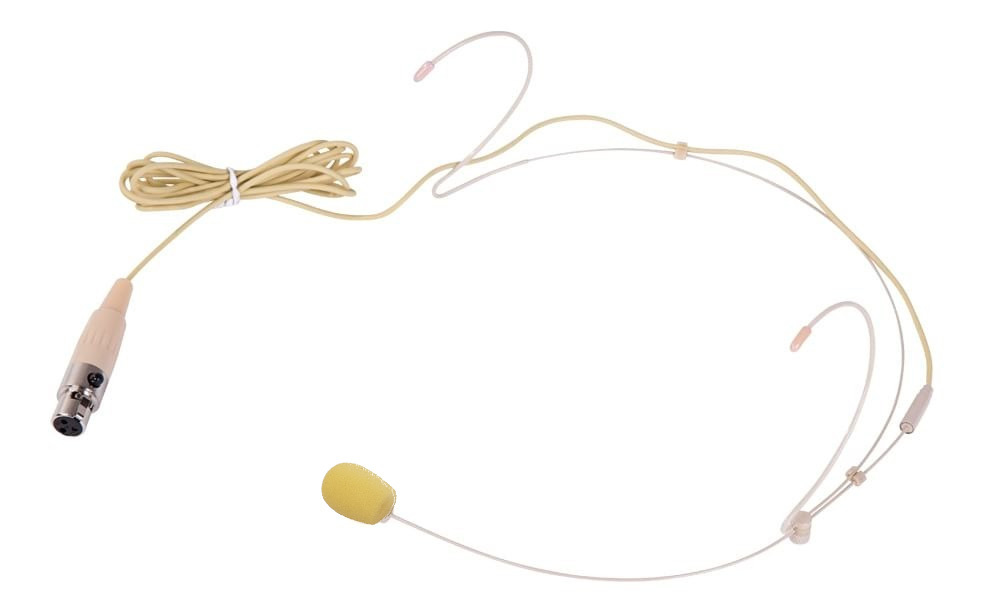

  • Mobile Performance Bodypack with Headset Microphone (PH-50)
  • Bodypack microphone sensitivity control
  • Receiver digital volume control system
  • Infrared data synchronization
  • 19" rack mountable receiver (rails not included)
  • Adjustable mute level
  • 655-679MHz broadcasting range

Specifications::

PAW-1000 Receiver:

  • Frequency Range: 655-679MHz
  • Pickup Range: ~100m
  • Max Channel Number: 120
  • Receiving Frequencies: 720
  • Switching Bandwidth: 24MHz
  • Sensitivity: <-93dBm for dB S/N ratio
  • Peak Deviation: ±55kHz
  • Frequency Response: 70Hz - 16kHz
  • Signal to Noise Ratio: >104dB(A)
  • THD: <0.8%
  • Dynamic Range: >95dB
  • Audio Connection: XLR+Jack
  • Antenna Connection: 2 BNC 50Ohm
  • Output Level:XLR: +8dBu max
  • Power Supply: 12 - 18V DC 500mA
  • Dimensions: 410mm x 160mm x 44mm
  • Weight: 2.4kg

PBT-1000 Body Pack:

  • Frequency Range: 655-679MHz
  • Max Channel Number: 120
  • Theoretical Output Power: 10mW
  • Spurious Rejection: >53dBc
  • Switching Bandwidth: 24MHz
  • Peak Deviation: ±55kHz
  • Frequency Response: 50Hz - 16kHz
  • Signal to Noise Ratio: 104dB(A)
  • THD: <1%
  • Microphone Input Voltage Range: 1.5V maximum
  • Phantom Power: 5V/10k Ohm
  • Power Supply: 2x 1.5A (AA) batteries (included)
  • Battery Life: >8hrs
  • Dimensions: 90mm x 65mm x 24mm
  • Weight: 85g

Digital Dividend
As of 1st of January 2015, any broadcasting system operating in Australia, including wireless microphones and other wireless audio systems, must now operate between 520-694MHz. This is not only a legal requirement, but an operational requirement to prevent interference that can be picked up in commercial broadcasting frequency ranges.

The Pasgao range that SWAMP distributes in Australia generally will have a frequency range between 655-679MHz, though please check the specifications listed.

While 520-694MHz is the general frequency range for operation in Australia without needing approval, the available frequencies bands do vary by location. For more information or to find out how to check available frequencies near you, please read our helpful article about wireless devices in Australia at the following link: Using Wireless Equipment in Australia

View PDF brochure for PASGAO PAW-1000 Wireless Microphone System - 1 Bodypack and Headset Mic
