Pasgao PBT-801 Body Pack Transmitter with Lapel Mic

Pasgao

PASGAO PBT-801 Body Pack Transmitter with PL-10 Lapel Mic

$149.99
  Sold Out
or interest free for up to 6 months with
Contact us for an ETA

The PBT-801 is a compact, lightweight, and inconspicuous transmitter that can be used with headsets and lapel microphones. It is the companion transmitter for the PAW-920 receiver. Included is the PL-10 PASGAO lapel mic with the mini XLR connection.




Dispatch

PBT-801 Body Pack Transmitter with PL-10 Lapel Mic
The PBT-801 is a compact, lightweight, and inconspicuous transmitter that can be used with headsets and lapel microphones. It is the companion transmitter for the PAW-920 receiver. Included is the PL-10 PASGAO lapel mic with the mini XLR connection.

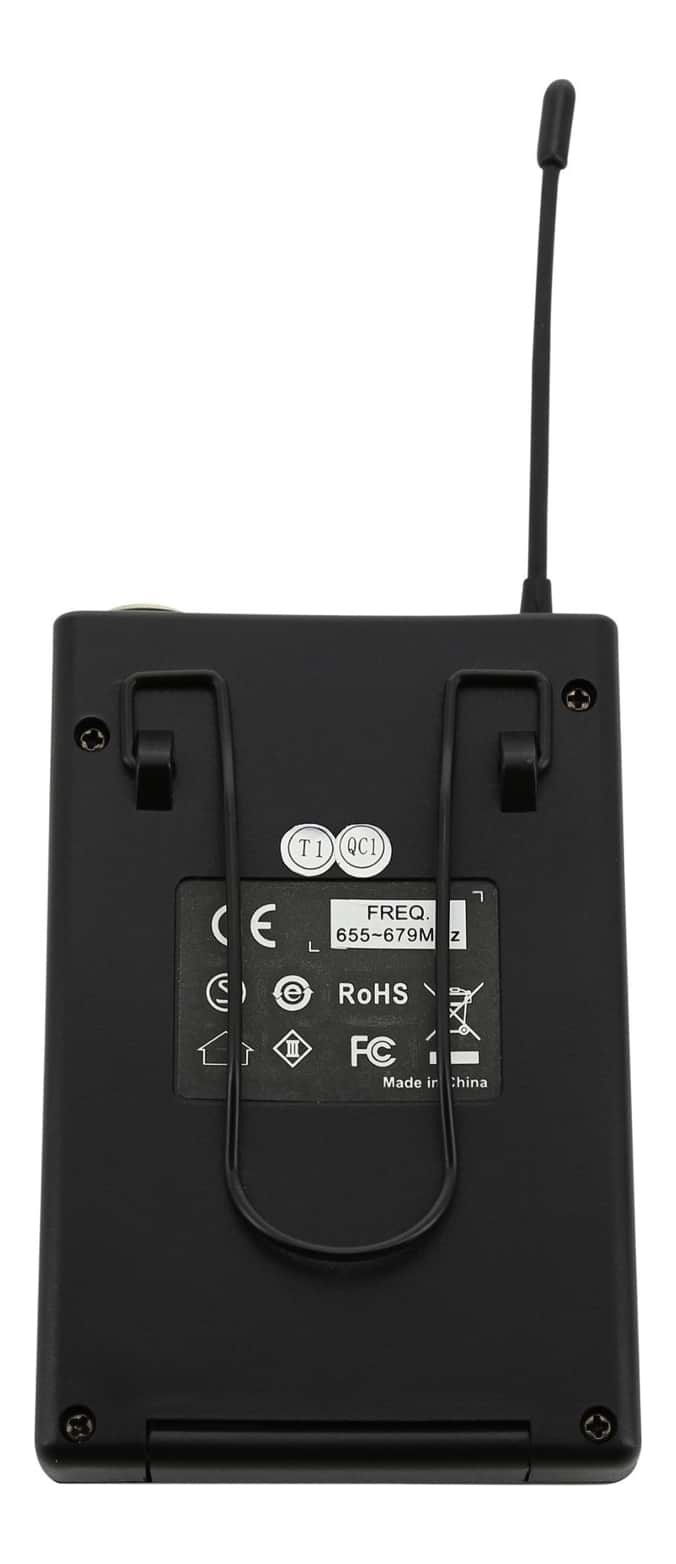

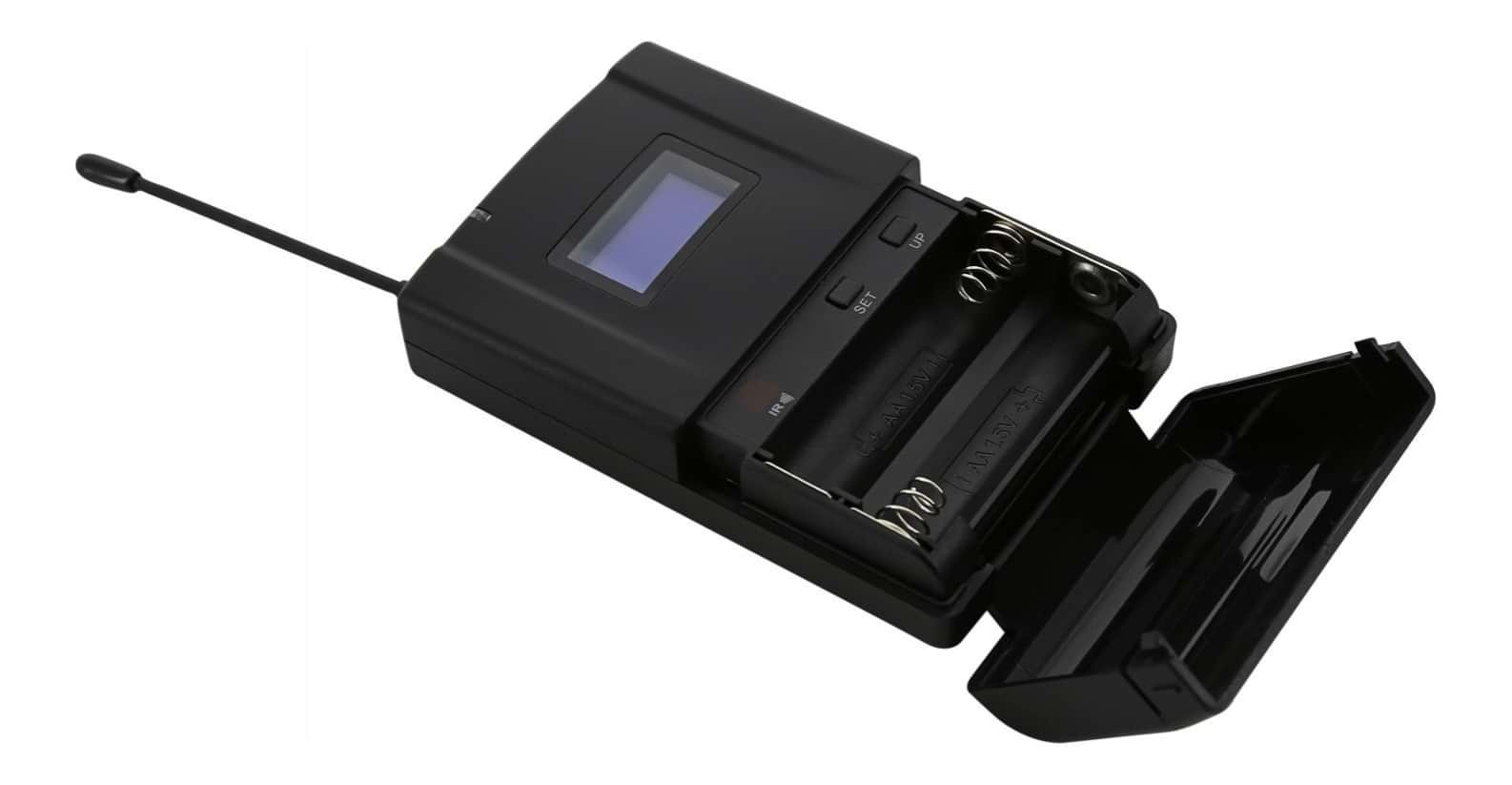

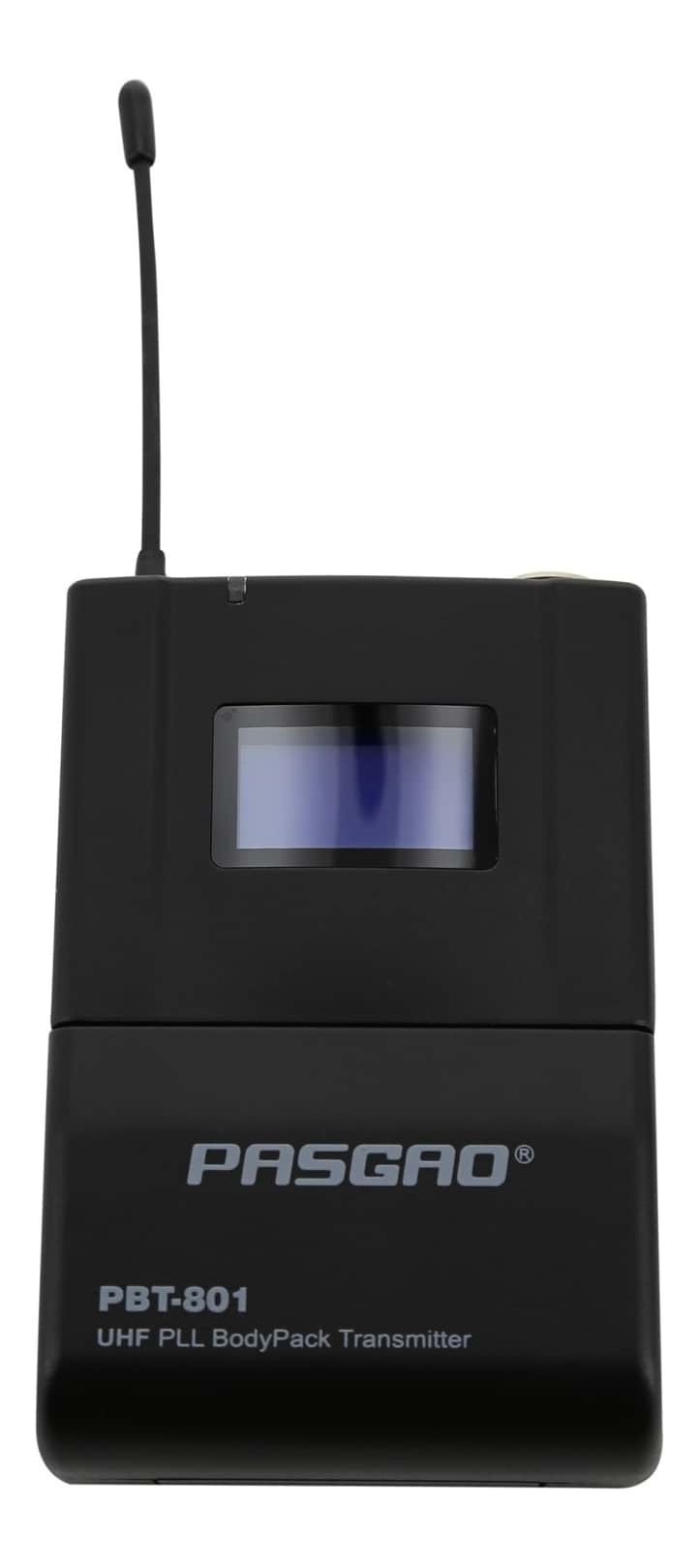

PBT-801 Body Pack
The PBT-801 is a compact, lightweight, and inconspicuous transmitter that can be used with headsets and lapel microphones. A back-lit LCD display shows the operational status of the microphone, including current group, channel, battery charge, and lock status. It features a -10dB pad, useful for adjusting between singers and speakers. This body pack and headset microphone are ideal for stage productions, sports commentary, and interview situations. The broadcasting range of this device is 655-679MHz, making it both legally and functionally suitable for most areas of Australia.

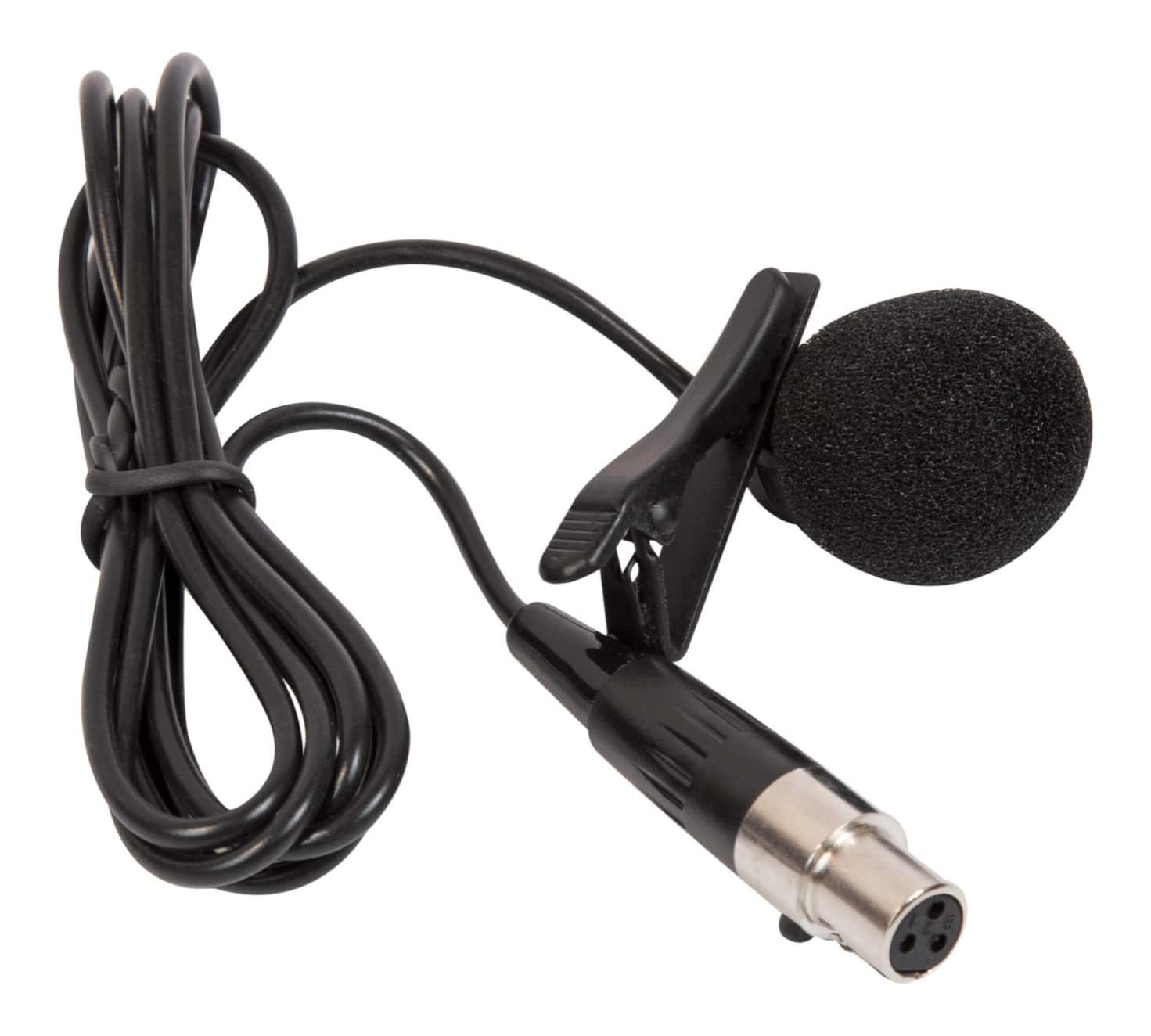

PL-10 Lapel Microphone with Mini 3-pin XLR Connector
This clip-on omni-directional lapel microphone has a mini 3-pin XLR connector. A foam windshield is included. It is a discreet design with an excellent capacitive capsule for the voice, ideal for on-camera presenters and interviewers using a belt pack transmitter.

About PASGAO
PASGAO is an experienced Chinese manufacturer of many types of wireless microphones and audio devices. As an OEM manufacturer, PASGAO has partnered with many famous global microphone brands to produce their wireless microphone product lines. Buying a PASGAO product gives you the quality and reliability you would expect from a well known brand, but at a price that delivers unbeatable value.

Features:

  • For use with the PAW-920 Receiver
  • Includes the PL-10 Lapel Mic
  • LCD shows group, channels, battery volume, power, gain, mute and lock status
  • 3 optional input gain and power adjustment
  • Double input circuit designed for microphone and guitar
  • Infrared data synchronization

Specifications:
PBT-801 Body
Pack Transmitter

  • Frequency Range: 655-679MHz
  • Max. Channel Quantity: 160
  • Output power: >16mW
  • Secondary wave suppression: 50dBc
  • Band Width: 15MHz
  • Max. Depth Of Modulation: >86KHz
  • Frequency Response: 50~15000Hz
  • Distortion: <1 %
  • Max.input level: >850mV
  • Power: 2x1.5 V(AA)
  • Use Time Of The Battery: >8 h
  • Volume: 90x70x24mm
  • Weight: 90g

PL-10 Lapel Mic

  • Cable length: 95 cm
  • Frequency response: 50 Hz - 18 kHz
  • Weight: 22g
View PDF brochure for PASGAO PBT-801 Body Pack Transmitter with PL-10 Lapel Mic
