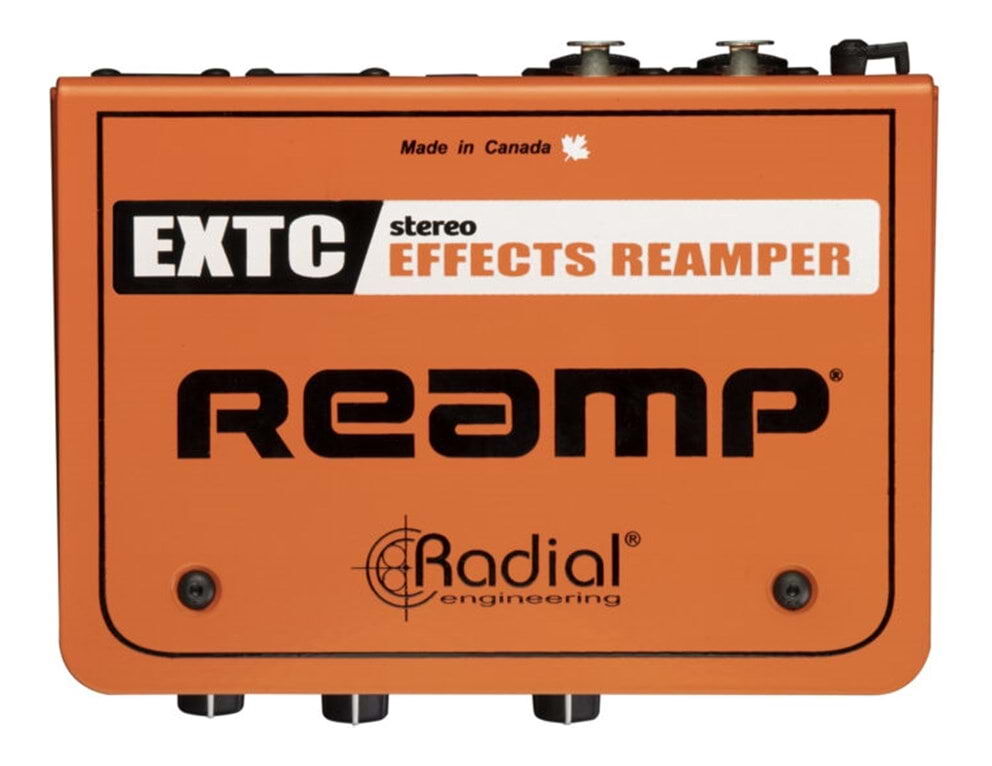

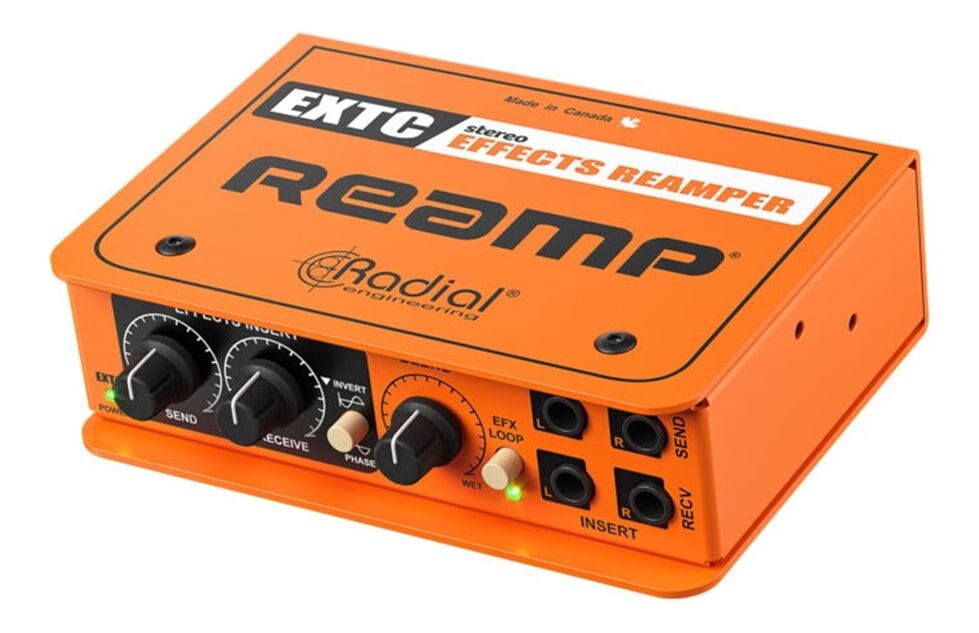

Radial Engineering EXTC-Stereo Effects Interface and Reamper

Radial Engineering EXTC-Stereo Effects Interface and Reamper
The Radial EXTC-Stereo is a stereo effects interface & reamper that bridges pro audio (line-level) gear and guitar/bass pedals, enabling you to insert stereo pedals or reamp tracks with full gain, wet/dry, and phase control. Balanced I/O connections.

Secret Weapon!
The EXTC-Stereo gives you the ability to connect stereo effects pedals such as reverbs and delays to the line-level inputs and outputs of your console or recording interface. Use it to send drum overheads to a multi-tap delay, or breathe new life into a stale keyboard patch with a flanger or chorus pedal. Try it on vocals, strings, or any prerecorded track to add a new creative element to your mixes and revitalize your old pedal collection.

EXTC-Stereo Applications

• Reamping through stereo effects - The EXTC-Stereo acts as the bridge between your recording interface and your stereo guitar pedals, making it easy to use your favorite pedal effects on any prerecorded audio tracks. The EXTC-Stereo converts the dry audio signal from line-level to instrument level for processing through your pedals, and then brings it back up to line-level to record the results.
• Connecting mono guitar pedals - Mono guitar pedals work equally well with the EXTC-Stereo, and you can connect two sets simultaneously to double your creativity. Connect one pedal chain to the left insert jacks on the EXTC-Stereo, and the other to the right.
• Reamping through one or two amplifiers - The EXTC-Stereo can also be used like other Reamp® boxes that feed your tracks through an amplifier. Connect the send jacks to the inputs of your amps and use a microphone to capture the results.
• Recording direct from a pedalboard - With the EXTC-Stereo you can connect your instrument and pedalboard to the line-level inputs on your recording device. Simply connect your pedalboard to the insert receive jacks and adjust the receive level control as needed.

Features:

• Stereo effects loop (send / receive) to integrate pedal chains into a stereo mix

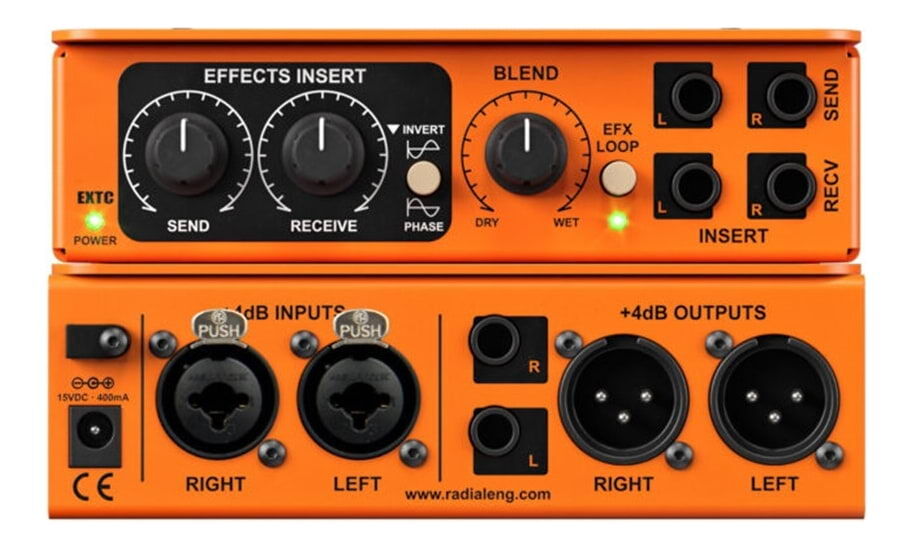

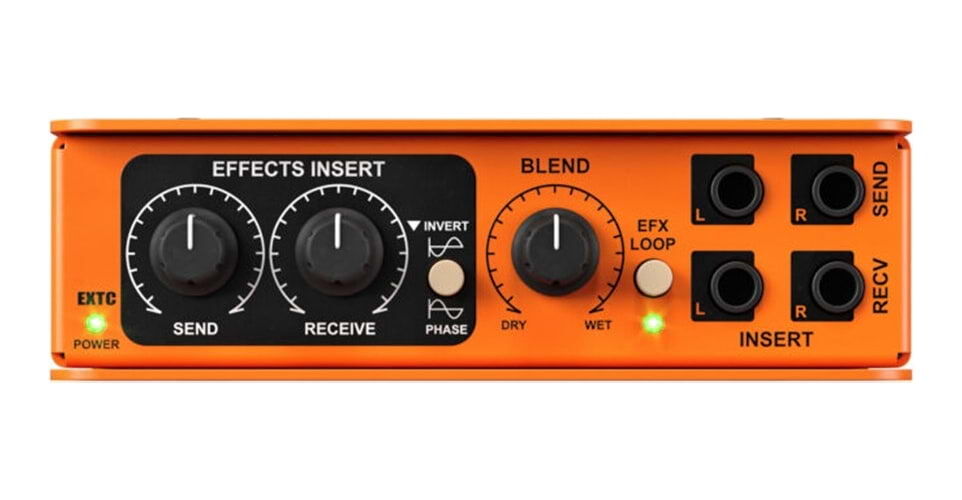

• Front-panel ¼″ inputs (send) and outputs (receive) for pedals
• Send & Receive level controls to optimize gain staging between line and instrument levels
• Wet / Dry blend (mix) control to dial the amount of effect vs original signal
• Effects Loop bypass (A/B mode) switch to bypass the pedal chain for auditioning
• Phase invert switch to correct phase issues with some pedals

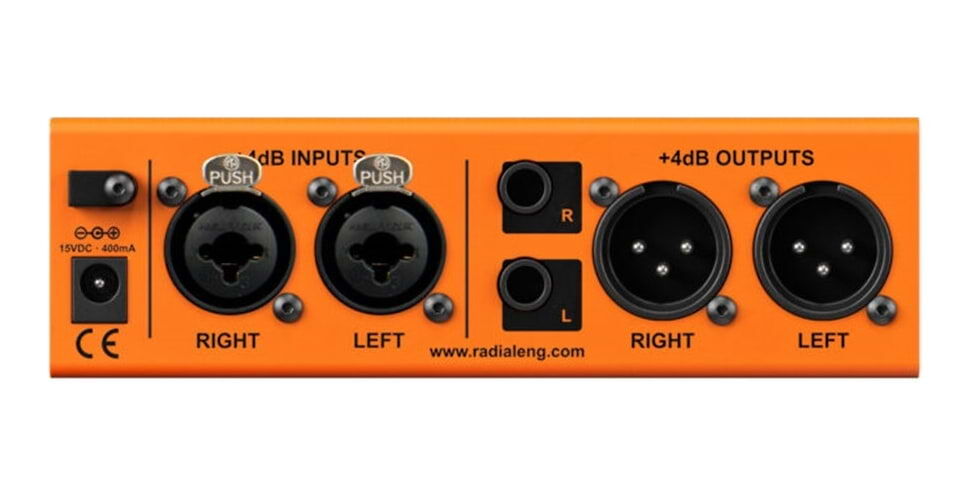

• Balanced I/O: combination XLR / TRS inputs, TRS and XLR outputs for interfacing with pro gear
• Ground-lift / isolation (transformer or isolation) to reduce hum or noise (often implied in Radial’s designs)
• Rugged steel chassis construction for pro studio / live environments
• Rack-mountable with optional adapter (SA series rack kit)
• Signal path is transparent with high headroom and low distortion design

Specifications:

• Audio circuit type: Proprietary active circuit with Class-A buffers
• Number of channels: 2 (stereo)
• Frequency response: 20Hz – 20kHz (–0.5 dB / +0.5 dB)
• Dynamic range: > +130 dBu
• Total harmonic distortion (THD): 0.007% @ 0 dBu, 1 kHz
• Intermodulation distortion: 0.002% @ 0 dBu, 1 kHz
• Common mode rejection ratio: 34 dBu @ 60 Hz, 42 dBu @ 3 kHz
• Noise floor: –105 dBu
• Maximum input: +11 dBu
• Input connectors: Combo jacks (¼″ TRS / XLR) for balanced line + ¼″ TS insert receive
• Output connectors: ¼″ TRS, XLR, ¼″ TS insert send
• Power supply: 15 V DC, 400 mA
• Chassis / construction: 14-gauge steel, powder-coated
• Operating conditions: Dry locations only, 5 °C to 40 °C
• Extras: Optional rack-mount kit, ground lift/isolation, phase invert switch
• Warranty: 3 years (transferable)
