• SWAMP 166XL Two Channel Compressor Limiter Gate Dynamic Processor

    $179.99
    In Stock

    Following a classic design, this great sounding processor will perform solidly and accurately. Whether adding sustain to guitars, fattening up the drums or tightening up the mix, the SWAMP 166XL is a great tool to polish professional audio signals.

    SWAMP 166XL Two Channel Compressor Limiter Gate
    Following a classic design, this great sounding processor will perform solidly and accurately. Whether adding sustain to guitars, fattening up the drums or tightening up the mix, the SWAMP 166XL is a great tool to polish professional audio signals. It allows stereo or dual mono noise gating, limiting, and compression, making it a highly versatile unit and a great bang for buck no-nonsense compressor/limiter.

    Simple Operation
    For the compressor section, the centre settings will deliver classic compression and full control is given for leveling through to aggressive peak limiting. Gain reduction (dB) is supported by precise LED displays. The advanced AutoDynamic circuitry promotes ultra smooth gating.

    Features:

    • Great sounding dynamics control for any type of program material
    • New gate timing algorithms ensure the smoothest release characteristics

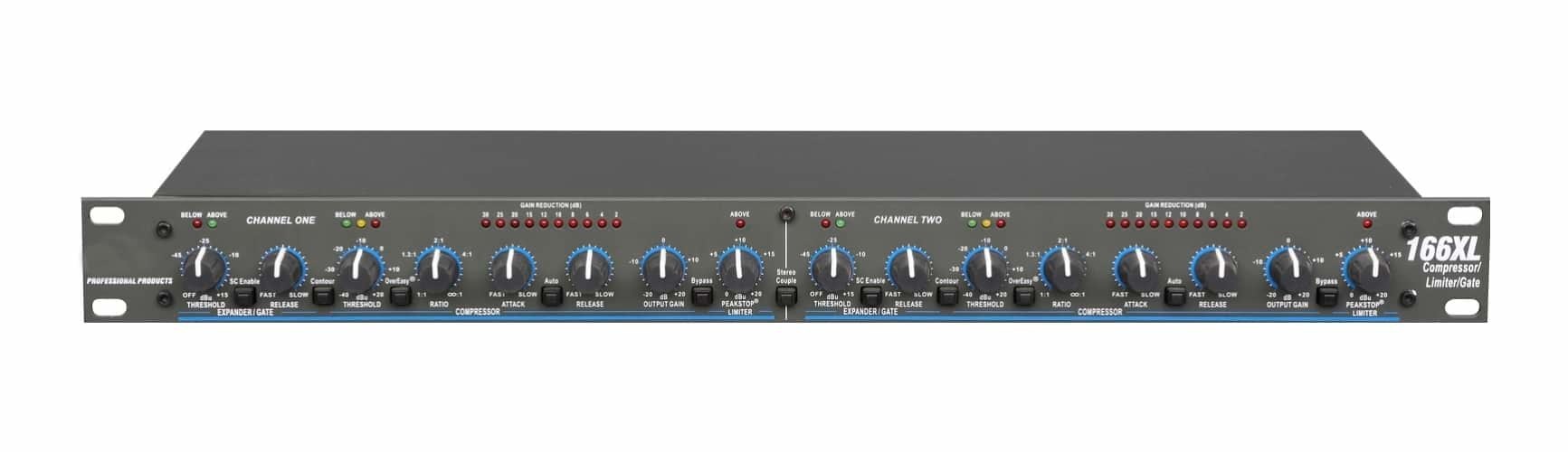

    • Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
    • Stereo or dual-mode operation

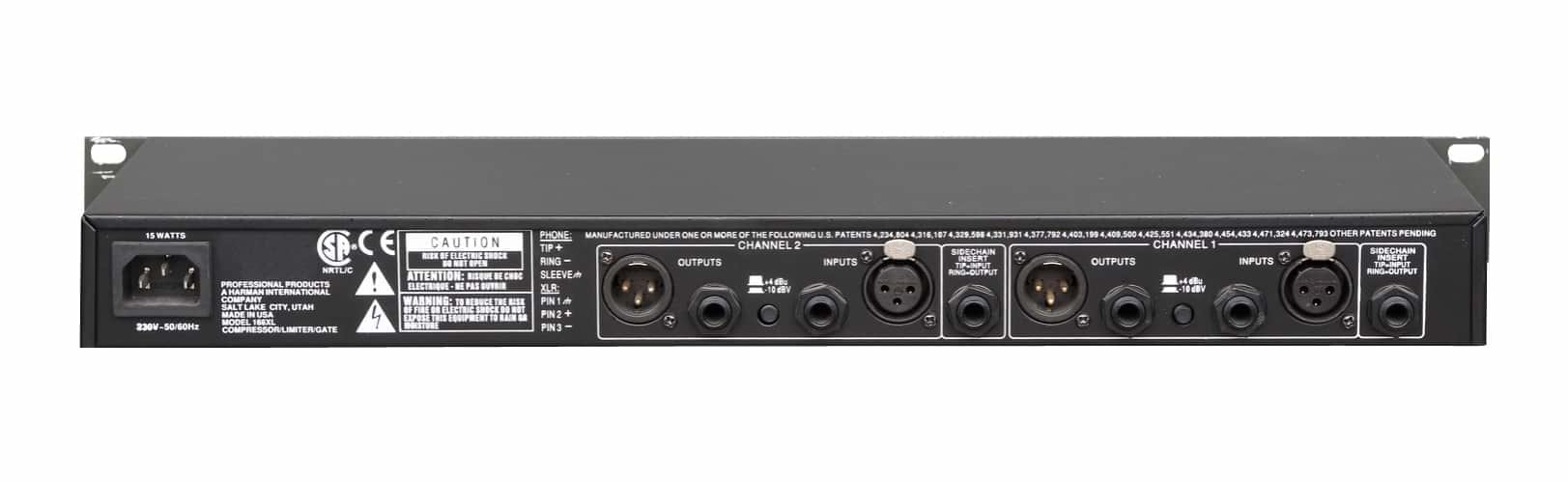

    • Balanced inputs and outputs on 1/4" TRS and XLR
    • Side Chain insert
    • Classic "Auto" mode

    Specifications:

    Input Connectors 1/4" TRS and XLR, Floating Balanced; XLR: Pin 2 hot Phone: Tip Hot HI
    Input Impedance >50kΩ balanced, >25kΩ unbalanced
    Max Input +24dBu, Balanced or Unbalanced
    CMRR >40dB at 1kHz, typically >55dB
    Sidechain 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
    Sidechain Impedance Tip = >10kΩ (Input), Ring = 2kΩ (Output)
    Sidechain Max Input Level +24dBu
    Output Connectors 1/4" TRS phone and XLR floating balanced, XLR: Pin 2 and Tip Hi
    Output Impedance 120Ω balanced, 60Ω unbalanced
    Max Output +21dBu,>+20 dBm into 600Ω, balanced or unbalanced
    Frequency Response 20Hz - 20kHz; +0, -0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain
    Noise <-90dBu, 22Hz to 22kHz, no weighting, unity gain
    THD+Noise Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz
    IMD Typically <0.08% SMPTE @ +10dBu (15dB Gain reduction)
    Compressor Threshold Range -40dBu to +20dBu
    Compressor Threshold Characteristic Selectable OverEasy or hard knee
    Compressor Ratio Variable; 1:1 to Infinity:1; 60dB Maximum Compression
    Compressor Attack Time Variable program-dependent; 3ms to 340ms for 15dB gain reduction
    Compressor Release Time Variable program-dependent; 200dB/Sec to 3dB/Sec
    Expander/Gate Threshold Range OFF to +15dBu
    Expander/Gate Ratio 10:1
    Expander/Gate Max Depth >60dB
    Expander/Gate Attack Time <500µs (from Maximum Depth)
    Expander/Gate Release Time Adjustable, 30ms to 3sec (to 30dB attenuation)
    Limiter Threshold Range 0dBu to +20dBu
    Gain Adjustment Range Variable; -20dB to +20dB
    Interchannel Crosstalk <-80dB, 20Hz to 20kHz
    Dynamic Range >115 dB
    Stereo Coupling True RMS Power Summing™
    Power Consumption 15 Watts Maximum
    Operating Temperature 0°C to 45°C (32°F to 113°F)
    Dimensions 1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm)
    Unit Weight 5.05 lb (2.29 kg)
    Shipping Weight 7.20 lb (3.27 kg)
    Reference 0dBu = 0.775Vrms
    View PDF brochure for SWAMP 166XL Two Channel Compressor Limiter Gate Dynamic Processor
