MOEN AM-RV Electric Guitar Pedal - Compact Reverb Effect


MOEN AM-RV Compact Electric Guitar Reverb Effect Pedal

  In Stock
Found a better Price? Price match now
or interest free for up to 6 months with

The AM-RV compact effects pedal is ideal for the guitarist who wants to explore three distinct choices of reverb: Hall, Spring and Room. Further control is offered via a toggle switch, controlling the depth mode of the effect, and Time and Mix knobs.

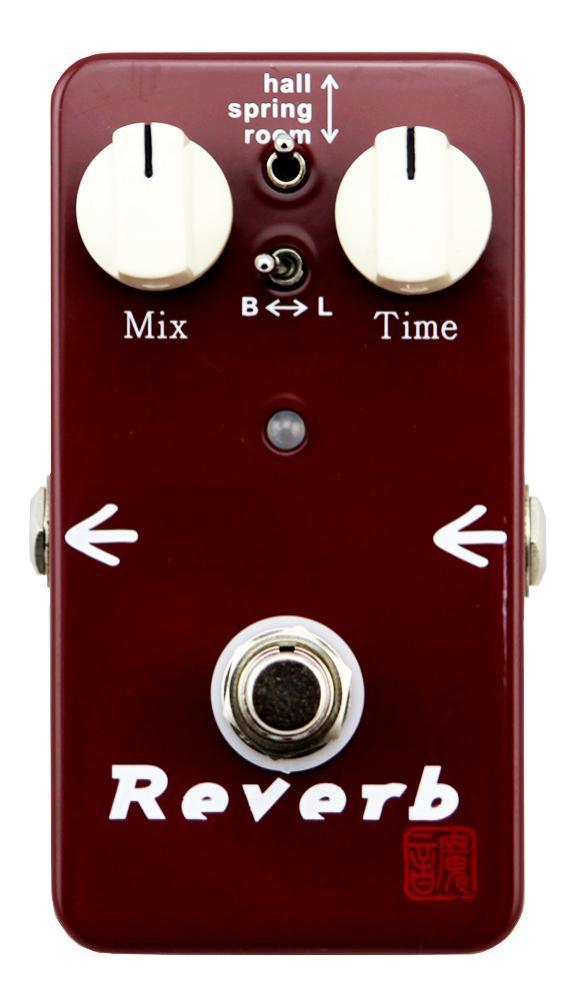

MOEN AM-RV Reverb Stompbox
This compact pedal provides a choice of three exquisite reverbs - Hall, Spring, and Room. Controlled via Mix and Time knobs, there is also a toggle switch to choose a depth mode to further control the spaciousness and depth of the reverb effect.

3 Reverbs to Choose
Hall - designed to emulate a large open space such as a theatre or a church. Especially if you are performing in a small or flat space, the Hall setting allows your tone to have a vast presence, and create a large sonic space.
Spring - based on the old spring reverbs, there is a subtle ring riding with the reverb presence - a metallic colouring that differs from Hall or Room reverbs, and is ideal to use with either rythm strumming or lead solos.
Room - a punchier response than the Hall reverb, offering emulations of smaller room sizes than that which the Hall provides.

MOEN Effects - A Special Breed
At the very beginning MOEN promoted completely handmade guitar effects under the CFX label which received high praise from guitar players lucky enough to snag one. CFX also made "special request" pedals and designs and catered to some pretty well known guitar names. Ultimately, pedals made by hand could not satisfy the rapid growing demand any more, therefore from early 2005 CFX joined with MOEN and built a new production line. The pedals produced on this line are originated from the original CFX circuit design, maintaining the outstanding tone, and keeping the distinct enclosure and surface process.


  • 3 Mode Toggle - Hall-Spring-Room
  • A/B Toggle Mode
  • Time and Mix Control Knobs
  • Compact and Tough Metal Enclusore
  • True Bypass


  • Dimension: 114L x 65W x 52H mm
  • Weight: 220g
  • Power Supply: (Not Included) DC 9V
  • Current Draw: 140mA
  • Input Impedance: 500k ohm
  • Output Impedance: 10k ohm
View PDF brochure for MOEN AM-RV Compact Electric Guitar Reverb Effect Pedal
