PASGAO PAW-842 2 Channel Wireless Microphone System - 1 Bodypack, 1 Handheld

Digital Dividend
As of 1st of January 2015, any broadcasting system operating in Australia, including wireless microphones and other wireless audio systems, must now operate between 520-694MHz. This is not only a legal requirement, but an operational requirement to prevent interference that can be picked up in commercial broadcasting frequency ranges.

The Pasgao range that SWAMP distributes in Australia generally will have a frequency range between 655-679MHz, though please check the specifications listed.

While 520-694MHz is the general frequency range for operation in Australia without needing approval, the available frequencies bands do vary by location. For more information or to find out how to check available frequencies near you, please read our helpful article about wireless devices in Australia at the following link: Using Wireless Equipment in Australia

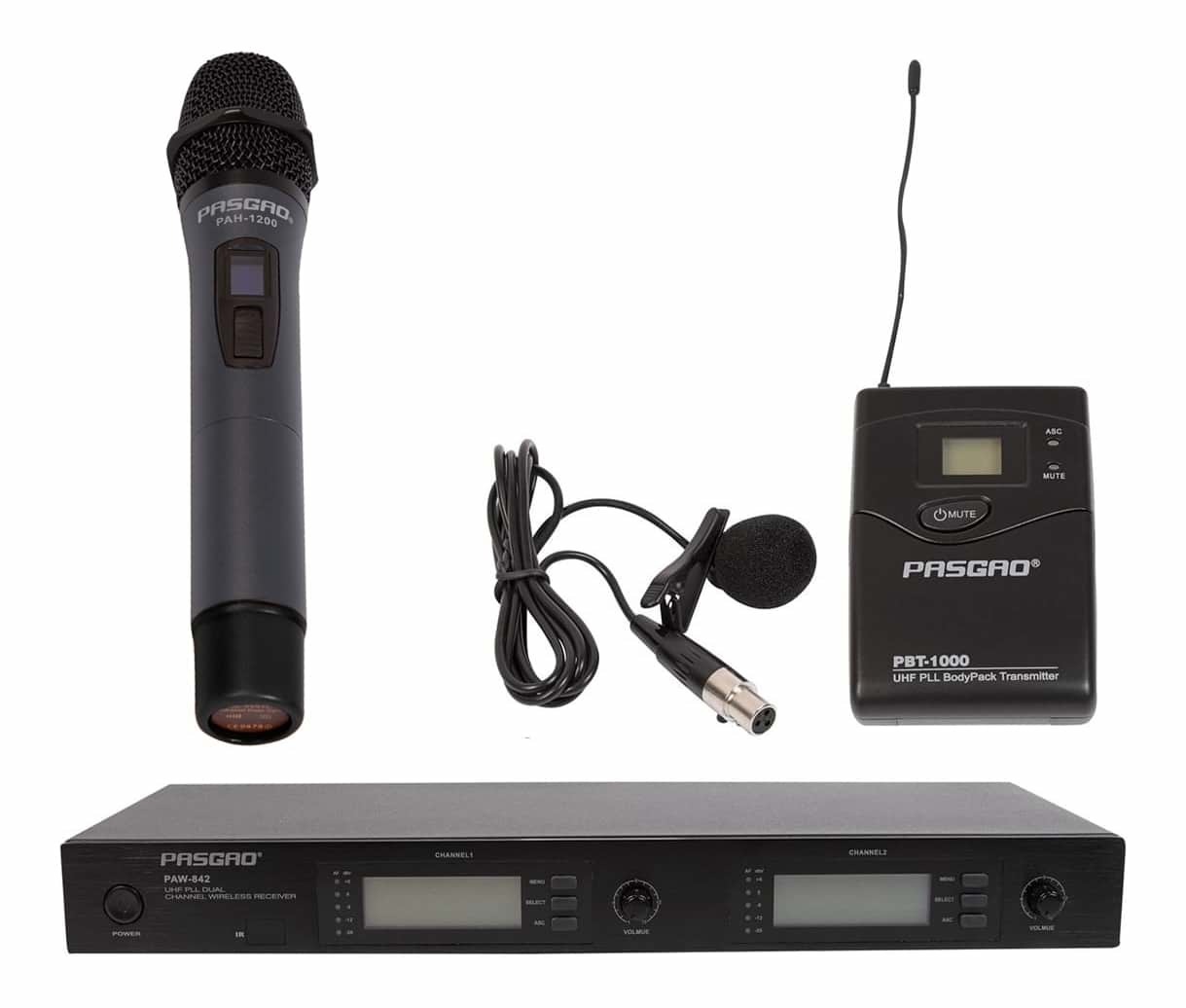

PASGAO 2-Channel Wireless Microphone System - 1x Handheld and 1x Body-Pack
The PAW-842 is a 19" rack mountable dual microphone system that allows for 10 frequency groups, each with up to 12 channels, adding up to a total of 120 usable channels that won't interfere with each other. Intuitive operation and easy set up makes this unit a perfect choice for venues, event organizers, and audio hire companies.

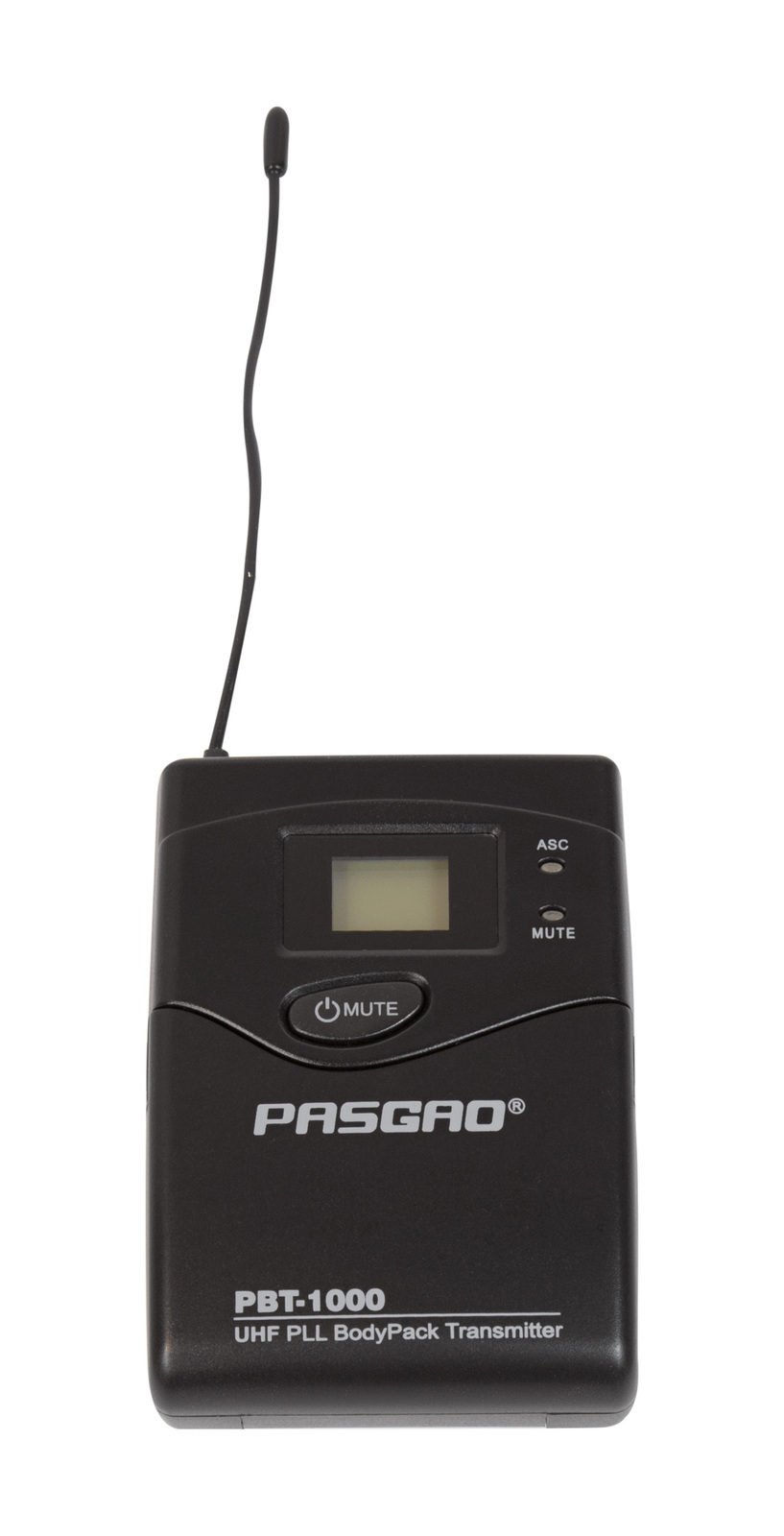

PBT-1000 Body Pack - supplied with Lapel Mics
The PBT-1000 is a compact, lightweight, and inconspicuous transmitter that can be used with headsets (not included) and lapel microphones. A backlit LCD display shows the operational status of the microphone, including current group, channel, battery charge, and lock status. It features a -10dB pad, useful for adjusting between singers and speakers. This body pack transmitter is supplied with lapel style microphones, ideal for stage productions, sports commentary, and interview situations. The broadcasting range of this device is 655-679MHz, making it both legally and functionally suitable for most areas of Australia.

PAW-842 Dual Channel Wireless Receiver - Automatic IR Connection

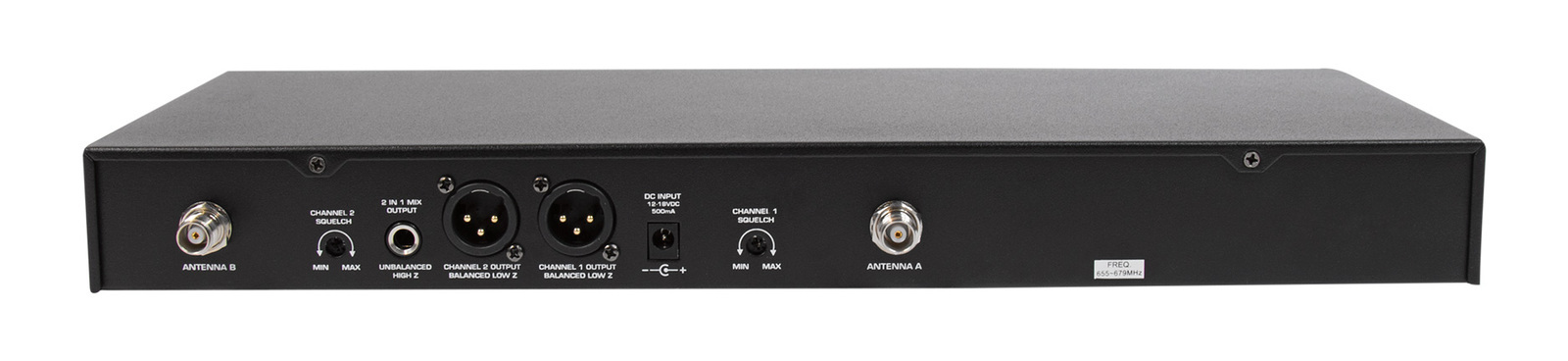

The PAW-842 features infrared (IR) 'transmitter to receiver' synchronization making for a simple setup even with multiple units. The field strength and noise squelch detection optimizes the system automatically. Featuring two antennas that the receiver can switch between automatically to prevent dropouts while a performer moves around stage. The backlit LCD shows the status of each receiving channel, including the current group and channel, signal strength, and input volume. In addition to the 2 in 1 output bus (unbalanced), each channel has it's own separate balanced XLR output.

19 Inch Rack Mountable
The wireless receiver in this kit comes with rack ears included and can be mounted in an audio 19" rack case, taking up 1RU of space. A protective case will make this system much more suitable for taking on the road, and easier to transport safely.

About PASGAO
PASGAO is an experienced Chinese manufacture of many types of wireless microphones and audio devices. PASGAO an OEM manufacturer that has partnered with many famous global microphone brands for their wireless mic ranges. Buying a PASGAO product gives you the quality and reliability you would expect from a well known brand, but at a price that delivers unbeatable value.

Features:

• 2 Channels of wireless audio
• Lavaliere / lapel mics included
• Battery level indicator on body pack
• Mic input gain level switch
• Predictive diversity technology
• Infrared data synchronization
• 19" rack mountable receiver
• Adjustable noise squelch detection
• 655-679MHz broadcasting range
• Summed or individual outputs

Item Includes

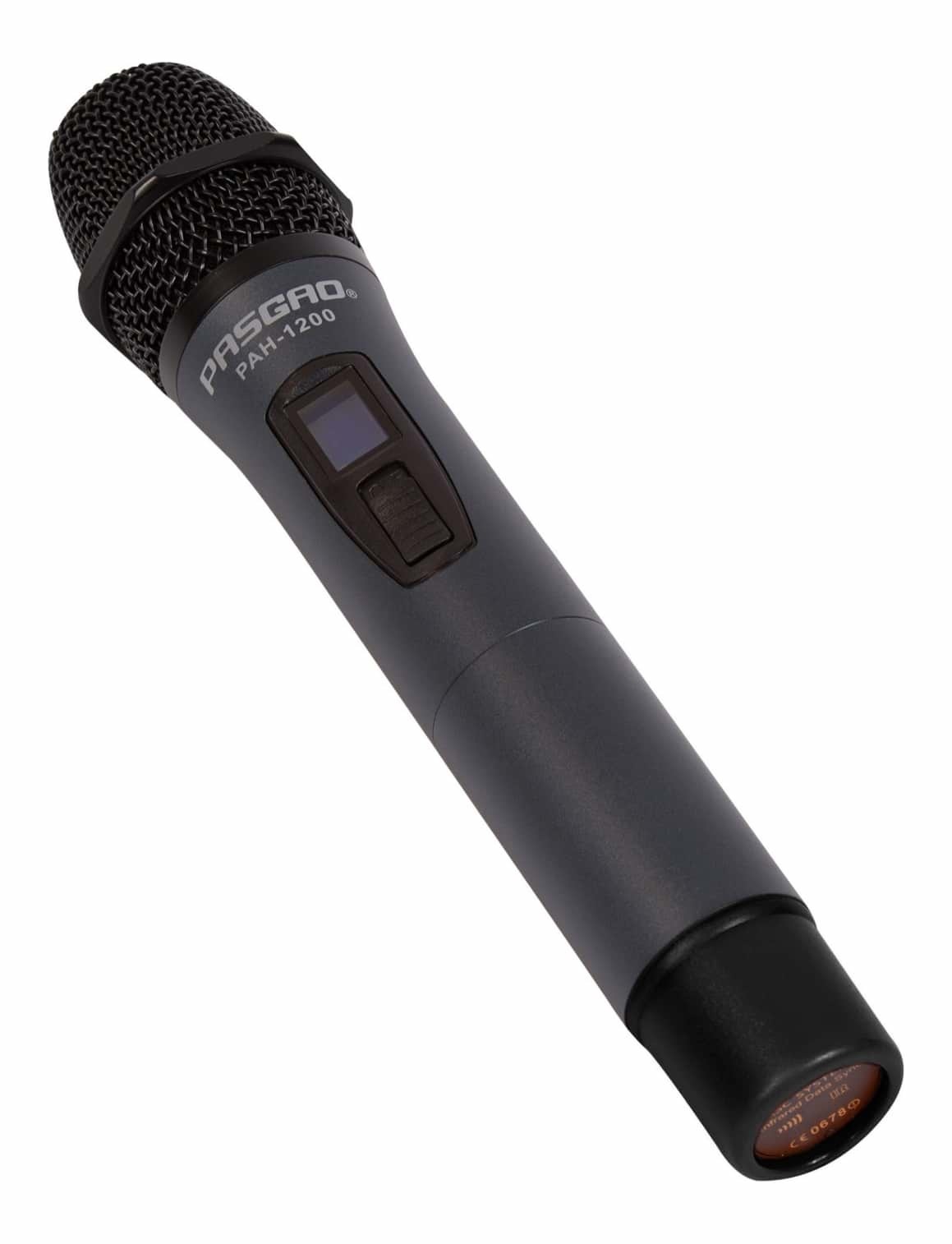

• 1x PAH-1200 Handheld Transmitters
• 1x PBT-1000 Body-Pack Transmitters
• 1x PAW-4000 Receiver

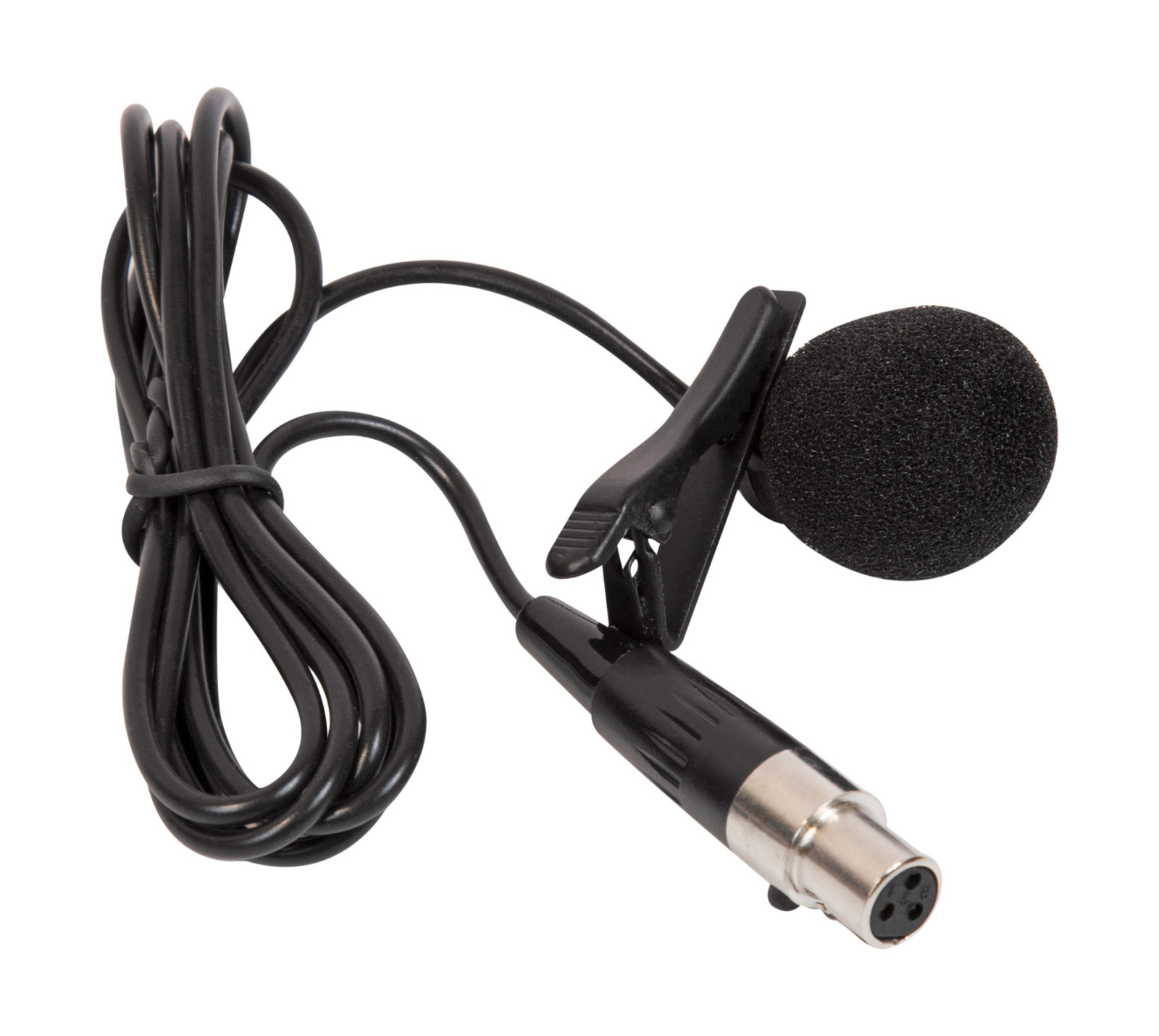

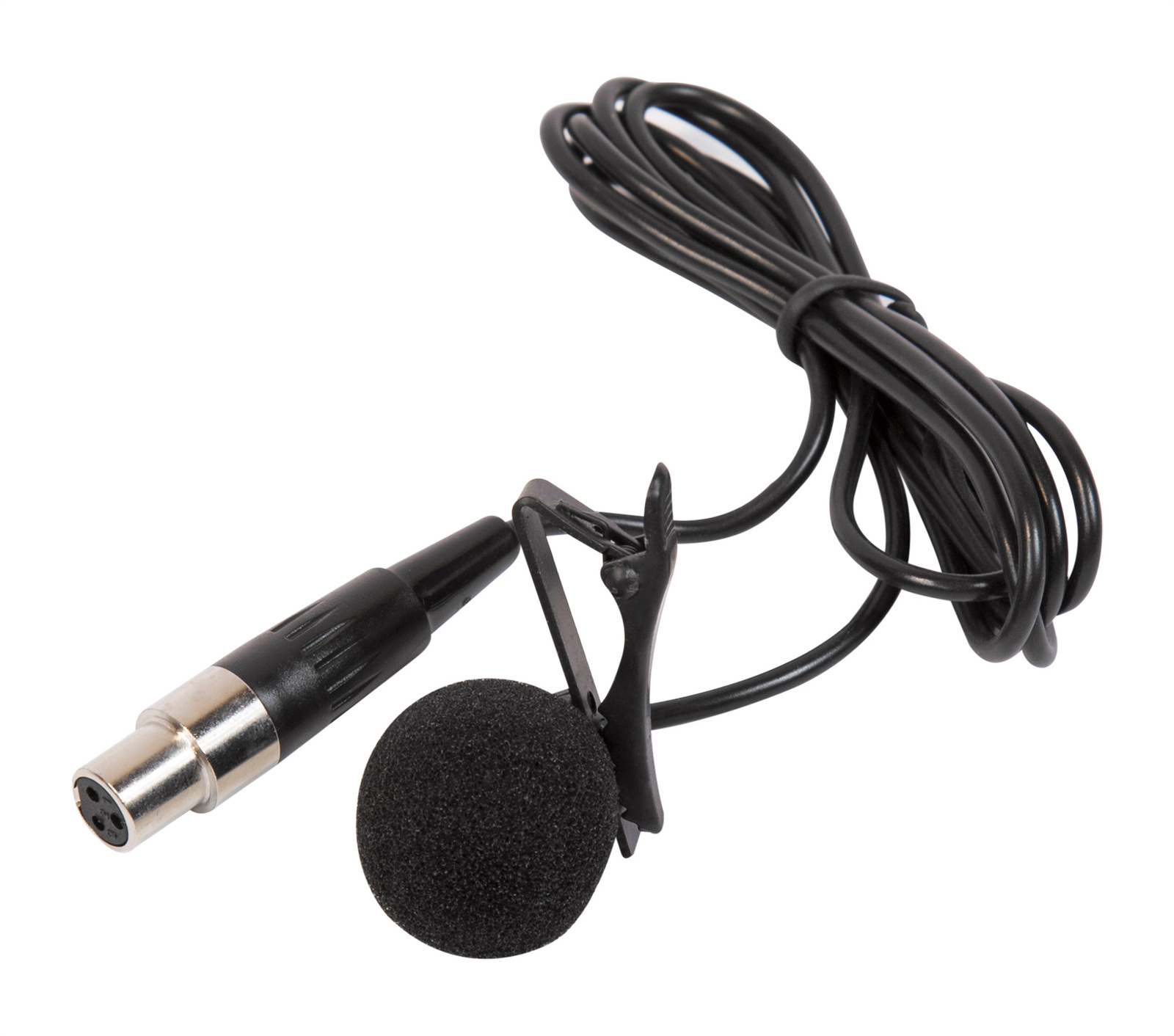

• 1x PL-10 Lapel Microphone (Omni-Directional)

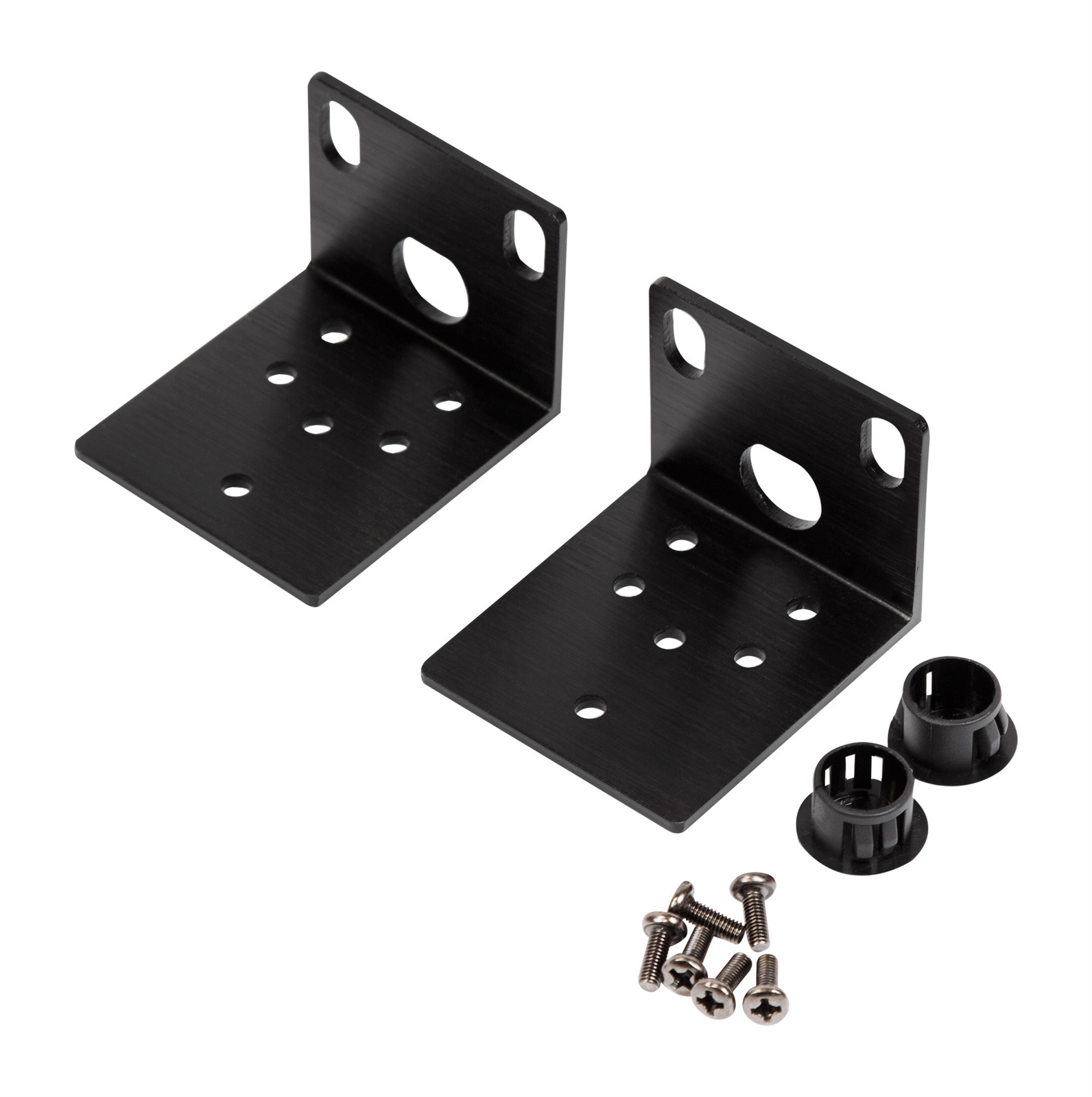

• 1x 19" Rack Mount Set

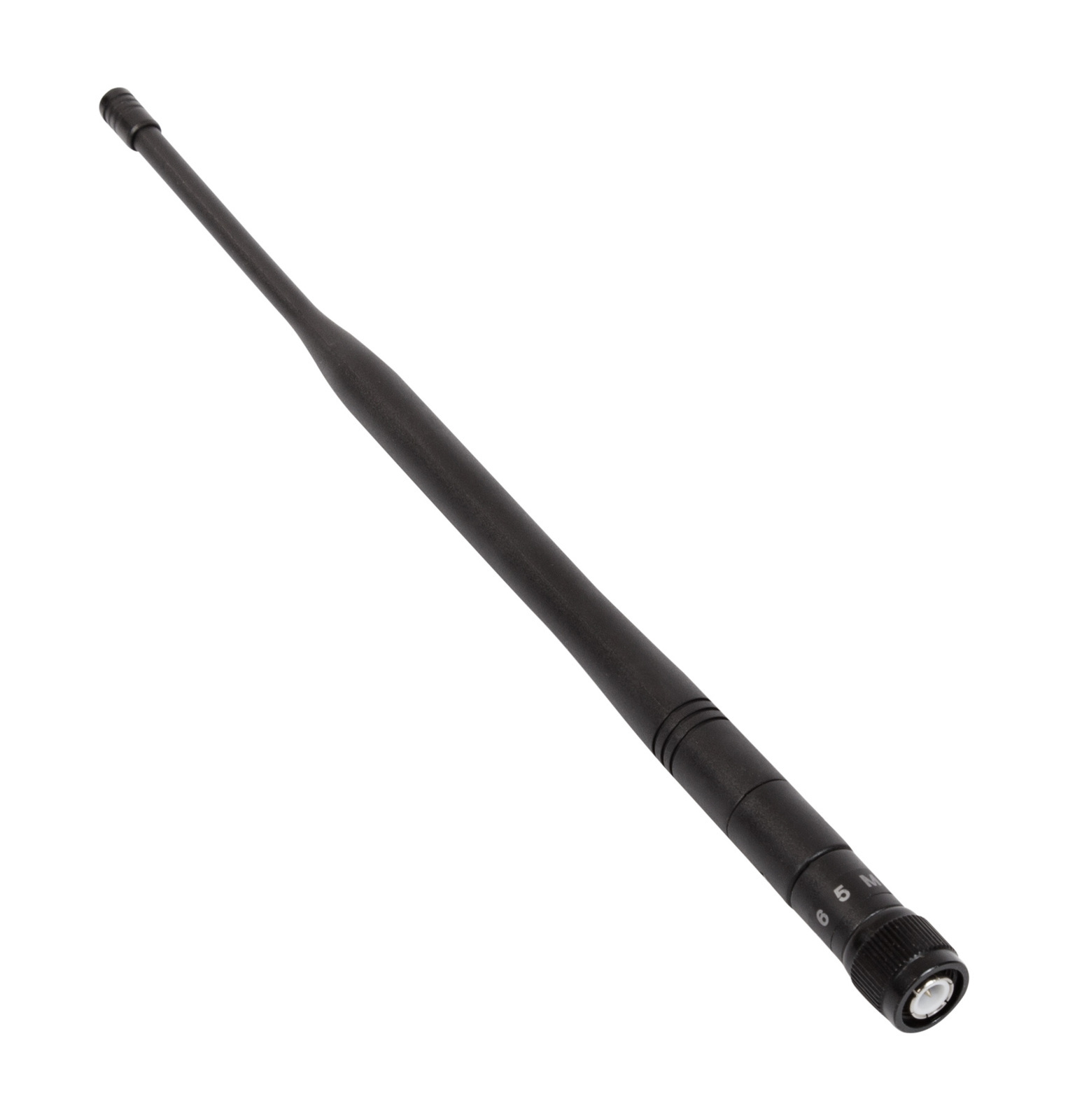

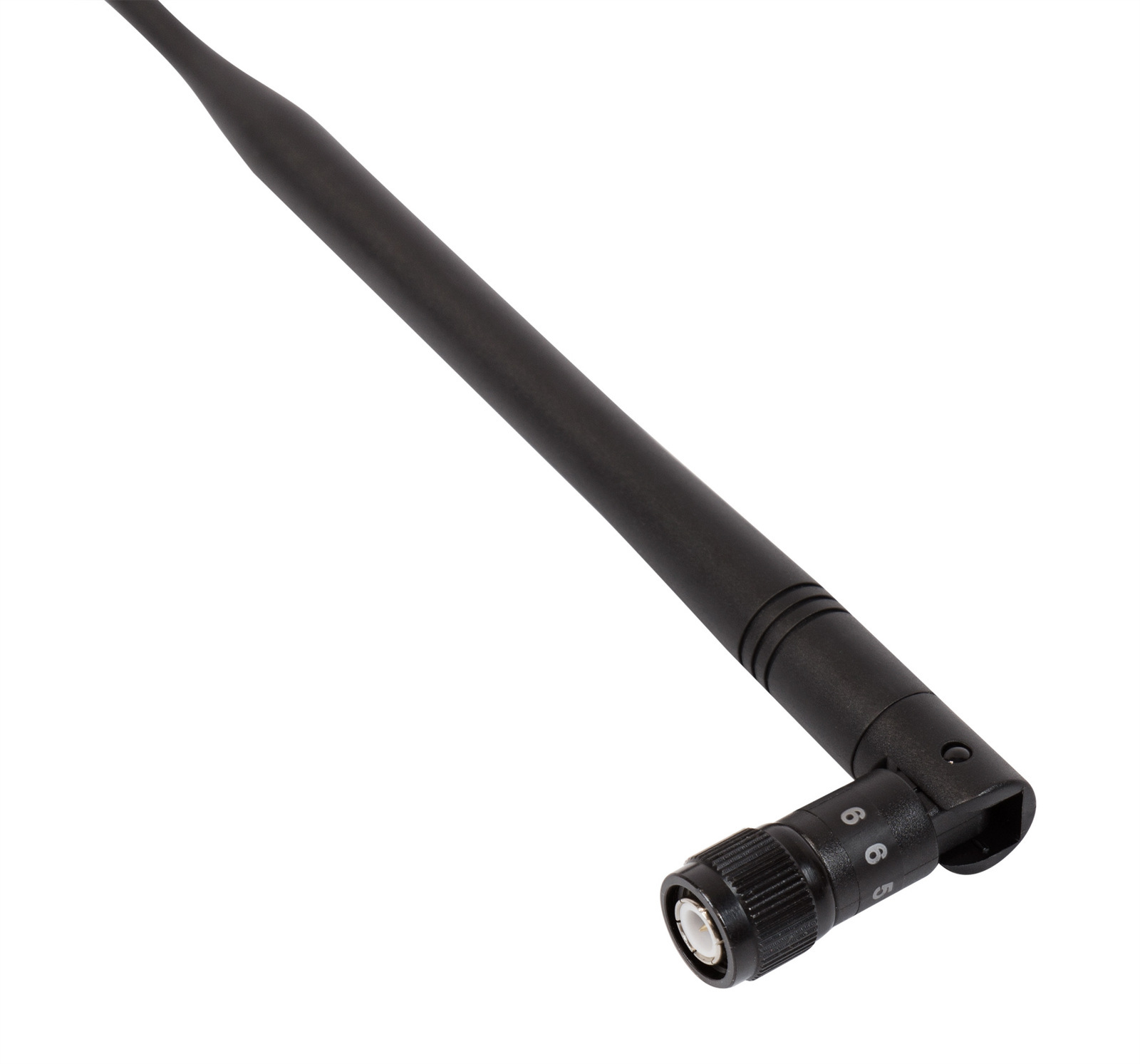

• 2x Antenna

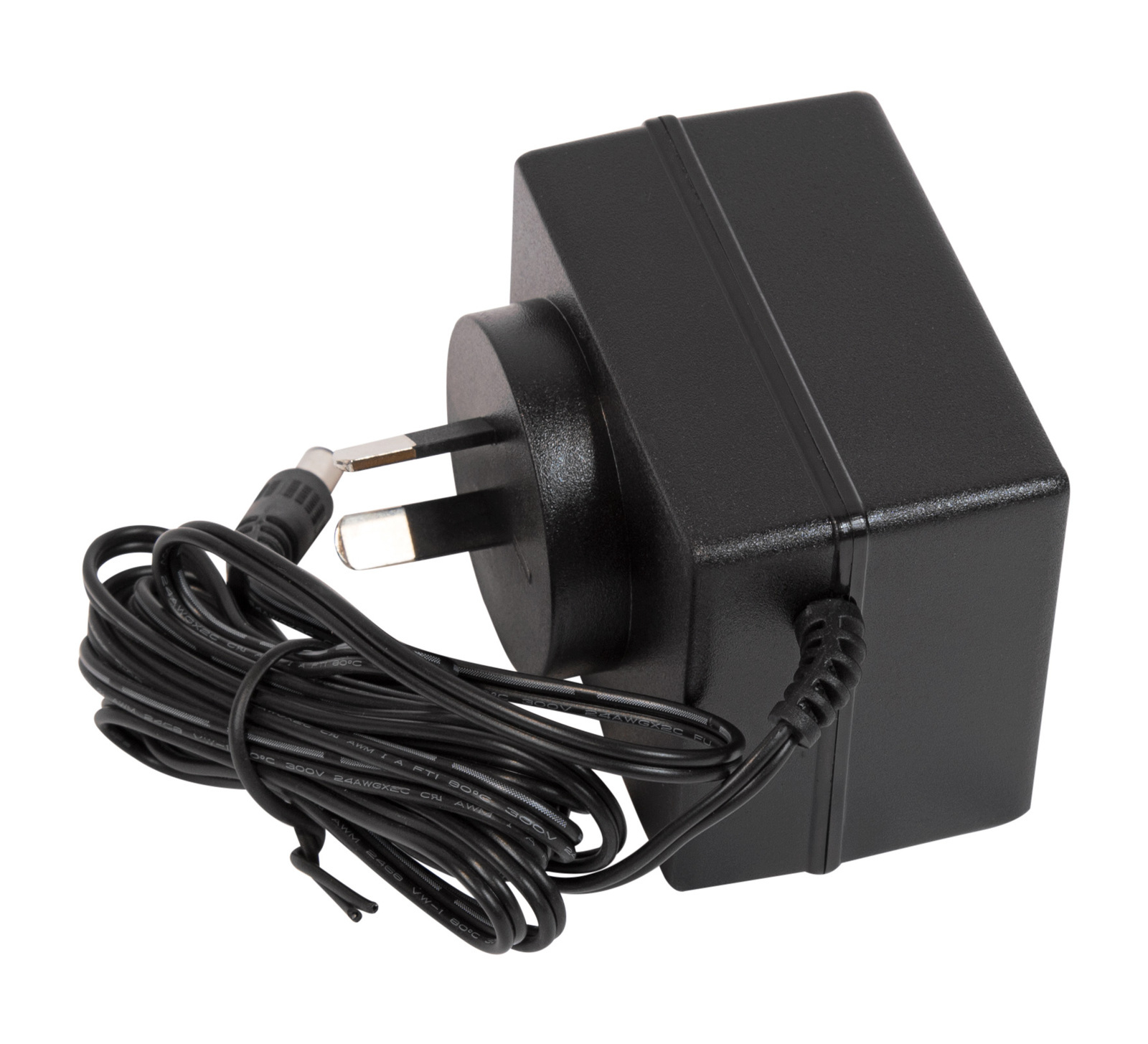

• 1x Power Supply, AA Battery Set

Specifications::

PAW-842 Receiver:

• Frequency Range: 655-679MHz
• Pick-up Range: ~90m
• Max Channel Number: 120
• Receiving Frequencies: 720
• Switching Bandwidth: 24MHz
• Sensitivity: <-93dBm for dB S/N ratio
• Peak Deviation: ±55kHz
• Frequency Response: 70hZ - 16kHz
• Signal to Noise Ratio: >104dB(A)
• THD: <0.8%
• Dynamic Range: >95dB
• Audio Connection: XLR+Jack
• Antenna Connection: 2 BNC 50Ohm
• Output Level:XLR: +8dBu max
• Power Supply: 12 - 18V DC 500mA
• Dimensions: 410mm x 160mm x 44mm
• Weight: 2.4kg

PBT-1000 Body Pack:

• Frequency Range: 655-679MHz
• Max Channel Number: 120
• Theoretical Output Power: 10mW
• Spurious Rejection: >53dBc
• Switching Bandwidth: 24MHz
• Peak Deviation: ±55kHz
• Frequency Response: 50Hz - 16kHz
• Signal to Noise Ratio: 104dB(A)
• THD: <1%
• Input Voltage Range: 1.5V max

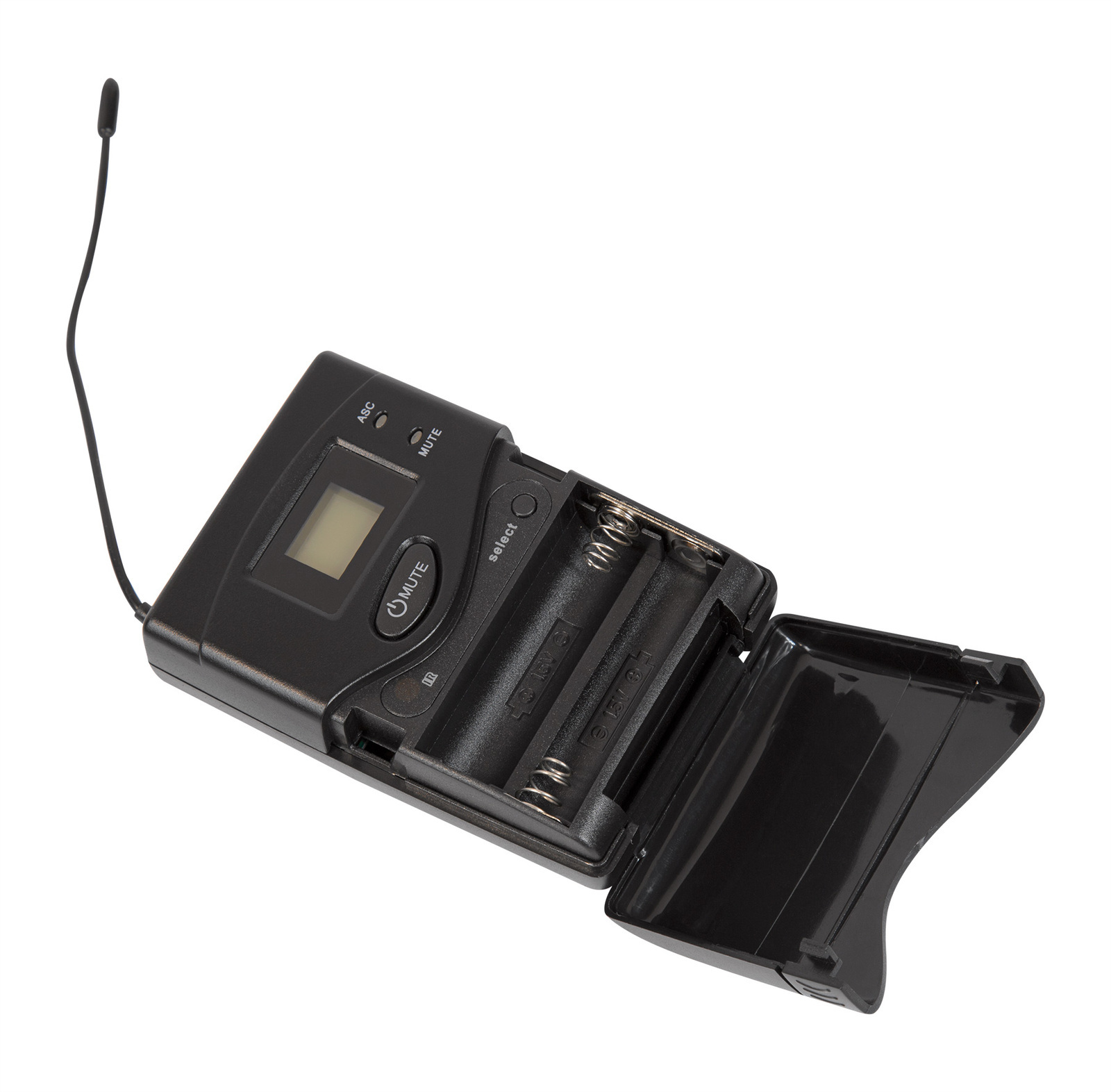

• Power Supply: 2x 1.5A (AA) batteries (included)
• Battery Life: >8hrs
• Dimensions: 90mm x 6mm x 24mm
• Weight: 85g
