SWAMP DIY Build Your Own Electric Guitar Kit - Explorer Style

$189.99
Back-order - Dispatched after mid Nov
item is on order with factory, coming via sea shipment, due mid Nov
If your prefer to wait until the stock has arrived:
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand

One of the coolest guitar styles in rock music, here's your chance to personalise your own explorer! This SWAMP kit brings together all the parts necessary to make a complete guitar, the easiest way to build your first one. With maple neck, basswood body.

SWAMP DIY Build Your Own Electric Guitar Kit - Explorer Style
One of the coolest guitar styles in rock music, here's your chance to personalise your own explorer! This SWAMP kit brings together all the parts necessary to make a complete guitar, the easiest way to build your first one. All the necessary components of an electric guitar including a pre-wired, wooden body, an assembled and precut neck, and all hardware, screws and accessories are supplied.

The Guitar Body
The Explorer design was first introduced in 1958 and has been famously used by guitarists such as The Edge (U2), Billy Gibbons (ZZ Top), Dave Grohl (Foo Fighters) and James Hetfield (Metallica) – to name just a few! Futuristic at the time of it’s release, the Explorer design still screams Rock! Solid basswood guitar bodies have a big, well-balanced tonality. There's a strong midrange, but also a certain softness and breathiness. On a well-made guitar, basswood can produce good dynamics and definition with enough grind to give the sound a big push - great wood for an explorer!

Full Kit with Electronics

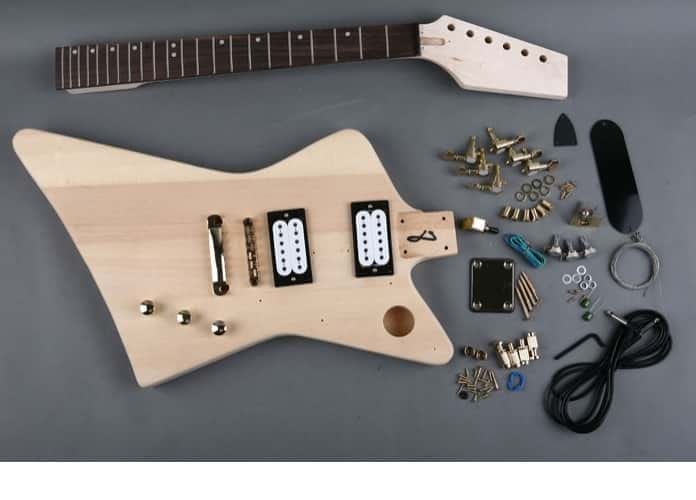

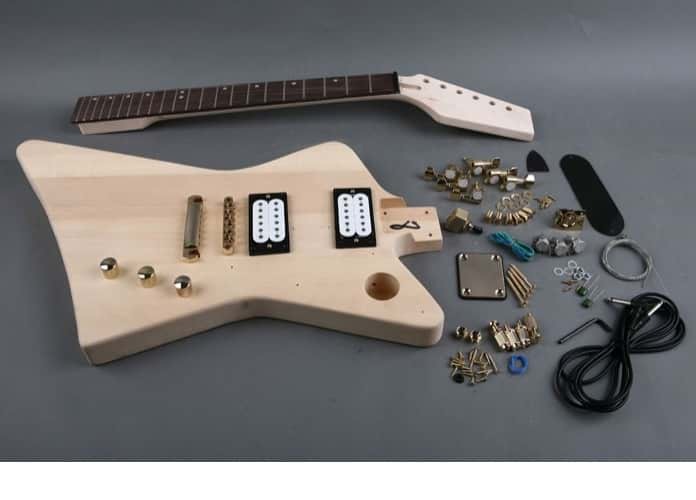

The kit includes the body, neck, pickups, bridge, tailpiece, posts, machine heads (tuners), volume/tone knobs, cavity cover, truss rod cover, strap pins, pots, capacitors, switch, output jack, screws, sleeves, bolts, washers, insulated wire, solder, lead, starter strings, allen key.

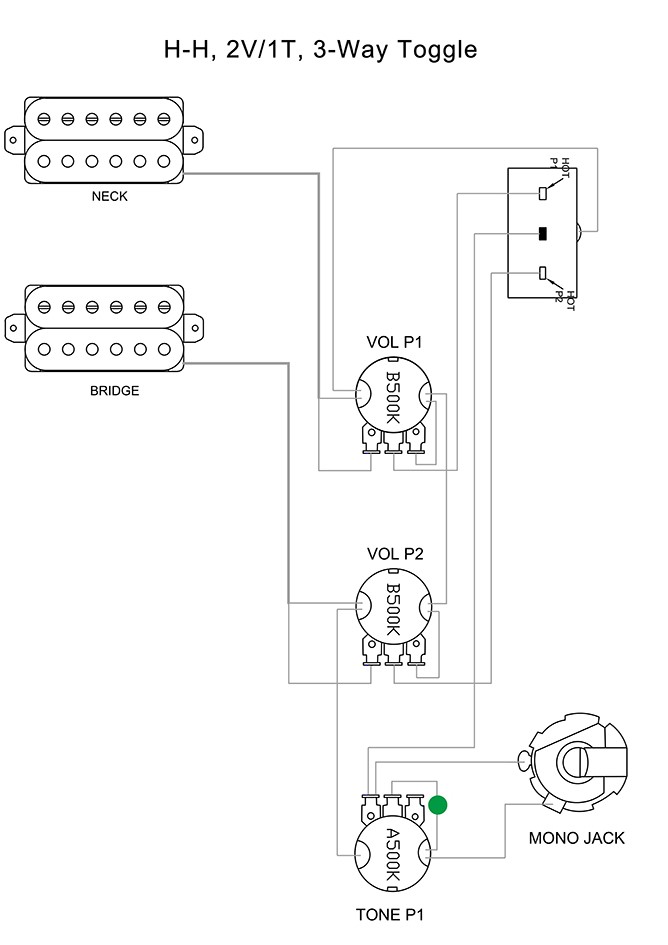

Wiring Diagram:

Specifications:

  • Joint: Bolt-on
  • Body: Basswood
  • Neck: Hard Maple
  • Fingerboard: Poplar Laminated
  • Tuning Machines: Gold Die-cast
  • Scale Length: 628mm/24.75"
  • Fret: 22
  • Control: 2V, 1T, 3-Way Toggle
  • Pickups: H-H
  • Hardware: Gold
  • Bridge: Tune-O-Matic
  • Pickguard: 3-Ply White
  • Nut Width: 42mm
View PDF brochure for SWAMP DIY Build Your Own Electric Guitar Kit - Explorer Style

Explorer kit

By: on 28 September 2021
I recently assembled one of these kits, I found it to be well made and the neck pocket routing was spot on size no shimming required. came together very nicely indeed.The truss rod did require some adjustment and the fret ends needed a little love. I would have no problem recommending this kit
