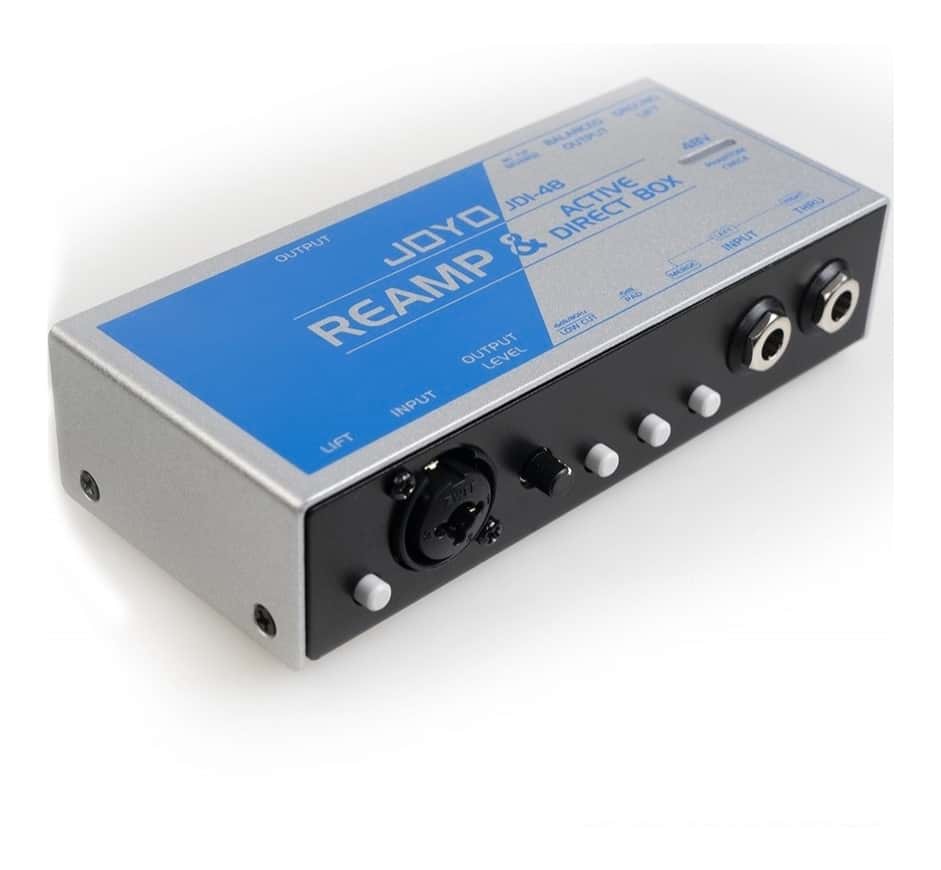

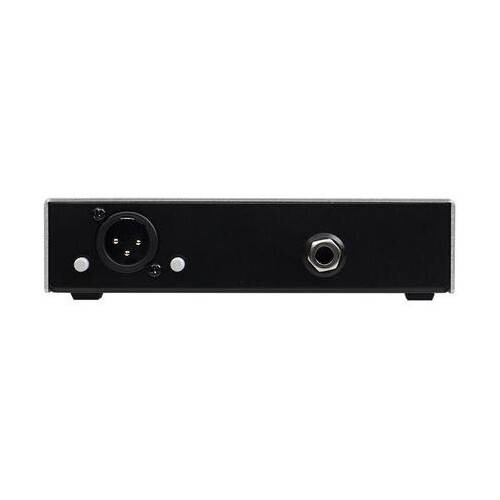

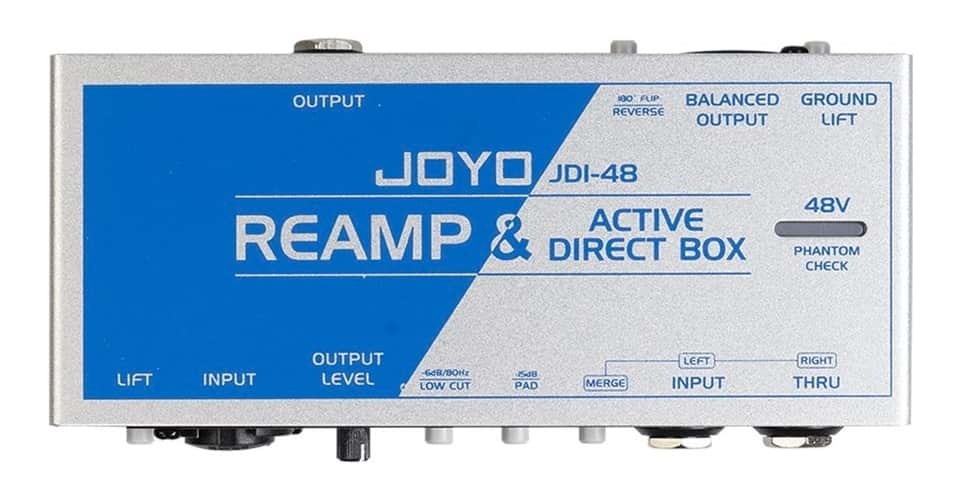

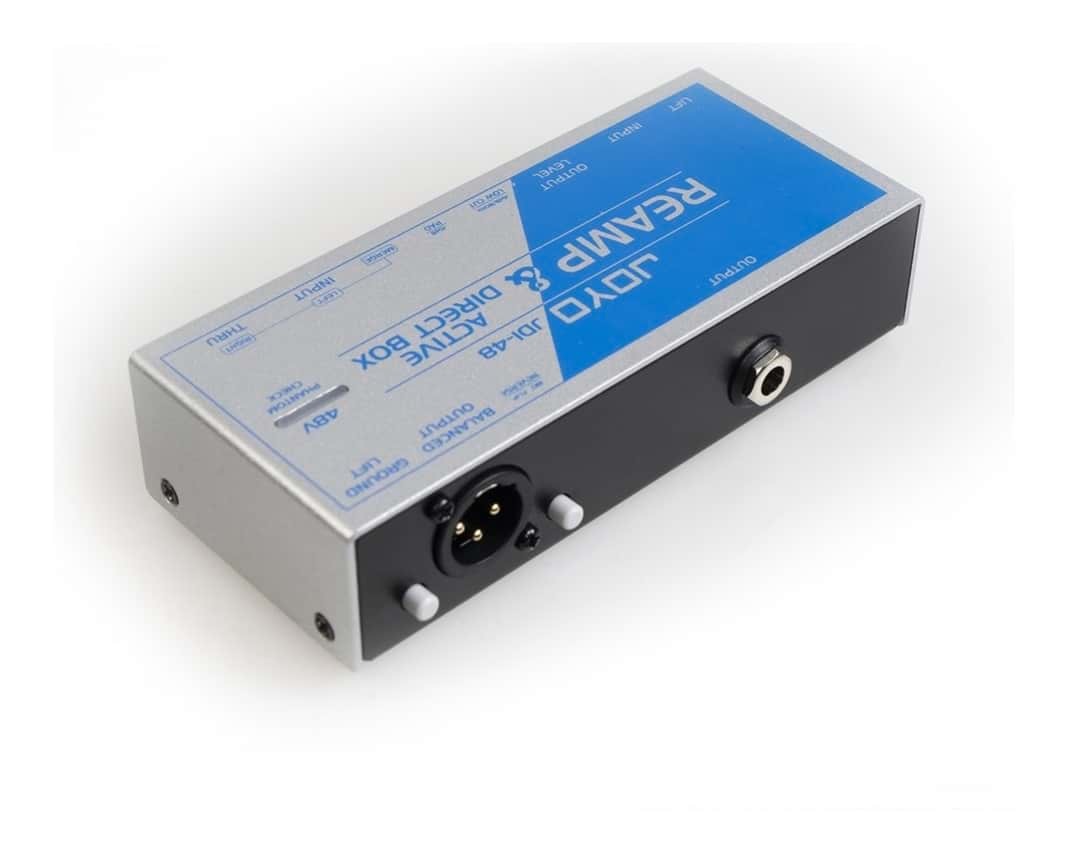

JOYO JDI-48 Reamp and Active DI Box

The JOYO JDI-48 Reamp and Active DI Box performs dual primary roles for recording and live performance as a DI box, providing a wide dynamic range, featuring low cut filter, phase reverse, and as a reamper for recording. Balanced output and ground lift.

JOYO JDI-48 Reamp and Active DI Box
The JOYO JDI-48 Reamp and Active DI Box performs dual primary roles for recording and live performance as a DI box, providing a wide dynamic range, featuring low cut filter, phase reverse, and as a reamper for recording. Balanced output and ground lift.

Versatile Solution
The JOYO JDI-48 Reamp and Active Direct Box is a 48V phantom powered Dl box, with high dynamic range retaining the nuances of your instruments' tone. The grounding switch turns off the internal grounding channel between the Input and Output. It features a Low-cut filter, -15dB attenuation, phase reverse and polarity reverse. The High Input lmpedance reduces pick-up loading. The input is a combo jack for TRS or XLR input. With this unit, you can split the signal so that the guitarist can hear their amp while you capture the clean (dry) performance. Send the dry track from your recording system back to the unit, which then goes to your guitar amp and pedals. Adjust the tone and move the mics until you get the sound you want.

The ReAmping Secret
For years, Reamping has been the 'secret weapon' for countless recordings by the biggest names in the business! Few realise that recording engineers not only Reamp guitars, but often Reamp bass, keyboards, drums and even voice as a means to bring creative new tones and sonic signatures to their music.

Specifications:

  • DI Box:
  • Type:48V DC phantom power
  • Input impedance: 220 Ohm, unbalanced
  • Output impedance: 600 Ohm, balanced
  • Frequency Response: 10- 20000Hz <-0.5dBv
  • Total harmonic distortion: <0.01%
  • Phase distortion: -21deg
  • Maximum input voltage <9VPP
  • Preamp:
  • Input impedance: 600 Ohm
  • Input signal level: +4dB Line level
  • Weight: 467g
  • Dimensions: 146mm x 76mm x 34mm
View PDF brochure for JOYO JDI-48 Reamp and Active DI Box
