MOEN 9V DC Power Adapter + Daisy Chain - Guitar Effect Pedals

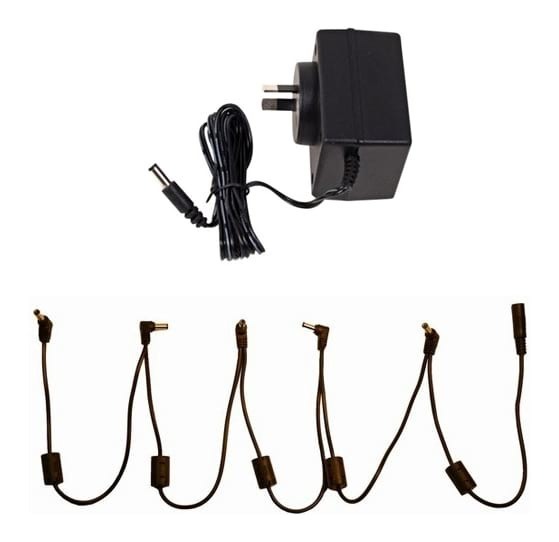

The MOEN regulated 9V DC adapter + 5 plug daisy chain combo can power your entire pedal board from just a single power adapter. Eliminating the need for expensive batteries.
The daisy chain connects to the end of the DC adapter plug and branches out into 5 individual plugs allowing the adapter to power 5 guitar effect pedals.
Ferrite beads on each cable section eliminate interference (EMI and RI), assisting to produce a noiseless circuit.
The AC adapter and daisy chain plug size is the common size found on guitar effect pedals (2.1mm x 5.5mm), suiting almost all brands including Boss, Daphon, Vox and Behringer.
Just make sure the total current draw of your 5 pedals does not exceed the 500mA outputted by the DC adapter. Most pedals draw between 5 and 40mA each(40mA x 5 =200mA). Though a wah-wah pedal can draw a lot more. No damage is done if the total current draw exceed that of the DC adapter, just pedals at the end of the chain may not get power.

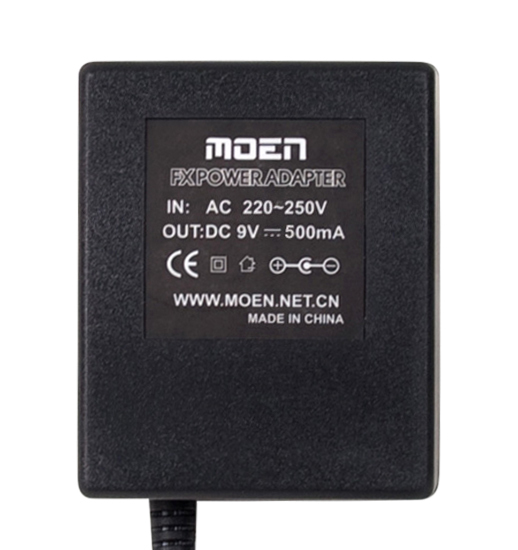

- Regulated 9v DC output
- 2.1mm (ID) x 5.5mm (OD) plug with "negative center" polarity
- 600mA current (can power ~10 guitar pedals at once. Using 2 daisy chains together)
- Works for MOEN, Daphon, Boss and Behringer pedals
- Cord Length: 2m (2 meters)
