MOEN Solder-Free Patch Cable Kit with 1/4" TS Jack Connectors
MOEN Solder-Free Patch Cable Kit with Standard 1/4" Jack Connectors
A potential life saver when you are short a working patch cable for your pedal board, the MOEN solder free patch cable kit has everything required to make a cable in very little time. With cable, connectors, screws and cable tester, the kit is a necessity for all audio engineers, stage techs and guitarists. Small enough to fit easily into the tech case, guitar case, or rack case for all your shows, so there is no excuse not to have one of these on the road.
Time saving for an emergency
Perhaps the biggest plus for the solder free kit is that it is super fast to put cables together. So, if you are at a show and one of your patch leads is not working, grab this kit, and you can put together a replacement in less time than it would take to heat up a soldering iron!
7 Easy Steps to a Brand New Cable
1. Cut the required length of cable from roll provided. 2. Using wire strippers, remove the outer shielding to access the internal braiding. 3. Undo the connector, remove grounding sleeve and place this over the braiding. 4. Trim excess braiding at tip to expose conductor wire and remove excess wire at tip. 5. Take connector and screw on to grounding sleeve, then tighten with screw. 6. Repeat the process for the other end of the cable. 7. Plug the connectors into the cable tester to make sure everything is connected correctly.

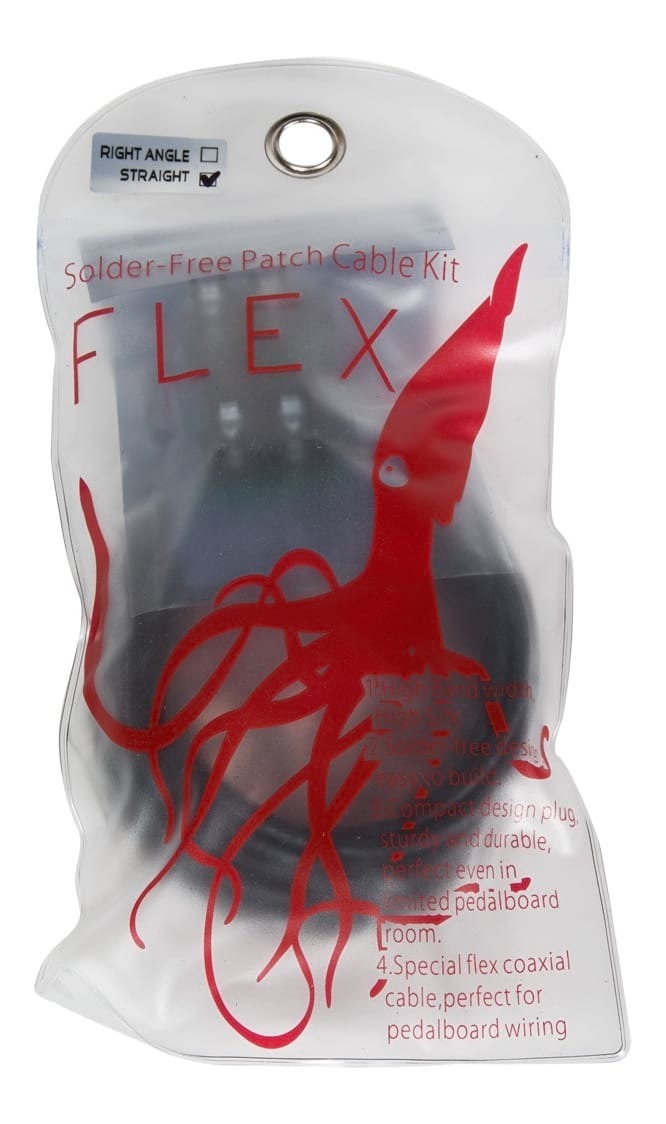

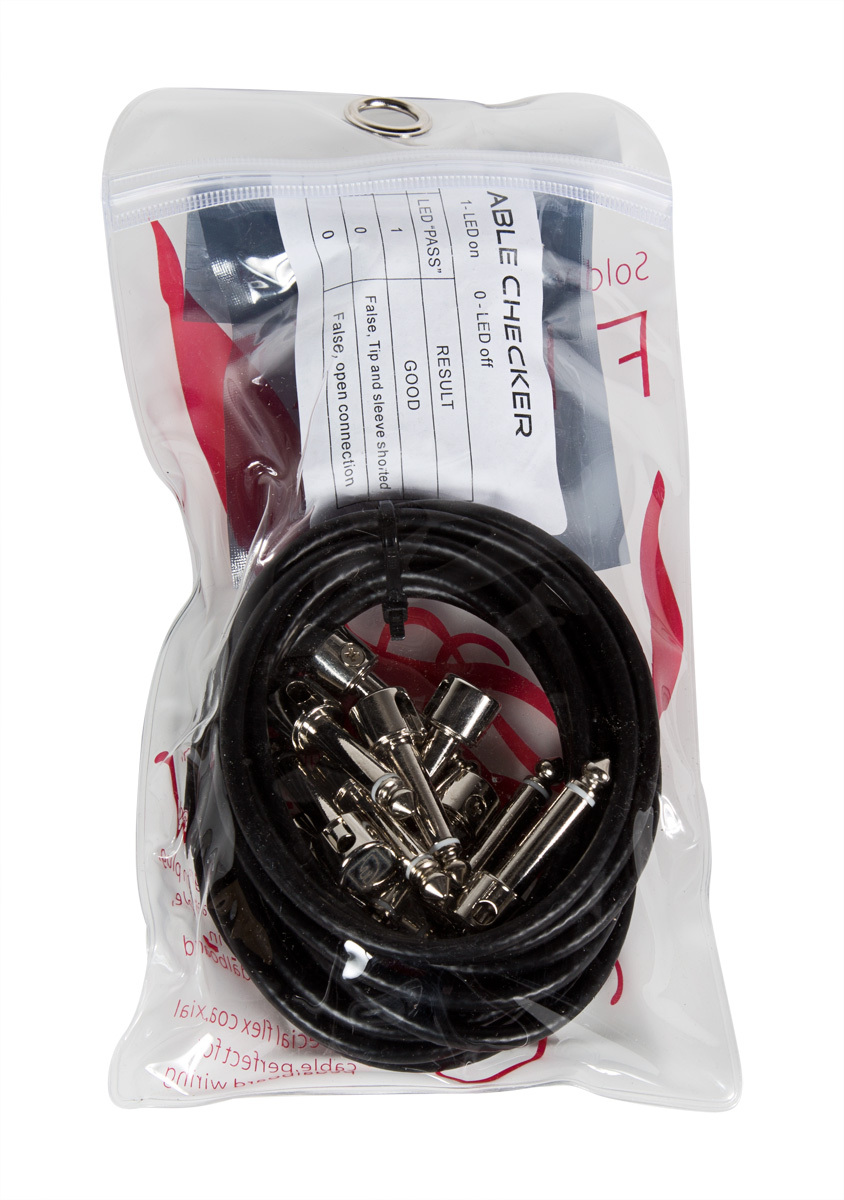

Included in the Kit
Almost everything you need is in the kit including one 3 metre of roll of super flex coaxial cable, 8 right angle connectors with screws, and the all important cable tester. All you need to supply are the usual tech tools; a Phillips head screw driver, a wire stripper or a sharp pair of scissors and the patch cable is as good as made.
- 3 metre roll of cable

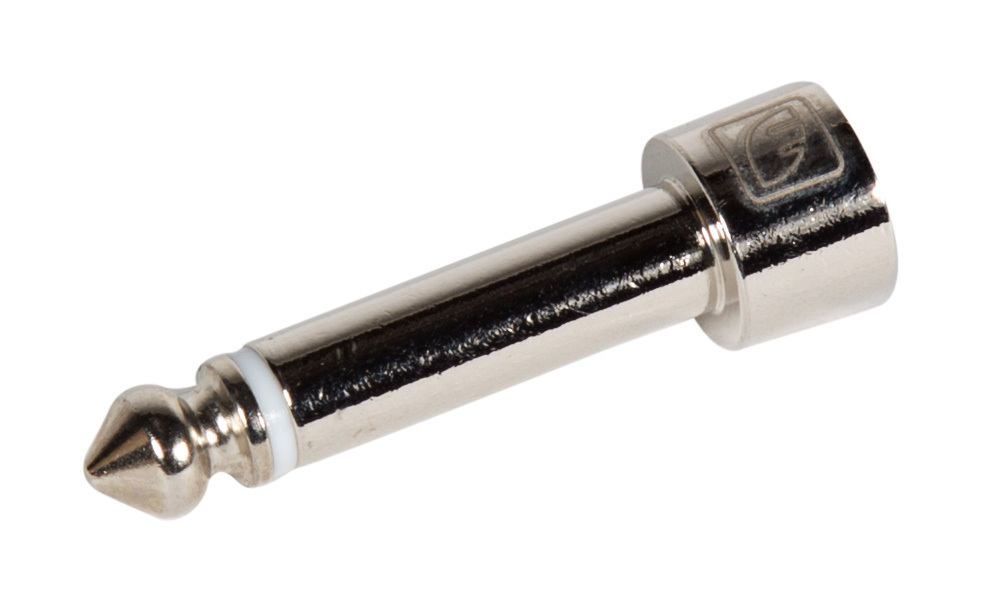

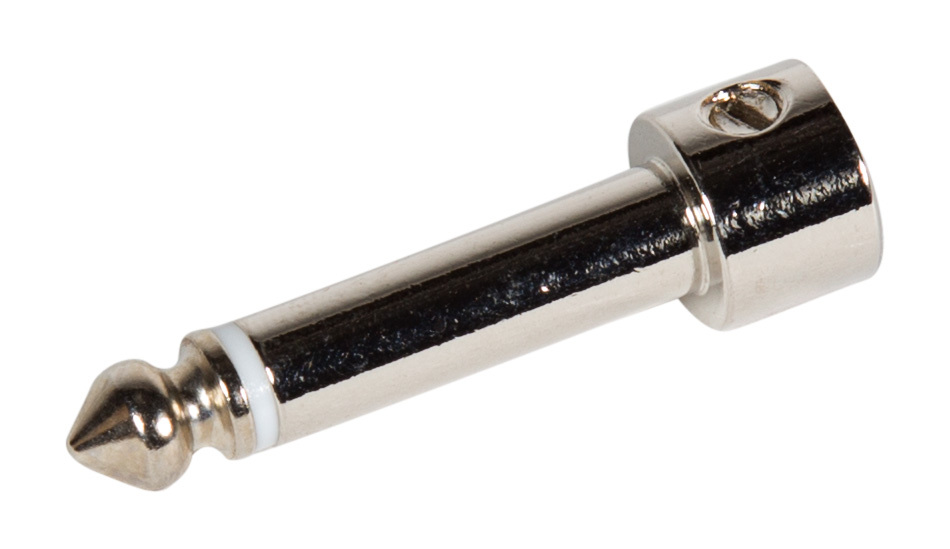

- 8 x Standard 1/4" TS jack connectors
- 1 x cable tester with instructions
Custom Label: MO-SF-EPC-S
Shipping Weight: 0.4000
