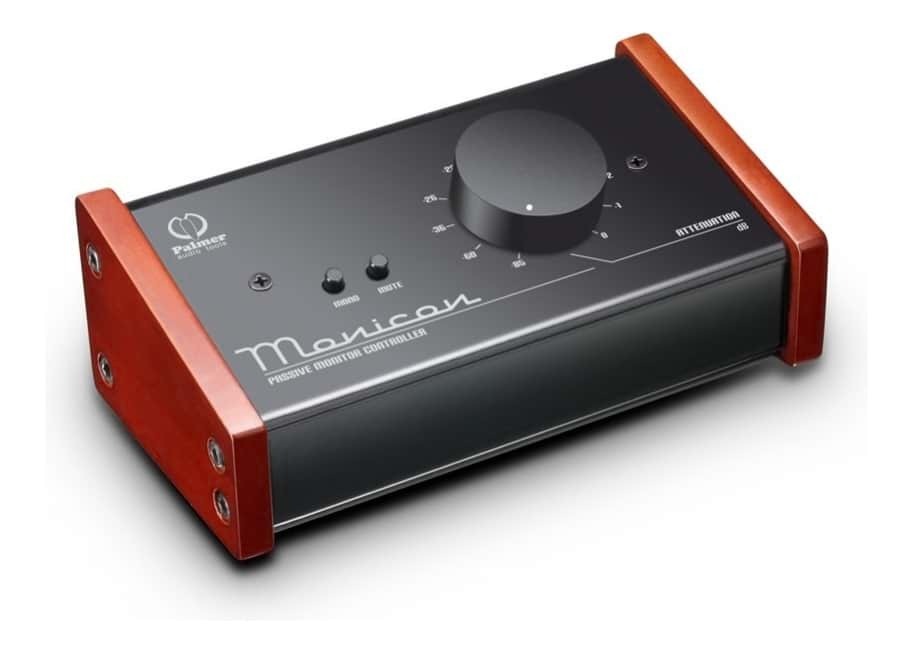

Palmer PMONICON Passive Studio Monitor Controller
Have control of your volume in your studio with the Palmer MONICON passive monitor controller. Placed between the output of your audio interface, computer, or laptop, and your active monitor speakers. Completely no effect on your sound except for volume.
PMONICON Passive Studio Monitor Controller
Have complete control of your volume in your studio with the Palmer MONICON passive monitor controller. Placed between the output of your audio interface, computer, or laptop, and your active monitor speakers. Completely no effect on your sound except for volume.
Complete Volume Control

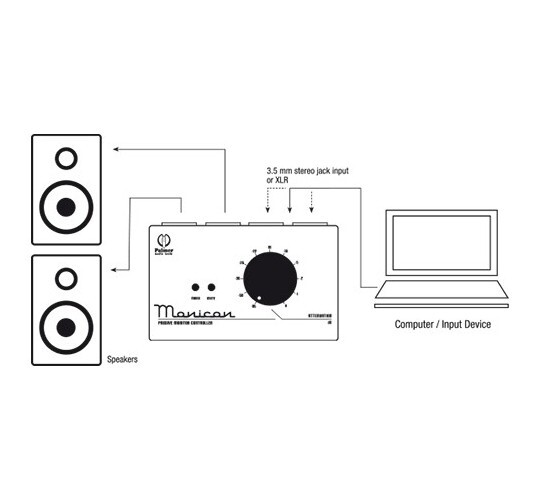

By inserting this between the stereo output of the notebook, PC or interface and an active monitor system, it permits convenient and precise volume control of the monitors from the workstation. The passive circuitry with only a few components has absolutely no affect on the sound. Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal.
Easy Connections

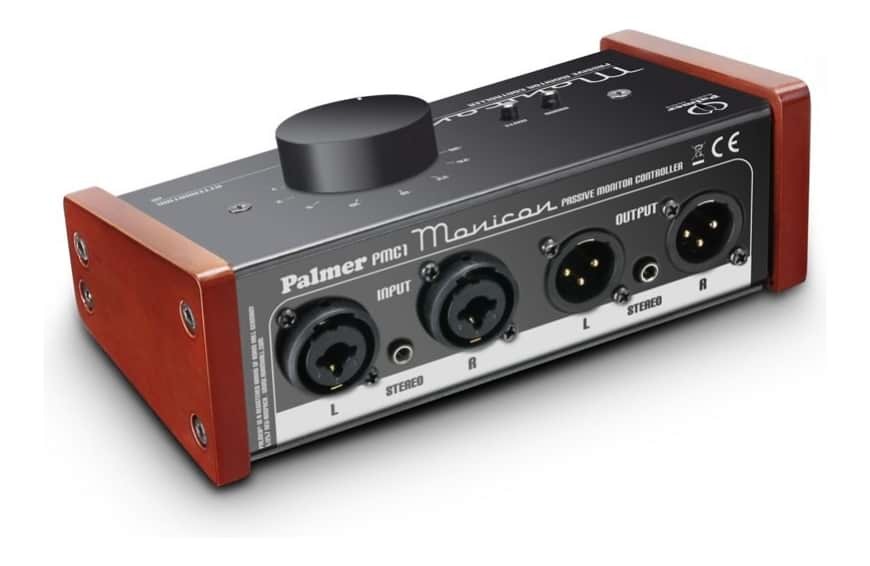

The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus the Palmer Monicon® is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking "little helper" that is a typical Palmer product.
Features:
- Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal
- Permits convenient and precise volume control of the monitors from the workstation
- Inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers
Specifications:
| Channels | 1 |
| Inputs | 2 |
| Input connectors | 3.5 mm TRS , XLR |
| Input type | balanced/unbalanced (depending on TS/TRS connection) |
| Max. input level | 20 dBu |
| Input impedance | (balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s) |
| Outputs | 2 |
| Output connectors | 3.5 mm TRS , XLR |
| Output type | balanced/unbalanced (depending on TS/TRS connection) |
| Max. output level | 20 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 40000 Hz |
| Total Harmonic Distortion (THD) | 0.001 % |
| Max. attenuation | (Attenuator + Mute) 112 dB , (Attenuator) 85 dB |
| Controls | attenuation , mono , mute |
| Cabinet material | sheet steel , wood |
| Cabinet surface | Powder coated |
| Width | 164 mm |
| Height | 62 mm |
| Depth | 85 mm |
| Weight | 0,75 kg |
