PASGAO Wireless Microphone Transmitter Bodypack for PAW-842 - Lapel Only

$139.99
Sold Out
Contact us for an ETA
Included Mic

Lapel Only - The PBT-1000 is a compact, lightweight, and inconspicuous transmitter that can be used with headsets and lapel microphones. An LCD display shows the operational status of the microphone, including current group, channel, battery charge, and l

PBT-1000 Body Pack with Lapel Mic (Optional Headset Available as Extra)

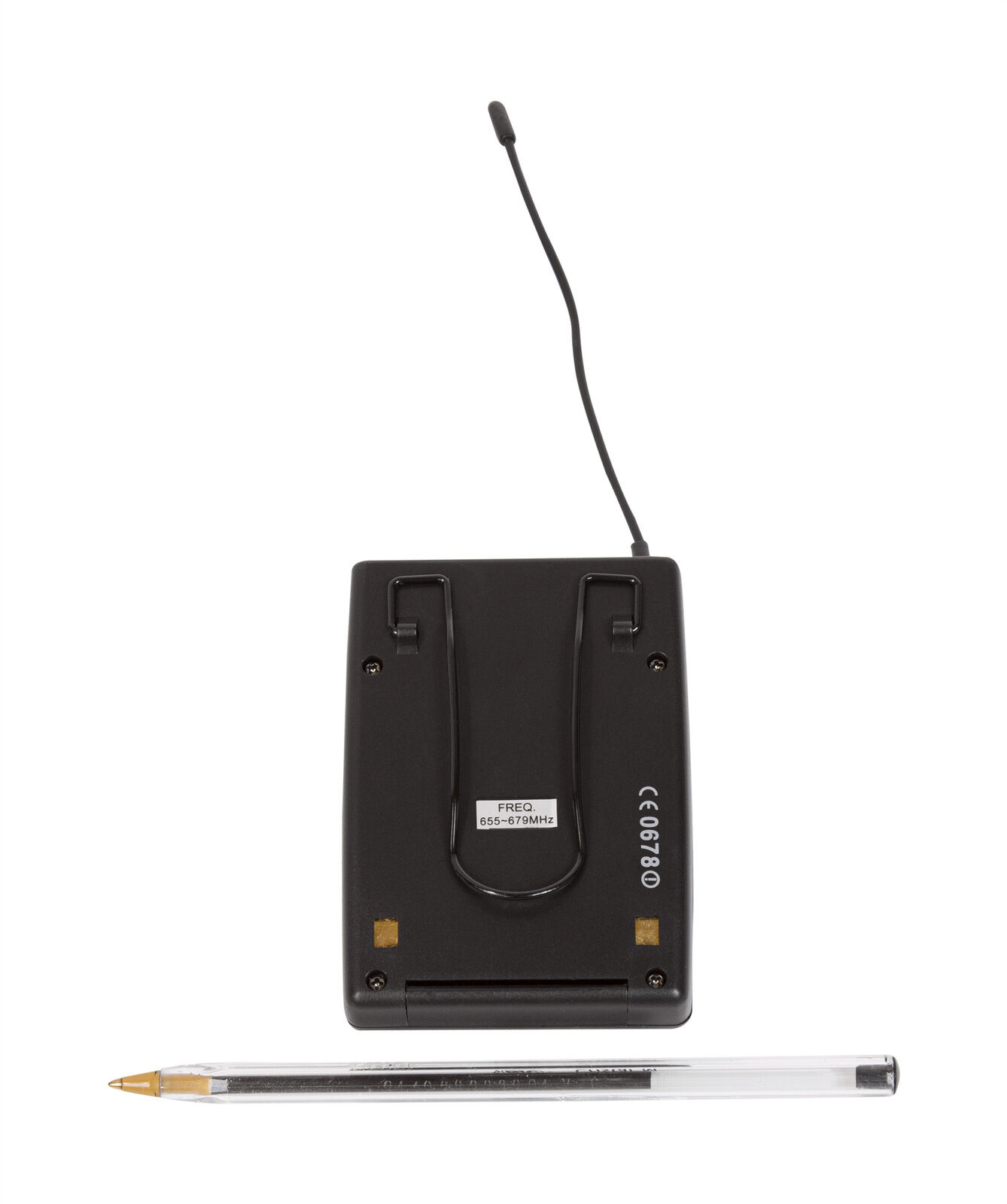

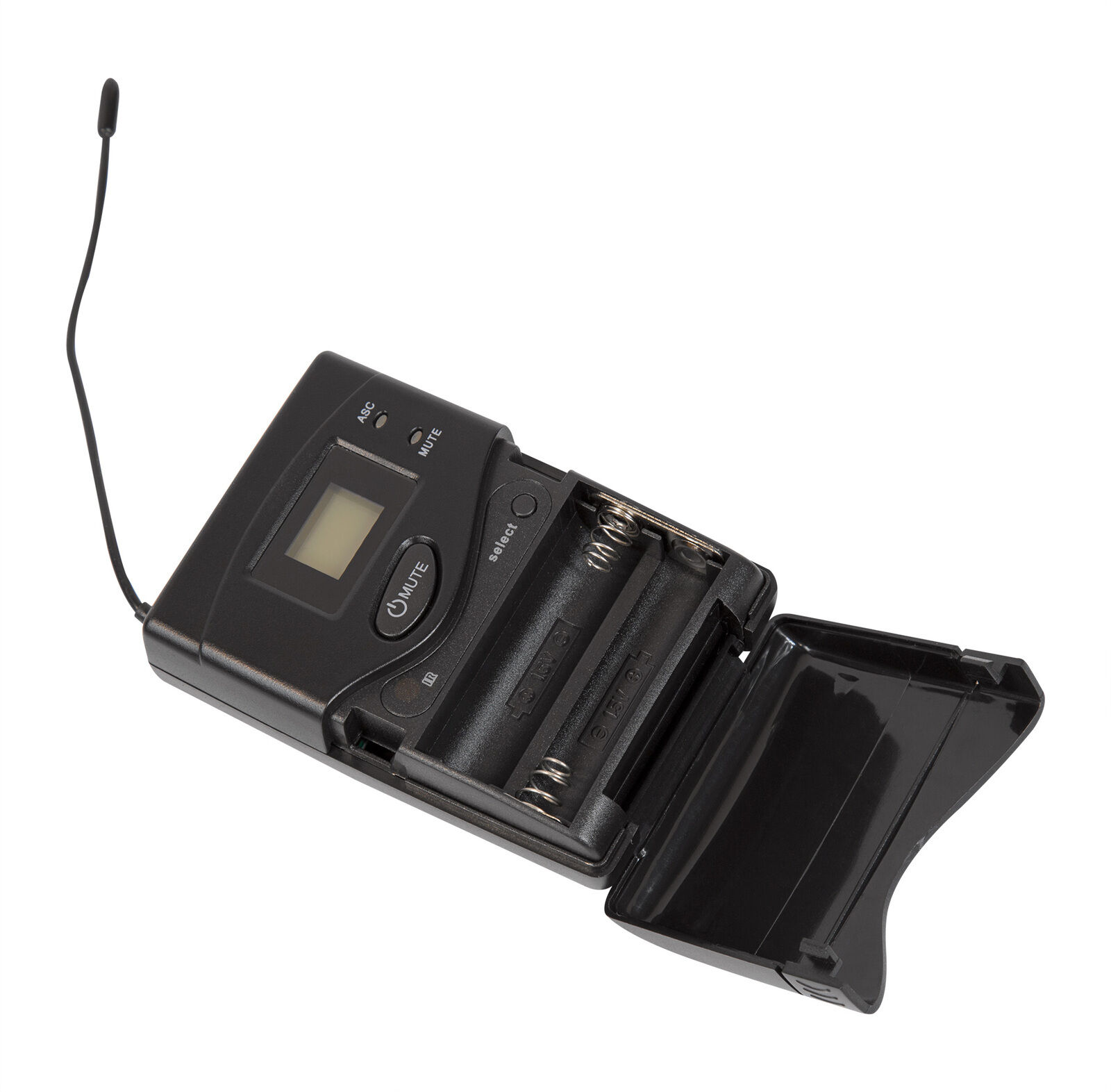

The PBT-1000 is a compact, lightweight, and inconspicuous transmitter that can be used with headsets and lapel microphones (select your preference above). A backlit LCD display shows the operational status of the microphone, including current group, channel, battery charge, and lock status. It features a -10dB pad, useful for adjusting between singers and speakers. This body pack and headset microphone are ideal for stage productions, sports commentary, and interview situations. The broadcasting range of this device is 655-679MHz, making it both legally and functionally suitable for most areas of Australia.

Suitable for use with the PASGAO PAW-842 or PAW-4000 wireless receivers

Features:

  • Tuned for PAW-842 or PAW-4000 receiver
  • Omni-directional dynamic microphones
  • Inconspicuous hands-free headset mic (Optional Extra)

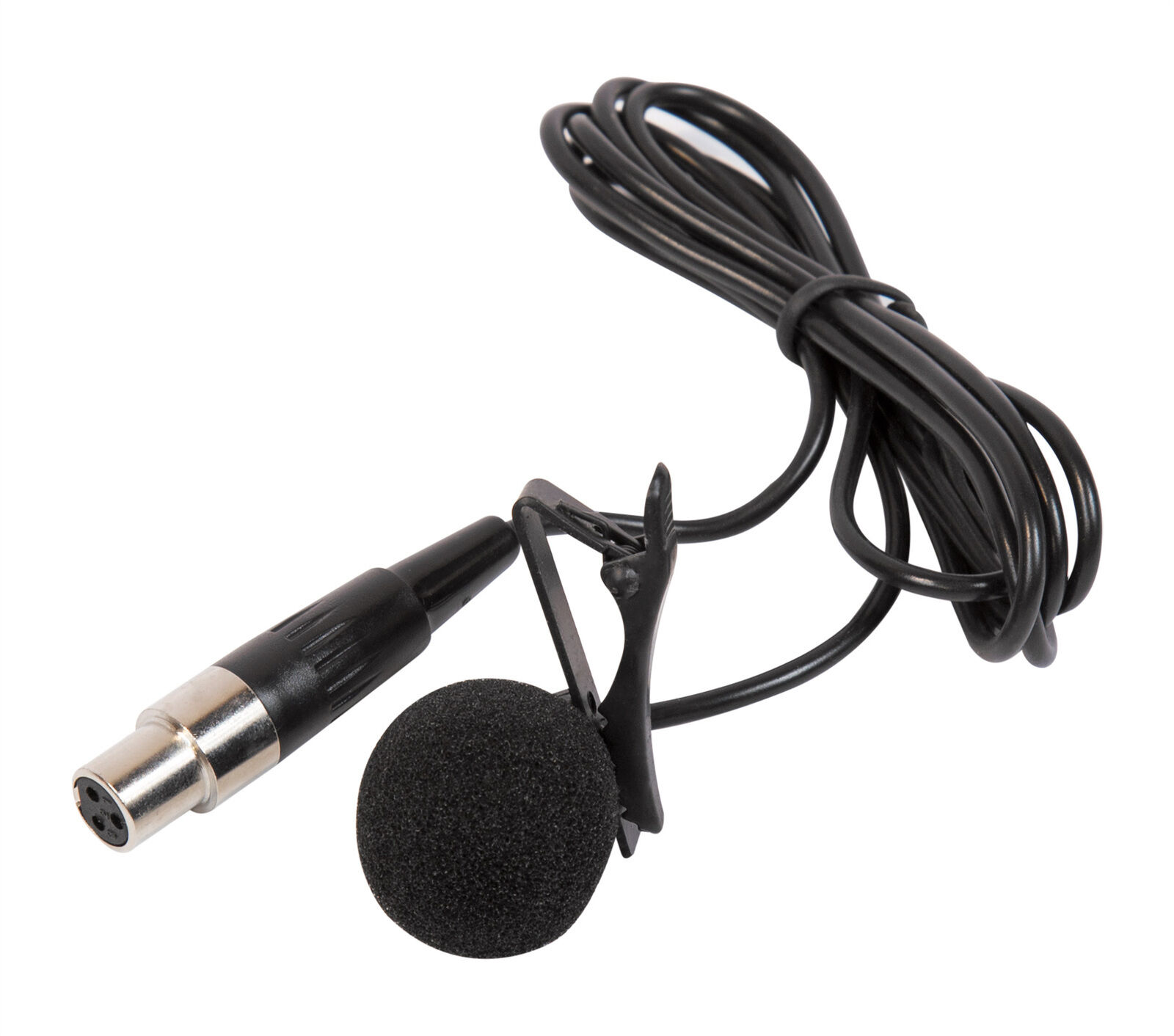

  • Lavaliere / lapel mics included
  • Battery level indicator
  • Mic input gain level switch
  • Infrared data synchronization
  • 655-679MHz broadcasting range

Specifications:

  • Frequency Range: 655-679MHz
  • Max Channel Number: 120
  • Theoretical Output Power: 10mW
  • Spurious Rejection: >53dBc
  • Switching Bandwidth: 24MHz
  • Peak Deviation: ±55kHz
  • Frequency Response: 50Hz - 16kHz
  • Signal to Noise Ratio: 104dB(A)
  • THD: <1%
  • Microphone Input Voltage Range: 1.5V maximum
  • Phantom Power: 5V/10k Ohm

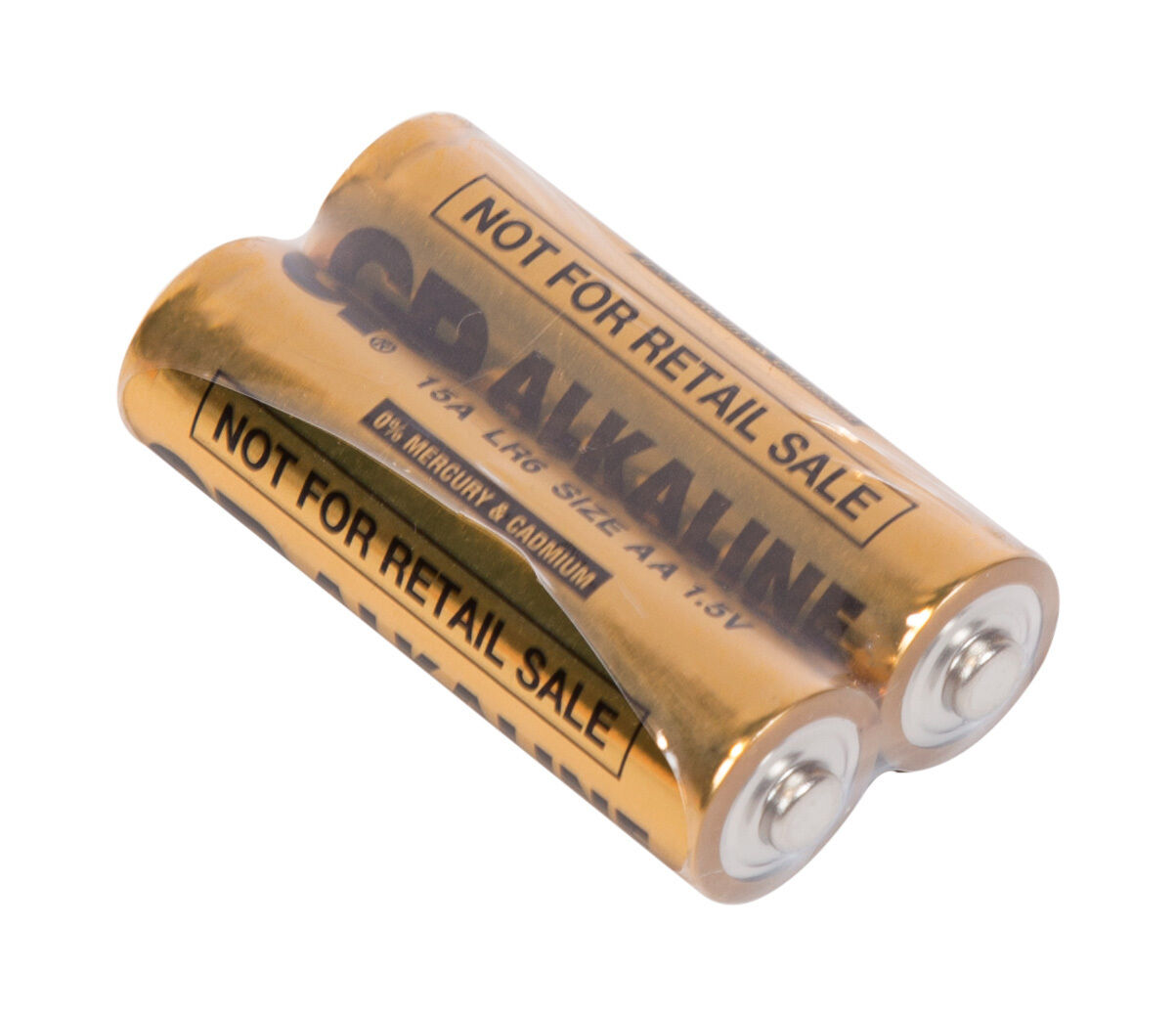

  • Power Supply: 2x 1.5A (AA) batteries (included)
  • Battery Life: >8hrs
  • Dimensions: 90mm x 65mm x 24mm
  • Weight: 85g
  • Buying Option: Lapel Only
View PDF brochure for PASGAO Wireless Microphone Transmitter Bodypack for PAW-842 - Lapel Only

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review

Product Enquiry Form Complete this form to email us your enquiry.




MPN: PBT-1000-842

ID: 146438
