ART PowerMIX III - Three Channel Personal Stereo Audio Mixer

PowerMIX III - Three Channel Personal Stereo Mixer

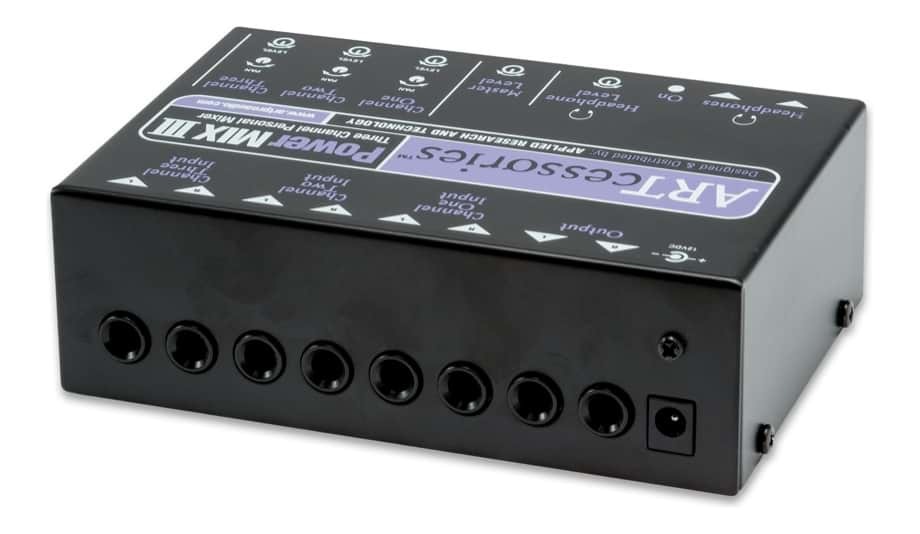

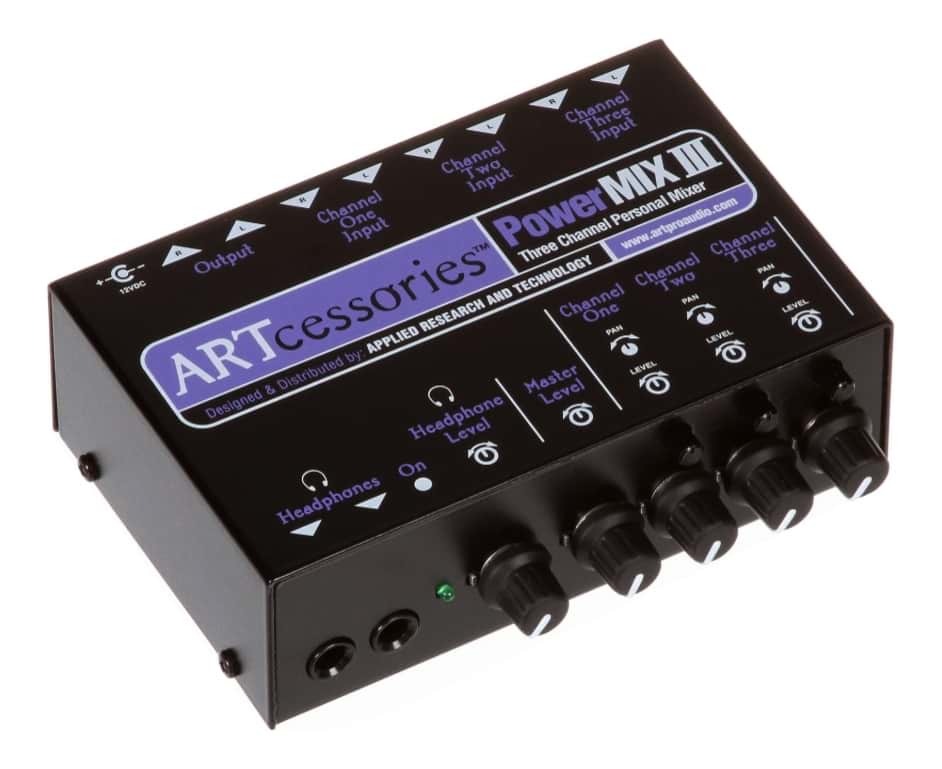

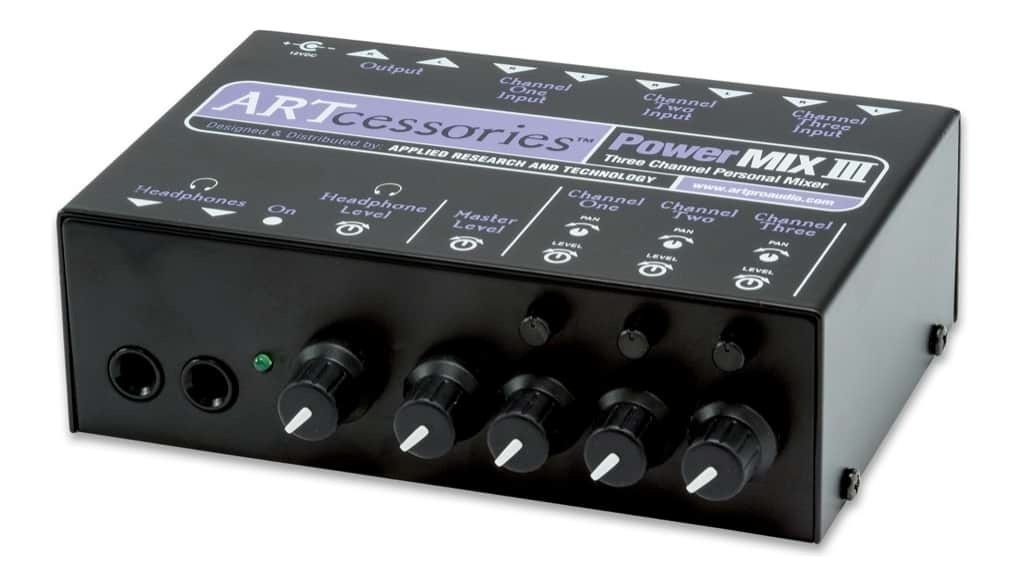

The PowerMIX III is a 3CH audio mixer that can accept either 3 mono or stereo signals and mixes them down to stereo or identical left or right mono signals. IT also provides a headphone output with its own level control. All inputs have jack connections.

Simple Yet Effective
There can be many setups, for keyboardists, DJs, home studios, and small clubs/bars, where a small three channel line mixer can come in handy. Simply plug your stereo signal sources into the separate left / right Inputs on channels 1 to 3. Mono sources can be plugged into the Left Input on any channel. It is not recommended that you connect 2 mono sources to any one channel.

ART (acronym: Applied Research & Technology) are renowned for producing devices that feature unique gadgets and functions that make you think "Why hasn't anyone thought of that before?".

Features:

• Three sets of stereo input channels, each with their own pan and level controls
• Three sets of 1/4" unbalanced inputs (left and right)
• Left inputs may be used for mono signals
• Master Level control regulates all three channels
• Left and right unbalanced 1/4" outputs
• Two headphone channels with independent stereo 1/4" outputs
• Headphone Level control regulates both outputs

Specifications:

• Input Impedance 10 kOhms
• Output Impedance 100 Ohms
• Max Gain +27 dB
• Input Level +30 dB, maximum
• Output Level +13 dB, maximum
• THD < 0.005%
• Power 12 VDC (adapter included)
• Dimensions: 143 x 92 x 45mm
• Weight: 590g
