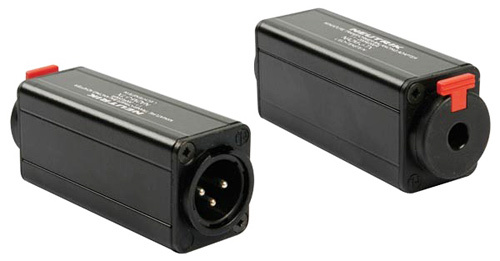

  • Neutrik NA2M-J-TX XLR to 1/4" Impedance Transformer DI Box

    $53.99
    In Stock
    RRP $61.50

    Miniature transformer balancing adapter, 3 pole XLR male - 1/4" Jack, ground lifted. Small Size Passive DI Box. A low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required.

    Miniature transformer balancing adapter, 3 pole XLR male - 1/4" Jack, ground lifted

    Small Size Passive DI Box
    A low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required.

    Specifications:

    • The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
    • Rugged aluminium extrusion housing for best reliability
    • Audio transformer 1:1
    • Impedance ratio: 200:200
    • Source/load impedance in Ohm: 200/2k, (600/10k)
    • Max. Input level (@ 50 Hz, 1% THD): -3 dBu
    View PDF brochure for Neutrik NA2M-J-TX XLR to 1/4" Impedance Transformer DI Box

    Where no earth is required....

    By: on 28 July 2020
    I bought this as a small low cost option for a DI. If you are expecting to plug your acoustic guitar into this (with the convenient locking socket) and an xlr in the other end, then think again. It will buzz. just as my bass does. Even out of a pedal. You need an earth somewhere, like an AC powered pedal or something. As I write this, I can't think of an application where there definitely will be an earth - even lots of keyboards run DC power these days...buyer beware. understand your application
    (3)

    Write a product review

    Product Enquiry Form Complete this form to email us your enquiry.




    MPN: NA2M-J-TX

    Label: NU-NA2M-J-TX

    ID: 31963
