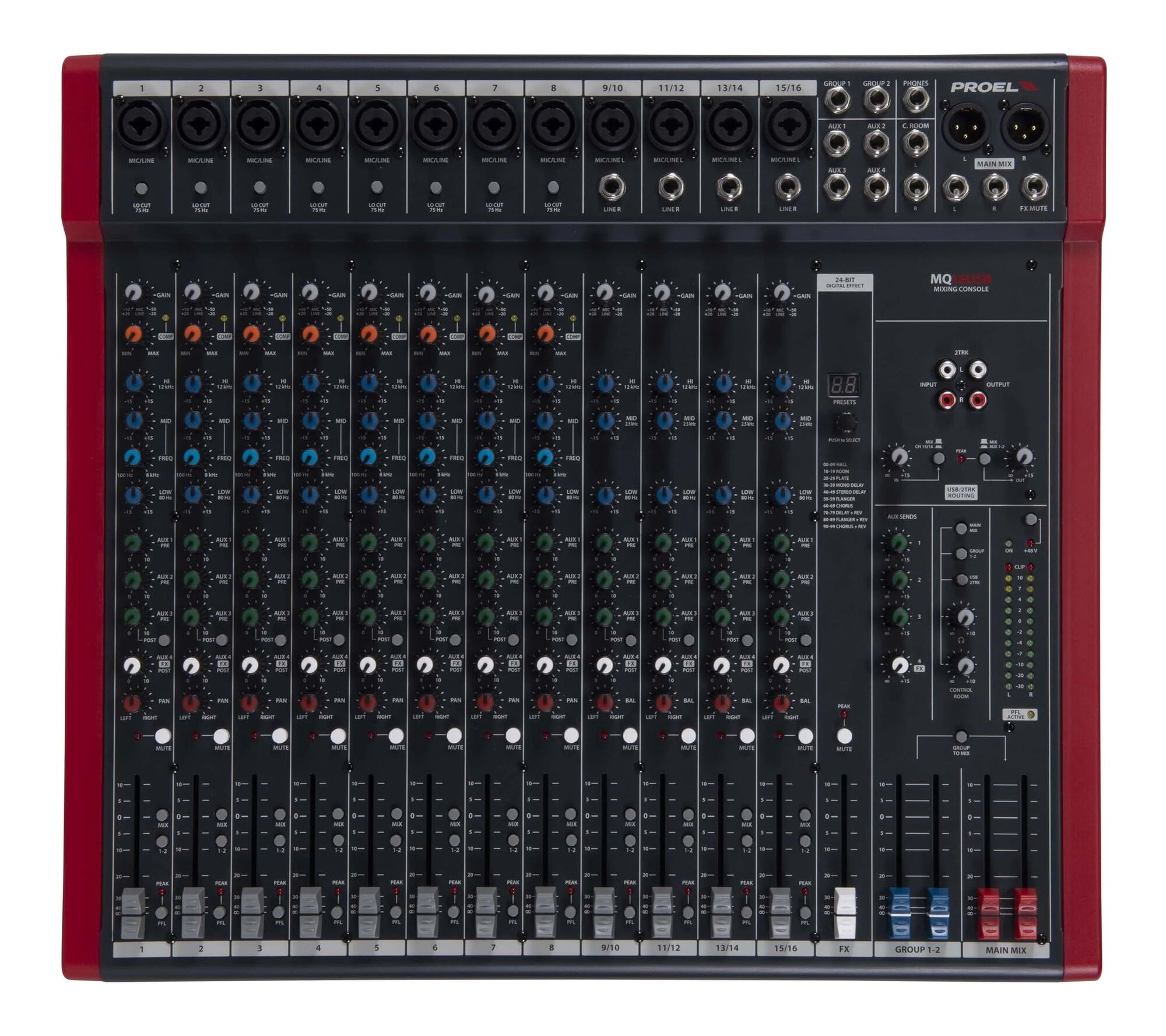

Proel MQ16USB 16-Channel PA Mixer with DFX and USB

Proel MQ16USB 16-Channel USB Mixing Console with Effects

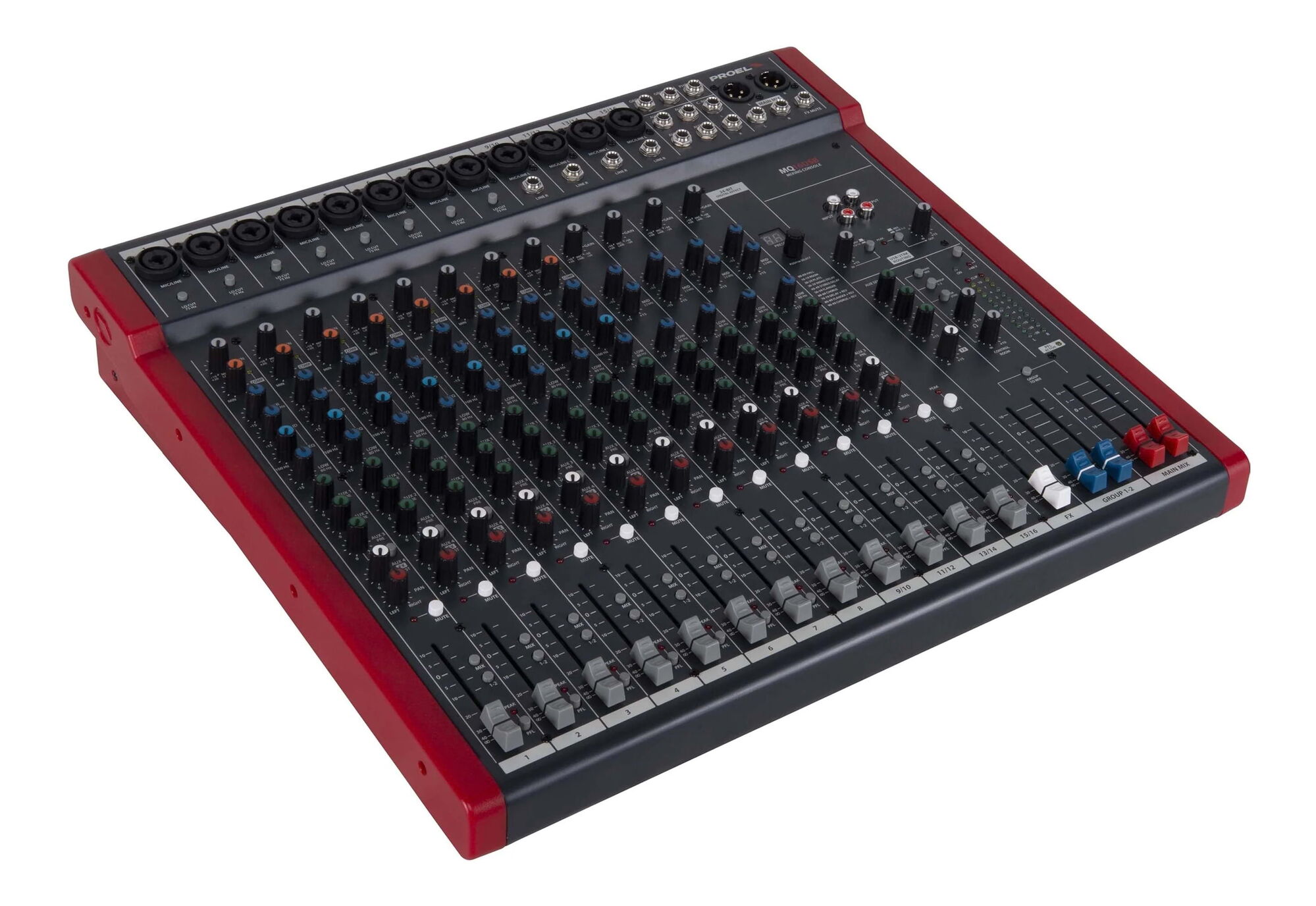

The Proel MQ16USB is the flagship of the MQ series: a 16-input analog mixing console with 12 low-noise mic preamps, a built-in USB audio interface and 100 studio-grade 24-bit effects. Eight mono mic/line channels and four stereo mic/line channels give a full band room to plug in, while sweepable mid EQ, one-knob compression and four aux sends deliver the control bigger shows demand - all in the same rugged, road-ready metal build as the rest of the range.

Twelve Mic Preamps for the Whole Band
Channels 1 to 8 are mono mic/line strips with high-headroom preamps, a 75Hz low-cut filter (18dB per octave) and Proel's one-knob FET compressor with LED indicator - a single dial that tames vocal peaks or adds punch to kick and bass without outboard gear. Channels 9/10 through 15/16 are four stereo mic/line channels that each take a microphone or a stereo source such as keyboards or playback. That is double the mic count of the MQ12USB, with +48V phantom power on board for condenser microphones.

Sweepable Mids for Precise EQ
Every channel carries a 3-band EQ with 12kHz high and 80Hz low shelves. On the eight mono channels the mid band sweeps from 100Hz to 8kHz, so you can find exactly where a vocal, guitar or snare sits and cut or boost right there - the kind of control usually reserved for larger consoles. The stereo channels use a fixed 2.5kHz mid voiced for keyboards and playback sources.

100 Studio-Grade Effects On Board
The DFX section runs 24-bit converters and DSP with 100 presets covering halls, rooms, plates, mono and stereo delays, flanger and chorus, plus combined reverb effects. A 2-digit display and push-to-select dial make preset changes quick mid-set, a dedicated FX fader rides the effect level in the mix, and a footswitch jack mutes the effects between songs.

USB Recording with Flexible Routing

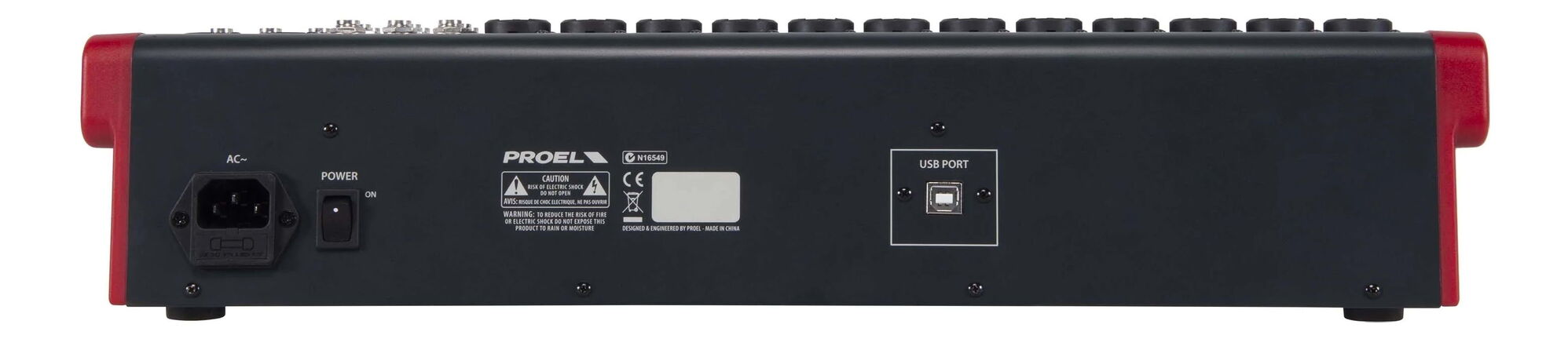

The rear USB port is a 16-bit/48kHz stereo in/out audio interface, joined by 2TRK RCA inputs and outputs in the master section. Route USB or 2TRK playback to the main mix or to channels 15/16, choose either the main mix or aux 1-2 as the feed to the record output, and cue incoming audio through the control room and headphone outputs - flexibility that makes recording gigs and running interval music genuinely simple.

Monitor Sends and Group Routing
Aux 1 and 2 are always pre-fader and aux 3 switches pre/post per channel, so you can run up to three independent monitor mixes to stage wedges or a headphone amp for in-ear monitoring. Aux 4 feeds the internal DFX and doubles as a post-fader send for external processors. A stereo group bus with dedicated faders and outputs handles sub-grouping, smooth 60mm faders give finer level control, and PFL soloing, control room and headphone outputs and dual LED meters round out a proper front-of-house feature set. Only need a handful of channels? The 12-input Proel MQ12USB packs the same effects and USB interface into a more compact frame.

Features:

• 16-input 4-bus analog mixing console with built-in USB audio interface
• 8 mono mic/line channels and 4 stereo mic/line channels
• 12 low-noise, high-headroom mic preamps with +48V phantom power
• One-knob FET compressors with LED indicator on channels 1-8
• 3-band EQ with sweepable mid (100Hz to 8kHz) on the mono channels
• Fixed 2.5kHz mid EQ on the stereo channels
• 75Hz low-cut filter (18dB/octave) on the mono channels
• Aux 1 and 2 pre-fader monitor sends plus aux 3 switchable pre/post per channel
• Aux 4/FX post-fader send for the internal effects or external processors
• 24-bit digital effects section with 100 presets: reverbs, delays, chorus, flanger and combinations
• 2-digit preset display with push-to-select dial and FX footswitch mute jack
• 16-bit/48kHz stereo USB recording and playback (USB Type B)
• 2TRK RCA inputs and outputs with routing to main mix or channels 15/16
• Selectable main mix or aux 1-2 feed to the USB/2TRK record output
• Stereo group 1-2 bus with dedicated faders and jack outputs
• Balanced XLR and 1/4" jack main mix outputs
• Control room and headphone outputs with PFL monitoring
• Dual LED level meters and per-channel peak LEDs
• 60mm faders for precise level control
• Rugged metal chassis with internal universal power supply
