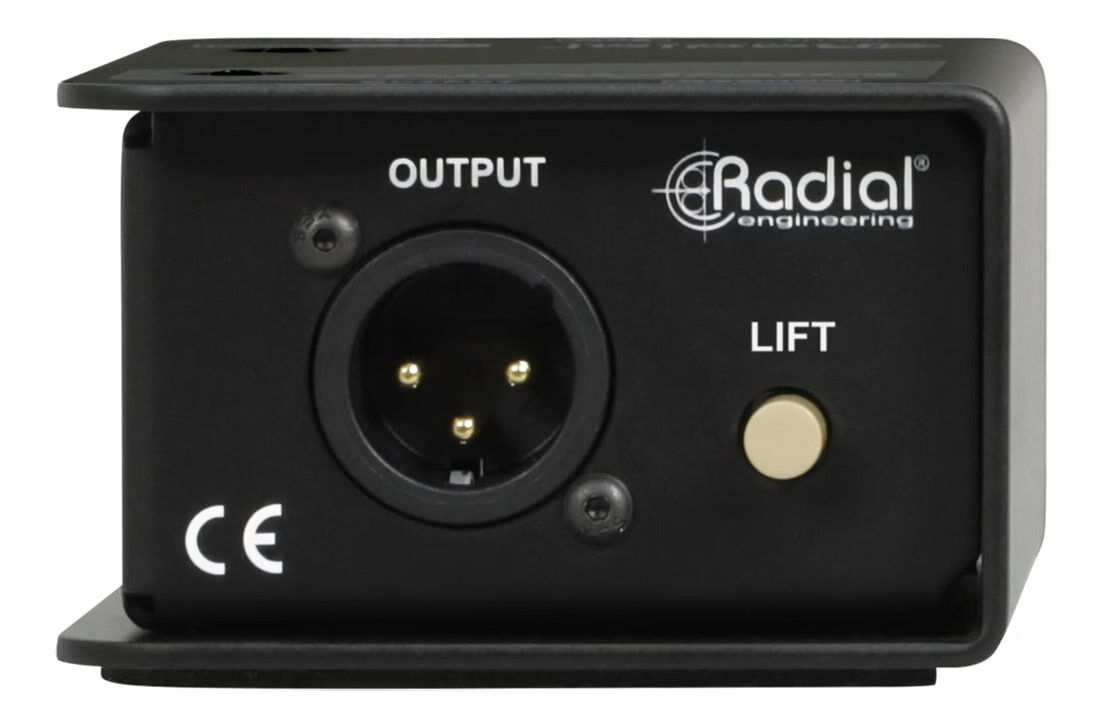

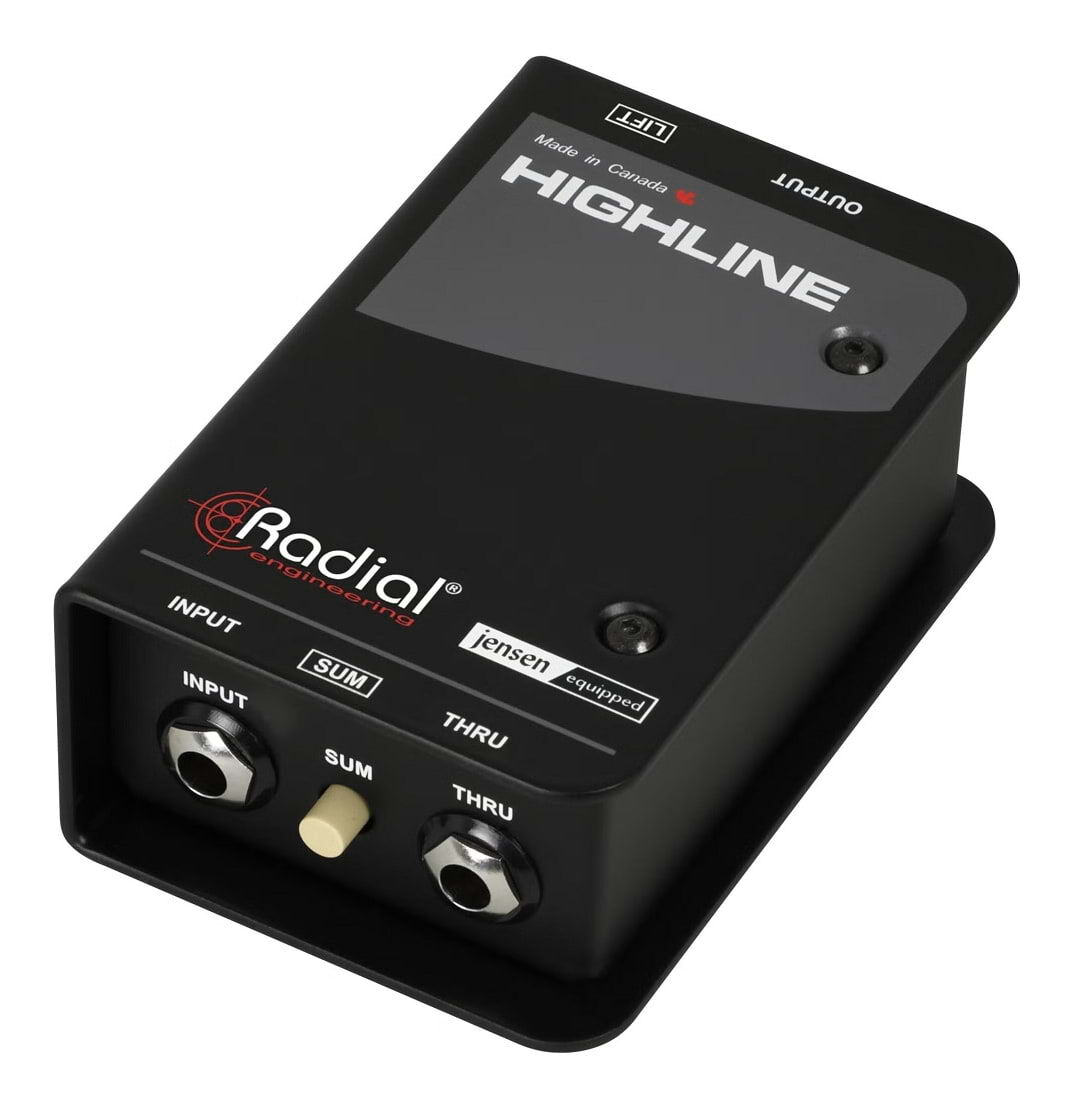

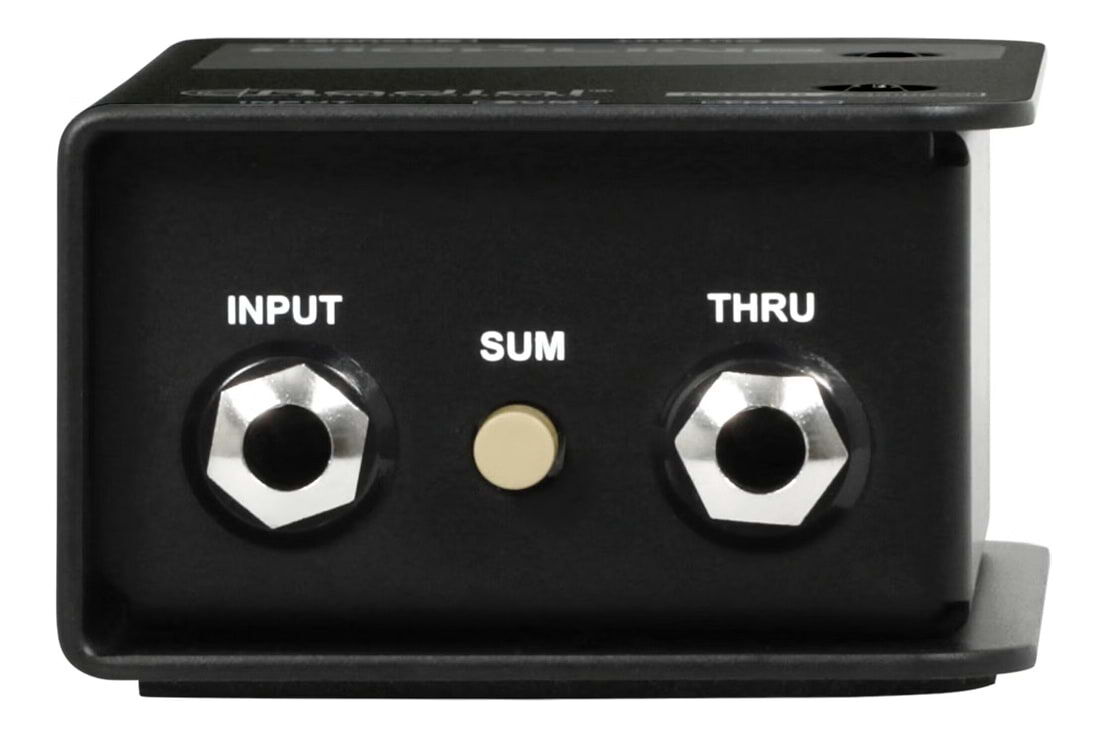

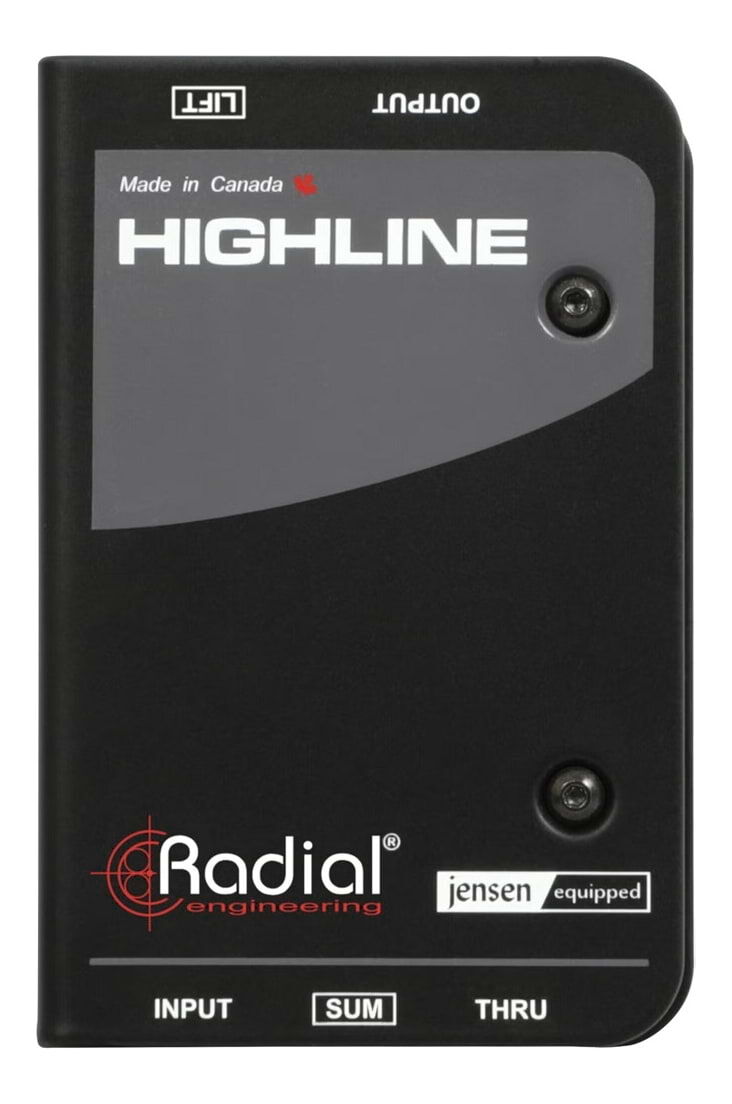

Radial Highline Passive Mono Line Isolator

Radial Highline Passive Mono Line Isolator
The Radial Highline Passive Mono Line Isolator is designed to connect guitar and amp modelers to a PA system or recording system, offering a balanced and isolated signal with no loss of signal strength or tone. 1:1 transformer retains full volume level.

No Signal Loss
With the Radial Highline Line Isolator box, line signals can be connected to the mixer without fear of any signal loss or noise, while the internal 1:1 Jensen transformer supports ultra-long cables, so wide distances can be bridged without any issues. The Thru port also offers some extra options, so the Highline can be used as a splitter, where you can link the XLR output to the mixer and use the Thru port to send the same signal to your personal stage monitor. Push the Sum button and the Thru port is converted into a second input, transforming this box into a neat little summer - a life-saver when you need to convert stereo signals into mono.

Designed for Amp Modelers
Guitarists and bassists who use utilise amp modelers on their pedalboard have a unique set of problems: While amp sims can produce line-level outputs, they often still use 1/4" unbalanced connectors that won't support long cable runs without degrading the tone of the instrument, and they are particularly susceptible to noise from ground loops when connected directly to the PA. The Highline addresses these issues by inserting a 1:1 transformer into the signal path, which provides isolation to reduce noise, protects against phantom power, and keeps the signal at line level for direct connection to the PA system.

Features:

• Compact & pedalboard friendly design
• No loss of signal strength or tone when connecting to a mixer
• Radial’s renowned reliability & build quality
• Precision-wound Jensen Transformer
• Ability to sum stereo sources down to mono
