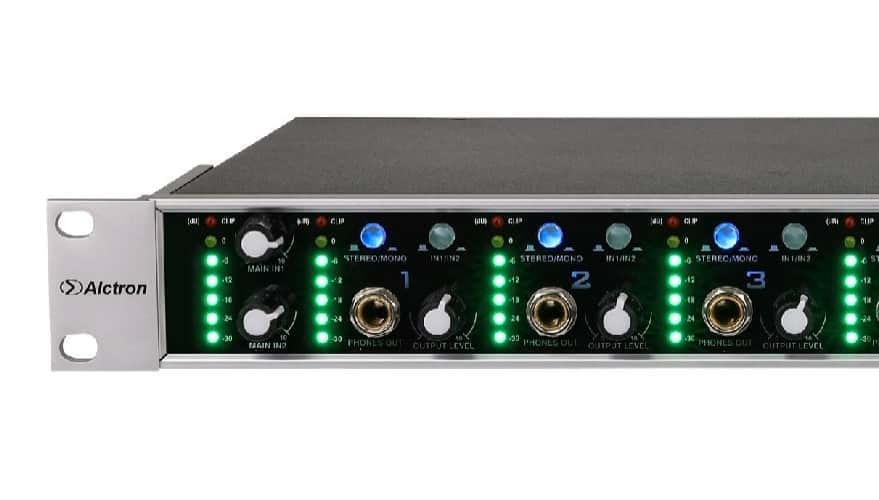

• Alctron HP800-V2 8-Channel Headphone Amplifier

    $269.99
    In Stock

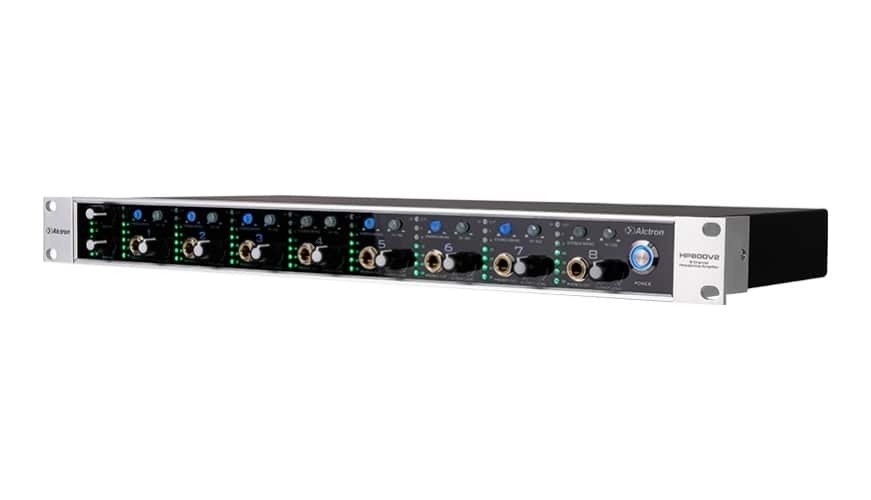

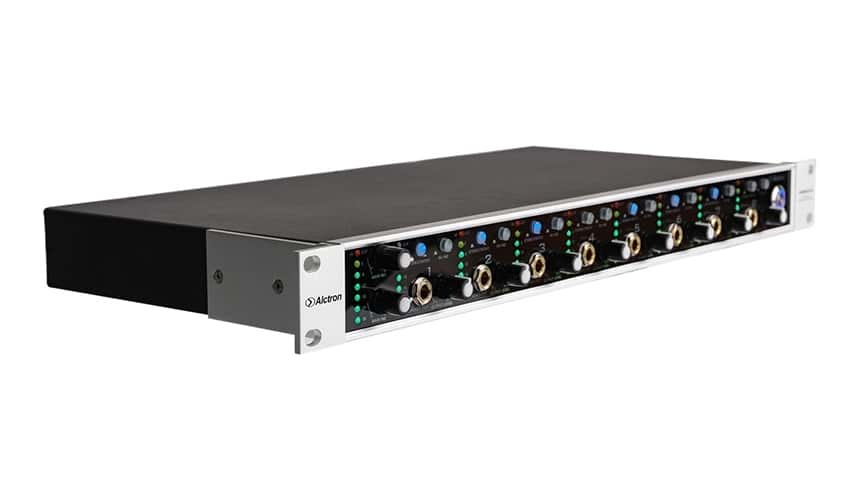

    Alctron HP800 V2 is a headphone amplifier which features 8 independent stereo headphone channels. Each channel has its own volume control knob, adjusting the volume when it is too high or too low.

    Alctron HP800-V2 8-Channel Headphone Amplifier
    Alctron HP800 V2 is a headphone amplifier which features 8 independent stereo headphone channels. Each channel has its own volume control knob, adjusting the volume when it is too high or too low. The 7-level indicator indicates the output level, if the red light lit, you should lower the volume to avoid distortion. Also the Mono/stereo and channel choose button help you to monitor an ideal music sound you wanted.

    Features:

    • 1U rack shell helps headphone amplifier fixed on rack easily
    • Mono/stereo switch per channel for more flexibility

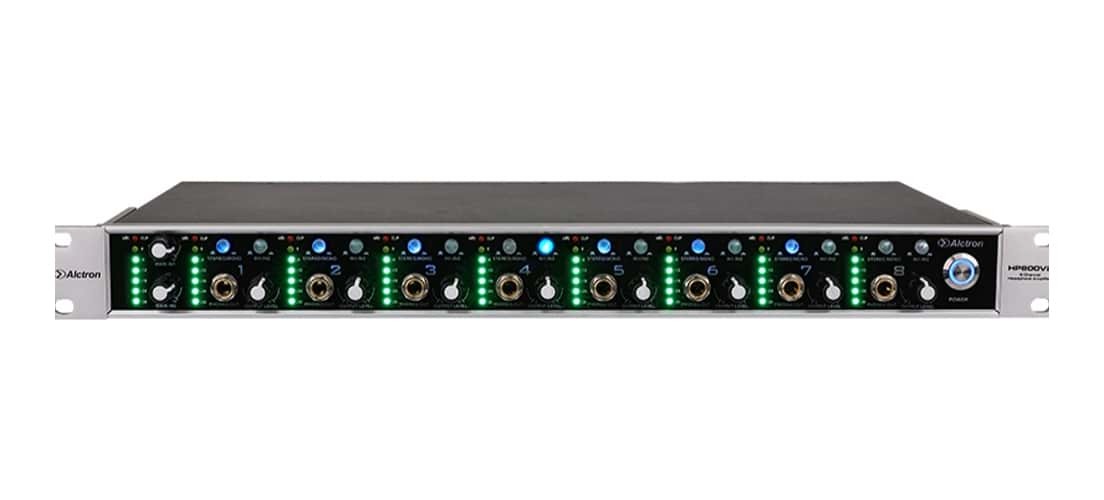

    • Output level control and accurate 7-digit LED output meter per channel avoids sound distortion

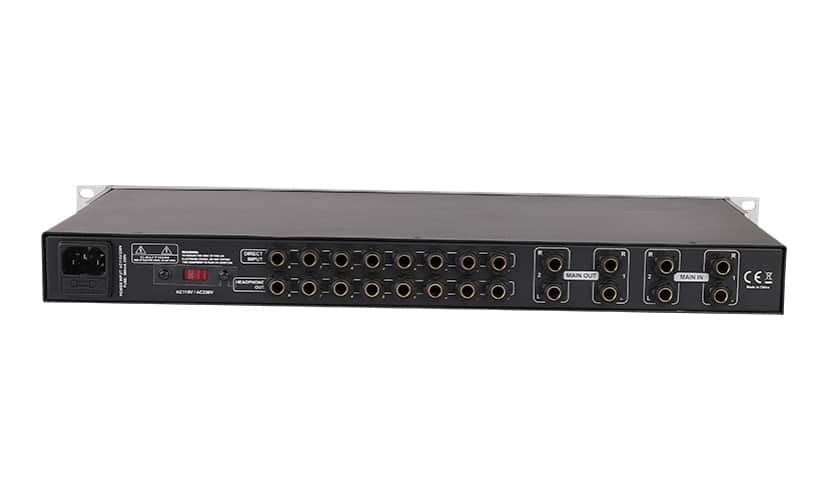

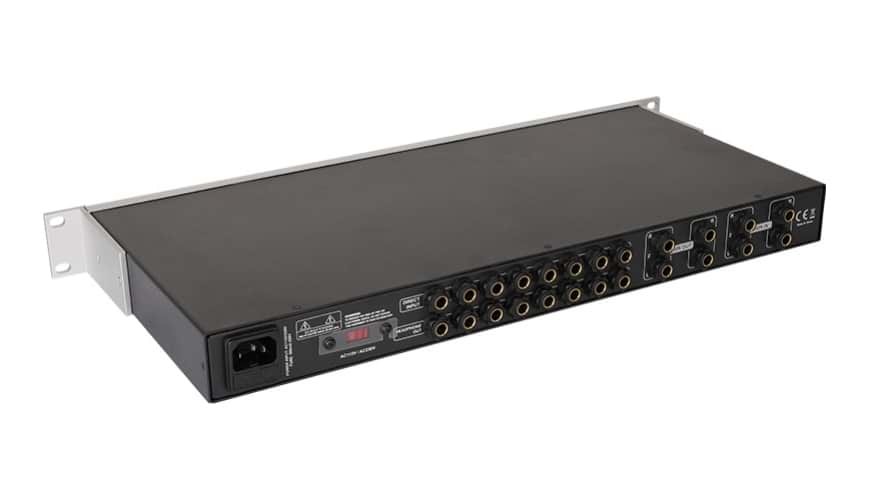

    • Direct input connector on each channel for easy connection of any sound source
    • Independent amplify circuit rejects interference and mix of each channel and makes each channel input purity signal
    • Adopts JRC performance chip to amplify the signal, also ensures low distortion and low noise
    • Rich ports suitable for various applications

    Specifications:

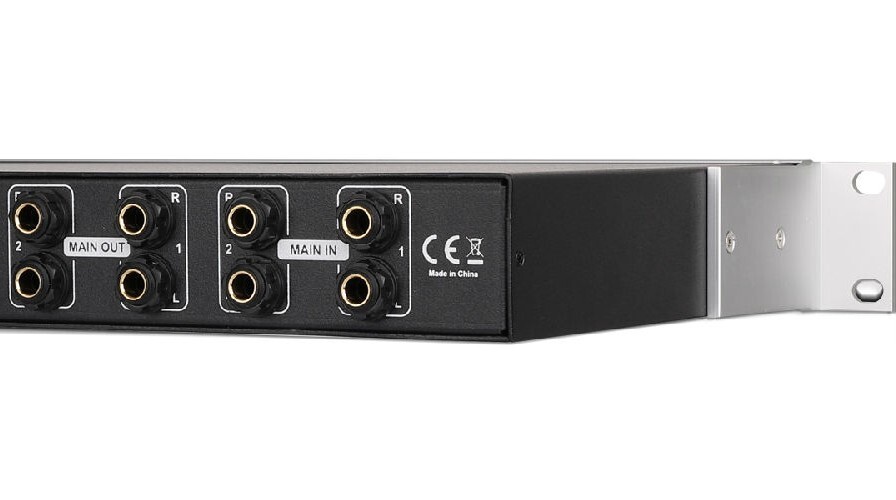

    • Main input: 1/4"TRS balance connector
    • Input impedance: 40KΩ(balance)/ 20KΩ(unbalance)
    • Max input level: 16dBu
    • CMRR: >55dB@1KHz

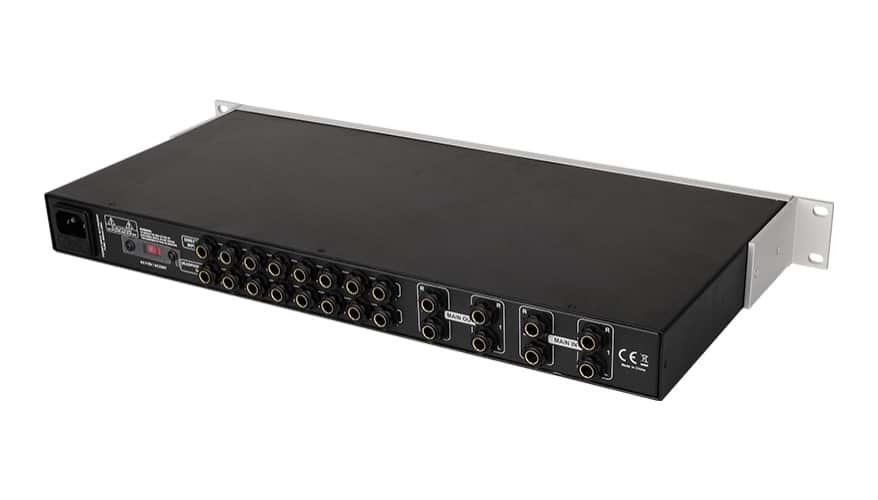

    • Aux input: 1/4"TRS stereo connector
    • Input impedance: 15KΩ
    • Main output: 1/4"TRS balance connector
    • Headphone output: 1/4"TRS stereo connector
    • Max output amp: +24dBm(load impedance 100Ω)/ +21dBm(load impedance 80Ω)
    • Min load impedance: 8Ω
    • Frequency response: 10Hz-80KHz +/-2dB
    • Noise: 22Hz-22KHz >90dB@0dBu
    • Dynamic range: 22Hz-22KHz 110dB
    • Distortion: 0.006% typically, @+4dBu 1KHz
    • Main input 1/main input 2:  switch can choose Main input 1 or main input 2
    • Stereo/mono: press the button, monitor mono sound
    • Input level: 7-digital LED display: -30/-24/-18/-12/-6/0dB
    • Output level: 7-digital LED display: -30/-24/-18/-12/-6/0dB
    • Voltage: 100-120V AC, 200-240V AC, 50-60HZ optional
    • Connection cable: standard IEC
    View PDF brochure for Alctron HP800-V2 8-Channel Headphone Amplifier
