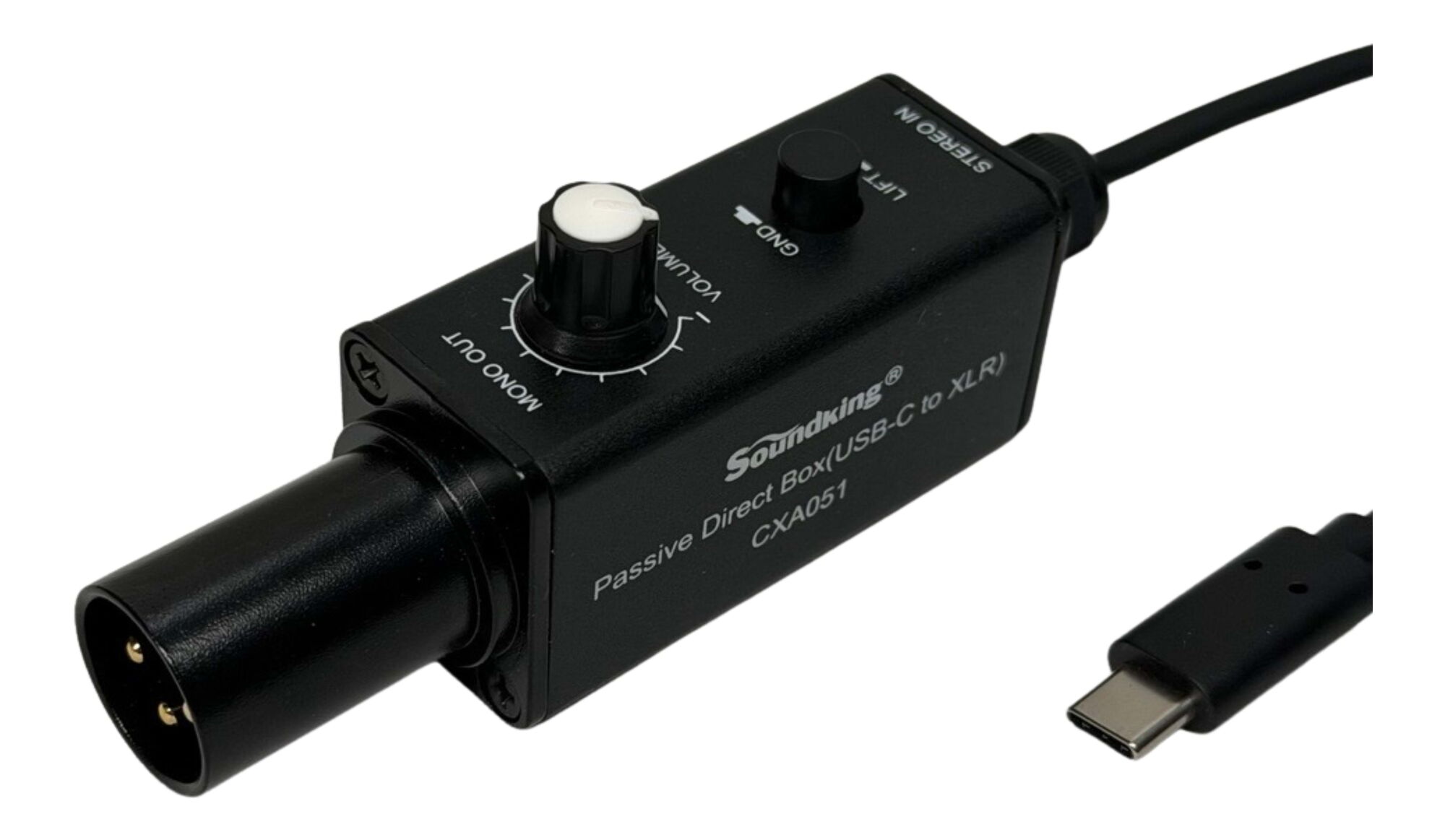

Soundking CXA051 USB-C to XLR (M) Audio Passive DI Adapter
Suits USB-C Phones, Tablets and Laptops
In Stock
SDK-CXA051
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
The Soundking CXA051 connects a USB-C phone, tablet or laptop straight to pro audio gear. A built-in 24-bit/96kHz DAC delivers a clean balanced mono XLR feed, with volume knob and ground lift on a compact aluminium body - no batteries or phantom power.
Cable Filter: Alternative Options
Soundking CXA051 USB-C to XLR Passive Direct Box
The Soundking CXA051 connects a USB-C phone, tablet or laptop straight to professional audio gear. Its built-in 24-bit/96kHz DAC converts your device's digital audio to a clean balanced mono signal on an XLR male plug, with a volume knob and ground lift switch on the compact aluminium body - no batteries or phantom power required.
Clean Digital Conversion, Balanced Output
Consumer headphone outputs are unbalanced and pick up noise over long cable runs; the CXA051 skips them entirely, taking digital audio over USB-C and converting it with a 24-bit/96kHz DAC. The stereo source is summed to a single balanced mono XLR feed (the unit is labelled STEREO IN / MONO OUT), and transformer isolation keeps the signal clean into mixers, powered speakers and PA systems. If a ground loop does cause hum, the GND LIFT switch breaks it at the press of a button.
Plug-and-Play Simplicity
Power comes from the connected device itself, so there is nothing to charge and no phantom power to switch on - plug the 1.5m captive USB-C cable into your device, the XLR male plug into a spare mixer channel or speaker input, and set the level with the volume knob. At around 100g in a rugged black aluminium housing, it lives happily in a laptop bag or console drawer - handy for live sets, mobile DJs, backing tracks, presentations and installed systems.
Features:
- Passive USB-C to balanced XLR DI adapter - no batteries or phantom power required
- Built-in 24-bit / 96kHz DAC conversion
- Balanced mono XLR male output - stereo source summed to mono
- Transformer-isolated signal path with ground lift switch to cut hum
- Volume knob for precise output level adjustment
- Compact, rugged black aluminium alloy housing (approx. 100g)
- 1.5m captive USB-C cable
- Plug-and-play with compatible USB-C phones, tablets and laptops
- Ideal for mixers, PA systems and powered speakers
Specifications:
- Type: Passive DI adapter (USB-C to XLR)
- Input: USB-C digital audio
- Output: Balanced mono XLR 3-pin male
- DAC Processing: 24-bit / 96kHz
- Frequency Response: 50Hz-20kHz, +/-0.3dB @ 0dBFS
- THD+Noise: 0.1% max @ 1kHz (0dBFS)
- Output Level Range: -80dB to -6dB
- Controls: Volume knob, ground lift (GND LIFT) switch
- Dielectric Strength: 500V DC / 1mA / 1 sec
- Construction: Black aluminium alloy housing
- Cable Length: 1.5m (captive USB-C cable)
- Weight: approx. 100g
