ICM SE-8-ME 8CH Audio Mixer with Bluetooth & USB

ICM

ICM SE-8-ME 8CH Compact Audio Mixer with BT and USB Recorder

$149.99
  In Stock
or interest free for up to 6 months with
-
+

The ICM SE-8-ME has 6x combo inputs with mic preamps on the XLR and Line and Hi-Z options for the 1/4". Extra stereo line input. Offers Bluetooth, FX and USB recording and playback. Ideal for recording performances, podcasts and rehearsals directly.



Dispatch

SE-8-ME Professional Audio Mixer with BT Input and USB Recorder
The unique ICM SE-8-ME mixer has six mic preamps, and a stereo channel, and offers bluetooth connection and direct USB recording and playback. Ideal for those that wish to record performances, podcasts, meetings, conferences and rehearsals directly. Records in MP3 format. Or simply use a dual XLR to 3.5mm cable to connect directly into the input jack on a smartphone or laptop.

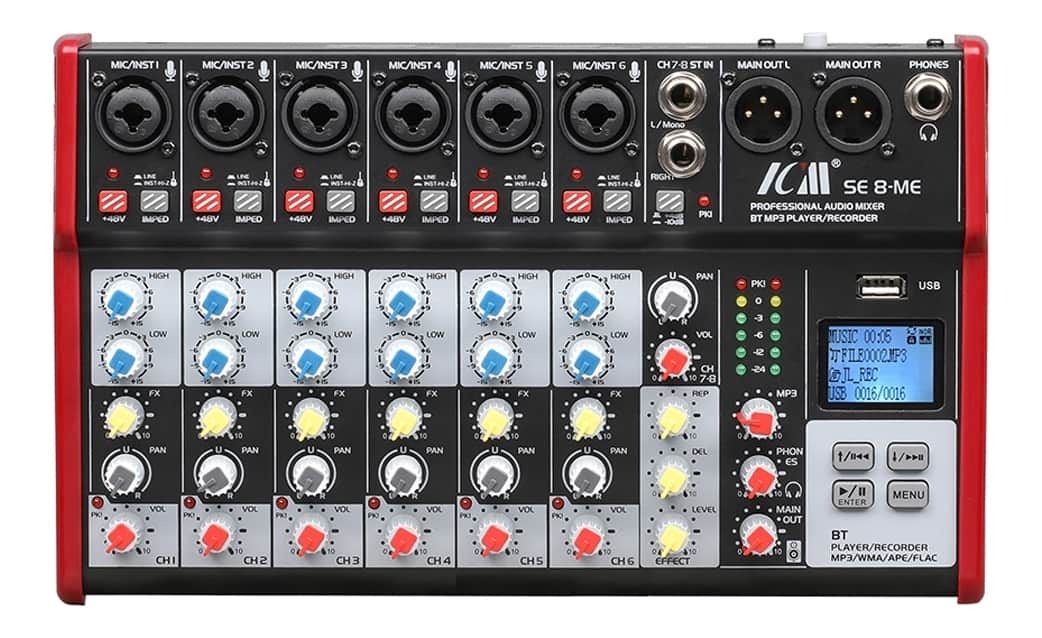

Connections
This portable and versatile mixer offers six combo jacks, for use as mic preamps, hi-impedance inputs for guitars or line inputs. Phantom power is available for use with condenser microphones. Channels 7 and 8 are a stereo or mono connection. Main left and right outputs are XLR. A headphone jack is available. A USB port is for recording the main output signal and as well for playback of audio files.

Mixer Features
The mic input channels have a 2 band EQ. There is an echo reverb effect on the mixer, which can be applied to the six mic channels. The control of the effects include repeat, interval and level. Pan control and peak LEDs are  available on all channels. Volume controls are available for the USB player, each input channel, headphone and main outputs.

USB Recorder and Player
After inserting a USB stick, the transport buttons are utilised for the recorder/player, along with an LCD screen. The buttons allow for moving through the USB directory easily, and to select the files for playback. Long presses on the forward and backwards transport keys will increase and decrease the volume. Once a USB stick is inserted, any files on board will start playback automatically. A short press of the menu button provides the ability to select playback modes, such as random or repeat, EQ application, directory selection or deletion of files. A long press of the menu button enters the recording mode. Records in MP3 format, and has a buit-in ADC/DAC converter. Maximum size of USB stick is 16GB.

Bluetooth Input Streaming
When no USB stick is inserted, pressing the press any key quickly, and select BT mode. The bluetooth name of this module is BT-SPEAKER. Once paired with your device, streaming is automatic.

Features:

  • Unique and versatile mixer with on-board recording and playback
  • 6 Mic Pre-amps, Hi-Z and Line inputs
  • Bluetooth Input streaming for file playing
  • XLR Main outputs
  • Digital echo delay effect for mic channels
  • Playback and recording in MP3 format onto USB stick - 16GB max.

Specifications:

  • Input Channels Mono (Mic/Line): 6, Stereo (Line): 1
  • Output Channels Main L/R Out: 1, Phones: 1
  • Bus Stereo: 1
  • Input Channel Function:
  • 6 MIC/LINE: Gain, -14-+40 dB; 2 band ECG, 80Hz/12KHz,±15dB; +48V, Phantom Power,LED; IMPEDANCE Switch; Peak LED
  • Stereo input: Sensitivity adjusting switch, Balance adjustment, Peak LED
  • Level Meter: 2x6 point LED meter
  • Max output level: 3 Vrms
  • Frequency response: +0.5 dB, 20-20000Hz
  • Dynamic range: 102 dB
  • THD+N @ 1KHz: <0.03%
  • Stereo crosstalk: 92 dB

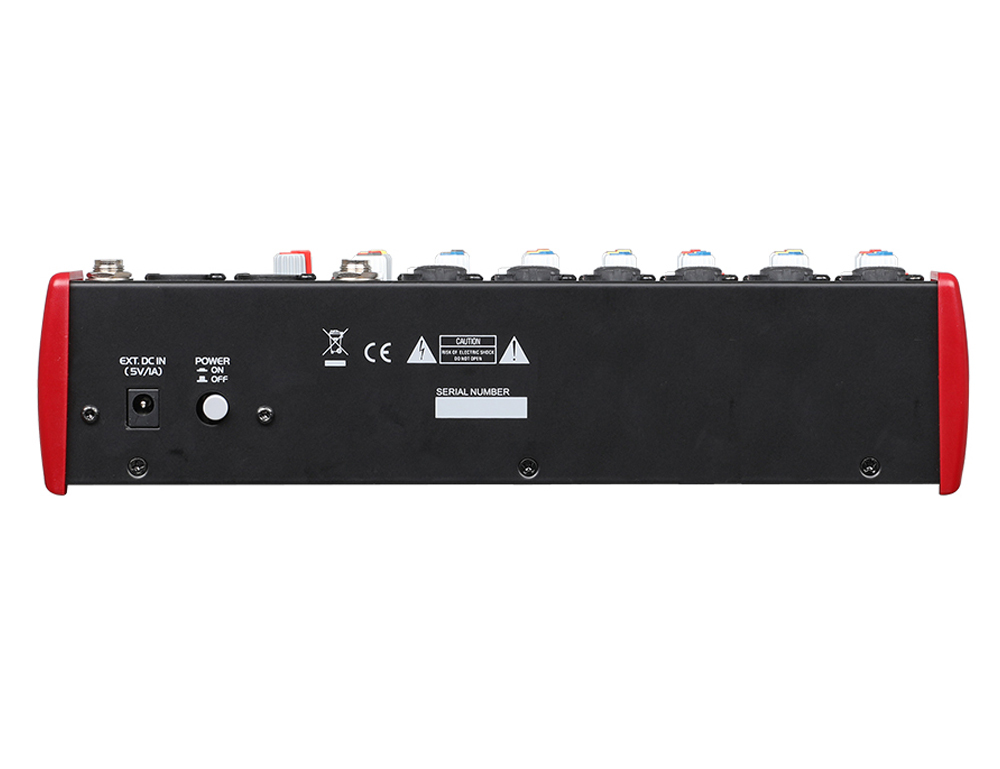

  • Power Requirements: DC 5V, 1A (power supply included)
  • Power Consumption: Max. 5W
  • Dimensions: W274mm x H66mm x D165mm
  • Net Weight: 1.45 kg
  • Accepts USB storage up to 16GB

Note: Manual incorrect - no USB to computer connectivity, only USB to USB stick / external storage.

View PDF brochure for ICM SE-8-ME 8CH Compact Audio Mixer with BT and USB Recorder

Works a Beauty

By: Rick on 31 January 2023
Just what was required to connect multi instruments through a mixer into an amplifier. Saves switching leads etc when playing a different instrument on stage
(5)

Great Portable Mixer

By: Patrick Flaherty on 3 December 2022
I bought this mixer for duo and solo gigs and the functionality for size and price point is great. Time will tell for its durability, but so far the inputs and connectivity via USB and Bluetooth work well. It would be great to have a couple of sends out in addition to the mains, however for the price one can’t be too choosy.
(5)

Great Portable Mixer

By: Patrick Flaherty on 27 November 2022
I bought this mixer for duo and solo gigs and the functionality for size and price point is great. Time will tell for its durability, but so far the inputs and connectivity via USB and Bluetooth work well. It would be great to have a couple of sends out in addition to the mains, however for the price one can’t be too choosy.
(5)

Good for price

By: AG on 20 April 2022
I do outdoor concerts and this can be run from a small power pack!! Basic feature but that's all I need. Nice it has a usb function with its own play/pause ability
(5)

Great Value

By: Anonymous on 24 October 2021
Bought this SE-8 mixer and the SE-6 as i live on solar power. The 5volt power was a big thing. Having both essentially allows for a 12 channel mix if I’m recording acoustic drums live. This mixer is really well made. It lacks in some areas, but makes up for it other ways. Would like a compressor in the channels, but as i said, the low power still allows for a really good mix. Pretty versitile tool/s in my arsenal. Well worth the price if wanting to capture a good live mix. Thanks guys.
(5)
