• ICM UM-36 4-Channel Mini Mixing Console USB Recording Interface

    $104.99
    Back-order - Dispatched after mid May
    item is on it's way to us via sea shipment, due mid May
    Preorder Now and Save 10%

    The UM-36 is a compact, portable 4-Channel mixing desk with USB interface making suitable for recording, live performances, karaoke singing and conference rooms. With 1 mic preamp, stereo balanced jacks, and Hi-Z guitar input, it is ideal for musicians.

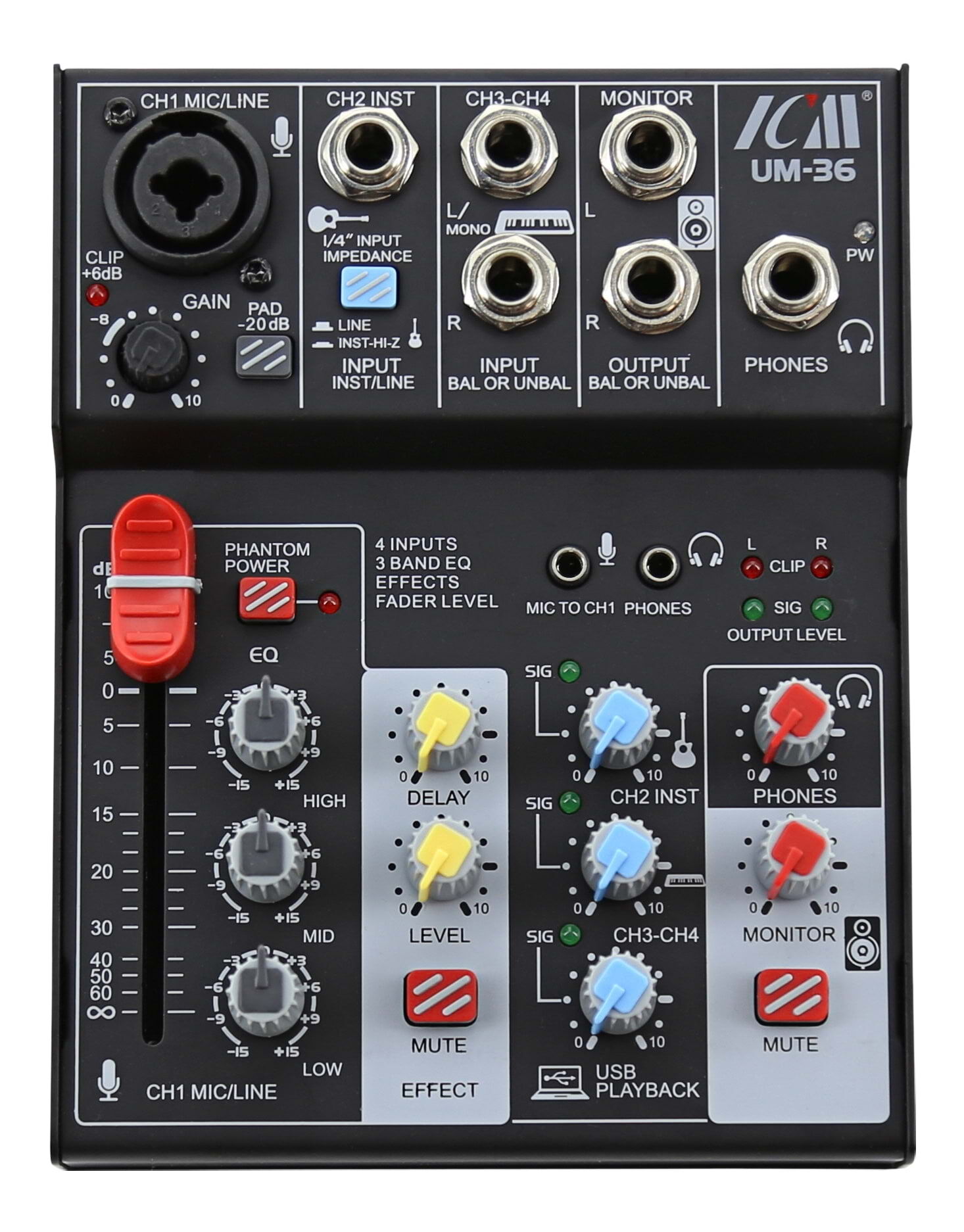

    UM-36 4-Channel Mixing Console USB Audio Interface
    The UM-36 is a compact, portable 4-Channel mixing desk with USB interface making suitable for recording, live performances, karaoke singing and conference rooms. With 1 mic preamp, stereo balanced jacks, and Hi-Z guitar input, it is ideal for musicians.

    Single Mic Pre with an Additional 3.5mm Input for Headset
    With the single combo input mic channel, the UM-36 is an ideal solution for the solo musician recording vocals. This  Channel 1 enables individual tracks in the DAW, ideal for applying post production changes such as compression, EQ and effects to each channel individually. The combo jack inputs allow 1/4" connections for guitars and other instruments. Normally a guitar is connected to a DI box, before being plugged into a XLR mic input. This ensure the correct signal type is received at the low-z mic input. There is a 3.5mm jack input with plug-in-power for the use of headset microphones, a very handy tool. The fader level control provides a 3 way EQ (80Hz, 2.5KHz, 12KHz, +/- 15dB), and digital echo effect with delay control, level control and mute switch.

    Channels 2-4
    Channel 2 is a dedicated Hi-Z line input for guitars and basses. It has level control and a LED signal indicator. These are also added to the Channel 3-4, which provides both a lbalanced or unbalanced 1/4" connection for keyboards, electronic instruments etc.

    Outputs
    There are balanced/unbalanced 6.35mm main left and right outputs with mute switch and LED signal and clip indicators. Also, there is a stereo 6.35mm jack headphone output and 3.5mm headset phones output. Finally, the USB stereo input and stereo output with USB playback control and LED signal indicator works for the DAW system on your computer.

    Features:

    • 4-channel digital mixing console with 1 XLR/TRS microphone or guitar combo input jack, 1 Hi-Z jack input, and 2 TRS mono/stereo line input jack.
    • Plug and play, with 24 bit USB 2.0 sound card, compatible with Windows XP+ and OS X systems. Also compatible with many audio editing and making software that supports Core Audio or WDM standard.
    • Built-in delay effect processor for your vocal or musical instruments.
    • The specially designed A-type microphone pre-amplifier has extremely low noise, low distortion, and a high dynamic range; built-in 48V phantom power for using with a condenser microphone.
    • Compact size design, portable and lightweight; and DC 5V low voltage power supply, can be powered by computer or 5V power bank via the including USB cable, very convenient to use.
    • Suitable for recording, online live performances, karaoke singing and conference room, a great assistant for guitarists, singers, music lovers and so on.

    Specifications:

    • Powered by USB (USB cable supplied)
    • LED power indicator
    • Dimensions (WxHxD) :120mm x 33mm x 157mm
    • Weight : 0.73Kg
    View PDF brochure for ICM UM-36 4-Channel Mini Mixing Console USB Recording Interface
