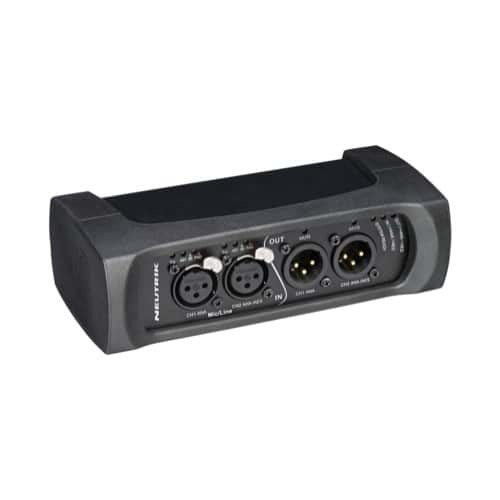

Neutrik NA2-IO-DPRO 2 In 2 Out XLR to Dante Interface

$1,367.99
$1,519.99
In Stock
SAVE 10%
Sale Ends:

This Neutrik solution is ideal for integrating analog mic/line level equipment to an existing Dante network. It supports audio resolutions up to 32-bit / 96 kHz. Ideal for concert venues, theatres, houses of worship and convention centres.

Neutrik NA2-IO-DPRO 2 In 2 Out XLR to Dante Interface
This Neutrik solution is ideal for integrating analog mic/line level equipment to an existing Dante network. It supports audio resolutions up to 32-bit / 96 kHz. Ideal for concert venues, theatres, houses of worship and convention centres.

Professional Solution

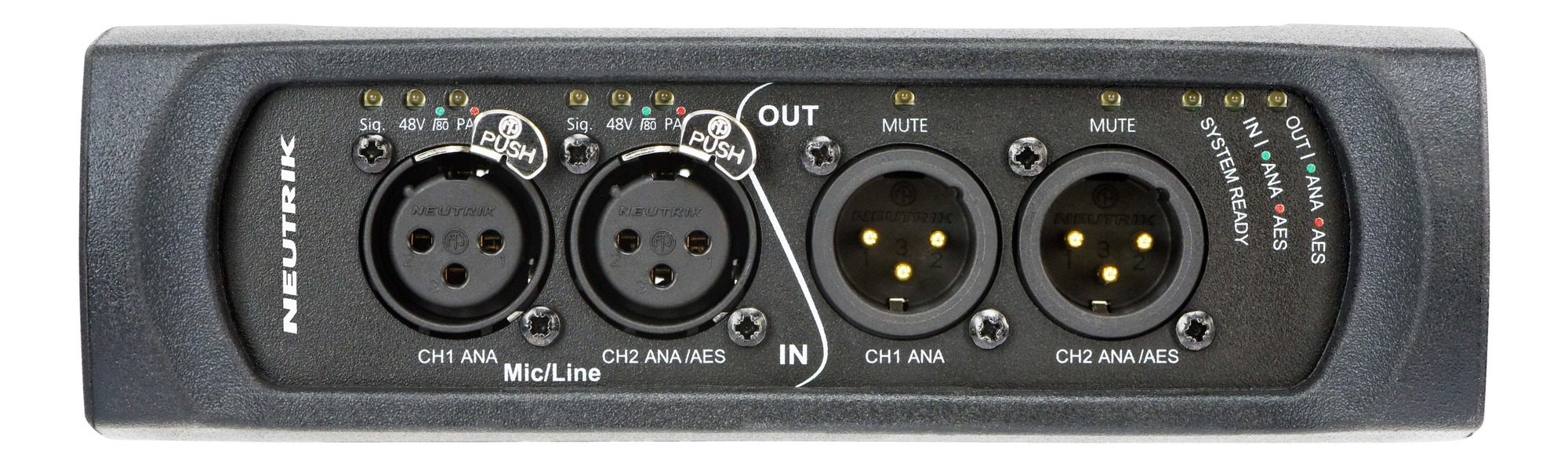

The NA2-IO-DPRO is a 2IN, 2OUT breakout box designed to connect legacy audio equipment with the Dante® network. It features high-quality microphone preamps and 2 Dante® ports for either redundant setup or daisy chaining. The mic preamps have selectable 48V phantom power, a -16 dB pad, an 80 Hz low-cut filter, and up to 67 dB of gain.Audio parameters are adjusted by the DPRO Controller app.

Rugged Solid Build
All connectors are lockable and, together with the removable rubber protection, offer a reliable solution for tough stage conditions. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, racks or on a truss.

Features:

  • Integrates two channels of I/O (analog mic/line level or digital AES/EBU) into your Dante network
  • Lockable audio and network connections
  • Ideal for interfacing equipment such as mixers, speaker/headphone monitoring systems, media players, audio interfaces, and direct outputs from instrument amplifiers with a Dante network
  • Feed non Dante® ready amplifiers, speakers or mixing desks with signals from the Dante® network

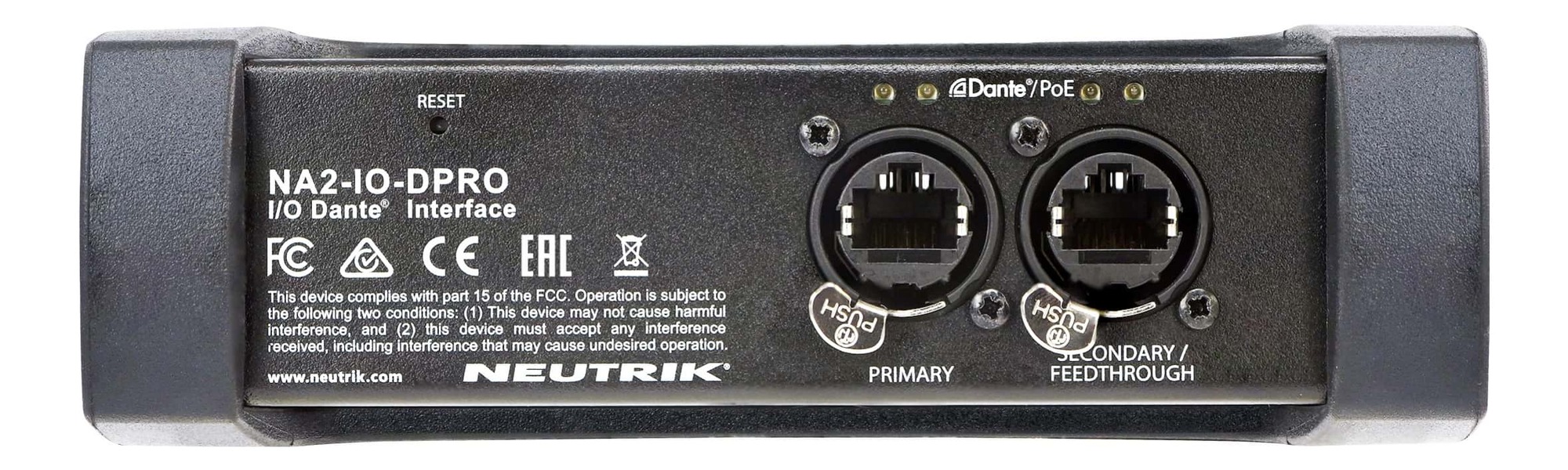

  • Primary and Secondary Dante® ports for redundant setup or daisy-chain configurations
  • Setting of all audio parameters via the DPRO controller software and QSYS plug-in
  • Different mounting options (rack, truss, floorbox, table mounting)
  • Requires a Power over Ethernet switch or a PoE injector (802.3 af/at/bt)



View PDF brochure for Neutrik NA2-IO-DPRO 2 In 2 Out XLR to Dante Interface
