  • DARE DSP68 6-in / 8-out Audio Processor with Wireless Audio Transmission

    $586.49
    $689.99
    In Stock
    SAVE 15%
    Sale Ends:

    The DARE DSP68 supports 6 XLR analog input and 8 XLR analog output with processing and routing functions. 24bit/48kHz sampling analog / digital conversions, 48bit dual core signal processing, with EQ, delay, compression, limiter, USB midi, PC software.

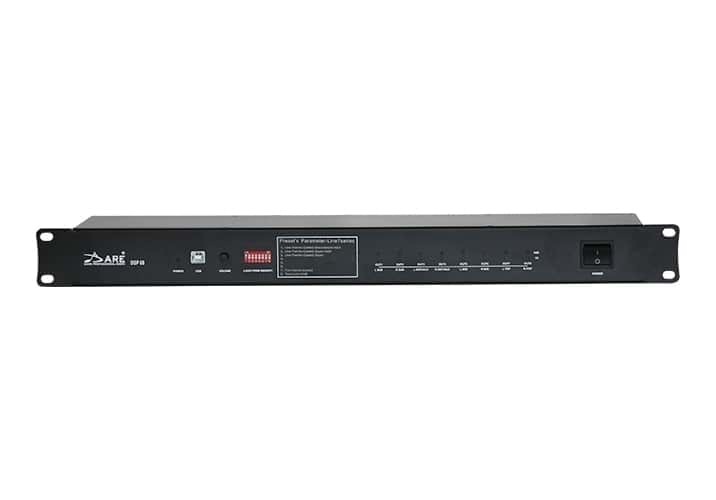

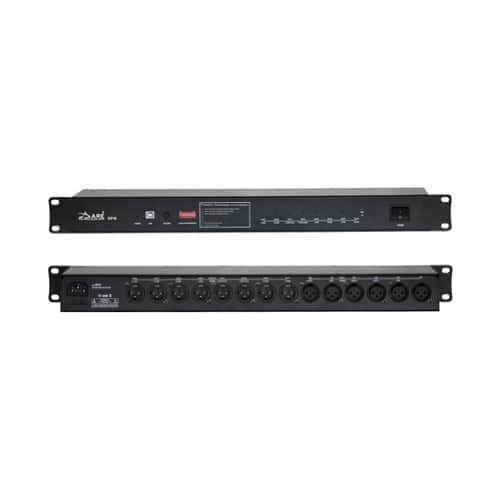

    DARE DSP68 6-in / 8-out Audio Processor with Wireless Audio Transmission
    The DARE DSP68 supports 6 XLR analog input and 8 XLR analog output with processing and routing functions. 24bit/48kHz sampling analog / digital conversions, 48bit dual core signal processing, with EQ, delay, compression, limiter, USB midi, PC software.

    Many Features
    Through the DARE DSP68's internal architecture, any channels of 6 input can be selected for mixing, and 8 DIP switches that can preset fast without connecting to a computer for debugging. Built in DSP signal processing (gain, EQ, compressor, and delay), and quality noise suppression. Also features rrossover, 8 independent parameter storage, security locks, and five user management authority.

    Features:

    • 6 XLR analog signal input, 8 XLR analog signal output
    • Delay unit and password lock
    • 48-bit Dual Core High Speed DSP, ADC & DAC 24bit/48kHz sampling
    • Noise suppression, Signal source selection; Input mixing
    • Crossover, EQ, delay, phase, gain, compressor limiter, 8 independent parameter storage, security lock, five user management authority
    • PC application software, USB MIDI interface protocol; Limit power amps output power
    • Power Supply Voltage: DC 120 ~ 240V, AC 100 ~ 240V

    Specifications:

    ADC/DAC

    Sample Rate/quantization 24kHz/96bit separate ADC/DAC
    Input/Output method Differential
    Dynamic Range TYP>=112dB​
    Frequency response TYP<0.5dB
    Digital Signal Processor
    Performance 48bit Dual-core float
    Analog Input
    Electric Connection

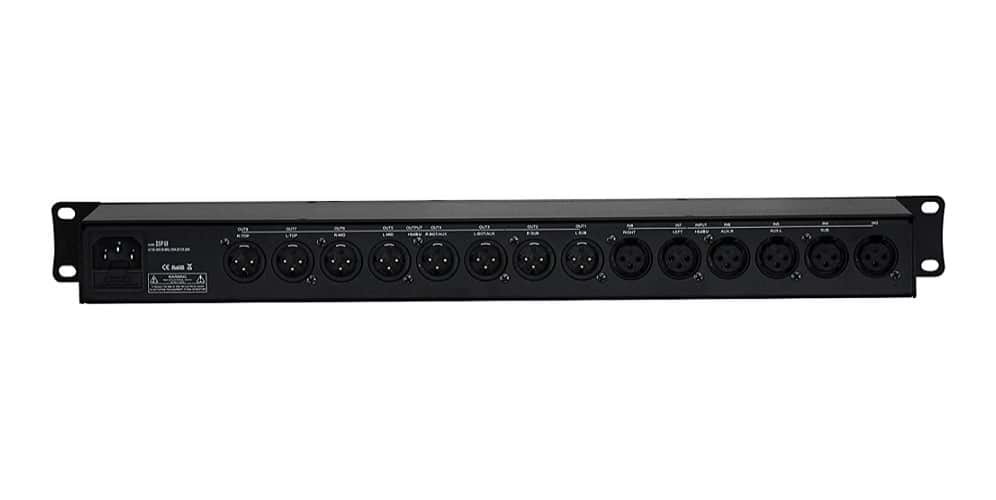

    6XLR connectors at rear panel
    Input impedance 20kΩ
    Max Output level
    +8dBu(2volts)
    Analog Output
    Electric Connection
    8XLR connectors at rear panel
    Dynamic range 112dB
    THD -90dB(0.003%)@1KHz,+12dBV
    Frequency Response +0/-0.5dB,20Hz to 20kHz
    Crosstalk -90dB,20Hz to 20kHz
    Output impedance
    50Ω
    Max output level +8dBu (2volts)
    User Interface
    PC control interface With PC software
    Power consumption <15W
    Weight 3KG
    Dimension 48.2 x 16.5 x 4.4(cm)
    Software Download Dare Website Link - Software
    View PDF brochure for DARE DSP68 6-in / 8-out Audio Processor with Wireless Audio Transmission
